OEX MXS333 Starter Motor 12V 8Th CW Mitsubishi Style
Click to open expanded view
OEX logo

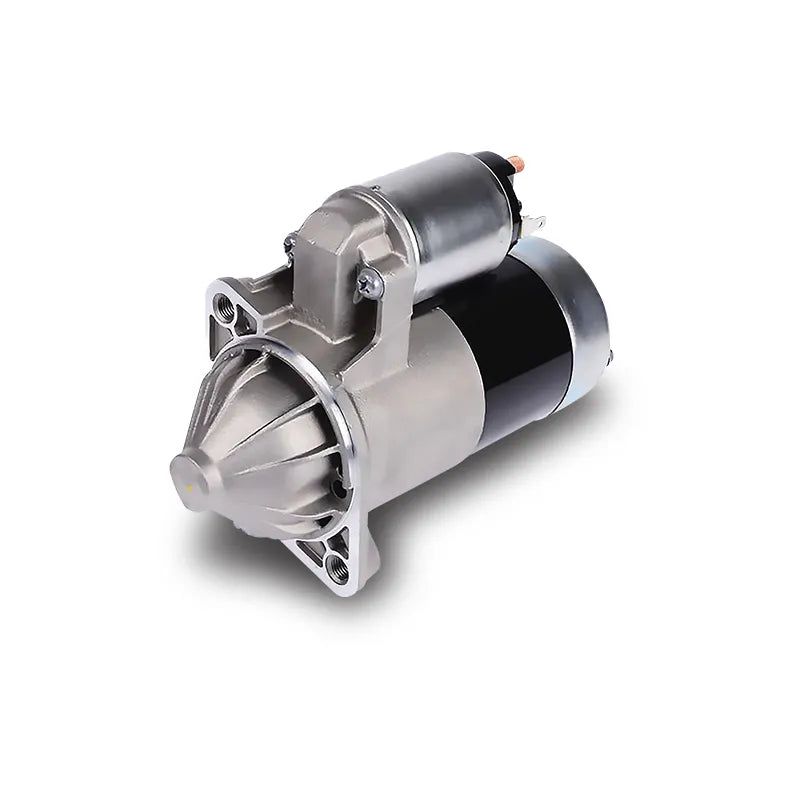

OEX MXS333 Starter Motor 12V 8Th CW Mitsubishi Style

SKU: MXS333
Price
$402
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX MXS333 Starter Motor 12V 8 Tooth CW Mitsubishi Style

The OEX MXS333 is a new 12V starter motor with an 8 tooth clockwise rotation pinion, Mitsubishi style, designed for automatic transmission applications, delivering 1.2kW power output with a 2 hole dry clutch mount.

Product Overview

The MXS333 is a new 12V Mitsubishi style starter motor from OEX, featuring an 8 tooth clockwise rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 1.2kW of power, the MXS333 is built to a 77mm flange diameter with 105mm mounting centres and an overall length of 210mm.

This unit is designed for automatic transmission applications. For manual transmission applications, use the MXS322 instead. Always check the pinion at rest measurement before ordering to confirm correct fitment.

Features & Benefits

1.2kW Power Rating: The 1.2kW power rating provides reliable cranking performance suited to the applications this starter is designed for.

8 Tooth Pinion, Clockwise Rotation: The 8 tooth pinion with clockwise rotation must match the application exactly for correct fitment.

Designed for Automatic Transmission: This unit is specified for automatic transmission applications; for manual transmission, use the MXS322 instead.

Mitsubishi Style Design: Built to Mitsubishi style specifications for compatible fitment across applications originally equipped with a matching Mitsubishi unit.

2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. MXS333
Brand OEX
Type Starter Motor
Voltage 12V
Power Rating 1.2kW
Number of Teeth 8
Rotation CW (Clockwise)
Suits Unit Make Mitsubishi
Transmission Automatic
Flange Diameter 77mm
Mount Centres A 105mm
Mount Hole Diameter M10x1.25
Overall Length 210mm
Pinion at Rest 10mm
Pinion Diameter 28mm
Starter Mount Type 2 Hole
Wet / Dry Clutch Dry
New / Reman. New
Weight 3.2kg

Compatible With

The MXS333 is a Mitsubishi style 8 tooth starter motor for automatic transmission applications. For manual transmission, use the MXS322 instead. Confirm your original starter's pinion at rest measurement matches before ordering.

Frequently Asked Questions

Is the MXS333 for automatic or manual transmission?

The MXS333 is designed for automatic transmission applications. For manual transmission, use the MXS322.

What should I check before ordering the MXS333?

Check the pinion at rest measurement against your original starter to confirm correct fitment.

What is the power rating of the MXS333?

The MXS333 has a 1.2kW power rating.

How many teeth does the MXS333 pinion have?

The MXS333 has an 8 tooth pinion with clockwise rotation.

Is the MXS333 new or reconditioned?

The MXS333 is supplied new.
