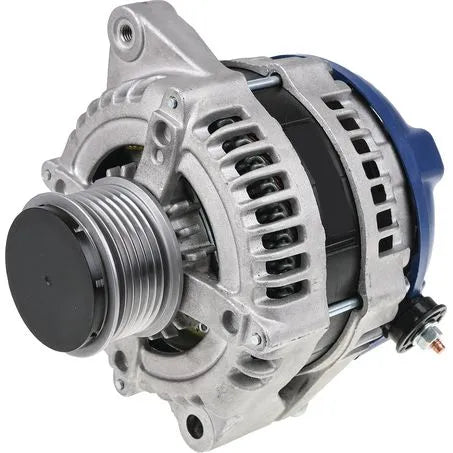

OEX DXA552M Alternator 12V 130A D/Style RPL DXA552U
Click to open expanded view
OEX logo

OEX DXA552M Alternator 12V 130A D/Style RPL DXA552U

SKU: DXA552M
5.0 (1)
Price
$423
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX 12V 130A Alternator Denso Style, Single Leg Mount, Genuine Regulator, 7-Groove Pulley, CW Rotation, New Unit. 3-Year Passenger / 1-Year Commercial Warranty.

Product Overview

The OEX DXA552M is a new 12V 130A alternator in the Denso style, featuring a genuine regulator specification distinct from the standard internal regulator units in this session. The DXA552M uses a single leg mount (vs twin leg on the other units in this session), CW rotation, 58mm pulley OD, 165mm CTC, M8x1.25 adjusting hole, 58mm mount leg thickness, and IR115 pin code.

This unit replaces the DXA552U. Backed by a 3-year warranty for passenger vehicle applications and 1-year for commercial use.

Key Specifications

  • Voltage: 12V
  • Output: 130A
  • Style: Denso
  • Regulator: Internal Genuine Regulator
  • Mount type: Single leg
  • Rotation: CW
  • Pulley: 7-groove, 58mm OD
  • Mount centre-to-centre: 165mm
  • Mount leg thickness: 58mm
  • Adjusting hole: M8x1.25
  • Pin code: IR115
  • Replaces: DXA552U
  • Condition: New
  • Weight: 6.5kg
  • Warranty: 3 years (passenger) / 1 year (commercial)
  • Brand: OEX
  • SKU: DXA552M

Features & Benefits

  • Genuine regulator: Specified with a genuine regulator: distinct from standard internal regulator units
  • 130A output on single leg mount: High-output unit in a single leg configuration different from the DXA557 (130A twin leg)
  • New unit not remanufactured: Brand new construction
  • 3-year passenger / 1-year commercial warranty: Category-specific warranty
  • CW rotation confirmed: Clockwise rotation confirm against vehicle requirement
  • Replaces DXA552U: Direct replacement for the DXA552U

Technical Specs

Specification Detail
SKU DXA552M
Brand OEX
Voltage 12V
Output 130A
Style Denso
Regulator Internal Genuine Regulator
Mount Single Leg
Rotation CW
Pulley Section 7-Groove
Pulley OD 58mm
Mount CTC 165mm
Mount Leg Thickness 58mm
Adjusting Hole M8x1.25
Pin Code IR115
Replaces DXA552U
Condition New
Weight 6.5kg
Warranty 3yr Passenger / 1yr Commercial

Frequently Asked Questions

Is this a new or remanufactured unit?

New the DXA552M is a brand new unit, not remanufactured or rebuilt.

What does "genuine regulator" mean?

The DXA552M is specified with a genuine regulator as opposed to a standard aftermarket internal regulator used in other units in the OEX Denso range. This is noted in the supplier specification.

What unit does this replace?

The DXA552M replaces the DXA552U.

Do I need to upgrade my battery cable when fitting this unit?

If upgrading from an 85A alternator, yes it is recommended to upgrade the battery cable and fuse between the alternator and battery to handle the higher 130A output.
