Nakamichi NA9TOYOTAFJ20112016 9" Wireless CarPlay Android Auto Toyota FJ Cruiser 2011-2016 Head Unit

Transform your iconic Toyota FJ Cruiser with wireless smartphone integration and Android 13 capability.

Product Overview

The Nakamichi NA9TOYOTAFJ20112016 transforms your Toyota FJ Cruiser's factory infotainment into a comprehensive Android 13 multimedia system with wireless Apple CarPlay and Android Auto integration. This vehicle-specific 9-inch IPS touchscreen head unit is engineered exclusively for Toyota FJ Cruiser models from 2011-2016, replacing the factory display with a plug-and-play solution that includes the matching fascia panel for seamless dashboard integration. Running Android 13 (NK 13.0) with 4GB RAM and 64GB internal storage, the system delivers smooth performance across navigation, media playback, and app multitasking while providing ample space for offline maps, music libraries, and Android apps from the Google Play Store. Beyond smartphone mirroring, the system includes built-in GPS with preloaded navigation data, WiFi connectivity, comprehensive AM/FM radio with RDS supporting 18 FM and 12 AM presets, and Bluetooth 5.0 for hands-free calling and wireless audio streaming. The 4×50W amplifier drives factory FJ Cruiser speakers or upgraded components, while 4V pre-outputs provide clean signal to external amplifiers for premium audio builds. Factory steering wheel controls are retained via CAN bus integration, maintaining convenient thumb access to controls during off-road adventures, beach runs, and outback exploration where the distinctive FJ Cruiser excels.

Key Specifications

• 9-inch IPS touchscreen display with 1280×720 resolution and 500nit brightness
• Android 13 operating system (NK 13.0)
• 4GB RAM with 64GB internal storage
• Wireless Apple CarPlay and Android Auto (wired for some Android devices)
• Built-in GPS with preloaded navigation data, updateable via Google Play Store
• WiFi connectivity for internet access and app functionality
• Bluetooth 5.0+EDR (2.4GHz, 5m range)
• AM/FM radio tuner: FM 87.5-108.0MHz, AM 522-1620kHz with 18 FM/12 AM presets
• 4×50W maximum amplifier output to 4-8Ω speakers
• 4V/10kΩ pre-outputs with ≤600Ω impedance for external amplifiers
• Reversing camera input and front camera/auxiliary video input
• Dual USB interfaces: 4-pin for PhoneLink, 6-pin for media playback
• Factory steering wheel control compatibility via CAN bus integration
• External microphone included for enhanced hands-free clarity
• Video format support: H264, MP4, AVI, MKV, FLV
• Audio format support: MP3, APE, AAC, FLAC
• 10.5-16V operating voltage range (14.4V nominal)

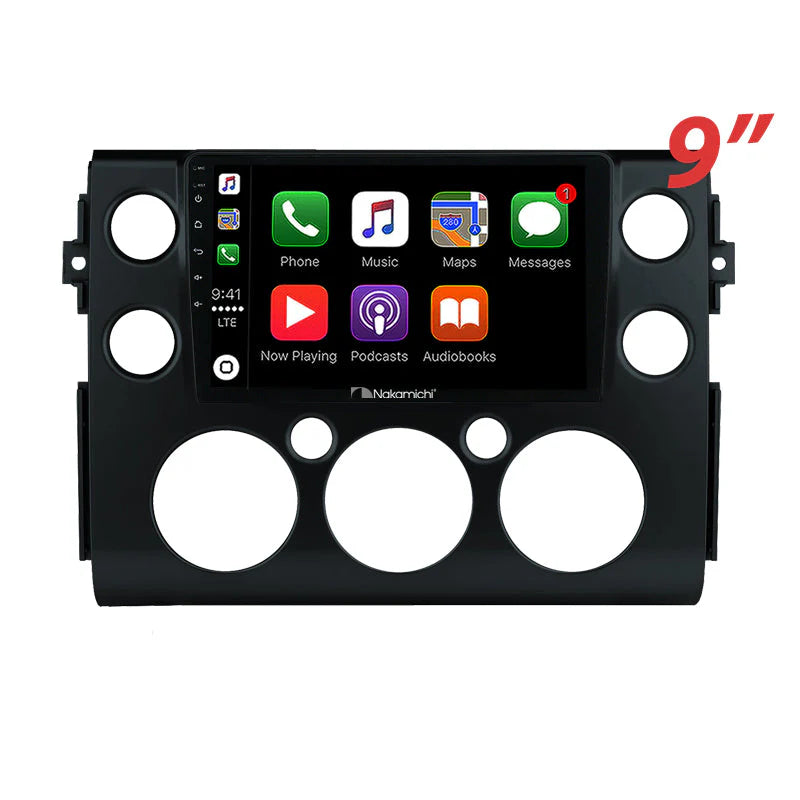

• Includes FJ Cruiser-specific fascia panel for 2011-2016 models
• Compatible exclusively with Toyota FJ Cruiser 2011-2016

Features & Benefits

FJ Cruiser-Specific Engineering – Designed exclusively for Toyota FJ Cruiser models from 2011-2016 with included fascia panel that matches your distinctive factory dash perfectly. Plug-and-play harnesses connect to existing wiring without cutting or splicing, maintaining the reliability Toyota engineered into this iconic retro-styled 4WD platform.

Wireless CarPlay Freedom – Connect your iPhone wirelessly and access Apple Maps, Spotify, Messages, and Siri through the 9-inch display without cable clutter. The system remembers your device and connects automatically when you start your FJ Cruiser, keeping your charging port available for other devices during beach runs, trail adventures, or weekend touring.

Android Auto Convenience – Pair compatible Android phones wirelessly (some models require wired connection) to mirror Google Maps, YouTube Music, WhatsApp, and Google Assistant on the touchscreen. Voice commands handle navigation and messaging while your hands remain on the wheel navigating sand dunes, rocky trails, and challenging terrain where FJ Cruisers thrive.

Latest Android 13 System – The upgraded NK 13.0 operating system provides enhanced security protocols, improved app compatibility, and refined performance over previous Android versions. Access Google Play Store to download navigation apps, weather radar tools, and offline mapping solutions while the system manages updates automatically over WiFi.

Expanded 64GB Storage – Double the internal storage of earlier models accommodates extensive offline map data for remote 4WD tracks and beach access routes, large music libraries with lossless audio files, multiple navigation apps for redundancy, and various Android applications essential for off-road exploration where FJ Cruisers demonstrate their capability.

Built-In GPS Navigation – Preloaded GPS data provides offline navigation capability when mobile coverage drops on remote 4WD tracks, coastal access routes, or outback trails where FJ Cruisers prove their go-anywhere capability. Download alternative navigation apps from Google Play Store, update maps over WiFi, or run multiple navigation solutions for comprehensive coverage.

High-Brightness IPS Display – The 1280×720 resolution IPS panel with 500nit brightness maintains excellent visibility in harsh Australian sunlight, essential for FJ Cruiser owners navigating exposed beach environments, desert trails, and coastal tracks. Wide viewing angles ensure passengers can see navigation details, and the capacitive touchscreen responds reliably even in dusty or sandy conditions.

Enhanced Pre-Output Signal – The 4V pre-output voltage delivers twice the signal strength of standard 2V units, reducing noise interference when driving external amplifiers. This clean signal improves sound quality in upgraded audio systems, ideal for FJ Cruiser enthusiasts building premium audio configurations to match the vehicle's adventurous spirit.

Factory Control Retention – CAN bus integration maintains functionality of factory Toyota FJ Cruiser steering wheel controls, letting you adjust volume, skip tracks, and manage calls using existing buttons. The system adapts to Toyota's control protocols without requiring additional adapters, preserving the integrated driving experience.

Complete Installation Package – Includes FJ Cruiser-specific fascia panel, main wiring harness, RCA cables, camera cable, speaker cables, external microphone, GPS antenna, USB cables, and user manual. Everything required for installation is provided, though professional fitting is recommended for optimal integration with factory systems.

Technical Specs

• Display: 9" IPS touchscreen, 1280×720 resolution, 500nit brightness
• System: Android 13 (NK 13.0)
• Memory: 4GB RAM, 64GB internal storage
• Smartphone Integration: Wireless Apple CarPlay, Android Auto (wireless/wired depending on device)
• GPS: Built-in with preloaded data, updateable via Google Play Store
• Connectivity: WiFi
• Bluetooth: Version 5.0+EDR, 2.4GHz frequency, 5m range
• Radio Tuner: FM 87.5-108.0MHz, AM 522-1620kHz, RDS support, 18 FM/12 AM presets
• Audio Output: 4 channels × 50W maximum, 4-8Ω speaker impedance
• Pre-Outputs: 4V/10kΩ, ≤600Ω impedance (front left/right, rear left/right, subwoofer)
• Video Inputs: Reversing camera, front camera/auxiliary
• USB Interfaces: 4-pin (PhoneLink), 6-pin (media playback)
• USB Charging: 5V±0.25V/1A
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Power: 14.4V nominal (10.5-16V operating range)
• CAN Bus: Factory steering wheel control integration
• Microphone: External microphone included
• Antenna: GPS antenna included
• Fascia: Toyota FJ Cruiser 2011-2016 specific panel included

Compatible Vehicle:

• Toyota FJ Cruiser: 2011-2016 (all trim levels)

Package Includes:

• 1× Nakamichi head unit with FJ Cruiser-specific fascia panel
• 1× Main wiring harness
• 1× RCA cable
• 1× Camera cable
• 1× Rear left/right speaker cable
• 1× External microphone
• 1× GPS antenna
• 1× User manual
• 2× USB cables

Frequently Asked Questions

Is this specifically designed for my FJ Cruiser?

Yes, this unit is engineered exclusively for Toyota FJ Cruiser models from 2011-2016. The included fascia panel and wiring harness are configured for FJ Cruiser-specific integration. Contact us with your exact FJ Cruiser year plus a photo of your current dash to confirm harness compatibility before purchase.

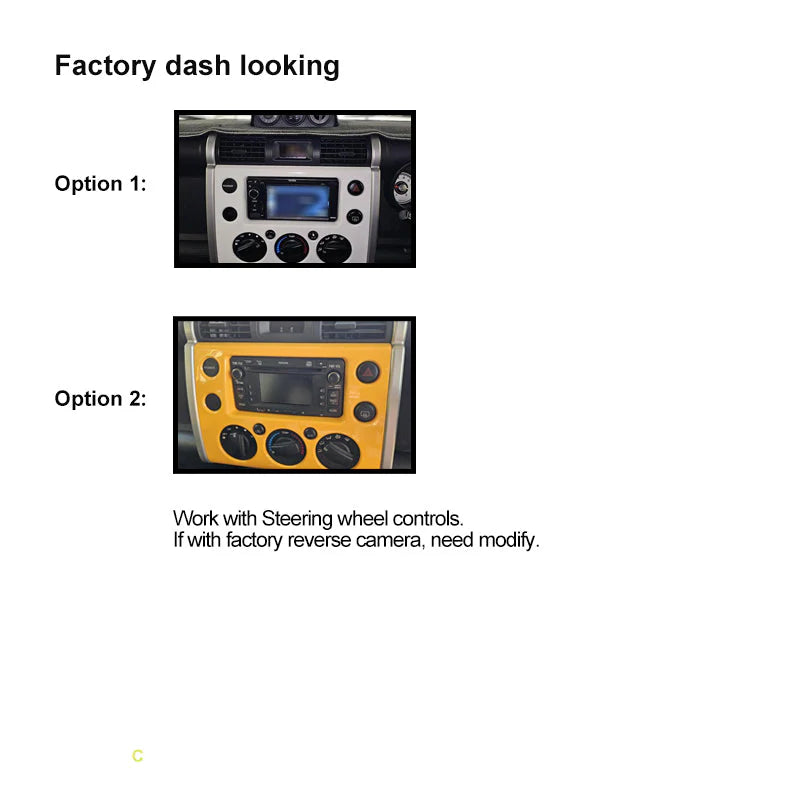

Does this work with my factory reversing camera?

Factory FJ Cruiser cameras may require modification for proper integration. Aftermarket reversing cameras connect directly via the included camera cable and work plug-and-play. Contact us with your vehicle details to determine the correct camera integration method for your specific FJ Cruiser configuration.

Is CarPlay and Android Auto wireless or wired?

Apple CarPlay is wireless for all iPhones. Android Auto is wireless for most modern Android devices, but some specific phone brands may require wired USB connection via the included 4-pin PhoneLink cable. Both connection methods are fully supported through the dual USB interface.

Can I install Android apps from the Play Store?

Yes, the full Android 13 system provides access to Google Play Store. The 64GB internal storage accommodates navigation apps, weather radar applications, offline mapping solutions, and most Android apps essential for off-road adventures. Download offline maps for remote 4WD tracks without relying on mobile data.

Will my steering wheel controls continue to work?

Yes, CAN bus integration maintains factory Toyota FJ Cruiser steering wheel control functionality. The system communicates directly with your vehicle's control protocols, allowing continued use of volume, track skip, and call management buttons without requiring additional adapters.

Compatible With / Goes Well With

• Toyota FJ Cruiser 2011-2016 factory steering wheel control systems
• Aftermarket reversing cameras with composite video output
• Factory FJ Cruiser camera integration (modification may be required)
• External amplifiers via 4V RCA pre-outputs
• Component speakers and coaxial speakers (4Ω to 8Ω)
• Subwoofer systems via dedicated pre-output
• GPS antenna extension cables for optimal signal placement
• Front-facing dash cameras via auxiliary video input
• Android Auto-compatible apps from Google Play Store
• Offline mapping applications for remote 4WD tracks
• Weather radar and safety applications for coastal driving
• Professional installation services for 4WD vehicle integration
