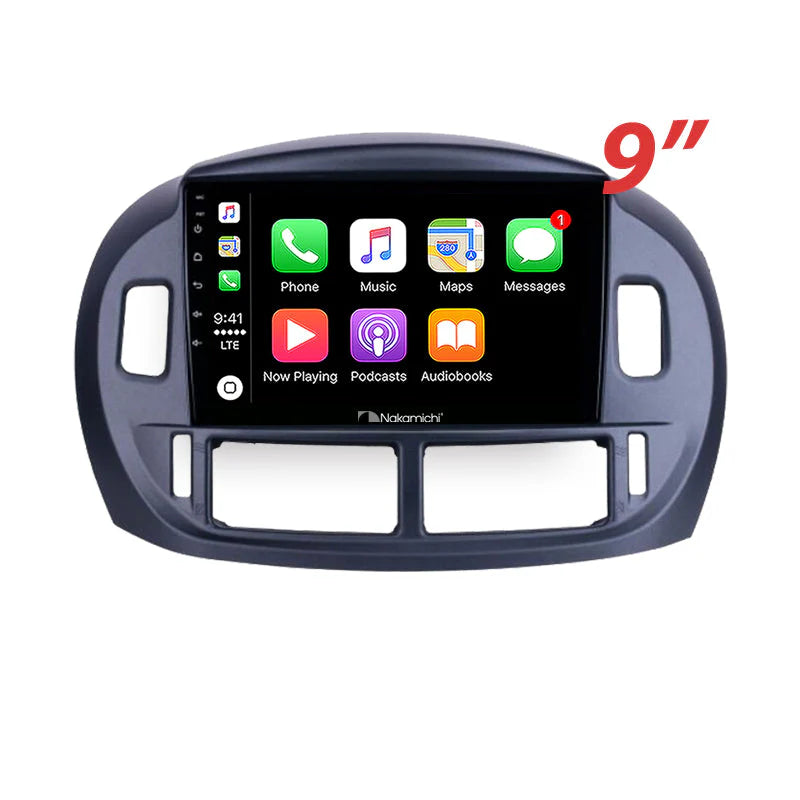

Nakamichi NA9TOYOTAESTIMATARAGO20012006 9" Wireless CarPlay Android Auto Toyota Estima Tarago 2001-2006 Head Unit

Transform your Toyota Estima/Tarago people mover with wireless smartphone integration and Android 13 capability.

Product Overview

The Nakamichi NA9TOYOTAESTIMATARAGO20012006 transforms your Toyota Estima/Tarago's factory infotainment into a comprehensive Android 13 multimedia system with wireless Apple CarPlay and Android Auto integration. This vehicle-specific 9-inch IPS touchscreen head unit is engineered exclusively for second-generation Toyota Estima (known as Tarago in Australia) models from 2001-2006, replacing the factory display with a plug-and-play solution that includes the matching fascia panel for seamless dashboard integration. Running Android 13 (NK 13.0) with 4GB RAM and 64GB internal storage, the system delivers smooth performance across navigation, media playback, and app multitasking while providing ample space for offline maps, music libraries, and Android apps from the Google Play Store. Beyond smartphone mirroring, the system includes built-in GPS with preloaded navigation data, WiFi connectivity, comprehensive AM/FM radio with RDS supporting 18 FM and 12 AM presets, and Bluetooth 5.0 for hands-free calling and wireless audio streaming. The 4×50W amplifier drives factory Estima/Tarago speakers or upgraded components, while 4V pre-outputs provide clean signal to external amplifiers. Factory steering wheel controls are retained via CAN bus integration, maintaining convenient thumb access to controls during family road trips, school runs, and multi-generational travel where the spacious Estima/Tarago excels.

Key Specifications

• 9-inch IPS touchscreen display with 1280×720 resolution and 500nit brightness
• Android 13 operating system (NK 13.0)
• 4GB RAM with 64GB internal storage
• Wireless Apple CarPlay and Android Auto (wired for some Android devices)
• Built-in GPS with preloaded navigation data, updateable via Google Play Store
• WiFi connectivity for internet access and app functionality
• Bluetooth 5.0+EDR (2.4GHz, 5m range)
• AM/FM radio tuner: FM 87.5-108.0MHz, AM 522-1620kHz with 18 FM/12 AM presets
• 4×50W maximum amplifier output to 4-8Ω speakers
• 4V/10kΩ pre-outputs with ≤600Ω impedance for external amplifiers
• Reversing camera input and front camera/auxiliary video input
• Dual USB interfaces: 4-pin for PhoneLink, 6-pin for media playback
• Factory steering wheel control compatibility via CAN bus integration
• External microphone included for enhanced hands-free clarity
• Video format support: H264, MP4, AVI, MKV, FLV
• Audio format support: MP3, APE, AAC, FLAC
• 10.5-16V operating voltage range (14.4V nominal)
• Includes Estima/Tarago-specific fascia panel for 2001-2006 models
• Compatible exclusively with Toyota Estima/Tarago 2001-2006 (second-generation)

Features & Benefits

Estima/Tarago-Specific Engineering – Designed exclusively for second-generation Toyota Estima/Tarago models from 2001-2006 with included fascia panel that matches your factory dash perfectly. Plug-and-play harnesses connect to existing wiring without cutting or splicing, maintaining the reliability Toyota engineered into this popular people mover platform that defined family transport in Australia.

Wireless CarPlay Freedom – Connect your iPhone wirelessly and access Apple Maps, Spotify, Messages, and Siri through the 9-inch display without cable clutter. The system remembers your device and connects automatically when you start your Estima/Tarago, keeping your charging port available for other devices during school runs, family road trips, or multi-generational travel.

Android Auto Convenience – Pair compatible Android phones wirelessly (some models require wired connection) to mirror Google Maps, YouTube Music, WhatsApp, and Google Assistant on the touchscreen. Voice commands handle navigation and messaging while your hands remain on the wheel navigating family commitments, weekend getaways, and daily transport duties.

Latest Android 13 System – The upgraded NK 13.0 operating system provides enhanced security protocols, improved app compatibility, and refined performance over previous Android versions. Access Google Play Store to download navigation apps, streaming services for passengers, and entertainment options while the system manages updates automatically over WiFi.

Expanded 64GB Storage – Double the internal storage of earlier models accommodates extensive offline map data for family holiday routes, large music libraries for keeping passengers entertained, multiple navigation apps for comprehensive coverage, and various Android applications essential for family travel where Estima/Tarago vehicles operate.

Built-In GPS Navigation – Preloaded GPS data provides offline navigation capability when mobile coverage drops on regional holiday routes or coastal roads where families travel. Download alternative navigation apps from Google Play Store, update maps over WiFi, or run multiple navigation solutions for comprehensive coverage across family destinations.

High-Brightness IPS Display – The 1280×720 resolution IPS panel with 500nit brightness maintains excellent visibility in direct Australian sunlight, essential for Estima/Tarago owners navigating sunny conditions during school pickups, family outings, and holiday travel. Wide viewing angles ensure front passengers can see navigation details, and the capacitive touchscreen responds intuitively.

Enhanced Pre-Output Signal – The 4V pre-output voltage delivers twice the signal strength of standard 2V units, reducing noise interference when driving external amplifiers. This clean signal improves sound quality in upgraded audio systems, ideal for Estima/Tarago owners building premium audio configurations for family entertainment during long journeys.

Factory Control Retention – CAN bus integration maintains functionality of factory Toyota Estima/Tarago steering wheel controls, letting you adjust volume, skip tracks, and manage calls using existing buttons. The system adapts to Toyota's control protocols without requiring additional adapters, preserving the convenient driving experience families expect.

Complete Installation Package – Includes Estima/Tarago-specific fascia panel, main wiring harness, RCA cables, camera cable, speaker cables, external microphone, GPS antenna, USB cables, and user manual. Everything required for installation is provided, though professional fitting is recommended for optimal integration with factory systems.

Technical Specs

• Display: 9" IPS touchscreen, 1280×720 resolution, 500nit brightness
• System: Android 13 (NK 13.0)
• Memory: 4GB RAM, 64GB internal storage
• Smartphone Integration: Wireless Apple CarPlay, Android Auto (wireless/wired depending on device)
• GPS: Built-in with preloaded data, updateable via Google Play Store
• Connectivity: WiFi
• Bluetooth: Version 5.0+EDR, 2.4GHz frequency, 5m range
• Radio Tuner: FM 87.5-108.0MHz, AM 522-1620kHz, RDS support, 18 FM/12 AM presets
• Audio Output: 4 channels × 50W maximum, 4-8Ω speaker impedance
• Pre-Outputs: 4V/10kΩ, ≤600Ω impedance (front left/right, rear left/right, subwoofer)
• Video Inputs: Reversing camera, front camera/auxiliary
• USB Interfaces: 4-pin (PhoneLink), 6-pin (media playback)
• USB Charging: 5V±0.25V/1A
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Power: 14.4V nominal (10.5-16V operating range)
• CAN Bus: Factory steering wheel control integration
• Microphone: External microphone included
• Antenna: GPS antenna included
• Fascia: Toyota Estima/Tarago 2001-2006 specific panel included

Compatible Vehicle:

• Toyota Estima: 2001-2006 (second-generation, known as Tarago in Australia)
• Toyota Tarago: 2001-2006 (Australian market name for Estima)

Package Includes:

• 1× Nakamichi head unit with Estima/Tarago-specific fascia panel
• 1× Main wiring harness
• 1× RCA cable
• 1× Camera cable
• 1× Rear left/right speaker cable
• 1× External microphone
• 1× GPS antenna
• 1× User manual
• 2× USB cables

Frequently Asked Questions

Is this compatible with both Estima and Tarago?

Yes, Estima and Tarago are the same vehicle with different market names. This unit fits second-generation models (2001-2006) sold as Estima internationally and Tarago in Australia. The included fascia panel and wiring harness work for both naming variants of this generation.

Does this work with my factory reversing camera?

Factory Toyota Estima/Tarago cameras require professional installation to hardwire connections properly. Aftermarket reversing cameras connect directly via the included camera cable and work plug-and-play. Professional installation is strongly recommended for factory camera retention to ensure reliable operation during parking maneuvers with this large people mover.

Is CarPlay and Android Auto wireless or wired?

Apple CarPlay is wireless for all iPhones. Android Auto is wireless for most modern Android devices, but some specific phone brands may require wired USB connection via the included 4-pin PhoneLink cable. Both connection methods are fully supported through the dual USB interface.

Can I install Android apps from the Play Store?

Yes, the full Android 13 system provides access to Google Play Store. The 64GB internal storage accommodates navigation apps, streaming services for passenger entertainment, video players, and most Android applications. Download offline maps and entertainment apps for family travel.

Will my steering wheel controls continue to work?

Yes, CAN bus integration maintains factory Toyota Estima/Tarago steering wheel control functionality. The system communicates directly with your vehicle's control protocols, allowing continued use of volume, track skip, and call management buttons without requiring additional adapters.

Compatible With / Goes Well With

• Toyota Estima/Tarago 2001-2006 factory steering wheel control systems
• Aftermarket reversing cameras with composite video output
• Factory Estima/Tarago camera hardwire integration (professional installation required)
• External amplifiers via 4V RCA pre-outputs
• Component speakers and coaxial speakers (4Ω to 8Ω)
• Subwoofer systems via dedicated pre-output
• GPS antenna extension cables for optimal signal placement
• Front-facing dash cameras via auxiliary video input
• Android Auto-compatible apps from Google Play Store
• Streaming services and entertainment apps for passengers
• WiFi-enabled navigation and family travel applications
• Professional installation services for people mover integration
