Nakamichi W9TOYOTACOROLLA20072011 - 9" Wireless Apple CarPlay & Android Auto Headunit

Transform your 2007-2011 Toyota Corolla with wireless smartphone integration and a premium 9-inch display.

Product Overview

The Nakamichi W9TOYOTACOROLLA20072011 brings modern connectivity to your Toyota Corolla (2007-2011) with wireless Apple CarPlay and Android Auto functionality. This vehicle-specific 9-inch multimedia receiver eliminates cable clutter while maintaining full integration with your factory steering wheel controls. The system features a bright 500-nit display with 1240×600 resolution, comprehensive audio outputs including dedicated subwoofer control, and support for multiple video inputs including factory reverse cameras (hardwiring required).

Engineered specifically for Corolla ZRE152R chassis (2007-2011 model years), this plug-and-play solution includes vehicle-matched fascia, primary wiring harness, and all necessary cables for seamless installation. The system supports dual USB connections for simultaneous CarPlay/Android Auto and media playback, while the Bluetooth 5.0 module ensures stable wireless connectivity. Radio functionality is retained with 18 FM and 12 AM presets, and the 4×50W amplifier drives factory or aftermarket speakers with 4V pre-amp outputs for external amplification.

Key Specifications

• Wireless Apple CarPlay and Android Auto (some Android devices require wired connection for Android Auto)

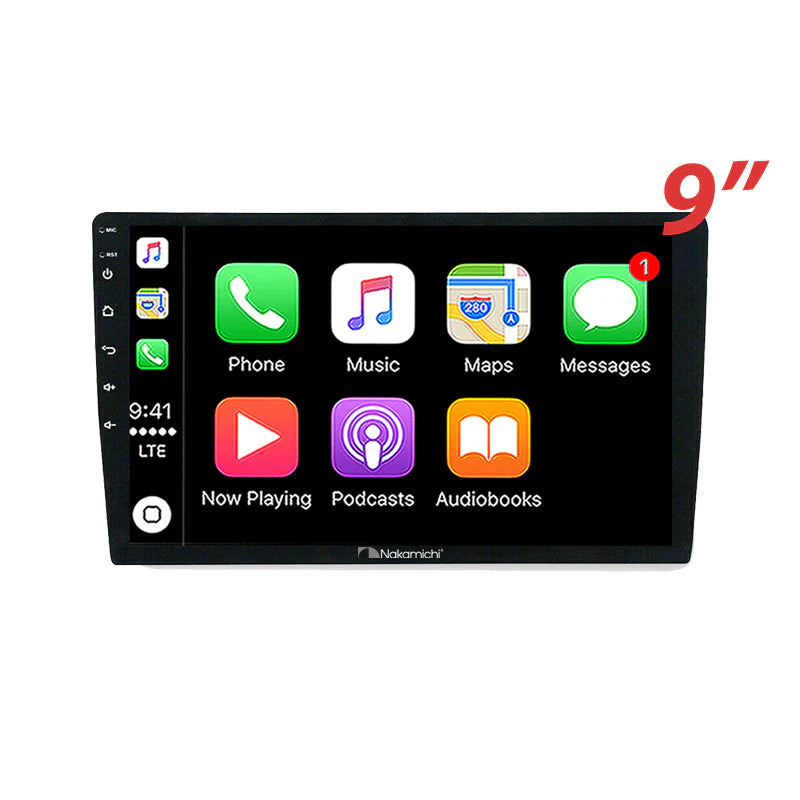

• 9-inch TFT display with 1240×600 resolution and 500-nit brightness
• Vehicle-specific fit for Toyota Corolla 2007-2011 (ZRE152R chassis)
• Bluetooth 5.0 with Enhanced Data Rate (EDR) for wireless connectivity
• Factory steering wheel control compatibility via CANBUS integration
• 4×50W maximum power output with 4V/10KΩ pre-amp outputs
• Dual USB interface: one for CarPlay/Android Auto, one for media files
• FM (87.5-108.0MHz) and AM (522-1620KHz) radio with 30 total presets
• Multiple video inputs including reverse camera and auxiliary video support
• Operating voltage range: 10.5-16V DC (14.4V nominal)
• Includes vehicle-matched fascia panel and complete wiring harness

Features & Benefits

Wireless smartphone integration eliminates cable clutter in your cabin while providing instant access to navigation, calls, messages, and streaming music through Apple CarPlay or Android Auto. Perfect for daily commutes where you're constantly connecting and disconnecting your device.

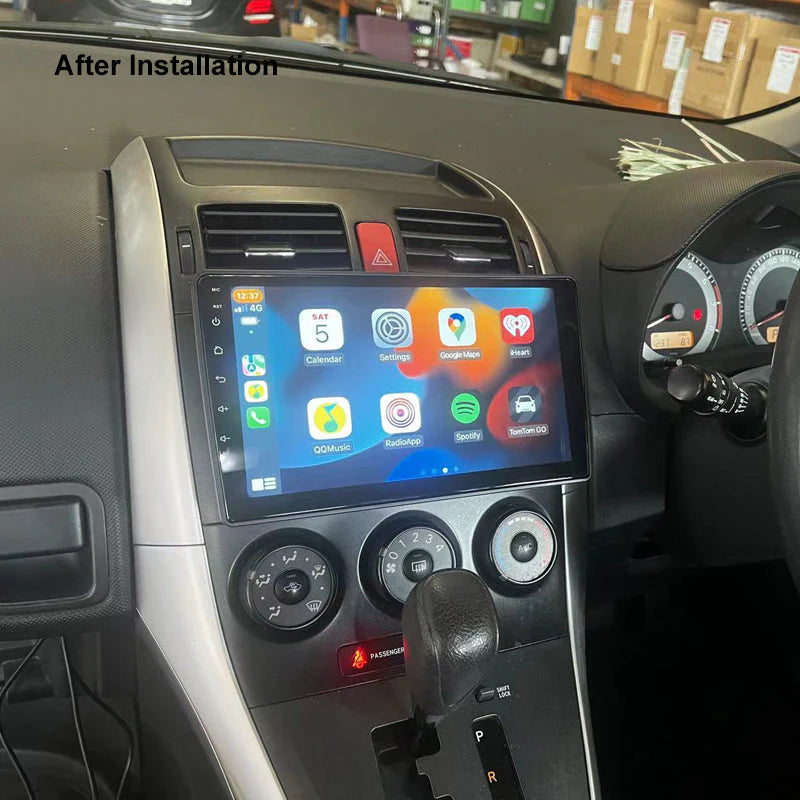

Vehicle-specific engineering ensures the 9-inch display fits your Corolla's dashboard perfectly with included colour-matched fascia and pre-configured wiring harness. No cutting or modifications required—the system integrates with your factory steering wheel controls for safe, eyes-on-road operation.

Comprehensive audio capabilities deliver 4×50W of power to your speakers with dedicated subwoofer output and 4V pre-amp connections for adding external amplifiers. Whether you're running factory speakers or planning a premium audio upgrade, the system scales with your needs.

Multiple video input support accommodates factory reverse cameras (hardwiring required), additional rear-seat entertainment screens, or auxiliary video sources. The dual video output capability lets you mirror content to headrest screens for passenger entertainment on longer trips.

Retained radio functionality gives you 18 FM and 12 AM presets for when you prefer traditional broadcast over streaming. Ideal for catching local traffic reports or keeping up with regional news during your commute.

Bluetooth 5.0 connectivity provides stable, modern wireless performance for hands-free calling and audio streaming even when CarPlay isn't active. The included microphone ensures clear call quality without echoing or dropouts.

Future-proof USB configuration uses separate ports for smartphone connectivity and media playback, so you can charge your device via CarPlay while simultaneously playing music from a USB drive—perfect for Australian road trips where streaming isn't always reliable.

Technical Specs

• Screen size: 9 inches diagonal
• Display resolution: 1240×600 pixels
• Contrast ratio: 500:1
• Brightness: 500 nit
• Operating voltage: 14.4V nominal (10.5-16V range)
• Maximum power output: 4×50W
• Pre-amp output voltage: 4V/10KΩ
• Pre-amp output impedance: ≤600Ω
• Speaker impedance compatibility: 4-8Ω
• Bluetooth version: 5.0 + EDR
• Bluetooth frequency: 2.4GHz
• Bluetooth range: up to 5m
• FM frequency range: 87.5-108.0MHz
• AM frequency range: 522-1620KHz
• FM presets: 18 stations
• AM presets: 12 stations
• USB charging output: 5V±0.25V/1A
• Video formats supported: H264, MP4, AVI, MKV, FLV
• Audio formats supported: MP3, APE, AAC, FLAC
• CANBUS integration: UART_RX/UART_TX connector
• Dimensions: 9-inch vehicle-specific format

Frequently Asked Questions

Does this unit work with my factory steering wheel controls?

Yes, the W9 includes CANBUS integration (UART_RX/UART_TX connector) that maintains full compatibility with your Corolla's factory steering wheel controls for volume, track skip, and source selection.

Can I use my existing reverse camera?

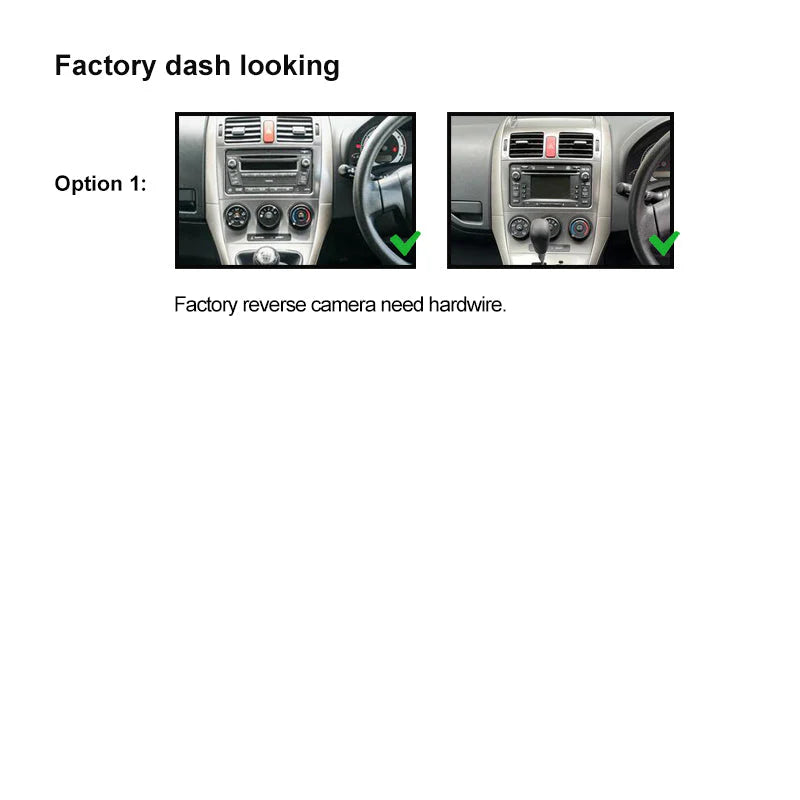

Factory reverse cameras require hardwiring to the R-CAM video input at the rear of the unit. The system supports standard composite video signals—if you're unsure about compatibility, send us your dash and camera photos before purchase.

Will my Android phone work wirelessly?

Most Android devices support wireless Android Auto, but some phone brands require wired USB connection for Android Auto functionality. Apple CarPlay works wirelessly with all compatible iPhones. Both systems can pair via Bluetooth 5.0 for calls and audio.

What comes in the box?

Package includes the Nakamichi head unit with vehicle-matched fascia, main wiring harness, RCA cable, microphone, two USB cables, and user manual. Different Corolla variants may receive slightly different accessory packages based on factory configuration.

Do I need professional installation?

While the system is designed for plug-and-play installation with included vehicle-specific harness and fascia, professional installation is recommended if you're hardwiring a factory reverse camera or if you're unfamiliar with automotive electronics. Steering wheel control setup requires CANBUS configuration.

Compatible With / Goes Well With

Confirmed vehicle compatibility:

• Toyota Corolla ZRE152R (2007-2011 Australian market)
• All Corolla variants within this generation (Ascent, Ascent Sport, Conquest, Levin)

Installation accessories (vehicle-specific harness included):

• Compatible with Nakamichi/Aerpro/CAC Toyota fascia kits
• Works with factory and aftermarket steering wheel control interfaces
• Supports factory amplifier retention harnesses (if equipped)

Common upgrades:

• Aftermarket speakers (6.5" front component or coaxial sets)
• Compact 4-channel or 5-channel amplifiers for enhanced audio
• Backup cameras with composite video output
• USB extension cables for glovebox or centre console mounting

Note: Factory reverse cameras require hardwiring to the R-CAM input. Before purchase, confirm your Corolla's year and send dashboard photos to ensure correct harness compatibility. Some model variations may require additional adapters.
