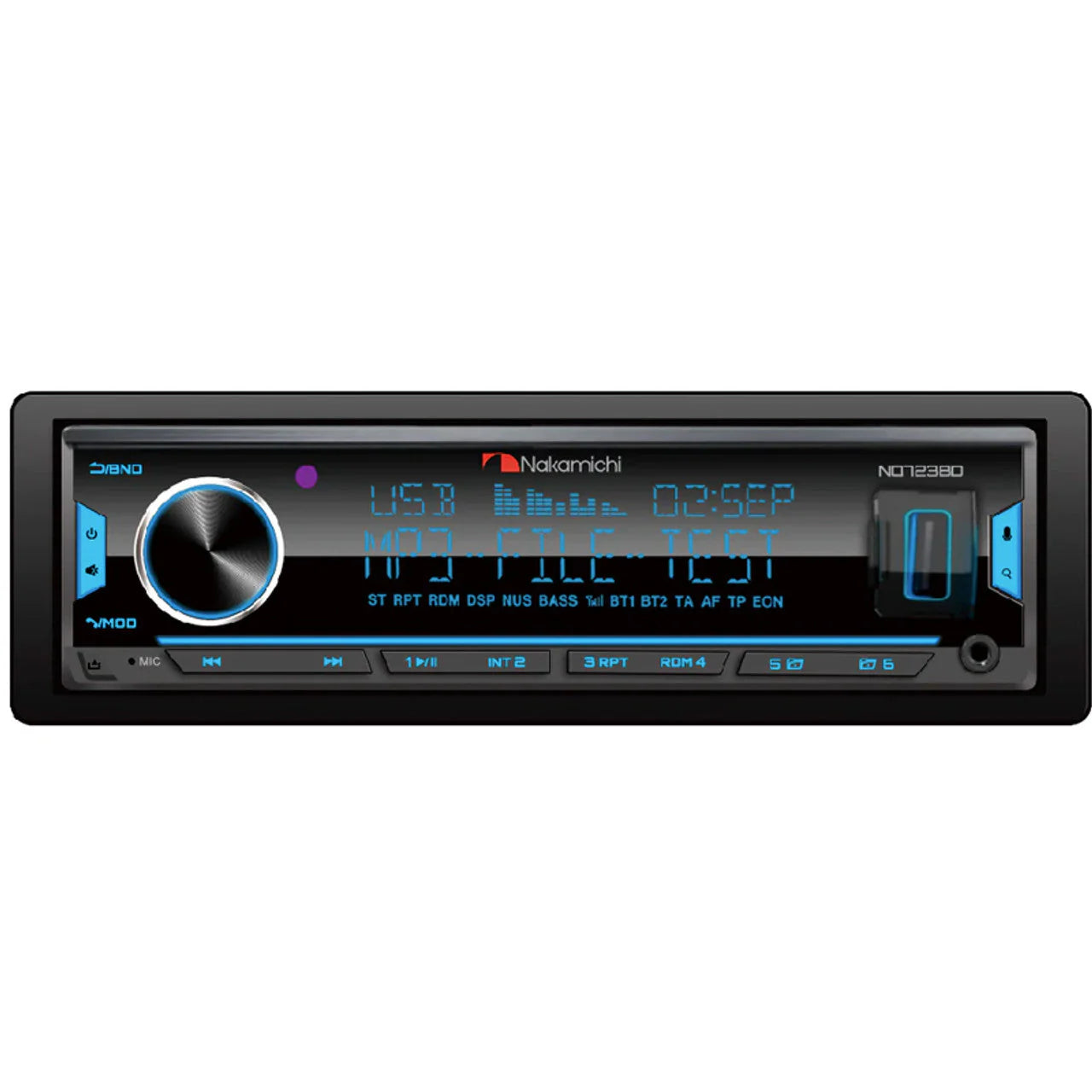

Nakamichi NQ723BD Single DIN Car Receiver with Bluetooth 5.0 and USB

Experience upgraded connectivity and proven audio quality in a compact single DIN format.

Product Overview

The Nakamichi NQ723BD is a single DIN car receiver designed for drivers seeking modern connectivity without sacrificing dash space. This unit combines Bluetooth 5.0 wireless technology with USB playback supporting multiple formats including FLAC, APE, and WAV for high-quality audio reproduction. With 50W output across four channels and 4V pre-amp outputs, the NQ723BD drives both factory speakers and aftermarket amplifier systems with headroom to spare. The compact 182×53×115mm chassis fits standard single DIN apertures across Australian and imported vehicles, while the 0.5kg weight ensures minimal dash stress during installation. Front USB connectivity delivers 2A charging output for faster device charging compared to older 1A standards, making this receiver suitable for navigation-heavy touring or daily commuting with demanding smartphone use.

Key Specifications

• 50W maximum power output per channel (4 channels total)
• Single DIN form factor: 182×53×115mm installation size
• Bluetooth 5.0 with 10m range and HFP1.6, A2DP, AVRCP, SPP profiles
• USB port supporting MP3, WMA, APE, FLAC, AAC, M4A, WAV formats
• Front USB charging: 5V/2A output for faster device charging
• 4V pre-amp outputs for aftermarket amplifier integration
• AM/FM tuner: 87.5-108.0MHz FM, 522-1710KHz AM
• 18 FM presets, 12 AM presets
• Speaker impedance compatibility: 4-8Ω
• Operating voltage: 14.4V (10.8V minimum allowable)
• Unit weight: 0.5kg

Features & Benefits

Bluetooth 5.0 Connectivity
Enhanced wireless range and stability over older Bluetooth versions. Stream music, take hands-free calls, and pair devices faster with improved connection reliability during highway travel or in electrically noisy environments.

Expanded Audio Format Support
Play lossless FLAC and APE files alongside standard MP3 and WMA formats directly from USB. The NQ723BD also handles AAC, M4A, and WAV files, giving you flexibility for iTunes libraries and high-resolution audio collections without format conversion.

4V Pre-Amp Outputs
Higher voltage pre-outs reduce noise and improve signal integrity when feeding aftermarket amplifiers. The 4V output provides cleaner signal transfer compared to standard 2V units, particularly beneficial in touring setups with long cable runs or multiple amplifier stages.

2A USB Charging
Double the charging current of older 1A units means your phone stays topped up even during heavy navigation and streaming use. Essential for extended off-road trips or daily commutes where device battery life matters.

Compact Single DIN Design
Fits older vehicles, commercial utes, and 4WDs with limited dash space. The 115mm depth accommodates most installations without interfering with HVAC ducting or steering column clearances common in Australian market vehicles.

30-Station Memory
Store 18 FM and 12 AM presets for quick access to your favourite stations. Useful for regional touring where station frequencies change across state lines or when switching between metro and rural broadcasts.

Technical Specs

Operating voltage: 14.4V (10.8V minimum allowable)
Maximum current draw: 10A
Installation size (W×H×D): 182×53×115mm
Net weight: 0.5kg
Fuse rating: 10A (small/mini blade type, red)
Maximum output power: 50W × 4 channels
Speaker impedance: 4-8Ω
Pre-output level: 4V
FM frequency range: 87.5-108.0MHz
AM frequency range: 522-1710KHz
FM presets: 18
AM presets: 12
USB standard: USB 1.1, USB 2.0 Full Speed
Supported audio formats: MP3, WMA, APE, FLAC, AAC, M4A, WAV
Front USB charging output: DC 5V 2A
Bluetooth version: 5.0
Bluetooth frequency range: 2.402-2.480GHz
Bluetooth communication range: Approximately 10m (line of sight)
Bluetooth profiles: HFP1.6, A2DP, AVRCP, SPP

Frequently Asked Questions

Does this fit my vehicle?
The NQ723BD requires a standard single DIN (182×53mm) dash opening. Measure your existing space or check vehicle-specific fascia compatibility before ordering. Most pre-2010 vehicles use single DIN as standard.

Can I connect an amplifier?
Yes, the 4V pre-amp outputs are designed for aftermarket amplifier integration. You'll need RCA cables and an amplifier turn-on lead (typically blue/white wire) for proper installation.

What's the advantage of Bluetooth 5.0?
Bluetooth 5.0 offers improved range, faster pairing, and better connection stability compared to older Bluetooth versions. This means fewer dropouts in electrically noisy vehicles and more reliable hands-free calling.

Does USB support fast charging?
The 2A output provides faster charging than older 1A units but isn't equivalent to dedicated fast-charging standards like Qualcomm Quick Charge. It will charge most smartphones adequately during typical driving periods.

What wiring harness do I need?
Most installations require a vehicle-specific ISO harness adapter matching your factory connector to the Nakamichi's standard ISO plug. Check your vehicle's year and model for correct harness selection.

Compatible With / Goes Well With

Standard single DIN (182mm × 53mm) dash openings in passenger vehicles, utes, and 4WDs
Aftermarket fascia kits for Holden, Ford, Toyota, Nissan, Mazda, and Mitsubishi models
ISO wiring harnesses with Nakamichi-compatible pinouts
4-8Ω coaxial or component speaker systems
Aftermarket amplifiers requiring 4V RCA input sensitivity
USB drives formatted in FAT32 for audio playback
Aftermarket reversing camera inputs (verify compatibility separately)

Weight

0.5kg (unit only, excluding packaging and accessories)
