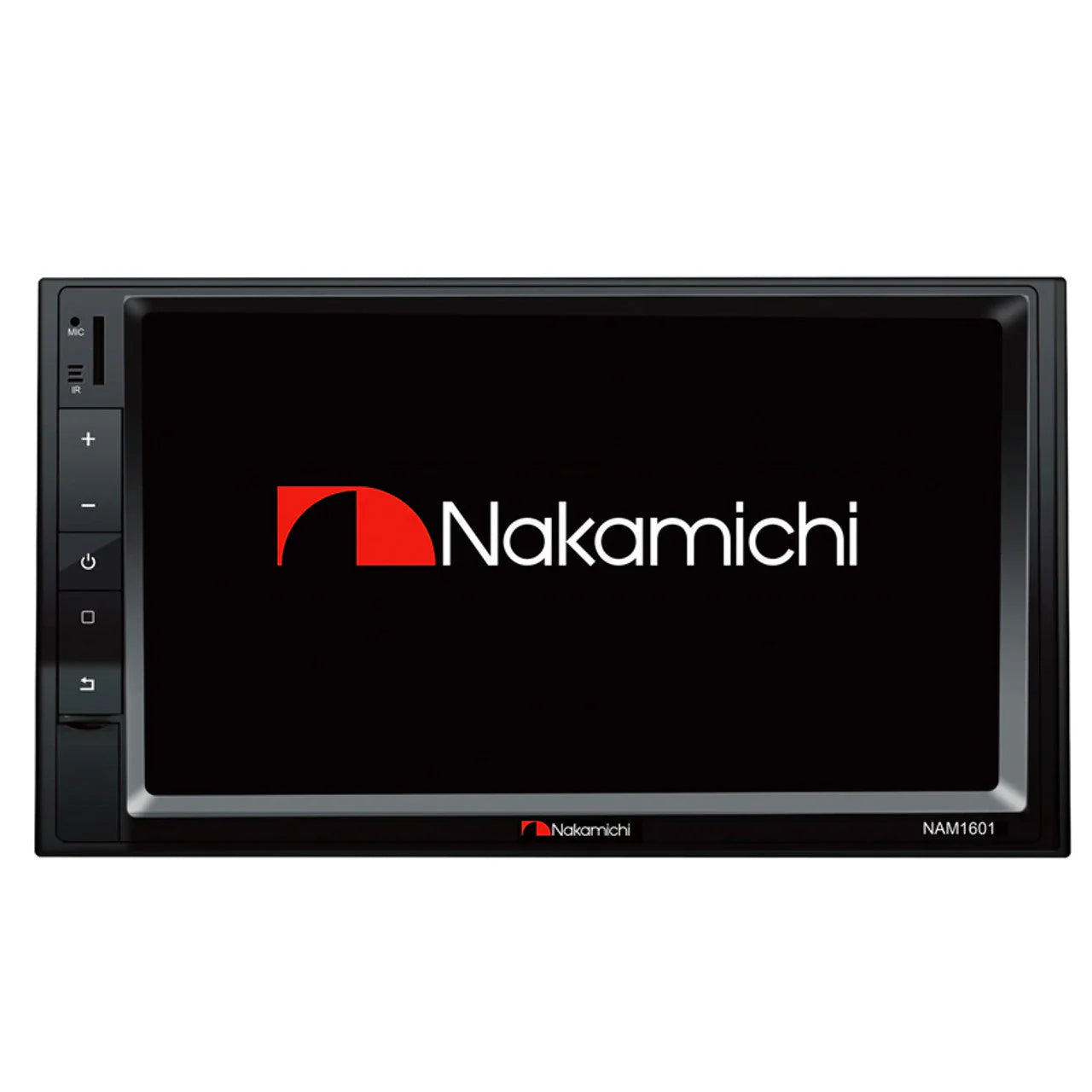

Nakamichi NAM1601 7-Inch Double DIN Multimedia Car Receiver with Bluetooth

Transform your daily drive with a premium multimedia experience that doesn't break the bank.

Product Overview

The Nakamichi NAM1601 delivers essential in-car entertainment through a crisp 7-inch touchscreen display housed in a standard double DIN chassis. This multimedia receiver combines wireless Bluetooth connectivity with versatile media playback, letting you stream audio, take hands-free calls, and control your music library through an intuitive touch interface. Compatible with vehicles featuring double DIN (180×100mm) dash openings, the NAM1601 supports multiple video and audio formats including MP4, AVI, MP3, and FLAC through its front-mounted USB port. The 4×50W amplifier output provides clean power to factory or aftermarket speakers, while the 800×480 resolution display ensures readable text and vibrant visuals even in bright Australian sunlight.

Key Specifications

• 7-inch TFT touchscreen display with 800×480 resolution and 400nit brightness
• Bluetooth 4.0+EDR wireless connectivity with 5m range
• 4×50W maximum amplifier output to 4-8Ω speakers
• USB interface with 5V/1A charging capability
• Double DIN installation size: 178×100mm faceplate / 170×96mm chassis
• NTSC/PAL/SECAM video compatibility with 1Vp-p/75Ω input
• 10.5-16V operating voltage range (14.4V nominal)
• Lightweight 500g construction for simplified installation

Features & Benefits

Wireless Connectivity Without Complexity – Bluetooth 4.0 pairs quickly with your smartphone for hands-free calling and wireless music streaming, keeping your eyes on the road and your hands on the wheel during urban commutes or highway cruising.

Universal Format Support – Play virtually any media file you've got stored. From compressed MP3s for your workout playlists to lossless FLAC files for critical listening, the NAM1601 handles H264, MP4, AVI, MKV, FLV video formats and MP3, APE, AAC, FLAC audio formats without fuss.

Bright Display for Aussie Conditions – The 400nit brightness rating and 400:1 contrast ratio deliver clear visibility even when parked in direct Perth sunlight or navigating Melbourne's midday glare, with text and graphics remaining sharp at all viewing angles.

Clean Power Delivery – Four channels of 50W maximum output drive your speaker system with authority, whether you're running factory speakers in a daily driver or upgraded components in a weekend warrior. The 4-8Ω impedance range accommodates most aftermarket and OEM speakers.

Standard Double DIN Fitment – Designed to slot into the most common dash opening size found in vehicles from the 2000s onwards, with straightforward installation using factory mounting brackets or universal kits where original DIN opening differs.

USB Charging Convenience – The front USB port doubles as a 5V/1A charging solution for your devices while simultaneously reading music and video files, eliminating the need for separate charging cables cluttering your cabin.

Technical Specs

• Display: 7" TFT LCD, 800×480 resolution, 400:1 contrast, 400nit brightness
• Bluetooth: Version 4.0+EDR, 2.4GHz frequency, 5m maximum range
• Audio Output: 4 channels × 50W maximum, 4-8Ω speaker impedance, ≤600Ω pre-output
• Video Input: NTSC/PAL/SECAM, 1Vp-p/75Ω impedance
• Supported Video: H264, MP4, AVI, MKV, FLV
• Supported Audio: MP3, APE, AAC, FLAC
• USB: Readable/chargeable, 5V±0.25V/1A output
• Power: 14.4V nominal (10.5-16V operating range)
• Dimensions: 178×100mm faceplate, 170×96mm chassis depth
• Weight: 500g
• Installation: Double DIN (standard 180×100mm opening)

Frequently Asked Questions

Will this fit my vehicle's dash?

The NAM1601 requires a standard double DIN opening (180×100mm). Most vehicles from 2000 onwards with factory double DIN units are compatible, though fascia adaptor kits may be required for specific makes and models.

Does it support Apple CarPlay or Android Auto?

No, the NAM1601 does not include integrated CarPlay or Android Auto. It offers Bluetooth connectivity for wireless audio streaming and hands-free calling, plus USB media playback.

Can I connect a reversing camera?

Yes, the unit accepts external video input at 1Vp-p/75Ω impedance and supports NTSC/PAL/SECAM formats, making it compatible with standard aftermarket reversing cameras when properly wired.

What installation accessories do I need?

You'll need a wiring harness to match your vehicle's connector, antenna adaptor if required, and potentially a fascia kit depending on your dash configuration. Steering wheel control adapters are separate purchases if desired.

Does the USB port charge my phone?

Yes, the front USB provides 5V/1A charging while simultaneously reading compatible media files. Charging speed is suitable for maintaining battery levels during use rather than rapid charging.

Compatible With / Goes Well With

• Standard aftermarket double DIN fascia kits and installation harnesses
• ISO wiring harnesses with primary and secondary connectors
• Aftermarket reversing cameras with composite video output
• Steering wheel control retention interfaces (vehicle-specific)
• External amplifiers via RCA pre-outputs
• Universal antenna adaptors for non-standard connections
• 4Ω to 8Ω aftermarket speakers and component systems

Weight

500g (unit only, excluding installation accessories)
