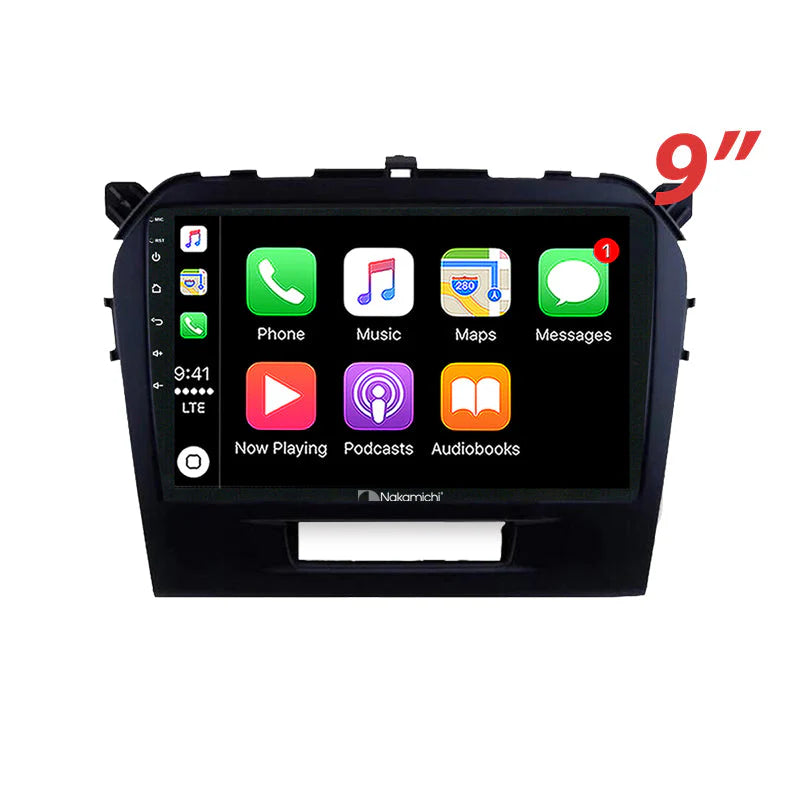

Nakamichi NA9SUZUKIVITARA2015ON - 9" Android Wireless CarPlay & GPS Navigation System

Transform your Suzuki Vitara with full Android capability, wireless smartphone integration, and built-in GPS navigation—factory camera compatible.

Product Overview

The Nakamichi NA9SUZUKIVITARA2015ON delivers complete Android functionality to your Suzuki Vitara (2015 onwards) with wireless CarPlay, Android Auto, and built-in GPS navigation. This vehicle-specific multimedia receiver runs a full NK 13.0 Android system with 4GB RAM and 64GB storage, enabling direct app downloads from Google Play Store, multiple navigation platforms, and extensive customization beyond standard phone-mirroring solutions.

The 9-inch IPS display provides 1280×720 resolution with 500-nit brightness for excellent visibility in Australian conditions, while the Vitara-specific design includes colour-matched fascia and pre-configured wiring harness for seamless dashboard integration. Unlike many aftermarket systems, this unit works directly with your factory reverse camera without additional hardwiring modifications—simply connect and go. Factory steering wheel controls are retained through CANBUS integration, maintaining safe, eyes-on-road operation.

The built-in GPS module comes preloaded with navigation data, with flexibility to update or install alternative mapping apps through the Android platform—ideal for 4WD enthusiasts who need offline maps for remote touring. Audio capabilities include 4×50W amplification with dedicated subwoofer output and 4V pre-amp connections for external amplifiers, while dual video inputs support both factory reverse camera and auxiliary front camera installations. The system maintains full AM/FM radio with 30 station presets and includes GPS antenna, microphone, and all necessary cables.

Key Specifications

• Full Android system (NK 13.0) with 4GB RAM and 64GB internal storage
• Wireless Apple CarPlay and Android Auto (some Android devices require wired connection)
• Built-in GPS navigation with preloaded maps and Google Play Store access
• 9-inch IPS touchscreen with 1280×720 resolution and 500-nit brightness
• Vehicle-specific fit for Suzuki Vitara 2015+ (LY series)
• Factory reverse camera compatible without hardwiring modifications
• Bluetooth 5.0 with Enhanced Data Rate (EDR) for wireless connectivity
• Factory steering wheel control compatibility via CANBUS integration
• 4×50W maximum power output with 4V/10KΩ pre-amp outputs
• Dual USB interface: 4-pin for smartphone, 6-pin for media files
• FM (87.5-108.0MHz) and AM (522-1620KHz) radio with 30 total presets
• Multiple video inputs: reverse camera and front auxiliary camera support
• Operating voltage range: 10.5-16V DC (14.4V nominal)

Features & Benefits

Full Android operating system provides unrestricted access to Google Play Store for downloading navigation apps like Sygic or Waze, streaming platforms, offline media players, and even OBD2 diagnostic tools. Unlike locked systems, you control what runs on your Vitara's screen—perfect for drivers who want maximum flexibility.

Factory reverse camera integration works directly with your Vitara's existing camera without hardwiring or voltage converters. The system automatically detects reverse gear engagement and switches to camera view, maintaining the factory-grade safety features you rely on for tight parking and off-road obstacles.

Built-in GPS with offline capability eliminates dependence on phone data during remote Australian travel. Preloaded maps work immediately, and you can download comprehensive offline navigation from Play Store—essential for Vitara owners who venture beyond mobile coverage on fire trails, beach tracks, or outback touring.

Wireless smartphone connectivity eliminates cable clutter while providing instant access to navigation, hands-free calling, messaging, and music streaming through Apple CarPlay or Android Auto. The system intelligently switches between native Android apps and phone mirroring based on your needs.

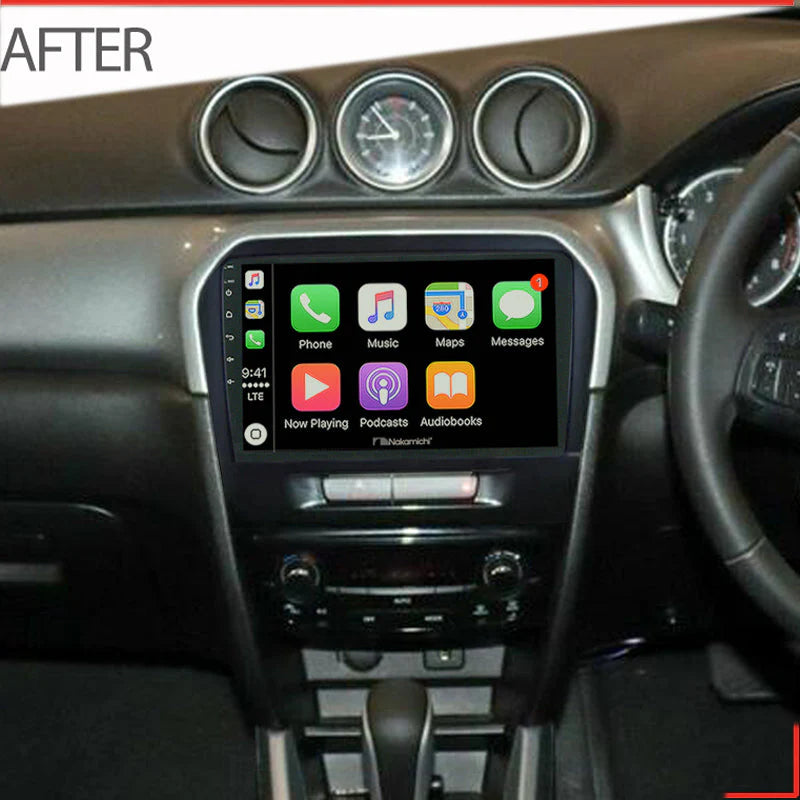

Vehicle-specific engineering ensures the 9-inch IPS display integrates perfectly into your Vitara's dashboard with included colour-matched fascia and factory-specification wiring harness. CANBUS integration maintains steering wheel controls for volume, track skip, and voice commands without aftermarket adapters or functionality loss.

Premium IPS display technology delivers superior viewing angles and colour accuracy compared to standard TFT screens, with 500-nit brightness that remains clearly visible in direct sunlight through your Vitara's panoramic windscreen. The 1280×720 resolution provides crisp text for navigation prompts and messaging.

Expandable storage and performance with 4GB RAM and 64GB internal storage allows you to store extensive offline music libraries, download high-resolution maps for entire regions, and run multiple apps simultaneously without lag—crucial for navigation while streaming music or running dash cam apps.

Comprehensive audio architecture provides 4×50W amplification for factory speakers plus dedicated subwoofer output and 4V pre-amp connections for adding external amplifiers. Whether maintaining stock audio or building a touring-grade sound system, the NA9 accommodates your upgrade path.

Dual video input support works with factory reverse camera plus an optional front-facing camera for bull bar installations—particularly valuable for Vitara owners who fit aftermarket protection and need visibility when navigating tight 4WD tracks or urban car parks with limited forward sight lines.

Technical Specs

• Screen size: 9 inches diagonal
• Display type: IPS (In-Plane Switching) LCD
• Display resolution: 1280×720 pixels
• Brightness: 500 nit
• Operating system: NK 13.0 (Android-based)
• RAM: 4GB
• Internal storage: 64GB
• Operating voltage: 14.4V nominal (10.5-16V range)
• Maximum power output: 4×50W
• Pre-amp output voltage: 4V/10KΩ
• Pre-amp output impedance: ≤600Ω
• Speaker impedance compatibility: 4-8Ω
• Bluetooth version: 5.0 + EDR
• Bluetooth frequency: 2.4GHz
• Bluetooth range: up to 5m
• GPS: Built-in with external antenna (included)
• FM frequency range: 87.5-108.0MHz
• AM frequency range: 522-1620KHz
• FM presets: 18 stations
• AM presets: 12 stations
• USB charging output: 5V±0.25V/1A
• Video formats supported: H264, MP4, AVI, MKV, FLV
• Audio formats supported: MP3, APE, AAC, FLAC
• CANBUS integration: CAN RX/TX connector
• WiFi: Integrated (for app downloads and updates)
• Video inputs: Reverse camera + front auxiliary camera

Frequently Asked Questions

Does this work with my factory Vitara reverse camera?

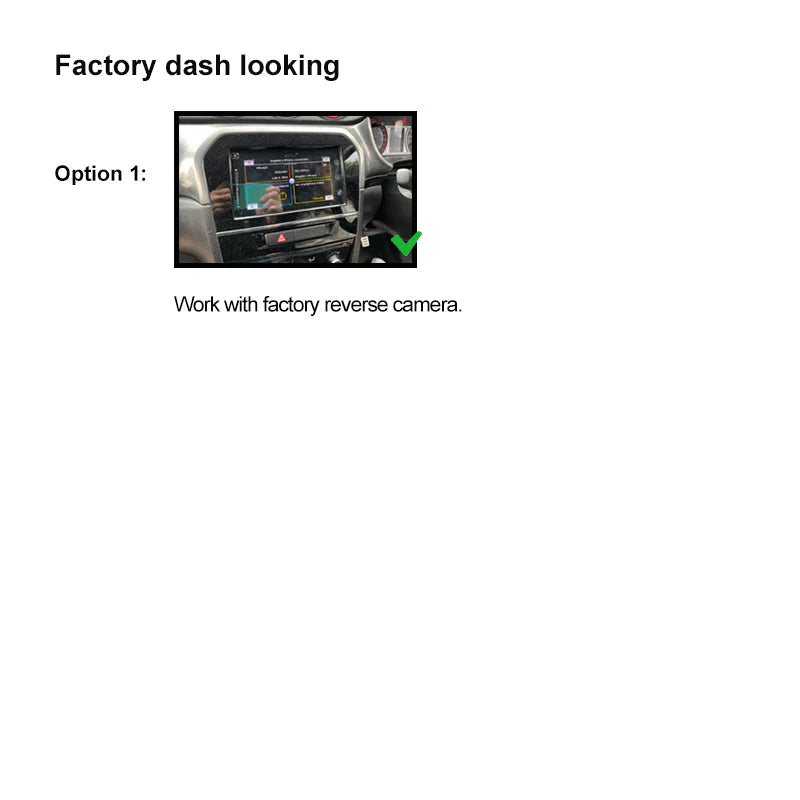

Yes, the NA9 is designed specifically to work with your factory Suzuki Vitara reverse camera without hardwiring modifications. The system automatically switches to camera view when you engage reverse gear, maintaining your original safety functionality seamlessly.

Can I navigate without my phone connected?

Absolutely. The built-in GPS with preloaded maps operates independently of your smartphone. Download additional offline navigation apps like Sygic, HERE WeGo, or OsmAnd from Google Play Store for phone-free navigation—ideal for remote 4WD touring where mobile coverage is unavailable.

Will my steering wheel controls still work?

Yes, the NA9 includes CANBUS integration (CAN RX/TX interface) that maintains full compatibility with your Vitara's factory steering wheel controls for volume adjustment, track skip, source selection, and voice command activation without requiring additional adapters.

What's included for my specific Vitara year?

Package includes the Nakamichi head unit with Vitara-matched fascia, main wiring harness, RCA cable, camera cable, rear speaker cable, microphone, GPS antenna, two USB cables, and user manual. Send us your dashboard photo with year and model when ordering to ensure correct harness compatibility.

Can I add a front-facing camera?

Yes, the system includes a front auxiliary camera input (F_CAMERA) perfect for bull bar-mounted cameras. This is particularly useful for Vitara owners with aftermarket protection who need forward visibility on tight tracks or when parking with limited sight lines over aftermarket accessories.

Compatible With / Goes Well With

Confirmed vehicle compatibility:

• Suzuki Vitara LY (2015-current Australian market)
• All Vitara variants (RT-S, RT-X, Turbo, AllGrip)
• Compatible with both 2WD and AllGrip 4WD models

Installation accessories (vehicle-specific harness included):

• Compatible with Nakamichi/Aerpro/CAC Suzuki fascia kits
• Works with factory steering wheel control interfaces
• Supports factory reverse camera retention (plug-and-play)
• Compatible with factory amplifier systems (if equipped)

Recommended upgrades:

• Aftermarket component speakers (6.5" front, coaxial rear)
• Compact 4-channel or 5-channel amplifiers for audio enhancement
• Front-facing cameras for bull bar installations
• GPS antenna extension cables for optimal satellite reception
• USB extension cables for centre console smartphone mounting

Software compatibility:

• Google Maps (via Android Auto or native Android)
• Waze (via Android Auto or native Android)
• Sygic GPS Navigation (downloadable from Play Store)
• OsmAnd offline maps (ideal for 4WD touring)
• Spotify, YouTube Music, Apple Music (via CarPlay or native apps)
• Torque Pro OBD2 diagnostics (with compatible adapter)

Popular 4WD accessories:

• Compatible with aftermarket bull bars and driving lights
• Works alongside UHF radio installations
• Integrates with dual battery systems (within voltage range)

Note: While factory reverse camera works plug-and-play, aftermarket camera installations may require different connection cables. Send dashboard and camera photos before purchase to confirm compatibility for your specific Vitara year and variant.
