Nakamichi NA9SUZUKISX420072013 - 9" Android Wireless CarPlay & GPS Navigation System

Modernize your 2007-2013 Suzuki SX4 with full Android capability, wireless smartphone integration, and built-in GPS—compatible with factory Sat Nav models.

Product Overview

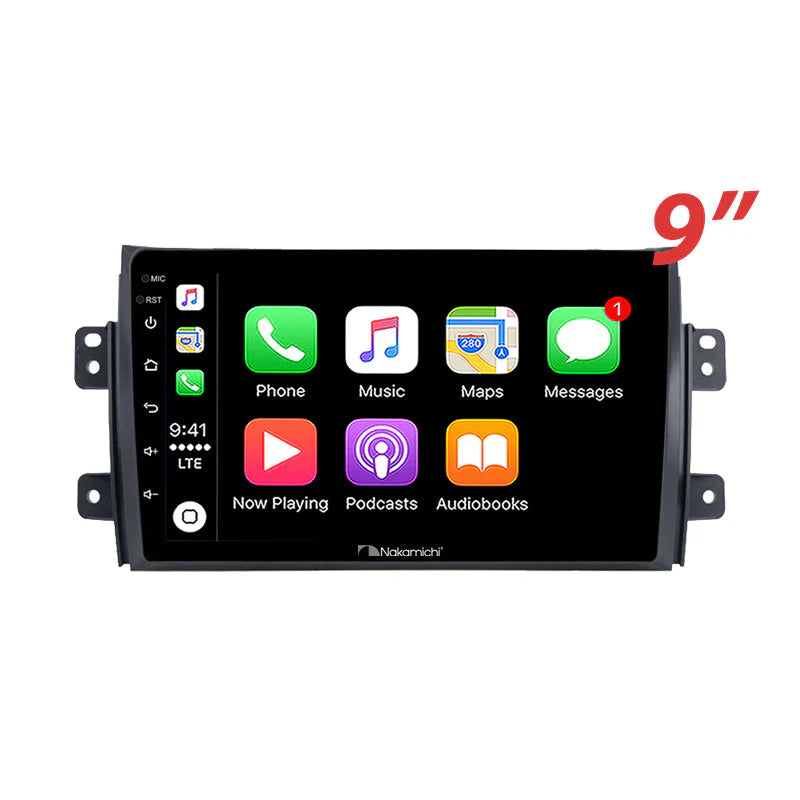

The Nakamichi NA9SUZUKISX420072013 brings complete Android functionality to your Suzuki SX4 (2007-2013) with wireless CarPlay, Android Auto, and built-in GPS navigation. This vehicle-specific multimedia receiver runs a full NK 13.0 Android system with 4GB RAM and 64GB storage, enabling direct app downloads from Google Play Store, multiple navigation platforms, and comprehensive customization beyond basic phone-mirroring solutions.

The 9-inch IPS display delivers 1280×720 resolution with 500-nit brightness for clear visibility in Australian conditions, while the SX4-specific design includes colour-matched fascia and pre-configured wiring harness for seamless dashboard integration. For SX4 models originally equipped with factory Sat Nav, this unit works directly with your existing reverse camera without additional hardwiring modifications. Factory steering wheel controls are retained through CANBUS integration, maintaining safe, hands-free operation.

The built-in GPS module comes preloaded with navigation data, with flexibility to update or install alternative mapping apps through the Android platform—ideal for drivers who need offline maps for regional travel or urban navigation without relying on phone data. Audio capabilities include 4×50W amplification with dedicated subwoofer output and 4V pre-amp connections for external amplifiers, while dual video inputs support both factory reverse camera (on equipped models) and auxiliary front camera installations. The system maintains full AM/FM radio with 30 station presets and includes GPS antenna, microphone, and all necessary cables.

Key Specifications

• Full Android system (NK 13.0) with 4GB RAM and 64GB internal storage
• Wireless Apple CarPlay and Android Auto (some Android devices require wired connection)
• Built-in GPS navigation with preloaded maps and Google Play Store access
• 9-inch IPS touchscreen with 1280×720 resolution and 500-nit brightness
• Vehicle-specific fit for Suzuki SX4 2007-2013 (EY/GY series)
• Factory Sat Nav models: works with existing reverse camera without hardwiring
• Bluetooth 5.0 with Enhanced Data Rate (EDR) for wireless connectivity
• Factory steering wheel control compatibility via CANBUS integration
• 4×50W maximum power output with 4V/10KΩ pre-amp outputs
• Dual USB interface: 4-pin for smartphone, 6-pin for media files
• FM (87.5-108.0MHz) and AM (522-1620KHz) radio with 30 total presets
• Multiple video inputs: reverse camera and front auxiliary camera support
• Operating voltage range: 10.5-16V DC (14.4V nominal)

Features & Benefits

Full Android operating system provides unrestricted access to Google Play Store for downloading navigation apps like Sygic or Waze, streaming platforms, offline media players, and diagnostic tools. Unlike locked systems, you have complete control over your SX4's multimedia experience—perfect for drivers who want flexibility beyond basic smartphone mirroring.

Factory Sat Nav compatibility means SX4 models originally equipped with navigation systems can retain their factory reverse camera functionality without complex hardwiring. The system automatically detects reverse gear engagement and switches to camera view, maintaining your original safety features seamlessly.

Built-in GPS with offline capability eliminates dependence on phone data during travel. Preloaded maps work immediately, and you can download comprehensive offline navigation from Play Store—essential for regional Australian drivers who encounter patchy mobile coverage or want to avoid data charges during daily commutes.

Wireless smartphone connectivity eliminates cable clutter while providing instant access to navigation, hands-free calling, messaging, and music streaming through Apple CarPlay or Android Auto. The system intelligently switches between native Android apps and phone mirroring based on your preference and connectivity status.

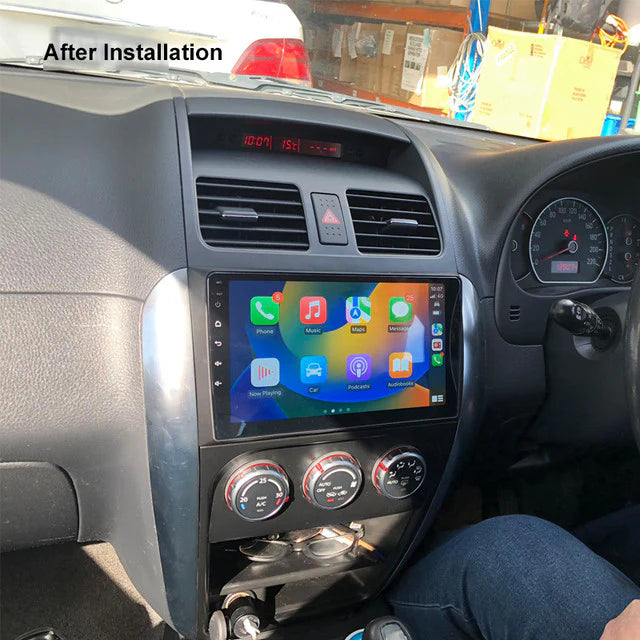

Vehicle-specific engineering ensures the 9-inch IPS display integrates perfectly into your SX4's dashboard with included colour-matched fascia and factory-specification wiring harness. CANBUS integration maintains steering wheel controls for volume, track skip, and voice commands without aftermarket adapters or functionality loss.

Premium IPS display technology delivers superior viewing angles and colour accuracy compared to standard TFT screens, with 500-nit brightness that remains clearly visible in direct sunlight. The 1280×720 resolution provides crisp text rendering for navigation prompts, messaging, and menu navigation—a significant upgrade from the original SX4 display.

Expandable storage and performance with 4GB RAM and 64GB internal storage allows you to store extensive offline music libraries, download high-resolution maps for multiple states, and run multiple apps simultaneously without performance degradation—crucial for navigation while streaming music or running auxiliary apps.

Comprehensive audio architecture provides 4×50W amplification for factory speakers plus dedicated subwoofer output and 4V pre-amp connections for adding external amplifiers. Whether maintaining stock audio or upgrading to aftermarket speakers and amplification, the NA9 accommodates your audio enhancement path.

Dual video input support works with factory reverse cameras (on Sat Nav-equipped models) plus an optional front-facing camera for additional visibility. This is particularly valuable for urban SX4 drivers navigating tight car parks or for those who've added bull bars and need forward sight line assistance.

Technical Specs

• Screen size: 9 inches diagonal
• Display type: IPS (In-Plane Switching) LCD
• Display resolution: 1280×720 pixels
• Brightness: 500 nit
• Operating system: NK 13.0 (Android-based)
• RAM: 4GB
• Internal storage: 64GB
• Operating voltage: 14.4V nominal (10.5-16V range)
• Maximum power output: 4×50W
• Pre-amp output voltage: 4V/10KΩ
• Pre-amp output impedance: ≤600Ω
• Speaker impedance compatibility: 4-8Ω
• Bluetooth version: 5.0 + EDR
• Bluetooth frequency: 2.4GHz
• Bluetooth range: up to 5m
• GPS: Built-in with external antenna (included)
• FM frequency range: 87.5-108.0MHz
• AM frequency range: 522-1620KHz
• FM presets: 18 stations
• AM presets: 12 stations
• USB charging output: 5V±0.25V/1A
• Video formats supported: H264, MP4, AVI, MKV, FLV
• Audio formats supported: MP3, APE, AAC, FLAC
• CANBUS integration: CAN RX/TX connector
• WiFi: Integrated (for app downloads and updates)
• Video inputs: Reverse camera + front auxiliary camera

Frequently Asked Questions

Does this work with my SX4's factory reverse camera?

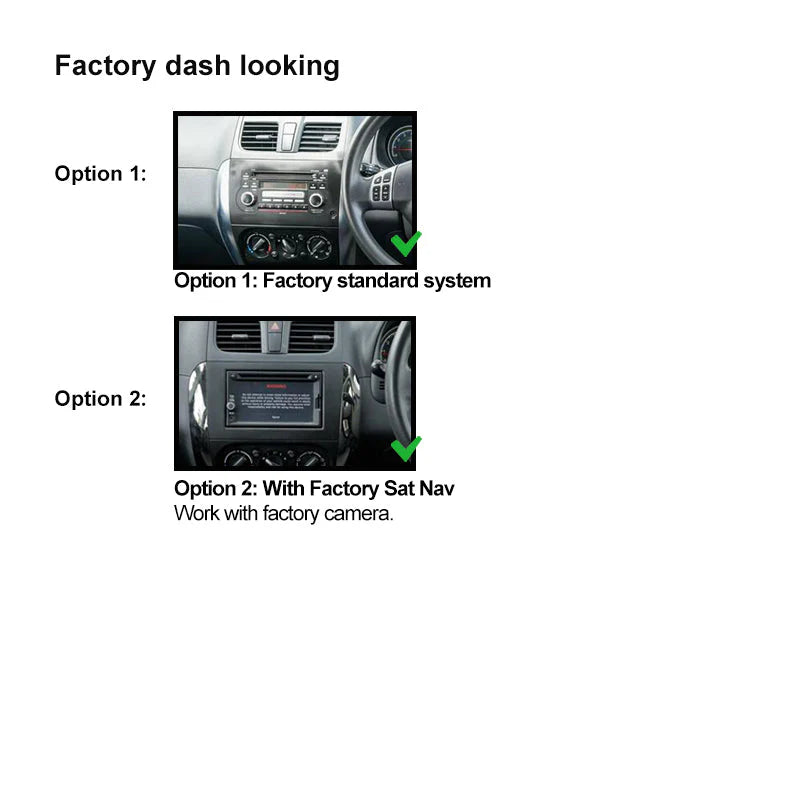

If your SX4 was originally equipped with factory Sat Nav (Option 2), the NA9 works directly with your existing reverse camera without hardwiring modifications. For SX4 models without factory Sat Nav, reverse camera integration may require additional wiring. Send us your dashboard photo with year and model when ordering to confirm compatibility.

Will my steering wheel controls still work?

Yes, the NA9 includes CANBUS integration (CAN RX/TX interface) that maintains full compatibility with your SX4's factory steering wheel controls for volume adjustment, track skip, source selection, and voice command activation without requiring additional adapters or programming.

Can I use navigation without my phone?

Absolutely. The built-in GPS with preloaded maps operates independently of your smartphone. Download additional offline navigation apps like Sygic, HERE WeGo, or Google Maps offline regions from Play Store for phone-free navigation—ideal for avoiding data charges or travelling through areas with limited mobile coverage.

What comes in the package for my SX4?

Package includes the Nakamichi head unit with SX4-matched fascia, main wiring harness, RCA cable, camera cable, rear speaker cable, microphone, GPS antenna, two USB cables, and user manual. Different SX4 variants may receive slightly different accessory packages based on factory configuration. Send dashboard photos to ensure correct harness compatibility.

How much storage space is available?

The system includes 64GB of internal storage for apps, offline maps, and media files. After system files, approximately 50-55GB remains available for your use. This is sufficient for multiple offline map regions, extensive music libraries, and numerous apps without running out of space.

Compatible With / Goes Well With

Confirmed vehicle compatibility:

• Suzuki SX4 EY/GY series (2007-2013 Australian market)
• All SX4 sedan variants
• All SX4 hatchback variants
• Compatible with both manual and automatic transmission models
• Works with factory Sat Nav-equipped models (Option 2) for camera retention

Installation accessories (vehicle-specific harness included):

• Compatible with Nakamichi/Aerpro/CAC Suzuki fascia kits
• Works with factory steering wheel control interfaces
• Supports factory reverse camera retention (Sat Nav-equipped models)
• Compatible with factory amplifier systems (if equipped)

Recommended upgrades:

• Aftermarket component speakers (6.5" front, coaxial rear)
• Compact 4-channel amplifiers for enhanced audio quality
• Reverse cameras with composite video output (non-Sat Nav models)
• GPS antenna extension cables for optimal satellite reception
• USB extension cables for centre console smartphone mounting

Software compatibility:

• Google Maps (via Android Auto or native Android)
• Waze (via Android Auto or native Android)
• Sygic GPS Navigation (downloadable from Play Store)
• HERE WeGo offline maps (ideal for regional travel)
• Spotify, YouTube Music, Apple Music (via CarPlay or native apps)
• Torque Pro OBD2 diagnostics (with compatible adapter)

Common audio upgrades:

• 6.5" component speaker sets for front doors
• Compact under-seat powered subwoofers
• 4-channel amplifiers (45-75W RMS per channel)
• Sound deadening material for door panels

Note: Factory reverse camera compatibility applies to SX4 models originally equipped with Sat Nav (Option 2). Non-Sat Nav models require aftermarket camera or hardwiring for camera integration. Send dashboard and camera photos before purchase to confirm compatibility for your specific SX4 year and configuration.
