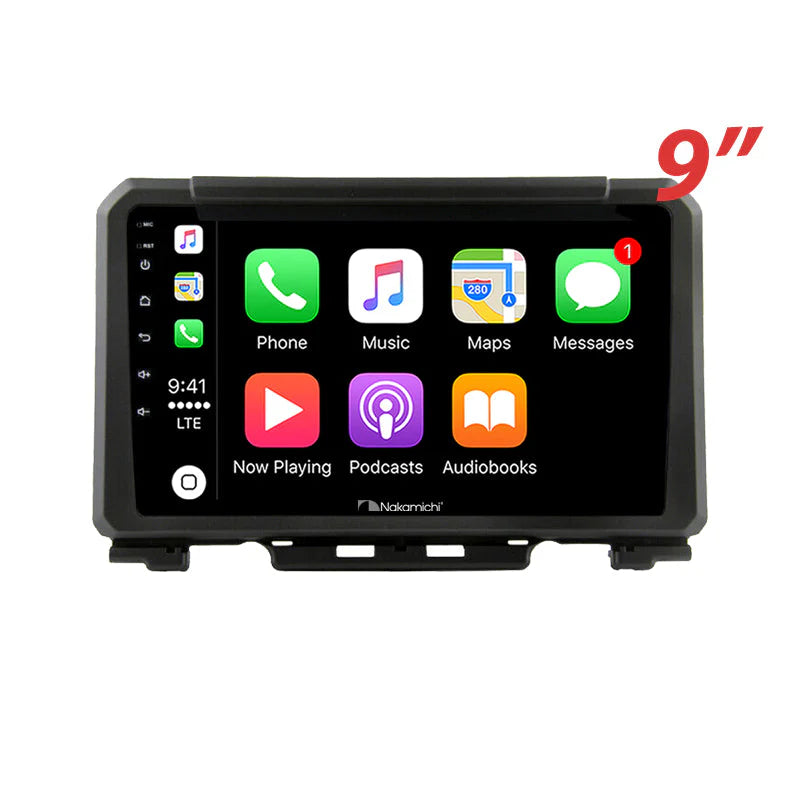

Nakamichi NA9SUZUKIJIMNY2018ON - 9" Android Wireless CarPlay & GPS Navigation System

Equip your 2018+ Suzuki Jimny for serious adventure with full Android capability, wireless smartphone integration, and built-in GPS—factory camera compatible.

Product Overview

The Nakamichi NA9SUZUKIJIMNY2018ON brings complete Android functionality to your Suzuki Jimny (2018 onwards) with wireless CarPlay, Android Auto, and built-in GPS navigation. This vehicle-specific multimedia receiver runs a full NK 13.0 Android system with 4GB RAM and 64GB storage, enabling direct app downloads from Google Play Store, multiple navigation platforms, and extensive customization that transforms your Jimny's capability for remote touring and off-road adventures.

The 9-inch IPS display delivers 1280×720 resolution with 500-nit brightness for clear visibility in harsh Australian conditions, while the Jimny-specific design includes colour-matched fascia and pre-configured wiring harness for seamless dashboard integration. The system works directly with your factory reverse camera without additional modifications—simply connect and go. Factory steering wheel controls integrate via CANBUS, maintaining safe operation on technical terrain where hands need to stay on the wheel.

The built-in GPS module comes preloaded with navigation data, with flexibility to update or install alternative mapping apps through the Android platform—essential for Jimny owners who venture beyond sealed roads where mobile coverage is unreliable or non-existent. Audio capabilities include 4×50W amplification with dedicated subwoofer output and 4V pre-amp connections for external amplifiers, while dual video inputs support both factory reverse camera and auxiliary front camera installations for bull bar setups. The system maintains full AM/FM radio with 30 station presets and includes GPS antenna, microphone, and all necessary cables.

Key Specifications

• Full Android system (NK 13.0) with 4GB RAM and 64GB internal storage
• Wireless Apple CarPlay and Android Auto (some Android devices require wired connection)
• Built-in GPS navigation with preloaded maps and Google Play Store access
• 9-inch IPS touchscreen with 1280×720 resolution and 500-nit brightness
• Vehicle-specific fit for Suzuki Jimny 2018+ (JB74 series)
• Factory reverse camera compatible without hardwiring modifications
• Bluetooth 5.0 with Enhanced Data Rate (EDR) for wireless connectivity
• Factory steering wheel control compatibility via CANBUS integration
• 4×50W maximum power output with 4V/10KΩ pre-amp outputs
• Dual USB interface: 4-pin for smartphone, 6-pin for media files
• FM (87.5-108.0MHz) and AM (522-1620KHz) radio with 30 total presets
• Multiple video inputs: reverse camera and front auxiliary camera support
• Operating voltage range: 10.5-16V DC (14.4V nominal)

Features & Benefits

Full Android operating system provides unrestricted access to Google Play Store for downloading offline navigation apps like OsmAnd and Hema Maps, communication tools like UHF radio apps, trail tracking software, weather radar apps, and diagnostic tools. For Jimny owners who use their vehicles for serious 4WD touring, this level of customization is essential for remote area preparedness.

Factory reverse camera integration works plug-and-play with your Jimny's existing camera system—no voltage converters or complex wiring required. The system automatically switches to camera view when engaging reverse, maintaining your factory-grade safety features when navigating tight tracks, backing up to hitches, or manoeuvring around obstacles on technical terrain.

Built-in GPS with offline capability eliminates reliance on mobile data during remote touring. Preloaded maps work immediately, and you can download comprehensive offline navigation like Hema 4WD Maps or OsmAnd from Play Store—absolutely critical for Jimny owners tackling Cape York, the Simpson Desert, the Canning Stock Route, or any Australian outback adventure where mobile coverage doesn't exist.

Wireless smartphone connectivity provides instant access to navigation, hands-free communication, and music streaming through Apple CarPlay or Android Auto when you're in coverage areas. The system intelligently switches between native Android apps (for offline functionality) and phone mirroring (when you have signal), giving you maximum flexibility across all terrain.

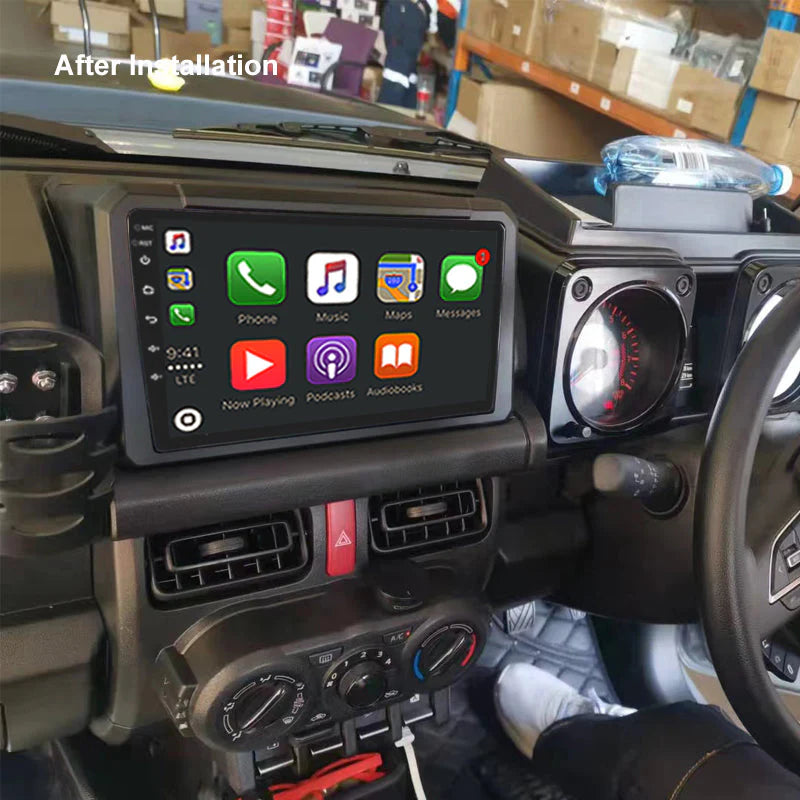

Vehicle-specific engineering ensures the 9-inch IPS display integrates perfectly into your Jimny's functional dashboard with included colour-matched fascia and factory-specification wiring harness. CANBUS integration maintains steering wheel controls for volume and track skip—essential when you're navigating technical sections and need to keep both hands on the wheel.

Premium IPS display technology delivers superior viewing angles and colour accuracy compared to standard TFT screens, with 500-nit brightness that remains clearly visible even in direct Australian outback sunlight reflecting off your Jimny's bonnet. The wide viewing angles mean your passenger can easily view the navigation screen during complex track navigation.

Expandable storage and performance with 4GB RAM and 64GB internal storage allows you to download and store multiple complete state maps offline, extensive music libraries for long-distance touring, podcast series for remote travel, and vehicle-specific apps—critical when you're days away from mobile coverage or WiFi connectivity.

Comprehensive audio architecture provides 4×50W amplification for speakers plus dedicated subwoofer output and 4V pre-amp connections for external amplifiers. Whether running factory speakers or building a touring-grade sound system for long outback drives, the NA9 delivers the audio foundation your Jimny adventures deserve.

Dual video input support works with factory reverse camera plus an optional front-facing camera for bull bar installations—particularly valuable for Jimny owners navigating tight bush tracks, river crossings, or technical rock sections where you need forward visibility over aftermarket protection equipment.

Technical Specs

• Screen size: 9 inches diagonal
• Display type: IPS (In-Plane Switching) LCD
• Display resolution: 1280×720 pixels
• Brightness: 500 nit
• Operating system: NK 13.0 (Android-based)
• RAM: 4GB
• Internal storage: 64GB
• Operating voltage: 14.4V nominal (10.5-16V range)
• Maximum power output: 4×50W
• Pre-amp output voltage: 4V/10KΩ
• Pre-amp output impedance: ≤600Ω
• Speaker impedance compatibility: 4-8Ω
• Bluetooth version: 5.0 + EDR
• Bluetooth frequency: 2.4GHz
• Bluetooth range: up to 5m
• GPS: Built-in with external antenna (included)
• FM frequency range: 87.5-108.0MHz
• AM frequency range: 522-1620KHz
• FM presets: 18 stations
• AM presets: 12 stations
• USB charging output: 5V±0.25V/1A
• Video formats supported: H264, MP4, AVI, MKV, FLV
• Audio formats supported: MP3, APE, AAC, FLAC
• CANBUS integration: CAN RX/TX connector
• WiFi: Integrated (for app downloads and updates)
• Video inputs: Reverse camera + front auxiliary camera

Frequently Asked Questions

Does this work with my factory Jimny reverse camera?

Yes, the NA9 is designed specifically to work plug-and-play with your factory Suzuki Jimny reverse camera without hardwiring or voltage converters. The system automatically switches to camera view when you engage reverse gear, maintaining seamless integration with your Jimny's existing safety systems.

Can I navigate off-road without phone signal?

Absolutely. The built-in GPS with preloaded maps operates independently of mobile coverage. Download comprehensive offline maps like Hema 4WD Maps, OsmAnd, or complete state/territory maps from Google Play Store before departing—essential for remote touring where the Jimny excels but mobile coverage doesn't exist.

Will my steering wheel controls work?

Yes, the NA9 includes CANBUS integration (CAN RX/TX interface) that maintains full compatibility with your Jimny's factory steering wheel controls for volume adjustment, track skip, and source selection—critical for safe operation when navigating technical terrain that demands full attention.

What apps should I download for 4WD touring?

For serious Jimny touring, download offline navigation (Hema 4WD Maps, OsmAnd), weather apps (BOM Weather, Willyweather), communication tools (UHF radio frequency guides), recovery guides, and trail tracking apps (Gaia GPS, Mud Map). The 64GB storage easily accommodates complete offline map sets for multi-state expeditions.

Can I add a front-facing camera?

Yes, the system includes a front auxiliary camera input (F_CAMERA) perfect for bull bar-mounted cameras. This is particularly valuable for Jimny owners navigating tight bush tracks, approaching water crossings, or positioning the vehicle on technical rock sections where forward visibility over the bull bar is limited.

Compatible With / Goes Well With

Confirmed vehicle compatibility:

• Suzuki Jimny JB74 (2018-current Australian market)
• All Jimny variants (Jimny, Jimny Lite)
• Compatible with both manual and automatic transmission models
• Works with all AllGrip 4WD configurations

Installation accessories (vehicle-specific harness included):

• Compatible with Nakamichi/Aerpro/CAC Suzuki fascia kits
• Works with factory steering wheel control interfaces
• Supports factory reverse camera retention (plug-and-play)
• Compatible with factory speaker systems

Recommended 4WD touring upgrades:

• Front-facing cameras for bull bar installations (wide-angle, IP67 rated)
• GPS antenna extension cables for roof-mounted optimal reception
• Dual battery systems (within 10.5-16V operating range)
• USB extension cables for centre console device charging
• Compact under-seat powered subwoofers for long-distance comfort

Software compatibility for Jimny touring:

• Hema 4WD Maps (Australian off-road navigation)
• OsmAnd offline maps (comprehensive topographic data)
• Gaia GPS (trail tracking and waypoint management)
• Google Maps offline regions (major routes and towns)
• Waze (via Android Auto when in coverage)
• BOM Weather, Willyweather (weather radar and forecasts)
• Emergency Plus (GPS coordinates for emergency services)
• Wikicamps Australia (campsite and facility locations)

Popular Jimny audio upgrades:

• 6.5" coaxial speakers for front doors (improved clarity for touring)
• Compact 4-channel amplifiers for enhanced audio during long drives
• Compact powered subwoofers (8-10 inch under-seat mount)
• Sound deadening kits for reduced road and wind noise

4WD accessory compatibility:

• Works alongside UHF radio installations
• Compatible with dual battery systems (within voltage range)
• Integrates with aftermarket bull bars and protection equipment
• Suitable for long-range touring fuel tank configurations

Note: All 2018+ Jimny models include factory reverse cameras that work plug-and-play with this system. For front camera installations on bull bar-equipped Jimnys, choose wide-angle cameras with IP67+ water resistance rating. Send dashboard photos with year and variant to ensure correct harness compatibility for your specific Jimny configuration.
