Nakamichi NA9SUZUKIJIMNY20052018 - 9" Android Wireless CarPlay & GPS Navigation System

Transform your classic 2005-2018 Suzuki Jimny with modern Android capability, wireless smartphone integration, and built-in GPS for serious off-road adventures.

Product Overview

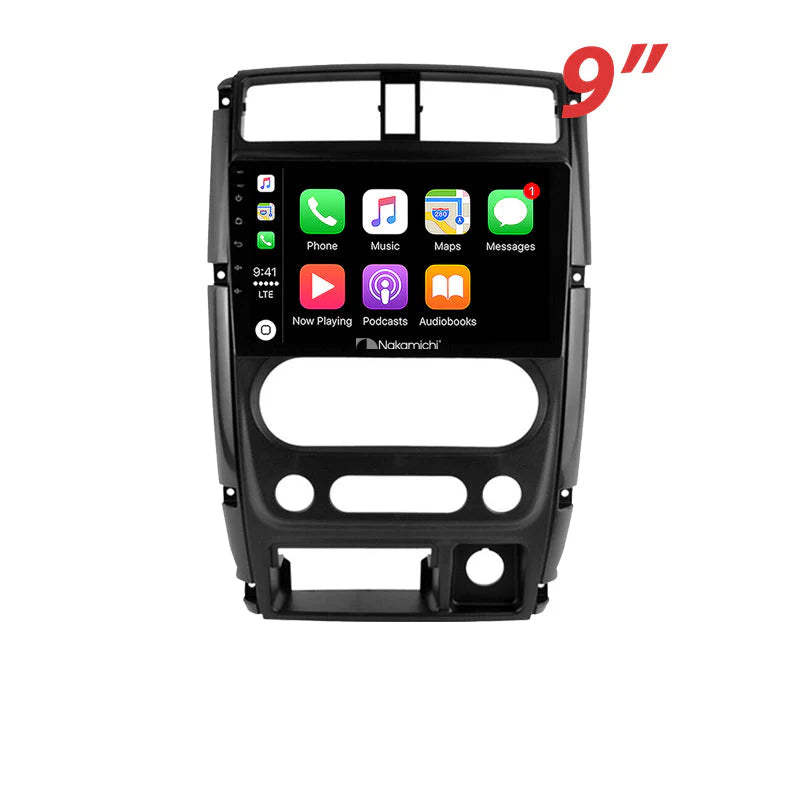

The Nakamichi NA9SUZUKIJIMNY20052018 brings complete Android functionality to your Suzuki Jimny (2005-2018) with wireless CarPlay, Android Auto, and built-in GPS navigation. This vehicle-specific multimedia receiver runs a full NK 13.0 Android system with 4GB RAM and 64GB storage, enabling direct app downloads from Google Play Store, multiple navigation platforms, and extensive customization that modernizes your proven off-road warrior for contemporary touring demands.

The 9-inch IPS display delivers 1280×720 resolution with 500-nit brightness for clear visibility in harsh Australian conditions, while the Jimny-specific design includes colour-matched fascia and pre-configured wiring harness for seamless dashboard integration. For owners of the legendary JB23/JB43 generation Jimny, this represents a dramatic technological leap from the original basic audio systems—bringing navigation, smartphone integration, and modern connectivity to a vehicle celebrated for its mechanical simplicity and off-road capability.

Factory steering wheel controls integrate via CANBUS where equipped, maintaining safe operation on technical terrain. The built-in GPS module comes preloaded with navigation data, with flexibility to update or install alternative mapping apps through the Android platform—essential for Jimny owners who venture into remote areas where these compact 4WDs have built their legendary reputation. Audio capabilities include 4×50W amplification with dedicated subwoofer output and 4V pre-amp connections for external amplifiers, while dual video inputs support reverse cameras and auxiliary front camera installations for bull bar setups. The system maintains full AM/FM radio with 30 station presets and includes GPS antenna, microphone, and all necessary cables.

Key Specifications

• Full Android system (NK 13.0) with 4GB RAM and 64GB internal storage
• Wireless Apple CarPlay and Android Auto (some Android devices require wired connection)
• Built-in GPS navigation with preloaded maps and Google Play Store access
• 9-inch IPS touchscreen with 1280×720 resolution and 500-nit brightness
• Vehicle-specific fit for Suzuki Jimny 2005-2018 (JB23/JB43 series)
• Bluetooth 5.0 with Enhanced Data Rate (EDR) for wireless connectivity
• Factory steering wheel control compatibility via CANBUS integration (where equipped)
• 4×50W maximum power output with 4V/10KΩ pre-amp outputs
• Dual USB interface: 4-pin for smartphone, 6-pin for media files
• FM (87.5-108.0MHz) and AM (522-1620KHz) radio with 30 total presets
• Multiple video inputs: reverse camera and front auxiliary camera support
• Operating voltage range: 10.5-16V DC (14.4V nominal)

Features & Benefits

Full Android operating system provides unrestricted access to Google Play Store for downloading offline navigation apps like OsmAnd and Hema Maps, weather radar tools, trail tracking software, communication apps, and diagnostic tools. For classic Jimny owners who use their vehicles for serious remote touring, this level of technology integration is transformative while maintaining the vehicle's mechanical character.

Built-in GPS with offline capability adds navigation functionality that simply didn't exist in 2005-2018 Jimny factory systems. Preloaded maps work immediately, and you can download comprehensive offline navigation like Hema 4WD Maps from Play Store—absolutely critical for tackling remote tracks, High Country trails, Cape York expeditions, or desert crossings where the classic Jimny excels but mobile coverage doesn't exist.

Wireless smartphone integration connects your iPhone or Android device without cables for instant access to navigation, hands-free communication, and music streaming through Apple CarPlay or Android Auto. The system brings 2025 smartphone technology to a 2005-2018 platform, eliminating the technology gap while preserving the Jimny's proven mechanical simplicity.

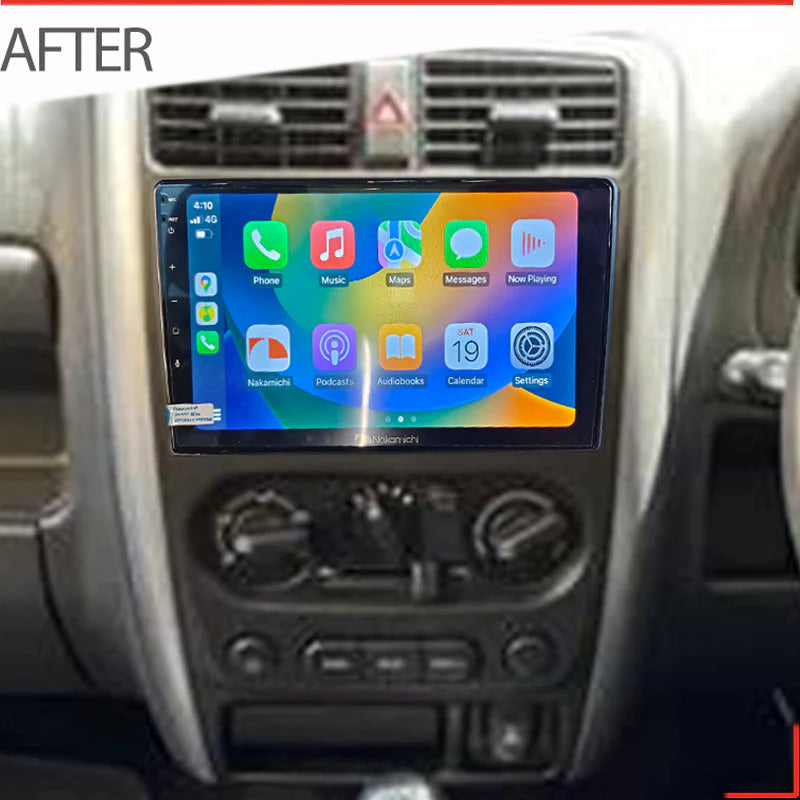

Vehicle-specific engineering ensures the 9-inch IPS display integrates into your classic Jimny's functional dashboard with included colour-matched fascia and factory-specification wiring harness. While dramatically larger than the original head unit, the screen enhances rather than overwhelms the Jimny's purposeful, tool-like interior aesthetic.

Premium IPS display technology delivers superior viewing angles and colour accuracy compared to standard TFT screens, with 500-nit brightness that remains clearly visible in direct outback sunlight reflecting off your Jimny's distinctive bonnet. The wide viewing angles mean your passenger can easily reference the navigation screen during technical track navigation or convoy travel.

Expandable storage and performance with 4GB RAM and 64GB internal storage allows you to download and store multiple complete state maps offline, extensive music libraries for long-distance touring, recovery guides, and vehicle-specific apps—critical capability when you're days into remote territory where these compact 4WDs are legendary for reaching.

Comprehensive audio architecture provides 4×50W amplification for speakers plus dedicated subwoofer output and 4V pre-amp connections for external amplifiers. Whether maintaining original speakers or upgrading to touring-grade audio for long outback drives, the NA9 accommodates complete sound system transformation.

Dual video input support accommodates aftermarket reverse cameras (recommended for classic Jimnys) plus optional front-facing cameras for bull bar installations—particularly valuable when navigating tight bush tracks, water crossings, or technical rock sections where forward visibility over aftermarket protection equipment is limited.

Future-proof connectivity means your proven 2005-2018 Jimny gains the same smartphone integration and app ecosystem as modern vehicles. As new mapping data, weather apps, and touring tools launch, your classic Jimny stays current through Play Store downloads—extending the practical capability of your reliable off-road workhorse.

Technical Specs

• Screen size: 9 inches diagonal
• Display type: IPS (In-Plane Switching) LCD
• Display resolution: 1280×720 pixels
• Brightness: 500 nit
• Operating system: NK 13.0 (Android-based)
• RAM: 4GB
• Internal storage: 64GB
• Operating voltage: 14.4V nominal (10.5-16V range)
• Maximum power output: 4×50W
• Pre-amp output voltage: 4V/10KΩ
• Pre-amp output impedance: ≤600Ω
• Speaker impedance compatibility: 4-8Ω
• Bluetooth version: 5.0 + EDR
• Bluetooth frequency: 2.4GHz
• Bluetooth range: up to 5m
• GPS: Built-in with external antenna (included)
• FM frequency range: 87.5-108.0MHz
• AM frequency range: 522-1620KHz
• FM presets: 18 stations
• AM presets: 12 stations
• USB charging output: 5V±0.25V/1A
• Video formats supported: H264, MP4, AVI, MKV, FLV
• Audio formats supported: MP3, APE, AAC, FLAC
• CANBUS integration: CAN RX/TX connector
• WiFi: Integrated (for app downloads and updates)
• Video inputs: Reverse camera + front auxiliary camera

Frequently Asked Questions

Will this fit my older generation Jimny?

Yes, the NA9 is specifically engineered for 2005-2018 Jimny dashboards (JB23/JB43 series) with included vehicle-matched fascia. The 9-inch screen represents a substantial upgrade from your original basic head unit, bringing modern navigation and connectivity to your proven off-road platform without compromising the Jimny's purposeful character.

Can I navigate off-road without phone signal?

Absolutely. The built-in GPS with preloaded maps operates independently of mobile coverage—adding navigation capability that most 2005-2018 Jimnys never had. Download comprehensive offline maps like Hema 4WD Maps, OsmAnd, or complete state maps from Play Store before remote expeditions where your classic Jimny can go but mobile signals cannot.

Will my steering wheel controls work?

If your Jimny is equipped with factory steering wheel controls, the NA9 maintains compatibility through CANBUS integration for volume and track functions. Many 2005-2018 Jimny variants lack steering wheel controls—in these cases, all functions are accessed via the responsive 9-inch touchscreen interface.

What apps should I download for remote touring?

For serious classic Jimny touring, download offline navigation (Hema 4WD Maps, OsmAnd), weather apps (BOM Weather, Willyweather), trail tracking (Gaia GPS, Mud Map), recovery guides, and communication tools (UHF frequency guides). The 64GB storage easily accommodates complete offline map sets for multi-state remote expeditions.

Do I need to add a reverse camera?

Most 2005-2018 Jimnys did not include factory reverse cameras. We strongly recommend adding an aftermarket reverse camera with this installation—particularly valuable for the Jimny's limited rear visibility when reversing on technical terrain, backing up to trailers, or navigating tight camp sites with bull bars fitted.

Compatible With / Goes Well With

Confirmed vehicle compatibility:

• Suzuki Jimny JB23 (2005-2018 Australian market)
• Suzuki Jimny JB43 wide-track variants
• All Jimny trim levels from this generation
• Compatible with both manual and automatic transmission models
• Works with factory steering wheel controls where equipped

Installation accessories (vehicle-specific harness included):

• Compatible with Nakamichi/Aerpro/CAC Suzuki fascia kits
• Works with factory steering wheel control interfaces (where equipped)
• Reverse camera harness included for aftermarket camera installation
• Compatible with factory speaker systems

Recommended 4WD touring upgrades:

• Aftermarket reverse cameras (wide-angle, IP67 rated, parking guidelines)
• Front-facing cameras for bull bar installations
• GPS antenna extension cables for roof-mounted optimal reception
• Dual battery systems (within 10.5-16V operating range)
• USB extension cables for centre console device charging

Software compatibility for classic Jimny touring:

• Hema 4WD Maps (Australian off-road specialist navigation)
• OsmAnd offline maps (comprehensive topographic data)
• Gaia GPS (trail tracking and waypoint management)
• Google Maps offline regions (major routes and regional towns)
• Waze (via Android Auto when in coverage areas)
• BOM Weather, Willyweather (outback weather radar and forecasts)
• Emergency Plus (GPS coordinates for emergency services)
• Wikicamps Australia (remote campsite and facility locations)

Popular classic Jimny audio upgrades:

• 6.5" coaxial speakers for improved touring audio quality
• Compact 4-channel amplifiers for enhanced clarity during long drives
• Compact powered subwoofers (8-inch under-seat mount)
• Sound deadening kits for reduced road and wind noise

4WD accessory compatibility:

• Works alongside UHF radio installations
• Compatible with dual battery systems (within voltage range)
• Integrates with aftermarket bull bars and protection equipment
• Suitable for long-range touring fuel tank configurations
• Compatible with raised suspension and larger tyre packages

Note: Most 2005-2018 Jimny models did not include factory reverse cameras—aftermarket camera installation highly recommended for optimal safety and functionality. Base models may lack steering wheel controls—all functions accessible via intuitive touchscreen. Send dashboard photos with year and trim level to ensure correct harness and fascia compatibility for your specific classic Jimny configuration.
