Nakamichi NA9SUZUKIIGNIS2017ON - 9" Android Wireless CarPlay & GPS Navigation System

Elevate your 2017+ Suzuki Ignis with full Android capability, wireless smartphone integration, and built-in GPS—factory camera compatible.

Product Overview

The Nakamichi NA9SUZUKIIGNIS2017ON brings complete Android functionality to your Suzuki Ignis (2017 onwards) with wireless CarPlay, Android Auto, and built-in GPS navigation. This vehicle-specific multimedia receiver runs a full NK 13.0 Android system with 4GB RAM and 64GB storage, enabling direct app downloads from Google Play Store, multiple navigation platforms, and extensive customization that transforms your compact urban runabout into a tech-savvy commuter companion.

The 9-inch IPS display delivers 1280×720 resolution with 500-nit brightness for clear visibility in Australian conditions, while the Ignis-specific design includes colour-matched fascia and pre-configured wiring harness for seamless dashboard integration. The system works directly with your factory reverse camera without additional modifications—particularly valuable for the Ignis's compact dimensions and limited rear visibility. Factory steering wheel controls integrate via CANBUS, maintaining safe, eyes-on-road operation during urban navigation.

The built-in GPS module comes preloaded with navigation data, with flexibility to update or install alternative mapping apps through the Android platform—ideal for Ignis owners navigating busy city streets, finding parking in tight CBD locations, or exploring weekend coastal drives. Audio capabilities include 4×50W amplification with dedicated subwoofer output and 4V pre-amp connections for external amplifiers, while dual video inputs support both factory reverse camera and auxiliary front camera installations. The system maintains full AM/FM radio with 30 station presets and includes GPS antenna, microphone, and all necessary cables.

Key Specifications

• Full Android system (NK 13.0) with 4GB RAM and 64GB internal storage
• Wireless Apple CarPlay and Android Auto (some Android devices require wired connection)
• Built-in GPS navigation with preloaded maps and Google Play Store access

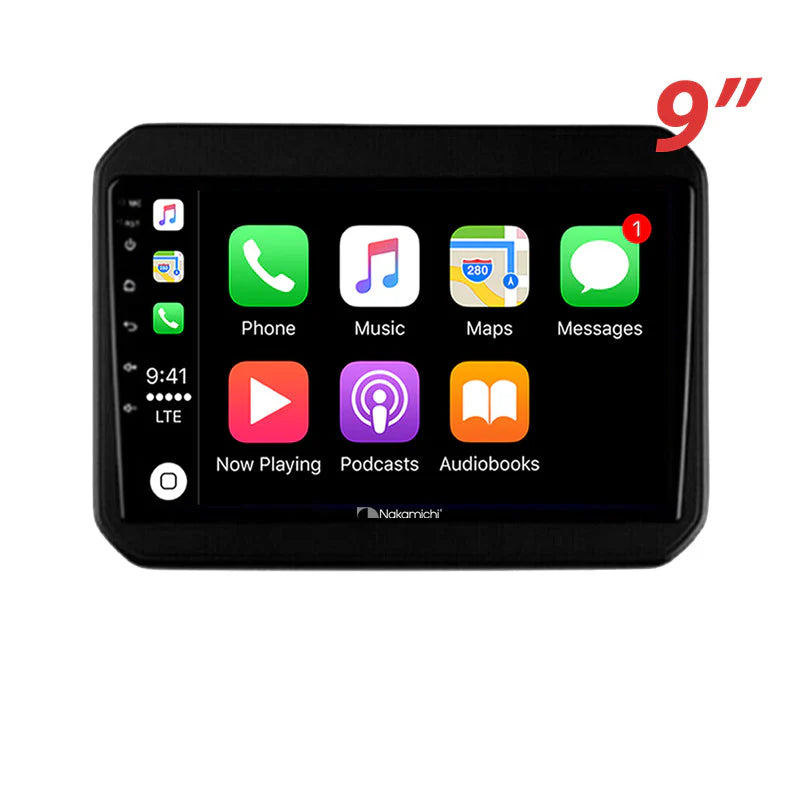

• 9-inch IPS touchscreen with 1280×720 resolution and 500-nit brightness
• Vehicle-specific fit for Suzuki Ignis 2017+ (MF series)
• Factory reverse camera compatible without hardwiring modifications
• Bluetooth 5.0 with Enhanced Data Rate (EDR) for wireless connectivity
• Factory steering wheel control compatibility via CANBUS integration
• 4×50W maximum power output with 4V/10KΩ pre-amp outputs
• Dual USB interface: 4-pin for smartphone, 6-pin for media files
• FM (87.5-108.0MHz) and AM (522-1620KHz) radio with 30 total presets
• Multiple video inputs: reverse camera and front auxiliary camera support
• Operating voltage range: 10.5-16V DC (14.4V nominal)

Features & Benefits

Full Android operating system provides unrestricted access to Google Play Store for downloading Spotify, YouTube Music, podcast apps, parking apps like Wilson Parking or Secure Parking, real-time traffic apps, and thousands of other urban-focused tools. For Ignis owners who use their compact cars for city commuting, this level of customization enhances the daily driving experience significantly.

Factory reverse camera integration works plug-and-play with your Ignis's existing camera system—no voltage converters or complex wiring required. Given the Ignis's compact rear end and elevated seating position, the factory camera integration is essential for safe parking in tight urban spaces, backing into angled parking bays, and navigating crowded shopping centre car parks.

Built-in GPS with offline capability eliminates reliance on mobile data during navigation. Preloaded maps work immediately, and you can download comprehensive offline city maps from Play Store—ideal for avoiding data charges during daily urban commuting or when travelling through areas with patchy mobile coverage in CBD underground car parks.

Wireless smartphone connectivity provides instant access to navigation, hands-free calling, messaging, and music streaming through Apple CarPlay or Android Auto without cable clutter in your compact Ignis cabin. The system intelligently switches between native Android apps and phone mirroring based on your connectivity preferences.

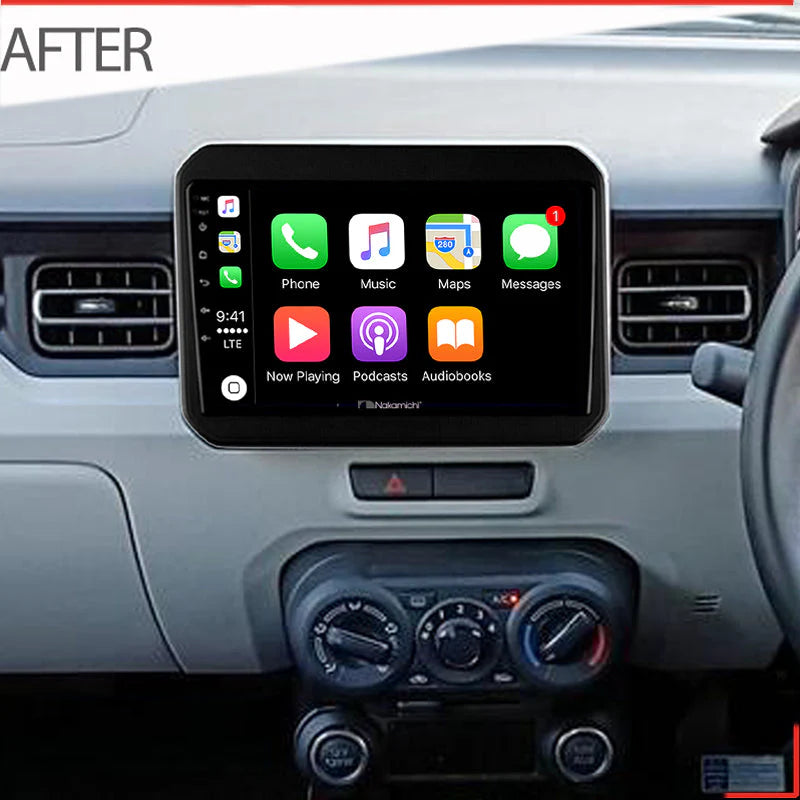

Vehicle-specific engineering ensures the 9-inch IPS display integrates perfectly into your Ignis's distinctive dashboard with included colour-matched fascia and factory-specification wiring harness. The larger screen significantly improves map readability and touch accuracy compared to smaller displays—particularly beneficial when quickly glancing at navigation while navigating busy intersections.

Premium IPS display technology delivers superior viewing angles and colour accuracy compared to standard TFT screens, with 500-nit brightness that remains clearly visible even in direct Australian sunlight through the Ignis's large windscreen. The 1280×720 resolution provides crisp text rendering for navigation prompts and parking app interfaces.

Expandable storage and performance with 4GB RAM and 64GB internal storage allows you to store extensive music libraries for commuting, download offline maps for multiple cities, install podcast apps for traffic-filled drives, and run multiple apps simultaneously without lag—essential for urban drivers who expect smartphone-level responsiveness.

Comprehensive audio architecture provides 4×50W amplification for factory speakers plus dedicated subwoofer output and 4V pre-amp connections for adding external amplifiers. Whether maintaining the Ignis's efficient factory audio or upgrading for enhanced sound quality during city commutes, the NA9 accommodates your preferences.

Dual video input support works with factory reverse camera plus an optional front-facing camera for enhanced urban parking assistance—particularly valuable for Ignis owners frequently parking in tight CBD spaces, navigating narrow laneways, or manoeuvring in crowded shopping centre car parks where every centimetre counts.

Technical Specs

• Screen size: 9 inches diagonal
• Display type: IPS (In-Plane Switching) LCD
• Display resolution: 1280×720 pixels
• Brightness: 500 nit
• Operating system: NK 13.0 (Android-based)
• RAM: 4GB
• Internal storage: 64GB
• Operating voltage: 14.4V nominal (10.5-16V range)
• Maximum power output: 4×50W
• Pre-amp output voltage: 4V/10KΩ
• Pre-amp output impedance: ≤600Ω
• Speaker impedance compatibility: 4-8Ω
• Bluetooth version: 5.0 + EDR
• Bluetooth frequency: 2.4GHz
• Bluetooth range: up to 5m
• GPS: Built-in with external antenna (included)
• FM frequency range: 87.5-108.0MHz
• AM frequency range: 522-1620KHz
• FM presets: 18 stations
• AM presets: 12 stations
• USB charging output: 5V±0.25V/1A
• Video formats supported: H264, MP4, AVI, MKV, FLV
• Audio formats supported: MP3, APE, AAC, FLAC
• CANBUS integration: CAN RX/TX connector
• WiFi: Integrated (for app downloads and updates)
• Video inputs: Reverse camera + front auxiliary camera

Frequently Asked Questions

Does this work with my factory Ignis reverse camera?

Yes, the NA9 is designed specifically to work plug-and-play with your factory Suzuki Ignis reverse camera without hardwiring or voltage converters. The system automatically switches to camera view when you engage reverse gear—essential for the Ignis's compact dimensions and urban parking scenarios.

Will this fit in my Ignis's unique dashboard?

Absolutely. The NA9 includes Ignis-specific fascia and wiring harness designed for the MF series dashboard. The 9-inch screen integrates seamlessly with the Ignis's distinctive interior design, providing significantly improved navigation visibility compared to smaller aftermarket units or factory displays.

Can I use navigation without my phone?

Yes, the built-in GPS with preloaded maps operates independently of your smartphone. Download additional offline maps for Australian cities from Google Play Store for phone-free navigation—particularly useful in underground car parks where mobile signals are weak or when avoiding data charges during daily commutes.

Will my steering wheel controls work?

Yes, the NA9 includes CANBUS integration (CAN RX/TX interface) that maintains full compatibility with your Ignis's factory steering wheel controls for volume adjustment, track skip, source selection, and voice command activation—allowing you to keep your hands on the wheel in busy traffic.

What apps are useful for city driving?

For urban Ignis driving, download parking apps (Wilson Parking, Secure Parking), real-time traffic apps (Waze, Google Maps), podcast apps for commuting entertainment, Spotify or YouTube Music for streaming, and local fuel price apps. The 64GB storage easily accommodates all your city driving essentials.

Compatible With / Goes Well With

Confirmed vehicle compatibility:

• Suzuki Ignis MF (2017-current Australian market)
• All Ignis variants (GL, GLX)
• Compatible with both manual and CVT automatic transmission models
• Works with all 2WD and AllGrip 4WD configurations

Installation accessories (vehicle-specific harness included):

• Compatible with Nakamichi/Aerpro/CAC Suzuki fascia kits
• Works with factory steering wheel control interfaces
• Supports factory reverse camera retention (plug-and-play)
• Compatible with factory speaker systems

Recommended urban driving upgrades:

• Aftermarket component speakers (6.5" front) for improved audio clarity
• Compact under-seat powered subwoofers for enhanced bass
• GPS antenna extension cables for optimal reception in built-up areas
• USB extension cables for centre console smartphone mounting
• Dash cam integration for urban driving documentation

Software compatibility for city driving:

• Google Maps (via Android Auto or native Android)
• Waze (real-time traffic and hazard alerts)
• Spotify, Apple Music, YouTube Music (streaming audio)
• Pocket Casts, Overcast (podcast apps for commuting)
• Wilson Parking, Secure Parking (parking location and payment)
• MotorMouth, PetrolSpy (fuel price comparison)
• TuneIn Radio (streaming radio stations)

Popular Ignis audio upgrades:

• 6.5" coaxial speakers for front doors
• Compact 4-channel amplifiers (45-60W per channel)
• Compact 8-inch under-seat powered subwoofers
• Sound deadening kits for door panels (reduced urban noise)

Urban accessory compatibility:

• Compatible with dash cam installations
• Works with parking sensors and assist systems
• Integrates with smartphone charging mounts
• Suitable for compact urban audio upgrades

Note: All 2017+ Ignis models include factory reverse cameras that work plug-and-play with this system. For front camera installations to assist with tight urban parking, choose compact wide-angle cameras suitable for the Ignis's dimensions. Send dashboard photos with year and variant to ensure correct harness compatibility for your specific Ignis configuration.
