Nakamichi NA9HOLDENBARINA20062011TK 9" Android Multimedia Unit

Drop the cables. Keep your focus. The Nakamichi NA9 is a drop-in multimedia upgrade engineered specifically for the Holden Barina TK no guesswork, no messy installs.

Product Overview

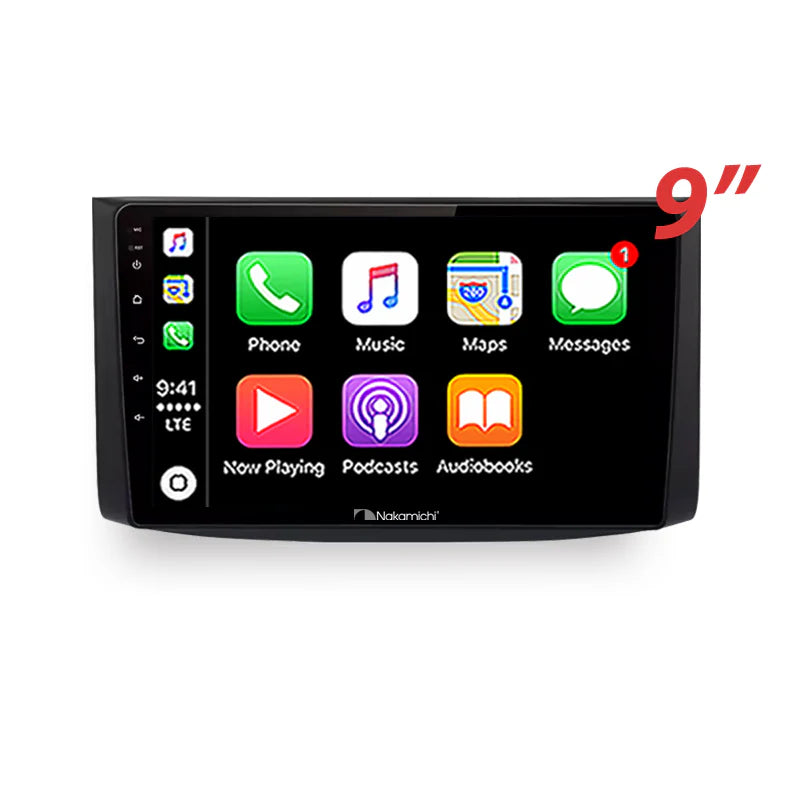

The Nakamichi NA9HOLDENBARINA20062011TK is a vehicle-specific 9-inch multimedia receiver designed to fit the Holden Barina TK Sedan and Hatch (2006–2011) with a fascia included in the box. Running the NK 13.0 system on 4 GB RAM and 64 GB of storage, it replaces your factory head unit with a responsive, full-featured Android-based platform that keeps pace with modern smartphones.

At its core, this unit delivers wireless Apple CarPlay and wireless Android Auto so you can mirror navigation, calls, music, and messaging from your phone to the 9-inch IPS touchscreen without plugging in a cable. Built-in GPS, Bluetooth 5.0, FM/AM radio, and full audio I/O round out a system that handles everything from daily commuting in Perth traffic to a long run up the coast. Steering wheel control retention is supported, keeping your factory driving experience intact.

Key Specifications

• Purpose-built fitment: Holden Barina TK Sedan and Hatch, 2006–2011
• Screen: 9-inch IPS TFT, 1280 × 720 resolution, 500 nit brightness
• System: NK 13.0 | RAM: 4 GB | ROM: 64 GB
• Wireless Apple CarPlay + Wireless Android Auto (wired connection required for select Android phone brands)
• Bluetooth 5.0 + EDR, 2.4 GHz, up to 5 m range
• FM: 87.5–108.0 MHz / 18 presets | AM: 522–1620 kHz / 12 presets
• Max audio output: 4 × 50 W
• Pre-output level: 4 V / 10 kΩ | Pre-output impedance: ≤600 Ω
• Dedicated subwoofer output (SUB_OUT)
• Reverse camera video input included
• CAN bus interface (RX/TX) for steering wheel control retention
• Operating voltage: 14.4 V (range: 10.5–16 V)

Features & Benefits

• Wireless CarPlay & Android Auto — Mirror maps, calls, messages, and music from your iPhone or Android phone to a 9-inch screen with zero cables cluttering the dash. Ideal for long touring runs or navigating unfamiliar towns.
• Built-in GPS with Play Store access — Ships with preloaded GPS data and supports map updates or new apps downloaded directly via the Google Play Store — no separate GPS unit needed.
• Bluetooth 5.0 + EDR — Stream audio, take hands-free calls, and pair quickly with a 5 m operating range. Clean and stable for daily city driving.
• AM/FM Radio with 30 presets — 18 FM and 12 AM presets ensure quick access to your favourite local stations without scrolling.
• 4 × 50 W audio output + subwoofer output — Drives factory speakers confidently while offering a dedicated SUB_OUT for those looking to add a subwoofer down the track.
• Steering wheel control compatibility — CAN bus (RX/TX) integration retains factory SWC function so you never have to take your hands off the wheel.
• Reverse camera input — Compatible with aftermarket reverse cameras via the dedicated F_CAMERA input — a sensible safety addition for a small-car platform.

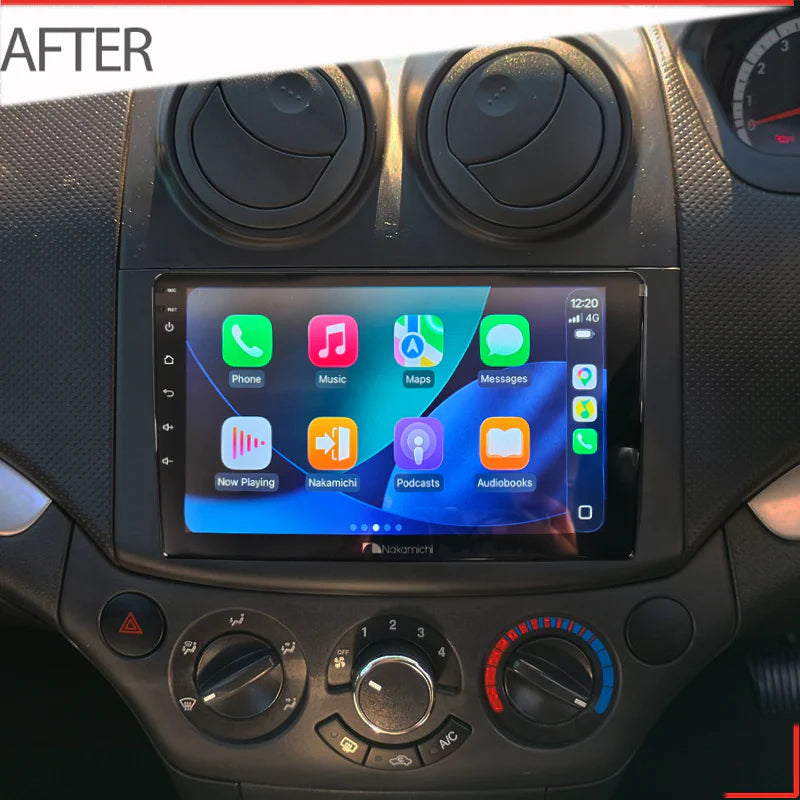

• Vehicle-specific fascia included — Factory-grade flush fit for the Barina TK. No gap fillers, no adaptor hunting.

Technical Specs

Compatible With / Goes Well With

Confirmed vehicle fitment:

• Holden Barina TK Sedan — 2006, 2007, 2008, 2009, 2010, 2011
• Holden Barina TK Hatch — 2006, 2007, 2008, 2009, 2010, 2011

Goes well with:

• Aftermarket reverse cameras (compatible via F_CAMERA input)
• Aftermarket subwoofers (via dedicated SUB_OUT)
• External amplifiers (via AMP_POW + pre-outputs)
• Aftermarket steering wheel control interfaces (CAN bus supported)

Frequently Asked Questions

Will this unit fit my Holden Barina TK?

This unit is purpose-engineered for the Holden Barina TK Sedan and Hatch (2006–2011). A vehicle-specific fascia is included in the box for a factory-grade, flush installation.

Do I need to provide a photo of my dash after purchasing?

Yes — Nakamichi requests a dash photo with your car's year and model after purchase so the correct compatible harness can be confirmed and sent with your order.

Is Android Auto truly wireless on this unit?

Wireless Android Auto works with most Android smartphones; however, select phone brands may require a wired USB connection. Check your device's wireless Android Auto compatibility before purchasing.

Will my steering wheel controls still work after fitting this unit?

Yes — the unit includes a CAN bus interface (RX/TX) and supports factory steering wheel control retention for the Holden Barina TK. Confirm harness requirements at time of purchase.

What GPS maps are included, and can they be updated?

The unit ships with preloaded GPS data. Updated or additional maps can be downloaded or purchased directly through the Google Play Store on the device.
