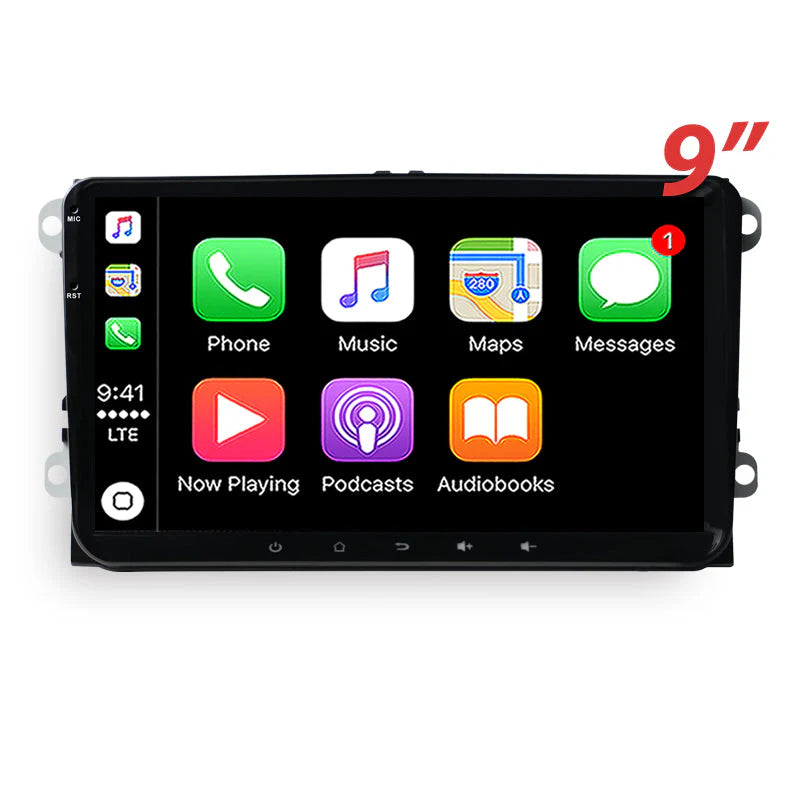

Nakamichi NA-VW 9-Inch Android 12 Head Unit Wireless CarPlay Android Auto for Volkswagen

Replace your factory Volkswagen screen with a modern Android system and wireless smartphone integration.

Product Overview

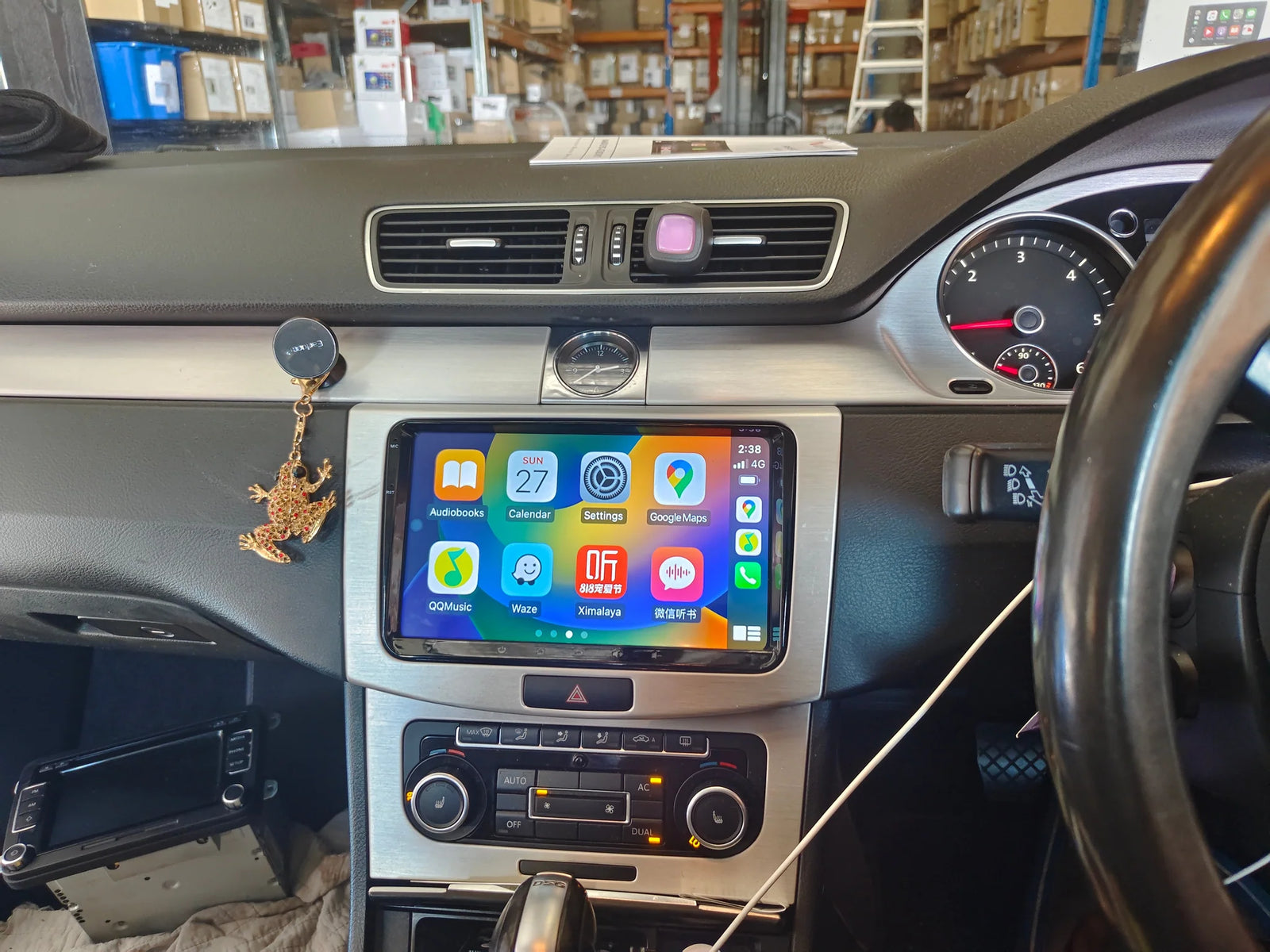

The Nakamichi NA-VW transforms your Volkswagen's factory infotainment into a comprehensive Android 12 multimedia system with wireless Apple CarPlay and Android Auto integration. This vehicle-specific 9-inch IPS touchscreen head unit replaces the factory display in compatible VW models from 2004 onwards, including Golf, Amarok, Tiguan, Passat, and Transporter variants. The 8-core processor and 4GB RAM deliver smooth performance across navigation, media playback, and app multitasking, while 32GB internal storage accommodates offline maps, music libraries, and additional Android apps downloaded from the Google Play Store. Beyond smartphone mirroring, the NA-VW includes built-in GPS with preloaded navigation data, WiFi and 4G connectivity for internet access without relying on your phone's hotspot, comprehensive AM/FM radio coverage with RDS, and Bluetooth 5.0 for hands-free calling and wireless audio streaming. The system integrates with factory steering wheel controls, supports aftermarket or factory reversing cameras, and outputs 4×50W to drive existing speakers or upgraded components. This direct replacement solution maintains your dash's OEM appearance while delivering the connected features modern drivers expect.

Key Specifications

• 9-inch IPS touchscreen display with 1280×720 resolution and 500nit brightness
• Android 12 operating system (NK 12.0)
• 8-core Cortex-A55 processor with 4GB RAM and 32GB ROM
• Wireless Apple CarPlay and Android Auto (wired for some Android devices)
• Built-in GPS with preloaded navigation data, updateable via Google Play Store
• WiFi connectivity and 4G support with included antenna
• Bluetooth 5.0+EDR (2.4GHz, 5m range)
• AM/FM radio tuner: FM 87.5-108.0MHz, AM 522-1620kHz with 18 FM/12 AM presets
• 4×50W maximum amplifier output to 4-8Ω speakers
• 4V/10kΩ pre-outputs with ≤600Ω impedance for external amplifiers
• Multiple video inputs: reversing camera, front camera, auxiliary CVBS
• Dual USB interfaces: 4-pin for PhoneLink, 6-pin for media playback
• Factory steering wheel control compatibility via CAN bus integration
• External microphone included for enhanced hands-free clarity
• Video format support: H264, MP4, AVI, MKV, FLV
• Audio format support: MP3, APE, AAC, FLAC
• 10.5-16V operating voltage range (14.4V nominal)
• Compatible with VW models: Amarok (2011+), Beetle (2012-2015), Caddy (2005-2015), Caravelle (2010-2015), CC (2012-2015), EOS (2007-2014), Golf (2004-2013), Jetta (2005-2015), Multivan (2010-2016), Passat (2006-2015), Polo (2010-2014), Tiguan (2008-2015), Transporter (2010-2016)

Features & Benefits

Vehicle-Specific Integration – Designed specifically for Volkswagen models from 2004-2016, the NA-VW replaces your factory screen without custom fabrication or dash modification. Plug-and-play harnesses connect to factory wiring, maintaining steering wheel controls and integrating with existing audio systems for a factory-fresh appearance with modern capabilities.

Wireless CarPlay Freedom – Connect your iPhone wirelessly and access Apple Maps, Spotify, Messages, and Siri through the 9-inch display without cable clutter. The system remembers your device and connects automatically when you start the vehicle, keeping your charging port free for other devices.

Android Auto Convenience – Pair compatible Android phones wirelessly (some models require wired connection) to mirror Google Maps, YouTube Music, WhatsApp, and Google Assistant on the large touchscreen. Voice commands handle navigation and messaging while your hands stay on the wheel.

Built-In GPS Navigation – Preloaded GPS data provides offline navigation capability when mobile coverage drops on remote highways or outback tracks. Download alternative navigation apps from Google Play Store, update maps over WiFi, or run multiple navigation solutions simultaneously for redundancy.

4G and WiFi Connectivity – Insert a SIM card into the 4G slot for independent internet access, enabling real-time traffic updates, streaming music, and app functionality without draining your phone's battery or data allowance. WiFi connectivity provides alternative internet access when parked near hotspots.

Android 12 Operating System – The full Android environment lets you install apps from Google Play Store, customize the interface, run multiple apps simultaneously, and update system software as new features become available. The 8-core processor and 4GB RAM ensure smooth performance even with navigation, music, and background apps running concurrently.

High-Brightness IPS Display – The 1280×720 resolution IPS panel with 500nit brightness maintains excellent visibility in direct Australian sunlight. Wide viewing angles ensure passengers can see navigation details, and the responsive capacitive touchscreen operates like your smartphone for intuitive control.

Comprehensive Camera Support – Connect aftermarket AHD reversing cameras directly, or integrate factory VW cameras with appropriate adapters (professional installation recommended for factory camera retention). Front camera input adds forward visibility for low approach angles or tight parking situations.

Enhanced Pre-Output Signal – The 4V pre-output voltage delivers twice the signal strength of standard 2V units, reducing noise interference when driving external amplifiers. Clean signal improves sound quality in upgraded audio systems while the ≤600Ω impedance ensures broad amplifier compatibility.

Factory Control Retention – CAN bus integration maintains functionality of factory steering wheel controls, letting you adjust volume, skip tracks, and manage calls using existing buttons. The system adapts to VW's control protocols without requiring additional adapters in most applications.

Technical Specs

• Display: 9" IPS touchscreen, 1280×720 resolution, 500nit brightness
• System: Android 12 (NK 12.0)
• Processor: 8-core Cortex-A55
• Memory: 4GB RAM, 32GB internal storage
• Smartphone Integration: Wireless Apple CarPlay, Android Auto (wireless/wired depending on device)
• GPS: Built-in with preloaded data, updateable via Google Play Store
• Connectivity: WiFi, 4G (SIM card slot, antenna included)
• Bluetooth: Version 5.0+EDR, 2.4GHz frequency, 5m range
• Radio Tuner: FM 87.5-108.0MHz, AM 522-1620kHz, RDS support, 18 FM/12 AM presets
• Audio Output: 4 channels × 50W maximum, 4-8Ω speaker impedance
• Pre-Outputs: 4V/10kΩ, ≤600Ω impedance (front, rear, subwoofer)
• Video Inputs: Reversing camera, front camera, auxiliary CVBS
• USB Interfaces: 4-pin (PhoneLink), 6-pin (media playback)
• USB Charging: 5V±0.25V/1A
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Power: 14.4V nominal (10.5-16V operating range)
• CAN Bus: Factory steering wheel control integration
• Microphone: External microphone included
• Antenna: GPS antenna, 4G antenna included

Compatible Volkswagen Models:

• Amarok: 2011+
• Beetle: 2012-2015
• Caddy: 2005-2015
• Caravelle: 2010-2015
• CC: 2012-2015
• EOS: 2007-2014
• Golf: 2004-2013
• Jetta: 2005-2015
• Multivan: 2010-2016
• Passat: 2006-2015
• Polo: 2010-2014
• Tiguan: 2008-2015
• Transporter: 2010-2016

Frequently Asked Questions

Will this fit my specific Volkswagen model and year?

The NA-VW is compatible with VW models listed above within the specified year ranges. However, different model variants may require specific harness configurations. Contact us with your vehicle's exact year, model, and a photo of your current dash/screen before purchase to confirm compatibility and ensure correct harness selection.

Does this work with my factory reversing camera?

The system supports aftermarket AHD reversing cameras directly. Factory VW cameras require professional installation to hardwire connections or purchase of a camera adapter (additional cost). Contact us with your vehicle details to determine the correct camera integration method for your specific model.

Is CarPlay and Android Auto wireless or wired?

Apple CarPlay is wireless for all iPhones. Android Auto is wireless for most modern Android devices, but some specific phone brands may require wired USB connection. The system includes both 4-pin PhoneLink USB and 6-pin media USB to accommodate various connection requirements.

Can I install Android apps from the Play Store?

Yes, the full Android 12 system provides access to Google Play Store. You can download navigation apps, music streaming services, video players, and most Android applications. The 32GB internal storage accommodates offline maps, music libraries, and multiple apps simultaneously.

Will my factory steering wheel controls still work?

Yes, CAN bus integration maintains factory steering wheel control functionality in most compatible VW models. The system communicates directly with your vehicle's control protocols, typically requiring no additional adapters. Confirm compatibility with your specific model year before purchase.

Compatible With / Goes Well With

• Vehicle-specific installation harnesses for Volkswagen models
• Aftermarket AHD reversing cameras (direct plug-and-play)
• Factory VW camera retention adapters (professional installation recommended)
• 4G SIM cards for independent internet connectivity
• External amplifiers via 4V RCA pre-outputs
• Component speakers and coaxial speakers (4Ω to 8Ω)
• Subwoofer systems via dedicated pre-output
• GPS antenna extension cables for optimal signal placement
• Dash trim removal tools for professional installation
• Android Auto-compatible apps from Google Play Store

Weight

Not specified
