Nakamichi NA9MAZDA320092013 9" Wireless CarPlay Android Auto Mazda 3 2009-2013

Transform your Mazda 3 into a modern connected vehicle with seamless smartphone integration and premium entertainment.

Product Overview

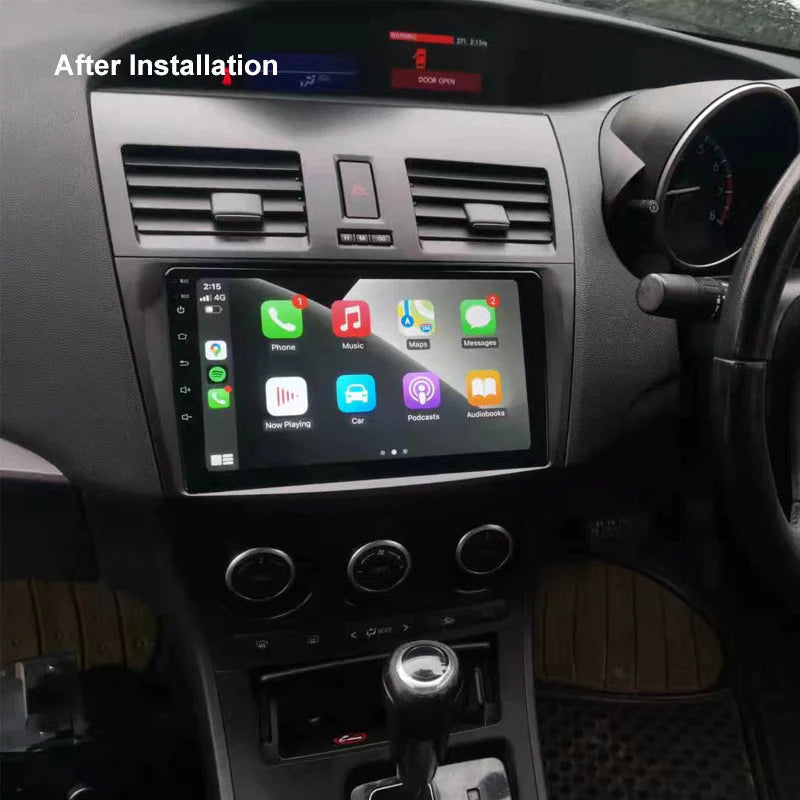

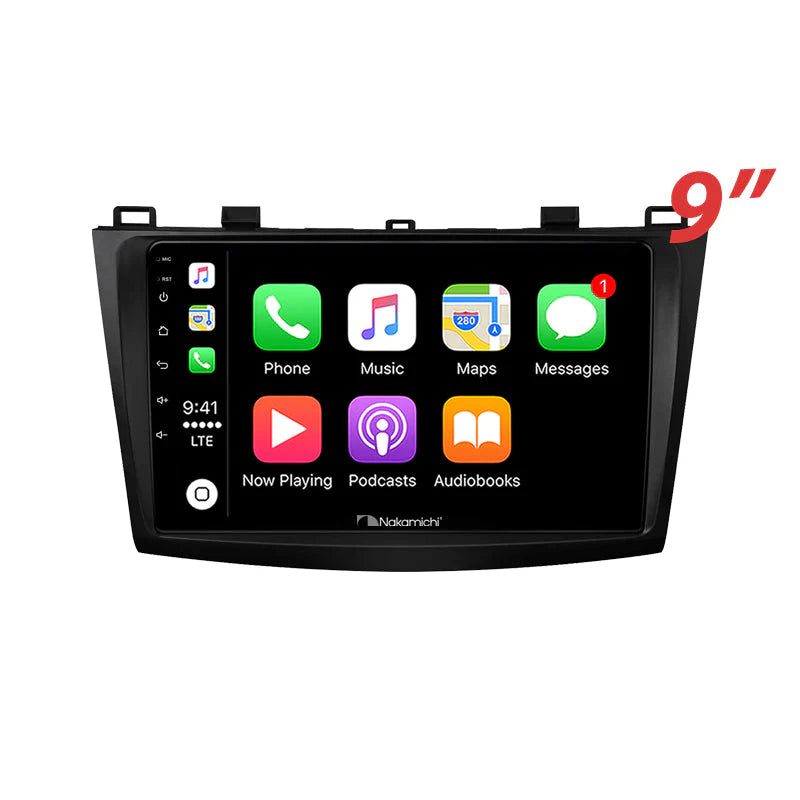

The Nakamichi NA9MAZDA320092013 is a vehicle-specific 9-inch Android multimedia receiver engineered exclusively for Mazda 3 models from 2009 to 2013. This plug-and-play solution delivers wireless Apple CarPlay and Android Auto connectivity, eliminating cable clutter while maintaining full access to navigation, calls, messaging, and music streaming through your car's display. Built on the NK 13.0 operating system with 4GB RAM and 64GB internal storage, the unit handles multitasking smoothly and provides ample space for offline maps and media. The system integrates with factory steering wheel controls (excluding Bluetooth SWC button) and includes all necessary installation hardware, though vehicles equipped with BOSE sound systems require harness modification for optimal compatibility.

Key Specifications

• 9-inch IPS touchscreen display with 1280×720 resolution and 500-nit brightness
• 4GB RAM and 64GB ROM running NK 13.0 Android-based system
• Wireless Apple CarPlay and wireless/wired Android Auto connectivity
• Built-in GPS with preloaded mapping data and Google Play Store access
• Bluetooth 5.0 +EDR with 2.4GHz frequency and 5-metre range
• 4×50W maximum amplifier power output with 4V/10KΩ pre-outputs
• FM radio (87.5-108.0MHz, 18 presets) and AM radio (522-1620KHz, 12 presets)
• Compatible with Mazda 3 BL series (2009-2013 model years)
• Operates on 14.4V nominal (10.5-16V range) vehicle electrical system
• Reverse camera input and auxiliary video input included

Features & Benefits

Wireless Smartphone Integration: Connect your iPhone or Android device without cables for instant access to navigation, hands-free calling, and music streaming. Perfect for daily commuters who switch between multiple devices or want to reduce dashboard clutter during long highway runs or urban driving.

Factory Steering Wheel Control Retention: Maintain convenient thumb control over volume, track selection, and source switching without removing hands from the wheel. Essential for safer driving on busy Australian roads where attention must stay focused forward.

Expandable Android Platform: Download navigation apps like Sygic or OsmAnd for offline touring through remote WA regions, install Spotify or TIDAL for unlimited music, or add dash cam viewers for integrated vehicle monitoring. The Google Play Store access transforms this from a head unit into a full workshop-grade command centre.

High-Visibility IPS Display: The 500-nit brightness and IPS panel technology ensure clear visibility even under harsh Australian sun through the windscreen. Anti-glare coating reduces eye strain during extended drives across the Nullarbor or through Outback conditions.

Multi-Format Media Playback: Play H.264, MP4, AVI, MKV video files and MP3, APE, AAC, FLAC audio formats directly from USB storage. Ideal for families on road trips or tradies wanting podcasts and audiobooks during long site-to-site commutes without relying on mobile data.

Integrated Reverse Camera Support: Direct video input for aftermarket reverse cameras improves parking safety in tight caravan parks, shopping centres, or workshop bays. The brake detection input automatically switches to camera view when reversing.

Technical Specs

• Screen Size: 9 inches (diagonal)
• Display Type: TFT IPS panel
• Resolution: 1280×720 pixels
• Brightness: 500 nit
• Operating System: NK 13.0 (Android-based)
• Processor RAM: 4GB
• Internal Storage: 64GB ROM
• Bluetooth Version: 5.0 +EDR
• Bluetooth Frequency: 2.4GHz
• Bluetooth Range: 5m maximum
• FM Frequency Range: 87.5-108.0MHz
• AM Frequency Range: 522-1620KHz
• FM Presets: 18 stations
• AM Presets: 12 stations
• Maximum Power Output: 4×50W
• Pre-Output Voltage: 4V/10KΩ
• Pre-Output Impedance: ≤600Ω
• Speaker Impedance Compatibility: 4-8Ω
• Operating Voltage: 14.4V nominal (10.5-16V range)
• USB Output: 5±0.25V/1A (charging capable)
• Video Input Formats: H.264, MP4, AVI, MKV, FLV
• Audio Input Formats: MP3, APE, AAC, FLAC

Frequently Asked Questions

Does this fit my 2011 Mazda 3 with the factory BOSE system?
Yes, the unit fits 2009-2013 Mazda 3 models, but BOSE-equipped vehicles require harness modification during installation to maintain premium audio quality and proper signal routing.

Will my steering wheel volume and track controls still work?
Yes, all steering wheel controls function except the Bluetooth button. Volume, source selection, and track navigation remain fully operational through factory switchgear.

Can I use Android Auto wirelessly with my Samsung phone?
Wireless Android Auto compatibility depends on your phone model. Most newer Samsung and Google Pixel devices support wireless connection, while some brands require wired USB connection.

Is the GPS navigation usable without mobile data or internet?
Yes, the unit includes preloaded GPS mapping data for offline navigation. Additional map packs can be downloaded via Google Play Store for extended coverage or preferred platforms.

What installation accessories are included in the box?
Package includes the head unit with fascia, main wiring harness, RCA cable, camera cable, rear speaker cable, external microphone, GPS antenna, user manual, and two USB cables.

Compatible With / Goes Well With

Direct Vehicle Compatibility:

• Mazda 3 BL (2009-2013 all variants)

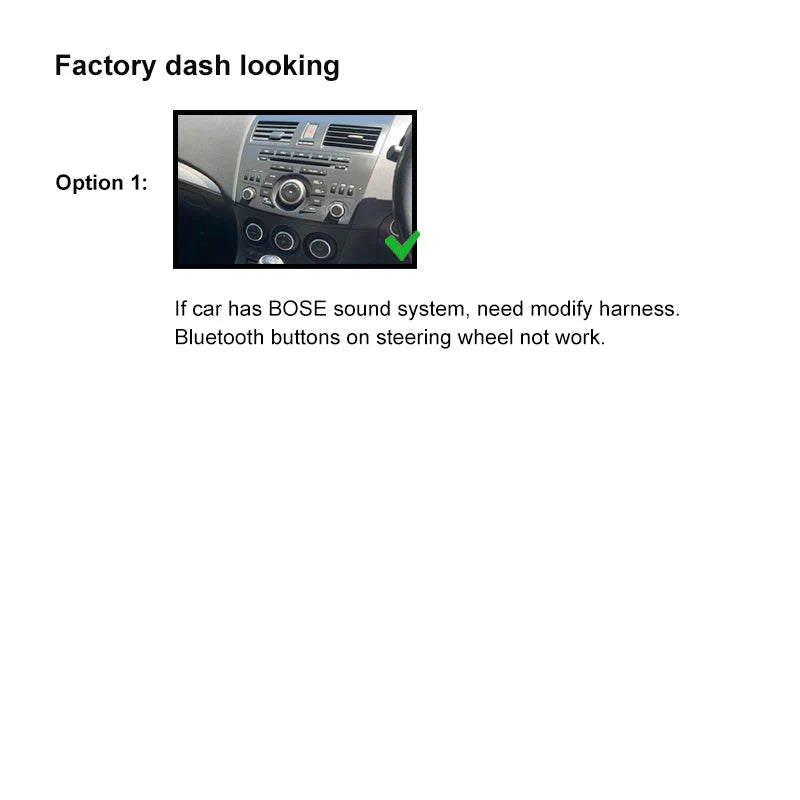

Note: Vehicles with factory BOSE audio systems require harness modification. Please provide dashboard photo and vehicle year when ordering to ensure correct harness configuration is supplied.

Recommended Installation Accessories:

• Mazda-specific fascia adapters (if not included)
• Reverse camera with RCA connection (sold separately)
• Steering wheel control retention interface (verify compatibility)
• Amplified antenna adapter for improved radio reception
• Professional installation recommended for BOSE-equipped vehicles

Pairs Well With:

• Aftermarket reverse cameras with RCA output
• USB dash cameras for integrated monitoring
• External GPS antennas for improved signal in built-up areas
• Bluetooth OBD-II adapters for vehicle diagnostics
• Amplified subwoofers via pre-output connections
