Nakamichi NA9NISSANUNIVERSAL 9" Wireless CarPlay Universal Nissan Head Unit

Universal Smartphone Integration for Multiple Nissan Models

Product Overview

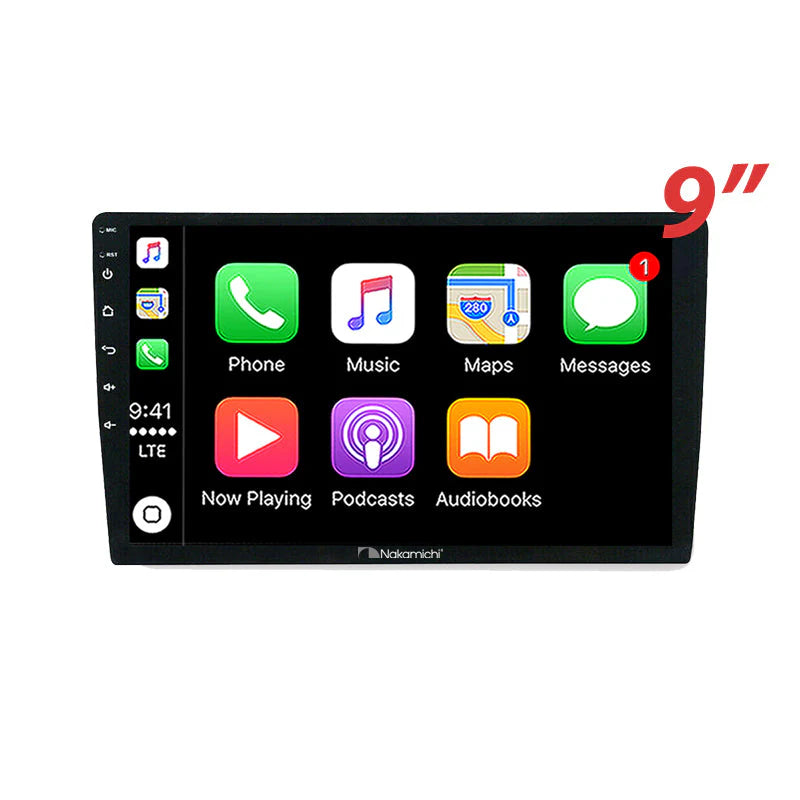

The Nakamichi NA9NISSANUNIVERSAL delivers wireless Apple CarPlay and Android Auto across a comprehensive range of Nissan models through a versatile 9-inch touchscreen system. Engineered for Nissan vehicles with factory 180×100mm radio openings, this Android-based head unit provides modern smartphone connectivity for everything from compact city cars to heavy-duty 4WDs. Compatible with 11 different Nissan models spanning from 1996 to 2014, this universal solution transforms older Nissans with basic factory audio into connected vehicles featuring built-in GPS navigation, Bluetooth 5.0, and full steering wheel control compatibility.

The system operates on NK 13.0 Android OS with 4GB RAM and 64GB storage, delivering consistent performance across diverse Nissan applications—from daily commuting in Micras and Tii das to outback touring in Patrols and Navaras. The 9-inch 1280×720 IPS display with 500 nit brightness provides clear visibility in Australian conditions, while wireless connectivity eliminates cable clutter. This universal approach offers cost-effective modernization for multiple Nissan vehicles without the premium pricing of vehicle-specific solutions.

Key Specifications

• Universal fit for Nissan vehicles with factory 180×100mm radio openings
• 9-inch IPS touchscreen with 1280×720 resolution and 500 nit brightness
• Wireless Apple CarPlay and Android Auto (wired connection for specific Android brands)
• NK 13.0 Android operating system with 4GB RAM and 64GB internal storage
• Built-in GPS with preloaded map data, updatable via Google Play Store
• Bluetooth 5.0 with Enhanced Data Rate for hands-free calling and audio streaming
• AM/FM radio with 18 FM and 12 AM preset stations
• 4×50W maximum power output with 4V pre-out for external amplification
• Compatible with factory steering wheel controls via included harness
• Reverse camera input and auxiliary video input for dash cameras
• Dual USB interfaces: 4-pin for smartphone connection, 6-pin for media playback
• CAN-bus interface for vehicle integration
• Compatible with Almera N17, Cube BZ11, Maxima A33, Micra K12, Murano Z50, Navara D22/D40, Pathfinder WX/R51, Patrol GU, Tiida C11, X-Trail T30/T31

Features & Benefits

Broad compatibility transforms multiple Nissan models economically. This universal solution modernizes everything from compact Micras to heavy-duty Patrols with identical functionality—ideal for families with multiple older Nissans, fleet operators seeking consistent technology across diverse vehicles, or enthusiasts maintaining several classic Nissan models without purchasing separate vehicle-specific head units.

180×100mm factory opening ensures proper fitment. The standardized radio opening across these Nissan models enables straightforward installation with included fascia adapters. If your Nissan has the common rectangular factory radio, this unit provides plug-and-play modernization without custom fabrication or dashboard modifications—confirm your opening dimensions before purchase.

Wireless smartphone mirroring across diverse applications. Whether navigating city streets in a Tiida, towing with a Navara, or touring outback tracks in a Patrol, wireless CarPlay and Android Auto provide consistent smartphone integration. The universal approach delivers identical modern connectivity regardless of your Nissan's intended use—from urban commuting to remote area exploration.

Built-in GPS replaces suction-cup devices universally. Eliminate windscreen-mounted GPS units and phone holders across your entire Nissan fleet. Preloaded GPS map data provides continuous navigation from metropolitan areas to remote regions, while Google Play Store access enables installation of specialized apps appropriate to each vehicle's purpose—city navigation, 4WD tracks, or commercial routing.

Bluetooth 5.0 enhances hands-free calling across all models. Enhanced Data Rate technology delivers stable connections and clear audio quality regardless of vehicle type—from quiet Micra cabins to noisy Patrol diesel environments. Modern Bluetooth functionality brings legal, safe phone communication to Nissans that predated comprehensive hands-free technology or had basic Bluetooth with limited range and quality.

Steering wheel control retention maintains factory convenience. Compatible Nissan steering wheel controls remain operational for volume adjustment and track management across all supported models. This universal compatibility preserves the convenience of factory controls without requiring model-specific programming or complex integration procedures during installation.

Expandable audio system supports diverse upgrade paths. The 4V pre-output voltage drives external amplifiers suitable for any application—from modest sound improvements in city cars to serious audio systems in touring 4WDs. Dedicated subwoofer output and four-channel speaker connections accommodate everything from basic speaker replacements to comprehensive audio builds across different Nissan models.

Add modern safety features to older vehicles. The reverse camera input allows addition of backup cameras to Nissans manufactured before reversing cameras became standard equipment. This safety upgrade proves particularly valuable for larger vehicles like Pathfinders and Patrols, while auxiliary video inputs accommodate dash cameras across all models for incident documentation and journey recording.

Cost-effective fleet or family modernization. Update multiple older Nissans with consistent technology at universal pricing. Fleet operators maintain standardized interfaces across diverse vehicles, families enjoy identical features in different models, and enthusiasts preserve multiple classic Nissans while adding modern connectivity—all without the accumulated cost of separate vehicle-specific units.

Technical Specs

• Screen: 9" IPS touchscreen, 1280×720 resolution, 500 nit brightness
• Operating System: NK 13.0 Android
• Memory: 4GB RAM, 64GB ROM
• Wireless Connectivity: Wireless Apple CarPlay, Wireless/Wired Android Auto
• Bluetooth: Version 5.0 with Enhanced Data Rate, 2.4GHz frequency, 5m range
• GPS: Built-in GPS receiver with external antenna
• Radio: FM 87.5-108.0 MHz (18 presets), AM 522-1620 kHz (12 presets)
• Audio Output: 4×50W maximum power, 4V/10KΩ pre-output
• Speaker Impedance: 4-8Ω compatible
• Pre-Output Impedance: ≤600Ω
• Audio Outputs: Front L/R, Rear L/R, Subwoofer, Amplifier Control
• Video Inputs: Reverse camera input, AUX video input (F_CAMERA)
• USB Interfaces: 4-pin USB (smartphone connection), 6-pin USB (media playback)
• Additional Inputs: Radio antenna, GPS antenna, external microphone, brake detection, CAN-bus interface (RX/TX)
• Power: 14.4V operating voltage (10.5-16V range), USB 5V±0.25V/1A output
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Physical Requirement: Factory 180×100mm radio opening
• Compatibility: Universal fit for specified Nissan models with steering wheel control retention

Frequently Asked Questions

How do I know if this will fit my Nissan?

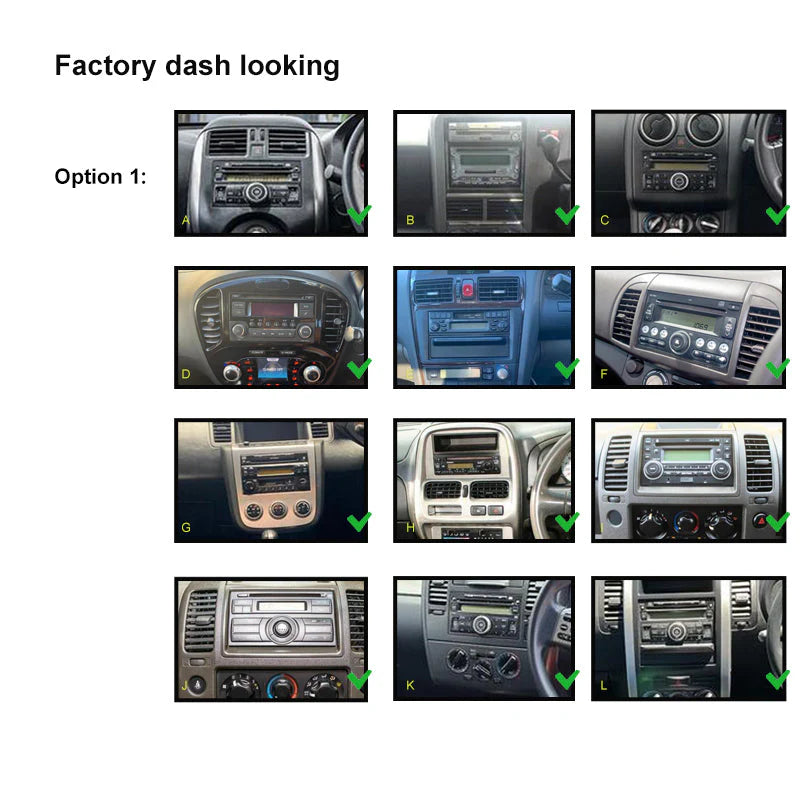

This unit fits Nissan models with factory 180×100mm radio openings. Compatible models include Almera N17 (2012-2013), Cube BZ11 (2002-2008), Maxima A33 (1999-2003), Micra K12 (2003-2010), Murano Z50 (2005-2008), Navara D22 (1997-2014), Navara D40 (2005-2014), Pathfinder WX/R51 (1996-2013), Patrol GU (1997-2012), Tiida C11 (2006-2013), and X-Trail T30/T31 (2001-2007). Message us with your dash photo and model details for confirmation.

What's the difference between this and vehicle-specific models?
This universal unit provides identical core functionality (wireless CarPlay, Android Auto, GPS, Bluetooth 5.0) at lower cost compared to vehicle-specific models. Vehicle-specific units may offer additional integration features or optimized fascia designs for particular models. If a vehicle-specific option exists for your Nissan, we can advise which best suits your requirements.

Will my steering wheel controls work?
Yes, the included harness maintains steering wheel control functionality across compatible Nissan models. Volume adjustment, track skipping, and source selection remain operational through factory steering wheel buttons. Specific button layouts vary by model, but core functions are preserved universally.

Can I use this in multiple Nissans?
While the unit is compatible with multiple models, it's designed for permanent installation in one vehicle. The included fascia adapter is model-specific—contact us when ordering to specify which Nissan model you're installing in, and we'll provide the appropriate fascia and harness for that specific application.

What's included for installation and do I need additional parts?
The package includes head unit, model-specific fascia adapter, main harness, RCA cable, camera cable, rear speaker cable, microphone, GPS antenna, user manual, and two USB cables. When ordering, message us with your dash photo, car year, and model so we can include the correct fascia and harness for your specific Nissan application.

Compatible With / Goes Well With

Compatible Nissan Models:

• Nissan Almera N17 (2012-2013)
• Nissan Cube BZ11 (2002-2008)
• Nissan Maxima A33 (1999-2003)
• Nissan Micra K12 (2003-2010)
• Nissan Murano Z50 (2005-2008)
• Nissan Navara D22 (1997-2014)
• Nissan Navara D40 (2005-2014)
• Nissan Pathfinder WX/R51 (1996-2013)
• Nissan Patrol GU (1997-2012)
• Nissan Tiida C11 (2006-2013)
• Nissan X-Trail T30/T31 (2001-2007)

Compatible Accessories:

• Factory Nissan steering wheel control systems
• Aftermarket reverse cameras with RCA video output
• External amplifiers requiring 4V pre-out signal
• Powered subwoofers with RCA input
• Front-facing dash cameras with auxiliary video input
• Standard 4-8Ω aftermarket speakers
• GPS external antennas for enhanced satellite reception
• Navigation apps suitable for urban, regional, or 4WD use
