Nakamichi NA9SUBARULIBERTYOUTBACK20092014 9" Wireless CarPlay Head Unit Subaru Liberty Outback 2009-2014

Advanced Smartphone Integration for Your Subaru Liberty & Outback

Product Overview

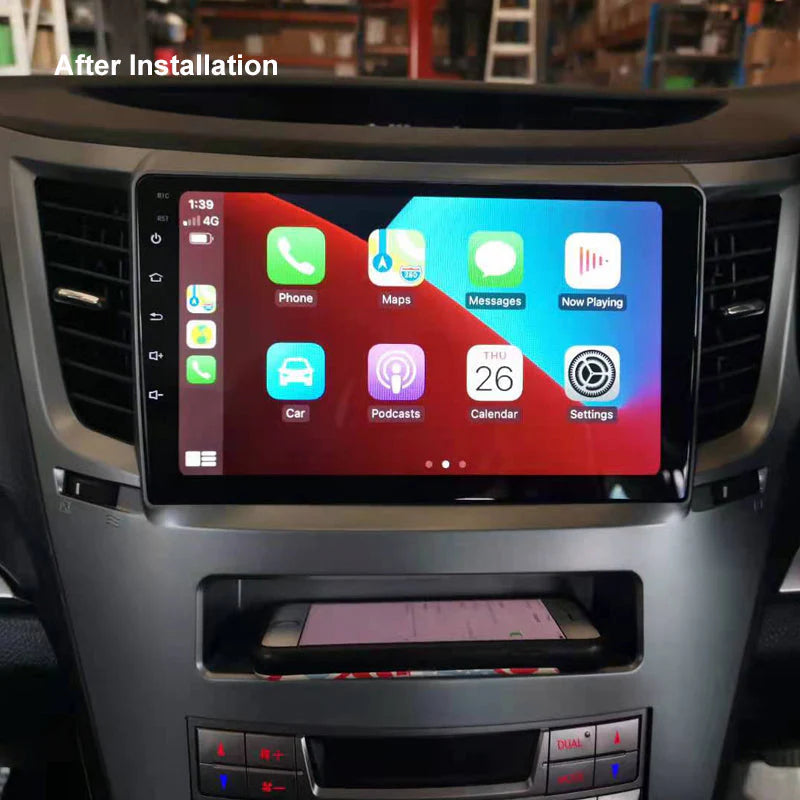

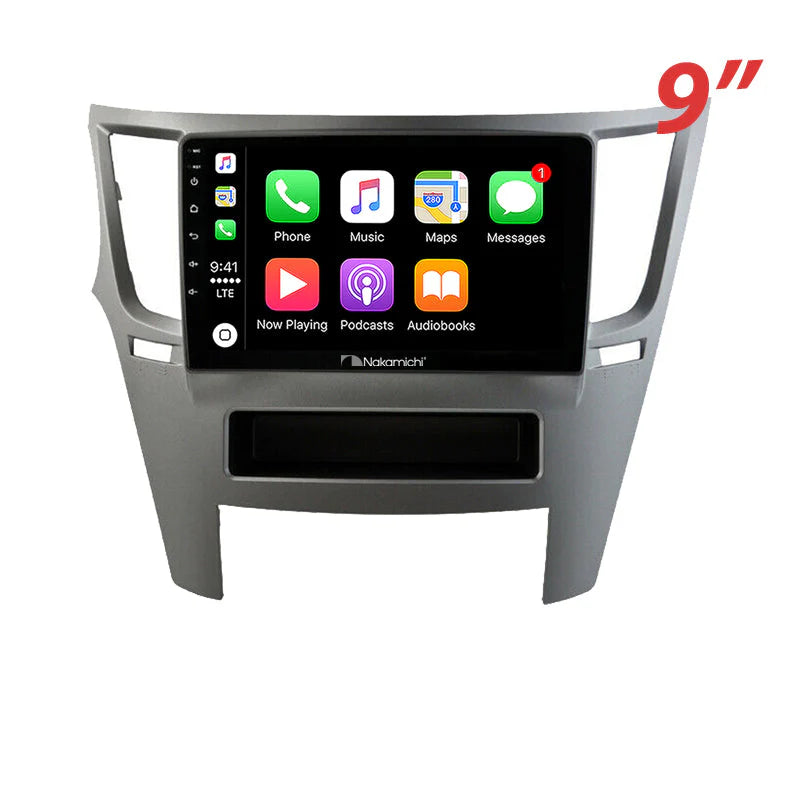

The Nakamichi NA9SUBARULIBERTYOUTBACK20092014 brings wireless Apple CarPlay and Android Auto to 2009-2014 Subaru Liberty and Outback models through a precision-engineered 9-inch touchscreen replacement system. This Android-based head unit integrates seamlessly with your Subaru's existing architecture, offering built-in GPS navigation, Bluetooth 5.0 connectivity, and configuration options that accommodate factory standard systems, satellite navigation, and premium audio amplifiers. Available in four installation variants to match your specific factory setup, this unit delivers modern smartphone connectivity while preserving or enhancing your Subaru's original functionality.

The system operates on NK 13.0 Android OS with 4GB RAM and 64GB storage, providing smooth multitasking performance for navigation, streaming, and hands-free communication. The 1280×720 IPS display maintains excellent visibility in Australian conditions with 500 nit brightness, while wireless connectivity eliminates dashboard cable clutter for iPhone users and selected Android devices. Professional installation is recommended for variants with factory amplifiers or advanced configurations.

Key Specifications

• Factory-engineered compatibility for Subaru Liberty and Outback 2009-2014 with configuration-specific harnesses
• 9-inch IPS touchscreen with 1280×720 resolution and 500 nit brightness
• Wireless Apple CarPlay and Android Auto (wired for specific Android brands)
• NK 13.0 Android operating system with 4GB RAM and 64GB internal storage
• Built-in GPS with preloaded map data, updatable via Google Play Store
• Bluetooth 5.0 with Enhanced Data Rate for stable hands-free calling and audio streaming
• AM/FM radio with 18 FM and 12 AM preset stations
• 4×50W maximum power output with 4V pre-out for external amplification
• Four installation options: Standard system, factory sat nav retention, factory sat nav with amplifier
• Reverse camera input (hardwire required for factory camera retention)
• Auxiliary video input for front-facing dash cameras
• Dual USB interfaces: 4-pin for smartphone connection, 6-pin for media playback
• CAN-bus interface for vehicle integration

Key Specifications

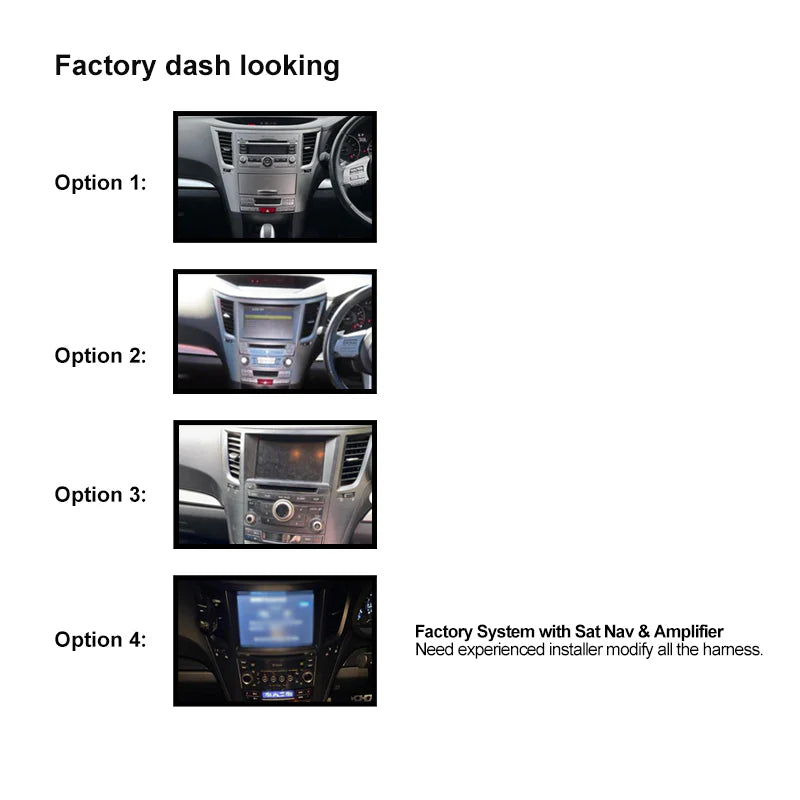

Option 1 - Factory Standard System: Compatible with steering wheel controls out of the box. Factory reverse camera requires hardwiring during installation. Suitable for Liberty and Outback models without factory satellite navigation or premium audio systems.

Option 2 & 3 - With Factory Sat Nav: Designed for vehicles equipped with factory satellite navigation systems. Steering wheel controls require hardwiring. Factory reverse camera requires hardwiring. Intermediate installation experience recommended.

Option 4 - With Factory Sat Nav & Amplifier: Engineered for premium audio systems with factory amplifiers. Requires experienced installer to modify harnesses for proper integration. Factory reverse camera requires hardwiring. Professional installation strongly recommended due to complex wiring requirements.

Features & Benefits

Wireless smartphone mirroring eliminates cable management issues. Wireless CarPlay connects your iPhone automatically at ignition, while Android Auto pairs compatible devices without physical connections—perfect for daily commutes through Perth traffic or weekend touring through the Southwest where you need navigation and communication ready instantly.

Configuration-specific installation matches your factory setup. Four distinct installation options ensure proper integration whether you have a base model Liberty or a fully-loaded Outback with factory navigation and premium audio. Each configuration includes appropriate harnesses and documentation to guide the installation process while maintaining factory functionality.

Built-in GPS provides offline navigation capability. Preloaded GPS map data ensures continuous navigation through remote areas and mobile coverage gaps common on Australian regional highways and outback routes. Update maps via Google Play Store when connected to Wi-Fi, or install alternative navigation apps for backup routing through challenging terrain.

Bluetooth 5.0 maintains clear communication in challenging conditions. Enhanced Data Rate technology provides stable connections and superior audio quality even with engine noise, wind buffeting, and road rumble typical of highway cruising—making hands-free calling practical and safe during long-distance touring or daily work commutes.

High-brightness IPS display remains visible in harsh sunlight. The 500 nit screen maintains clear visibility during intense Australian summer conditions, while 1280×720 resolution delivers sharp text for navigation prompts and contact lists. Wide viewing angles from the IPS panel ensure both driver and passenger can view the screen comfortably.

Expandable audio system supports quality upgrades. The 4V pre-output voltage drives external amplifiers for significant sound quality improvements, while dedicated subwoofer output enables bass expansion for music enthusiasts. Four-channel speaker outputs support complete audio system upgrades with amplifier control signal for automatic power management.

Dual-camera capability enhances visibility and security. Connect both a reverse camera for parking assistance and a front-facing dash camera simultaneously. Both video inputs display on the 9-inch screen, providing comprehensive awareness for tight parking manoeuvres and incident documentation during daily driving or touring.

Factory integration preserves Subaru functionality. Steering wheel controls remain operational (configuration-dependent), factory reverse cameras can be retained through hardwiring, and CAN-bus integration maintains vehicle communication protocols. The result is modern technology that works harmoniously with your Subaru's existing systems rather than replacing them entirely.

Technical Specs

• Screen: 9" IPS touchscreen, 1280×720 resolution, 500 nit brightness
• Operating System: NK 13.0 Android
• Memory: 4GB RAM, 64GB ROM
• Wireless Connectivity: Wireless Apple CarPlay, Wireless/Wired Android Auto
• Bluetooth: Version 5.0 with Enhanced Data Rate, 2.4GHz frequency, 5m range
• GPS: Built-in GPS receiver with external antenna
• Radio: FM 87.5-108.0 MHz (18 presets), AM 522-1620 kHz (12 presets)
• Audio Output: 4×50W maximum power, 4V/10KΩ pre-output
• Speaker Impedance: 4-8Ω compatible
• Pre-Output Impedance: ≤600Ω
• Audio Outputs: Front L/R, Rear L/R, Subwoofer, Amplifier Control
• Video Inputs: Reverse camera input, AUX video input (F_CAMERA)
• USB Interfaces: 4-pin USB (smartphone connection), 6-pin USB (media playback)
• Additional Inputs: Radio antenna, GPS antenna, external microphone, brake detection, CAN-bus interface (RX/TX)
• Power: 14.4V operating voltage (10.5-16V range), USB 5V±0.25V/1A output
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Compatibility: Subaru Liberty and Outback 2009-2014 models across four configuration variants
• Installation Options: Standard system, factory sat nav retention, factory sat nav with amplifier

Frequently Asked Questions

Which installation option suits my Liberty or Outback?
Option 1 fits standard systems without factory navigation or premium audio. Options 2 & 3 suit models with factory satellite navigation. Option 4 is for vehicles with both factory navigation and amplifiers. Message us with your dash photo, car year, and model to confirm the correct configuration before purchase.

Will my steering wheel controls continue working?
Yes for Option 1 installations—plug-and-play compatibility. Options 2, 3, and 4 require hardwiring for steering wheel control retention. Volume, track skip, and call functions remain operational once properly connected during installation.

Can I keep my factory reverse camera?
Yes, but all configurations require hardwiring to retain factory reverse cameras. The unit accepts standard reverse camera video input signals. Budget additional installation time for camera integration regardless of which option you select.

Is professional installation required?
Option 1 suits DIY installers with basic experience. Options 2 & 3 benefit from intermediate installation knowledge. Option 4 requires professional installation due to complex harness modifications needed for factory amplifier integration. Incorrect wiring can damage factory systems or the head unit.

What's included and what accessories might I need?
Package includes head unit with fascia, main harness, RCA cable, camera cable, rear speaker cable, microphone, GPS antenna, user manual, and two USB cables. Different configurations may require specific harnesses—contact us with your dash photo and vehicle details for confirmation before purchase.

Compatible With / Goes Well With

• Subaru Liberty 2009-2014 (fourth and fifth generation, all trim levels)
• Subaru Outback 2009-2014 (fourth and fifth generation, all trim levels)
• Factory Subaru satellite navigation systems (Options 2, 3, 4)
• Factory Subaru premium audio amplifiers (Option 4)
• Aftermarket reverse cameras with RCA video output
• Factory Subaru reverse cameras (hardwire installation required)
• External amplifiers requiring 4V pre-out signal
• Powered subwoofers with RCA input
• Front-facing dash cameras with auxiliary video input
• Factory Subaru steering wheel control systems
• Standard 4-8Ω aftermarket speakers
• GPS external antennas for enhanced satellite reception in challenging terrain
