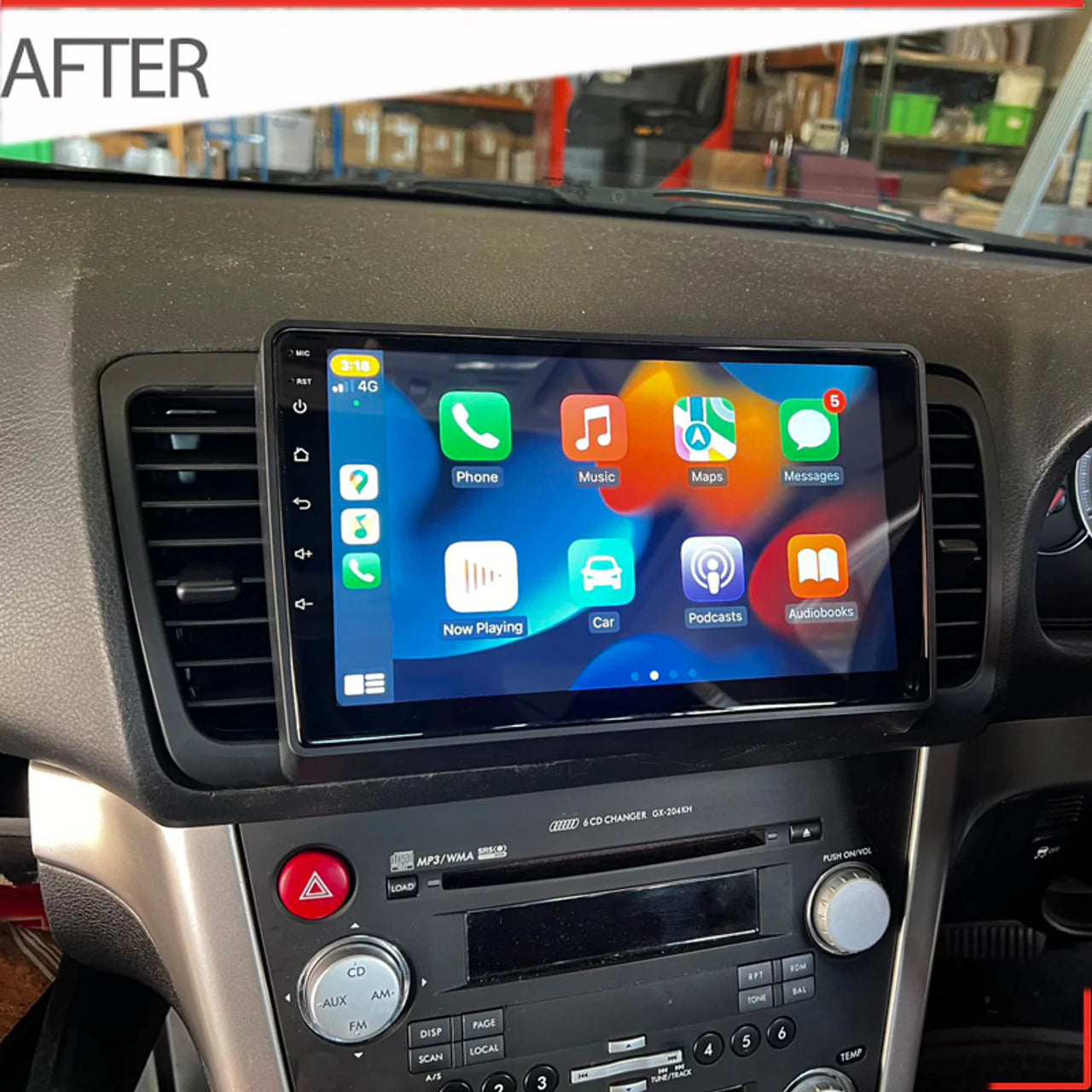

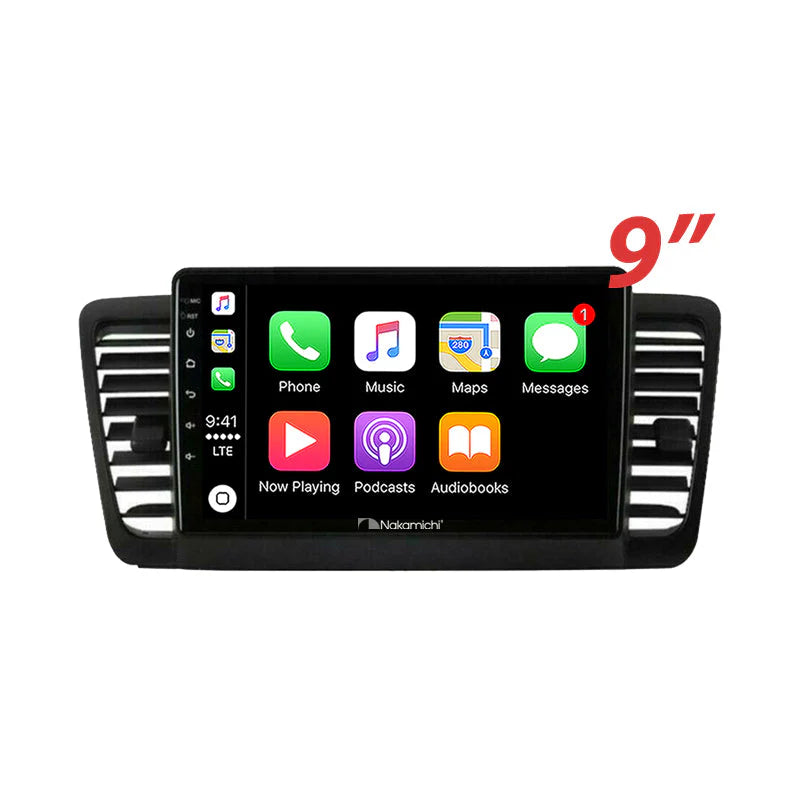

Nakamichi NA9SUBARULIBERTYOUTBACK20032009 9" Head Unit Subaru Liberty Outback

Modernise Your Third-Generation Subaru Liberty & Outback

Product Overview

The Nakamichi NA9SUBARULIBERTYOUTBACK20032009 brings wireless Apple CarPlay and Android Auto connectivity to 2003-2009 Subaru Liberty and Outback models through a precision-engineered 9-inch touchscreen system. This Android-based head unit transforms your third-generation Subaru's entertainment capabilities with built-in GPS navigation, Bluetooth 5.0 connectivity, and direct integration with factory systems. Designed for straightforward installation with included vehicle-specific fascia and harnesses, this unit delivers modern smartphone connectivity while maintaining factory functionality—though vehicles with factory amplified audio systems require professional harness modification during installation.

The system operates on NK 13.0 Android OS with 4GB RAM and 64GB storage, delivering responsive performance for simultaneous navigation, music streaming, and hands-free communication. The 1280×720 IPS display provides clear visibility in Australian conditions with 500 nit brightness, while wireless connectivity eliminates cable clutter for iPhone users and selected Android devices. Standard installations suit DIY enthusiasts, while factory amplified systems benefit from professional installation expertise.

Key Specifications

• Factory-engineered compatibility for Subaru Liberty and Outback 2003-2009 with included fascia panel
• 9-inch IPS touchscreen with 1280×720 resolution and 500 nit brightness
• Wireless Apple CarPlay and Android Auto (wired connection for specific Android brands)
• NK 13.0 Android operating system with 4GB RAM and 64GB internal storage
• Built-in GPS with preloaded map data, updatable via Google Play Store
• Bluetooth 5.0 with Enhanced Data Rate for stable hands-free calling and audio streaming
• AM/FM radio with 18 FM and 12 AM preset stations
• 4×50W maximum power output with 4V pre-out for external amplification
• Compatible with factory steering wheel controls
• Reverse camera input and auxiliary video input for dash cameras
• Dual USB interfaces: 4-pin for smartphone connection, 6-pin for media playback
• CAN-bus interface for vehicle integration
• Factory amplified systems require harness modification (professional installation recommended)

Features & Benefits

Wireless smartphone mirroring eliminates dashboard cable clutter. Wireless CarPlay connects your iPhone automatically at ignition, while Android Auto pairs compatible devices without physical connections—ideal for daily Perth commutes or weekend getaways to Margaret River where you need navigation and music streaming ready instantly without fumbling with cables.

Third-generation Subaru integration preserves factory functionality. The included fascia panel and harness are engineered specifically for 2003-2009 Liberty and Outback dashboards, maintaining factory appearance while adding modern connectivity. Steering wheel controls remain operational, preserving your ability to adjust volume and skip tracks without reaching for the touchscreen.

Built-in GPS ensures navigation in remote areas. Preloaded GPS map data maintains continuous navigation through mobile coverage gaps common on Australian regional highways and outback routes. Update maps via Google Play Store when connected to Wi-Fi, or install alternative navigation apps for backup routing through challenging terrain typical of WA touring.

Bluetooth 5.0 maintains clear calls in challenging conditions. Enhanced Data Rate technology delivers stable connections and superior audio quality even with engine noise and wind buffeting at highway speeds—making hands-free calling practical and safe during long-distance touring or daily work commutes across Perth metropolitan area.

High-brightness IPS display stays visible in harsh sunlight. The 500 nit screen maintains clear visibility during intense Australian summer conditions, while 1280×720 resolution delivers sharp text for navigation prompts and contact lists. Wide viewing angles from the IPS panel ensure both driver and passenger can view screen content comfortably.

Expandable audio system supports aftermarket upgrades. The 4V pre-output voltage drives external amplifiers for significant sound quality improvements, while dedicated subwoofer output enables bass expansion. Four-channel speaker outputs support complete audio system upgrades with amplifier control signal for automatic power management of external components.

Dual-camera capability enhances visibility and security. Connect both a reverse camera for parking assistance and a front-facing dash camera simultaneously. Both video inputs display on the 9-inch screen, providing comprehensive awareness for tight parking manoeuvres and incident documentation during daily driving or extended touring.

Factory amplifier compatibility with professional installation. Vehicles equipped with factory premium audio systems can retain their amplified sound with proper harness modification. Professional installers can integrate the unit while preserving factory amplifier functionality, maintaining the superior audio quality your Subaru was designed to deliver.

Technical Specs

• Screen: 9" IPS touchscreen, 1280×720 resolution, 500 nit brightness
• Operating System: NK 13.0 Android
• Memory: 4GB RAM, 64GB ROM
• Wireless Connectivity: Wireless Apple CarPlay, Wireless/Wired Android Auto
• Bluetooth: Version 5.0 with Enhanced Data Rate, 2.4GHz frequency, 5m range
• GPS: Built-in GPS receiver with external antenna
• Radio: FM 87.5-108.0 MHz (18 presets), AM 522-1620 kHz (12 presets)
• Audio Output: 4×50W maximum power, 4V/10KΩ pre-output
• Speaker Impedance: 4-8Ω compatible
• Pre-Output Impedance: ≤600Ω
• Audio Outputs: Front L/R, Rear L/R, Subwoofer, Amplifier Control
• Video Inputs: Reverse camera input, AUX video input (F_CAMERA)
• USB Interfaces: 4-pin USB (smartphone connection), 6-pin USB (media playback)
• Additional Inputs: Radio antenna, GPS antenna, external microphone, brake detection, CAN-bus interface (RX/TX)
• Power: 14.4V operating voltage (10.5-16V range), USB 5V±0.25V/1A output
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Compatibility: Subaru Liberty and Outback 2003-2009 models (third generation)
• Special Requirements: Factory amplified systems require harness modification

Frequently Asked Questions

Does this fit all Liberty and Outback models from 2003 to 2009?
Yes, this unit is engineered specifically for third-generation Liberty and Outback dashboards (2003-2009). The included fascia and harness ensure direct fitment. If your vehicle has a factory amplified audio system, harness modification is required—professional installation is recommended. Message us with your dash photo and car year for confirmation.

Will this work with my factory amplified audio system?
Yes, but harness modification is required to integrate with factory amplifiers. This modification ensures proper signal routing between the head unit and your factory amplifier. Professional installation is strongly recommended for amplified systems to prevent damage to factory components or the head unit itself.

Will my factory steering wheel controls still work?
Yes, the included harness maintains steering wheel control functionality for standard installations. Volume adjustment, track skipping, and call answering remain operational through your factory buttons without additional programming. Factory amplified systems may require additional wiring—confirm with your installer.

Is Android Auto wireless or do I need a cable?
Android Auto connectivity depends on your phone brand. Most modern Android devices support wireless connection, but some specific brands require wired USB connection. iPhone users enjoy fully wireless CarPlay operation for all compatible iPhone models without any cable requirement.

What's included for installation and do I need additional parts?
The package includes head unit with fascia, main harness, RCA cable, camera cable, rear speaker cable, microphone, GPS antenna, user manual, and two USB cables. Standard systems install with included components. Factory amplified systems require harness modification by a professional installer—contact us with your dash photo for confirmation.

Compatible With / Goes Well With

• Subaru Liberty 2003-2009 (third generation, all trim levels including 2.5i, 3.0R, GT, Spec.B)
• Subaru Outback 2003-2009 (third generation, all trim levels including 2.5i, 3.0R, XT)
• Factory Subaru steering wheel control systems
• Factory Subaru amplified audio systems (requires harness modification)
• Aftermarket reverse cameras with RCA video output
• External amplifiers requiring 4V pre-out signal
• Powered subwoofers with RCA input
• Front-facing dash cameras with auxiliary video input
• Standard 4-8Ω aftermarket speakers
• GPS external antennas for enhanced satellite reception in remote areas
