Nakamichi NA9PEUGEOT50820112018 9" Android Head Unit Peugeot 508

Transform Your Peugeot 508 with Premium Smartphone Integration

Product Overview

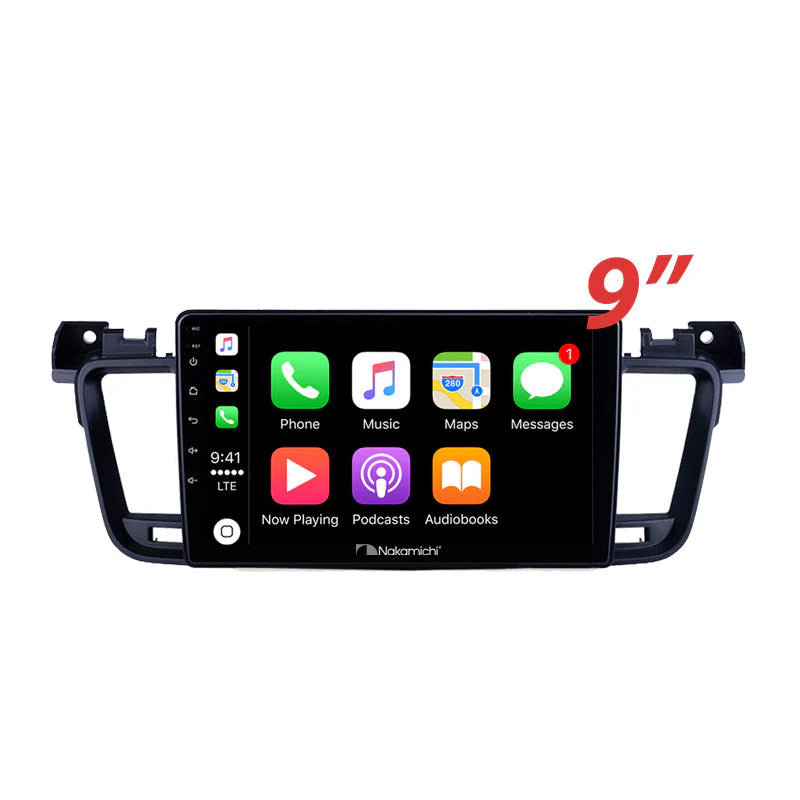

The Nakamichi NA9PEUGEOT50820112018 delivers wireless Apple CarPlay and Android Auto connectivity engineered specifically for 2011-2018 Peugeot 508 models. This 9-inch touchscreen head unit replaces your factory system with a modern Android-based platform featuring built-in GPS navigation, Bluetooth 5.0 connectivity, and full steering wheel control compatibility. Designed for direct plug-and-play installation with included vehicle-specific fascia and harnesses, this unit transforms your Peugeot's entertainment capabilities with hands-free calling, real-time navigation, and instant access to your favourite apps—all while maintaining factory functionality.

The system operates on NK 13.0 Android OS with 4GB RAM and 64GB storage, providing responsive performance for multitasking between navigation, music streaming, and hands-free communication. The 1280×720 IPS display delivers clear visibility in Australian sunlight with 500 nit brightness, while wireless connectivity eliminates cable clutter for iPhone users and selected Android devices. Note that this unit is not compatible with factory heated seat controls—confirm your 508's specifications before purchase.

Key Specifications

• Factory-engineered fit for Peugeot 508 2011-2018 models with included fascia panel
• 9-inch IPS touchscreen with 1280×720 resolution and 500 nit brightness
• Wireless Apple CarPlay and Android Auto (wired connection for specific Android brands)
• NK 13.0 Android operating system with 4GB RAM and 64GB internal storage
• Built-in GPS with preloaded map data, updatable via Google Play Store
• Bluetooth 5.0 with Enhanced Data Rate for hands-free calling and audio streaming
• AM/FM radio with 18 FM and 12 AM preset stations
• 4×50W maximum power output with 4V pre-out for external amplification
• Compatible with factory steering wheel controls via included harness
• Reverse camera input and auxiliary video input for dash cameras
• Dual USB interfaces: 4-pin for smartphone connection, 6-pin for media playback
• CAN-bus interface for vehicle integration
• Not compatible with factory heated seat controls

Features & Benefits

Wireless smartphone mirroring eliminates cable management hassles. Wireless CarPlay connects your iPhone automatically when you start the car, while Android Auto pairs compatible devices without physical connections—perfect for daily commutes through Perth or weekend touring along the coast where you need navigation and music streaming ready instantly.

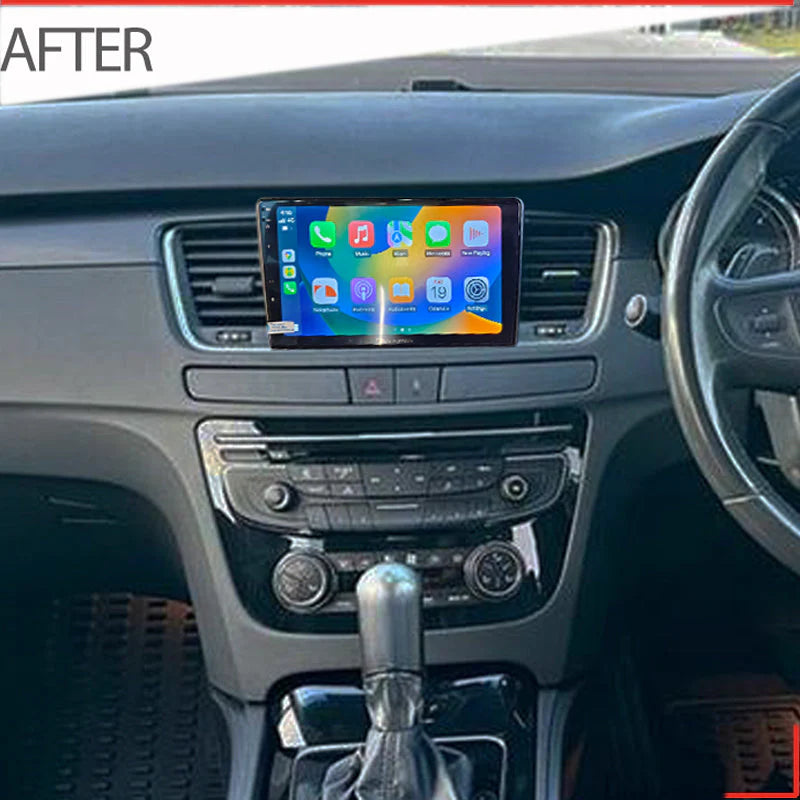

Peugeot-specific installation preserves factory appearance. The included fascia panel and harness are engineered specifically for 2011-2018 Peugeot 508 dashboards, maintaining the refined European aesthetic while adding modern connectivity. Steering wheel controls remain fully operational, preserving your ability to adjust volume and skip tracks without reaching for the touchscreen.

Built-in GPS ensures navigation in remote coverage areas. Preloaded GPS map data maintains continuous navigation through mobile black spots common on Australian regional highways. Update maps via Google Play Store when connected to Wi-Fi, or install alternative navigation apps for backup routing options when exploring unfamiliar regions.

Bluetooth 5.0 maintains clear calls in challenging conditions. Enhanced Data Rate technology delivers stable connections and superior audio quality even with road noise and wind buffeting at highway speeds—making hands-free calling practical and safe during commutes or long-distance driving across metropolitan and regional areas.

High-brightness IPS display stays readable in harsh Australian sunlight. The 500 nit screen maintains clear visibility during intense summer conditions, while 1280×720 resolution delivers sharp text for navigation prompts and contact lists. Wide viewing angles from the IPS panel ensure both driver and passenger can view screen content comfortably.

Expandable audio system supports premium upgrades. The 4V pre-output voltage drives external amplifiers for significant sound quality improvements, while dedicated subwoofer output enables bass expansion. Four-channel speaker outputs support complete audio system upgrades with amplifier control signal for automatic power management of external components.

Dual-camera capability enhances safety and security. Connect both a reverse camera for parking assistance and a front-facing dash camera simultaneously. Both video inputs display on the 9-inch screen, providing comprehensive awareness for tight parking situations and incident recording during daily driving.

CAN-bus integration maintains vehicle communication. The integrated CAN-bus interface ensures proper communication with your Peugeot's electronic systems, maintaining diagnostic capabilities and vehicle information displays where applicable. This professional integration approach preserves your 508's advanced electronic architecture.

Technical Specs

• Screen: 9" IPS touchscreen, 1280×720 resolution, 500 nit brightness
• Operating System: NK 13.0 Android
• Memory: 4GB RAM, 64GB ROM
• Wireless Connectivity: Wireless Apple CarPlay, Wireless/Wired Android Auto
• Bluetooth: Version 5.0 with Enhanced Data Rate, 2.4GHz frequency, 5m range
• GPS: Built-in GPS receiver with external antenna
• Radio: FM 87.5-108.0 MHz (18 presets), AM 522-1620 kHz (12 presets)
• Audio Output: 4×50W maximum power, 4V/10KΩ pre-output
• Speaker Impedance: 4-8Ω compatible
• Pre-Output Impedance: ≤600Ω
• Audio Outputs: Front L/R, Rear L/R, Subwoofer, Amplifier Control
• Video Inputs: Reverse camera input, AUX video input (F_CAMERA)
• USB Interfaces: 4-pin USB (smartphone connection), 6-pin USB (media playback)
• Additional Inputs: Radio antenna, GPS antenna, external microphone, brake detection, CAN-bus interface (RX/TX)
• Power: 14.4V operating voltage (10.5-16V range), USB 5V±0.25V/1A output
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Compatibility: Peugeot 508 2011-2018 models with steering wheel control retention
• Limitation: Not compatible with factory heated seat controls

Frequently Asked Questions

Does this fit all Peugeot 508 models from 2011 to 2018?
Yes, this unit is engineered specifically for 2011-2018 Peugeot 508 dashboards. The included fascia and harness ensure direct fitment without modifications. However, this unit is not compatible with factory heated seat controls. Message us with your dash photo and car year when ordering to confirm compatibility.

Will I lose my heated seat controls with this installation?
Yes, this head unit is not compatible with factory heated seat controls. If your Peugeot 508 has heated seats controlled through the factory head unit, those functions will not be available after installation. Consider whether this trade-off suits your needs before purchasing.

Will my factory steering wheel controls still work?
Yes, the included harness maintains full steering wheel control functionality. Volume adjustment, track skipping, call answering, and source selection remain operational through your factory steering wheel buttons without additional programming required.

Is Android Auto wireless or do I need a cable?
Android Auto connectivity depends on your phone brand. Most modern Android devices support wireless connection, but some specific brands require wired USB connection. iPhone users enjoy fully wireless CarPlay operation for all compatible iPhone models without any cable requirement.

What's included for installation and do I need additional parts?
The package includes head unit with fascia, main harness, RCA cable, camera cable, rear speaker cable, microphone, GPS antenna, user manual, and two USB cables. Different 508 variants may require specific accessories—contact us with your dash photo for confirmation before purchase.

Compatible With / Goes Well With

• Peugeot 508 2011-2018 (all trim levels including Active, Allure, GT)
• Peugeot 508 without factory heated seat controls
• Factory Peugeot steering wheel control systems
• Aftermarket reverse cameras with RCA video output
• External amplifiers requiring 4V pre-out signal
• Powered subwoofers with RCA input
• Front-facing dash cameras with auxiliary video input
• Standard 4-8Ω aftermarket speakers
• GPS external antennas for enhanced satellite reception
