Nakamichi NA9NISSANPATROL2010ON 9" Wireless CarPlay Nissan Patrol GU7 GU8 Y61

Equip Your Legendary Patrol with Modern Navigation Technology

Product Overview

The Nakamichi NA9NISSANPATROL2010ON brings wireless Apple CarPlay and Android Auto to 2010+ Nissan Patrol GU7 and GU8 models (Y61 chassis) through a rugged 9-inch touchscreen system. This Android-based head unit transforms your legendary 4WD's communication and navigation capabilities with built-in GPS, Bluetooth 5.0 connectivity, and full steering wheel control compatibility. Engineered specifically for Patrol models without factory large screens, this unit delivers modern smartphone integration while maintaining the proven reliability Patrol owners demand for remote area touring and serious off-road exploration.

The system operates on NK 13.0 Android OS with 4GB RAM and 64GB storage, providing dependable performance for navigation, communication, and entertainment during extended outback expeditions. The 9-inch 1280×720 IPS display with 500 nit brightness remains visible in harsh Australian conditions including direct sunlight, dust, and corrugated road vibration. Wireless connectivity eliminates cable clutter in your work truck or touring rig, while the included vehicle-specific fascia maintains the Patrol's functional, purposeful interior aesthetic.

Key Specifications

• Factory-engineered fit for Nissan Patrol 2010+ GU7/GU8 models (Y61 chassis) without factory large screens
• 9-inch IPS touchscreen with 1280×720 resolution and 500 nit brightness
• Wireless Apple CarPlay and Android Auto (wired connection for specific Android brands)
• NK 13.0 Android operating system with 4GB RAM and 64GB internal storage
• Built-in GPS with preloaded map data, updatable via Google Play Store
• Bluetooth 5.0 with Enhanced Data Rate for hands-free calling and audio streaming
• AM/FM radio with 18 FM and 12 AM preset stations
• 4×50W maximum power output with 4V pre-out for external amplification
• Compatible with factory steering wheel controls via included harness
• Reverse camera input and auxiliary video input for dash cameras
• Dual USB interfaces: 4-pin for smartphone connection, 6-pin for media playback
• CAN-bus interface for vehicle integration
• Not compatible with Patrol models equipped with factory large screen systems

Features & Benefits

Purpose-built for Patrols without factory large screens. This unit integrates seamlessly with GU7 and GU8 Patrol dashboards that came with standard audio systems—transforming basic factory entertainment into modern connectivity without compromising the legendary reliability that makes Patrols the preferred choice for remote area exploration, mining work, and serious outback touring across Australia.

Wireless smartphone mirroring for remote area communication. Wireless CarPlay and Android Auto maintain connectivity in towns and stations between remote destinations—perfect for coordinating convoy movements, checking station access, or communicating with family during extended Cape York, Canning Stock Route, or Simpson Desert expeditions where reliable technology matters most.

Built-in GPS ensures navigation where mobile coverage ends. Preloaded GPS map data maintains continuous navigation through vast areas without mobile coverage—essential for Patrol touring through WA's Pilbara, NT's Tanami Desert, or Queensland's Channel Country. Install specialized 4WD navigation apps like Hema Maps or ExplorOz for detailed track information, water points, and fuel locations.

Rugged construction withstands demanding conditions. The 9-inch IPS screen maintains visibility through corrugations, bulldust, and harsh outback sun exposure. The 500 nit brightness cuts through dashboard glare, while the chassis design handles the constant vibration and temperature extremes typical of genuine remote area 4WD touring that Patrol owners regularly undertake.

Steering wheel control retention maintains driving focus. Factory steering wheel controls remain operational for volume adjustment and track control—essential when navigating challenging tracks where taking hands off the wheel to adjust audio would compromise control. Manage communications and entertainment while maintaining concentration on difficult terrain.

Bluetooth 5.0 delivers clear communication in harsh environments. Enhanced Data Rate technology maintains stable phone connections even with diesel engine noise, suspension articulation sounds, and wind buffeting through open windows during hot outback driving. Make clear safety calls to base camps or emergency contacts during remote expeditions.

Expandable audio system supports touring upgrades. The 4V pre-output voltage drives external amplifiers to overcome engine, tire, and wind noise typical of heavy-duty 4WD touring. Dedicated subwoofer output and four-channel speaker connections support comprehensive audio upgrades for long-distance comfort during multi-week expeditions across remote Australia.

Dual-camera capability enhances expedition safety. Connect reverse cameras for confident reversing with trailers, campers, or when navigating tight bush tracks. Auxiliary video input accommodates front-facing dash cameras for incident recording and journey documentation during remote area exploration where evidence of track conditions or wildlife encounters matters.

Legendary Patrol reliability meets modern technology. This head unit respects the Patrol's proven reputation for dependability in the harshest conditions. No complex electronic interference, no fragile components that fail in heat and dust—just straightforward smartphone integration that works when you're 1000km from the nearest workshop.

Technical Specs

• Screen: 9" IPS touchscreen, 1280×720 resolution, 500 nit brightness
• Operating System: NK 13.0 Android
• Memory: 4GB RAM, 64GB ROM
• Wireless Connectivity: Wireless Apple CarPlay, Wireless/Wired Android Auto
• Bluetooth: Version 5.0 with Enhanced Data Rate, 2.4GHz frequency, 5m range
• GPS: Built-in GPS receiver with external antenna
• Radio: FM 87.5-108.0 MHz (18 presets), AM 522-1620 kHz (12 presets)
• Audio Output: 4×50W maximum power, 4V/10KΩ pre-output
• Speaker Impedance: 4-8Ω compatible
• Pre-Output Impedance: ≤600Ω
• Audio Outputs: Front L/R, Rear L/R, Subwoofer, Amplifier Control
• Video Inputs: Reverse camera input, AUX video input (F_CAMERA)
• USB Interfaces: 4-pin USB (smartphone connection), 6-pin USB (media playback)
• Additional Inputs: Radio antenna, GPS antenna, external microphone, brake detection, CAN-bus interface (RX/TX)
• Power: 14.4V operating voltage (10.5-16V range), USB 5V±0.25V/1A output
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Compatibility: Nissan Patrol 2010+ GU7/GU8 Y61 chassis models with steering wheel control retention
• Limitation: Not compatible with Patrol models equipped with factory large screen systems

Frequently Asked Questions

Which Patrol models does this fit?

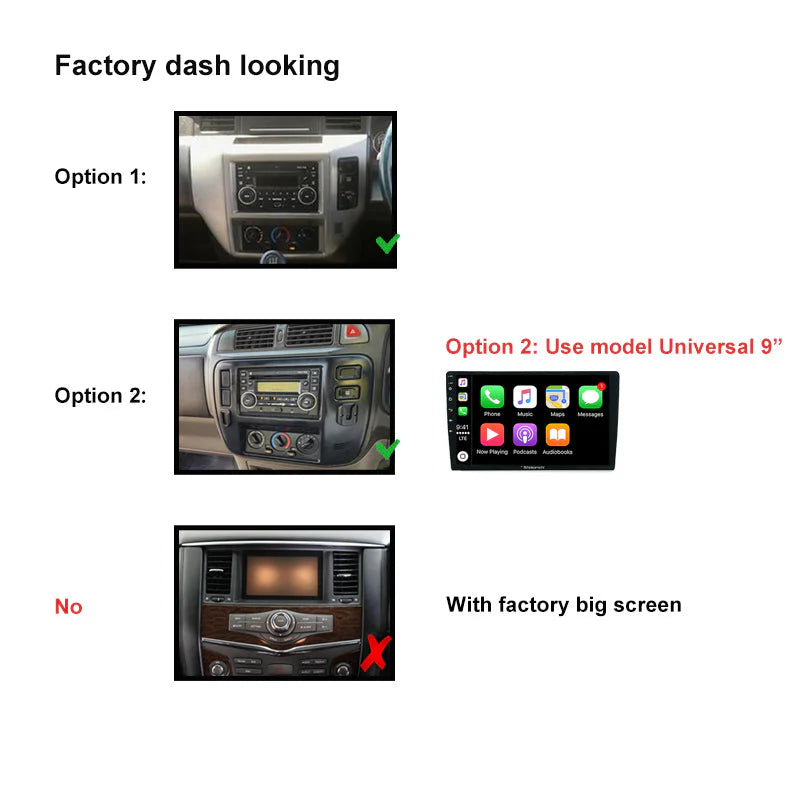

This unit fits 2010+ Nissan Patrol GU7 and GU8 models (Y61 chassis) that DO NOT have factory large screen systems. If your Patrol came with a basic factory stereo or smaller screen, this unit will fit. If you have a factory large screen system, this unit is not compatible. Message us with your dash photo for confirmation.

Will this work with my factory large screen Patrol?
No, this unit is specifically designed for Patrol models without factory large screens. Factory large screen models require different integration approaches. Contact us with your dash photo to discuss suitable alternatives for factory large screen equipped Patrols.

Will my factory steering wheel controls still work?
Yes, the included harness maintains full steering wheel control functionality. Volume adjustment, track skipping, and source selection remain operational through your factory steering wheel buttons—essential for maintaining control during challenging off-road driving situations.

Can this handle extreme outback conditions?
Yes, the unit is designed to withstand the vibration, dust, heat, and demanding conditions typical of serious Patrol use in remote Australia. The IPS screen remains visible in harsh sunlight, while the electronics handle temperature extremes and constant corrugation vibration during extended outback expeditions.

What's included for installation and do I need additional parts?
The package includes head unit with fascia, main harness, RCA cable, camera cable, rear speaker cable, microphone, GPS antenna, user manual, and two USB cables. Different GU7/GU8 variants may require specific accessories—contact us with your dash photo for confirmation before purchase.

Compatible With / Goes Well With

• Nissan Patrol 2010+ GU7 models (Y61 chassis without factory large screens)
• Nissan Patrol 2010+ GU8 models (Y61 chassis without factory large screens)
• Factory Nissan Patrol steering wheel control systems
• Aftermarket reverse cameras suitable for heavy-duty 4WD use
• Heavy-duty dash cameras for remote area documentation
• External amplifiers requiring 4V pre-out signal
• Powered subwoofers suitable for diesel vehicle noise environments
• Standard 4-8Ω aftermarket speakers rated for high-temperature environments
• GPS external antennas for enhanced reception in remote areas
• Specialized 4WD navigation apps (Hema Maps, ExplorOz, Mud Map)
• UHF radio systems for convoy communication
• Dual battery systems and auxiliary electrical setups
