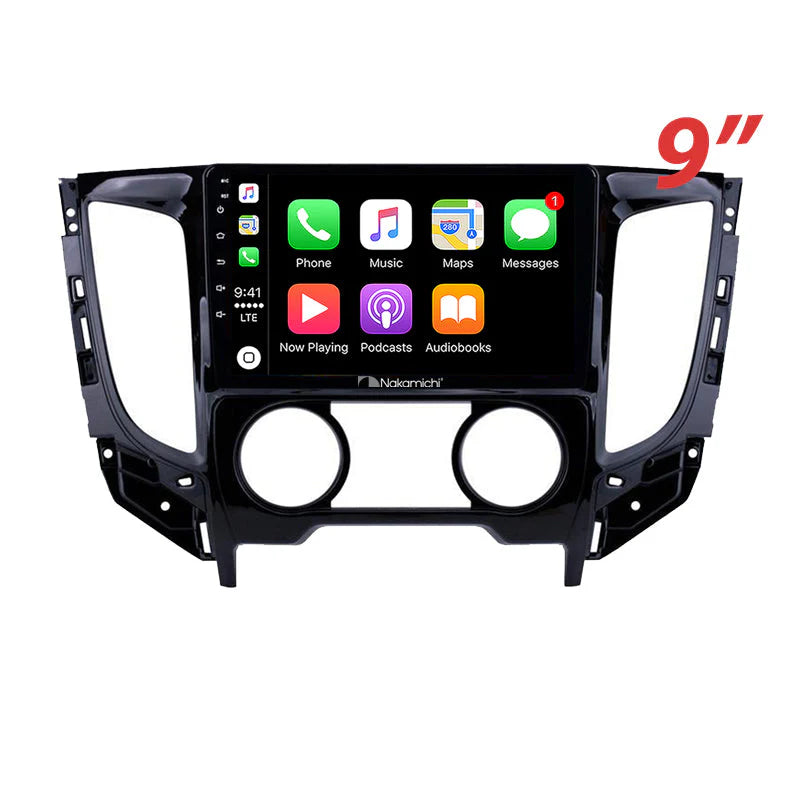

Nakamichi NA9MITSUBISHITRITONMANUAL20152023 9" Wireless CarPlay Mitsubishi Triton 2015-2023

Modernise Your Work-Ready Triton with Proven Technology

Product Overview

The Nakamichi NA9MITSUBISHITRITONMANUAL20152023 delivers wireless Apple CarPlay and Android Auto to 2015-2023 Mitsubishi Triton models with manual climate control through a rugged 9-inch touchscreen system. This Android-based head unit transforms your proven work ute's communication and navigation capabilities with built-in GPS, Bluetooth 5.0 connectivity, and seamless factory reverse camera integration. Engineered specifically for Triton models with Manual A/C configurations across nearly a decade of production, this unit provides modern smartphone connectivity while maintaining the straightforward functionality that makes base-spec Tritons Australia's choice for genuine work truck reliability.

The system operates on NK 13.0 Android OS with 4GB RAM and 64GB storage, delivering dependable performance whether you're navigating to remote worksites, coordinating fleet deliveries, or planning weekend fishing trips. The 9-inch 1280×720 IPS display with 500 nit brightness remains visible through dust, direct sunlight, and demanding conditions typical of genuine commercial and tradie use. Factory reverse camera retention through plug-and-play integration maintains your existing parking and towing safety features without additional wiring complexity—essential for confident operation in busy worksites and tight loading zones.

Key Specifications

• Factory-engineered fit for Mitsubishi Triton 2015-2023 Manual A/C models with included fascia panel
• 9-inch IPS touchscreen with 1280×720 resolution and 500 nit brightness
• Wireless Apple CarPlay and Android Auto (wired connection for specific Android brands)
• NK 13.0 Android operating system with 4GB RAM and 64GB internal storage
• Built-in GPS with preloaded map data, updatable via Google Play Store
• Bluetooth 5.0 with Enhanced Data Rate for hands-free calling and audio streaming
• AM/FM radio with 18 FM and 12 AM preset stations
• 4×50W maximum power output with 4V pre-out for external amplification
• Compatible with factory steering wheel controls via included harness
• Factory reverse camera compatible with plug-and-play integration
• Auxiliary video input for front-facing dash cameras
• Dual USB interfaces: 4-pin for smartphone connection, 6-pin for media playback
• CAN-bus interface for vehicle integration
• Specific to Triton Manual A/C models (manual climate control configuration)
• Compatible across extended production run (2015-2023)

Features & Benefits

Purpose-built for Manual A/C work truck configurations. This unit integrates seamlessly with 2015-2023 Triton models equipped with manual climate control—the base specification preferred by fleet operators, tradies, and businesses prioritizing proven reliability over luxury features. Perfect for genuine work trucks that earn their keep daily across Australian worksites, construction zones, and delivery routes.

Extended compatibility across production generations. Covering 2015-2023 models ensures this unit modernizes both earlier MQ series Tritons and newer production years—ideal for fleet operators maintaining consistent technology across multiple vehicle vintages, or businesses upgrading work trucks purchased across different years with standardized modern connectivity.

Wireless smartphone mirroring eliminates work truck cable clutter. Wireless CarPlay and Android Auto eliminate cables in cabins where tools, safety equipment, lunch boxes, and work documentation already compete for space—essential for efficient worksite navigation, coordinating deliveries, or finding coastal fishing spots during weekend downtime without cables interfering with equipment.

Factory reverse camera retention simplifies fleet installation. Your Triton's existing backup camera works seamlessly through plug-and-play connection—no additional cameras to purchase, no complex wiring modifications requiring experienced installers, and familiar camera angles operators already trust for confident reversing with loaded trays, towing equipment trailers, or navigating tight worksite access.

Built-in GPS navigates worksites and remote locations. Preloaded GPS map data ensures continuous navigation to rural construction sites, regional delivery addresses, coastal boat ramps, or outback stations. Install specialized apps like Hema Maps for detailed station track navigation, or use real-time traffic for efficient metropolitan delivery routing during peak construction hour movements.

Rugged construction withstands genuine work truck conditions. The 9-inch IPS screen maintains visibility through construction dust, farm dirt, diesel exhaust glare, and harsh Australian sun exposure during all-day outdoor work. The 500 nit brightness cuts through dashboard reflections, while the chassis design handles constant vibration from corrugated site access roads typical of genuine commercial vehicle operation.

Bluetooth 5.0 delivers clear communication in noisy work environments. Enhanced Data Rate technology maintains stable connections even with diesel engine noise, open windows, power tools running in the tray, and worksite background sounds—making hands-free client calls, site manager coordination, and dispatch communication practical and legal during work hours across construction zones and delivery routes.

Steering wheel control retention maintains operational safety. Factory steering wheel controls remain operational for volume adjustment and track control—essential during trailer towing where removing hands from the wheel creates risk, or during loaded tray driving where concentration on balance prevents load shift accidents during turns.

Expandable audio system supports long-distance work travel. The 4V pre-output voltage drives external amplifiers to overcome engine, tire, and wind noise during long regional delivery runs or interstate work travel. Dedicated subwoofer output and four-channel speaker connections support audio upgrades for operators covering hundreds of kilometres daily across regional WA routes.

Dual-camera capability enhances work vehicle documentation. While factory reverse cameras aid towing and worksite reversing, auxiliary video inputs accommodate front-facing dash cameras for incident documentation during worksite driving, insurance evidence following accidents in busy traffic, or journey recording for fleet management and driver safety monitoring.

Technical Specs

• Screen: 9" IPS touchscreen, 1280×720 resolution, 500 nit brightness
• Operating System: NK 13.0 Android
• Memory: 4GB RAM, 64GB ROM
• Wireless Connectivity: Wireless Apple CarPlay, Wireless/Wired Android Auto
• Bluetooth: Version 5.0 with Enhanced Data Rate, 2.4GHz frequency, 5m range
• GPS: Built-in GPS receiver with external antenna
• Radio: FM 87.5-108.0 MHz (18 presets), AM 522-1620 kHz (12 presets)
• Audio Output: 4×50W maximum power, 4V/10KΩ pre-output
• Speaker Impedance: 4-8Ω compatible
• Pre-Output Impedance: ≤600Ω
• Audio Outputs: Front L/R, Rear L/R, Subwoofer, Amplifier Control
• Video Inputs: Reverse camera input (factory camera plug-and-play compatible), AUX video input (F_CAMERA)
• USB Interfaces: 4-pin USB (smartphone connection), 6-pin USB (media playback)
• Additional Inputs: Radio antenna, GPS antenna, external microphone, brake detection, CAN-bus interface (RX/TX)
• Power: 14.4V operating voltage (10.5-16V range), USB 5V±0.25V/1A output
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Compatibility: Mitsubishi Triton 2015-2023 Manual A/C models with steering wheel control and factory camera retention

Frequently Asked Questions

Does this fit all Mitsubishi Triton models from 2015 to 2023?

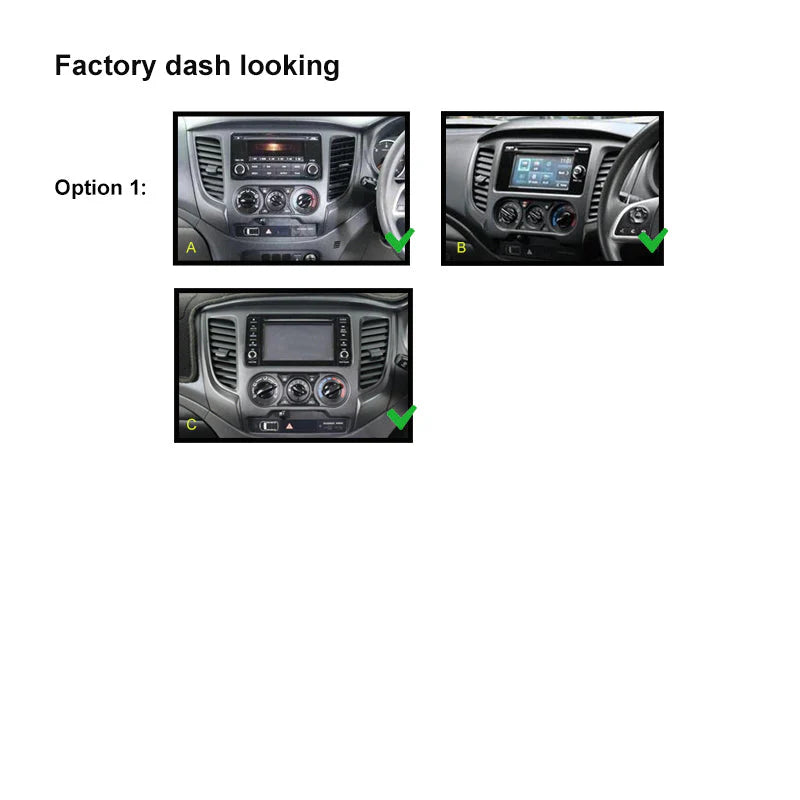

This unit is specifically engineered for 2015-2023 Triton models with Manual A/C (manual climate control). The included fascia and harness ensure direct fitment across this extended production run. If your Triton has automatic climate control, a different unit is required. Message us with your dash photo and car year for confirmation.

Will my factory reverse camera still work?
Yes, your factory reverse camera integrates seamlessly with this head unit through plug-and-play connection. The unit accepts your existing camera's video signal without additional wiring or adapters—essential for fleet installations where complex wiring increases installation time and cost. Your backup camera displays on the 9-inch screen when you select reverse gear.

Will my factory steering wheel controls still work?
Yes, the included harness maintains full steering wheel control functionality across all model years (2015-2023). Volume adjustment, track skipping, call answering, and source selection remain operational through your factory steering wheel buttons without additional programming—essential for safe operation during loaded tray driving or trailer towing.

Can this handle genuine work truck conditions?
Yes, the unit is designed to withstand vibration, dust, heat, and demanding conditions typical of genuine commercial vehicle operation. The IPS screen remains visible in harsh sunlight and dusty worksite environments, while the electronics handle temperature extremes and constant vibration during loaded tray driving and worksite access road operation.

What's included for installation and do I need additional parts?
The package includes head unit with fascia, main harness, RCA cable, camera cable, rear speaker cable, microphone, GPS antenna, user manual, and two USB cables. Different model years across the 2015-2023 range may require specific accessories—contact us with your dash photo for confirmation before purchase.

Compatible With / Goes Well With

• Mitsubishi Triton 2015-2023 Manual A/C models (all trim levels with manual climate control)
• Mitsubishi Triton MQ series (2015-2018) with manual climate control
• Mitsubishi Triton MR series (2019-2023) with manual climate control
• Factory Mitsubishi Triton steering wheel control systems
• Factory Mitsubishi Triton reverse cameras (plug-and-play compatible)
• Aftermarket reverse cameras with RCA video output (if upgrading/replacing)
• Heavy-duty dash cameras for fleet vehicle documentation
• External amplifiers requiring 4V pre-out signal
• Powered subwoofers suitable for diesel vehicle noise environments
• Standard 4-8Ω aftermarket speakers rated for work truck conditions
• GPS external antennas for enhanced reception in remote worksites
• Specialized navigation apps (Hema Maps, Mud Map, fleet management apps)
• Towing accessories requiring reverse camera visibility
• UHF radio systems for worksite or convoy communication
• Dual battery systems for extended work use and accessories
