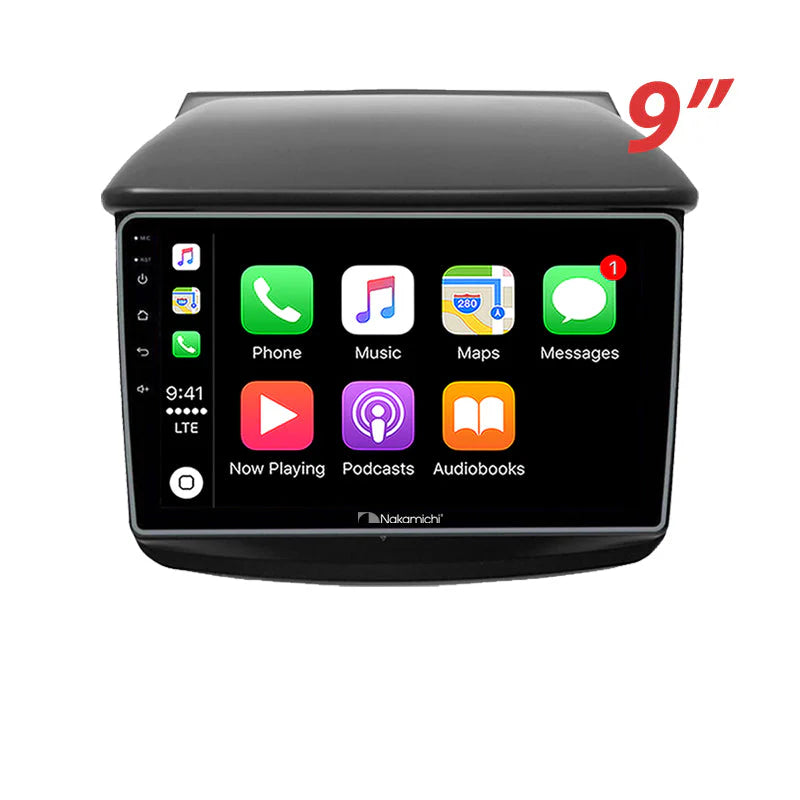

Nakamichi NA9MITSUBISHITRITON20072015 9" Wireless CarPlay Mitsubishi Triton 2007-2015

Modernise Your ML/MN Triton with Configuration-Specific Technology

Product Overview

The Nakamichi NA9MITSUBISHITRITON20072015 delivers wireless Apple CarPlay and Android Auto to 2007-2015 Mitsubishi Triton models (ML/MN series) through a versatile 9-inch touchscreen system with four distinct installation options. This Android-based head unit transforms your proven fourth-generation work ute's communication and navigation capabilities with built-in GPS, Bluetooth 5.0 connectivity, and full steering wheel control compatibility. Engineered to accommodate different factory radio configurations—from basic 1-DIN systems to dual-DIN setups—this unit provides modern smartphone connectivity while respecting the diverse specifications across eight model years of ML/MN Triton production.

The system operates on NK 13.0 Android OS with 4GB RAM and 64GB storage, delivering dependable performance whether you're navigating to remote worksites, coordinating deliveries, or planning weekend touring. The 9-inch 1280×720 IPS display with 500 nit brightness remains visible through dust, direct sunlight, and demanding conditions typical of genuine work truck use. Critical to successful installation: you must specify your factory radio configuration when ordering to receive the correct fascia and harness accessories for your specific 2007-2015 Triton variant.

Key Specifications

• Factory-engineered fit for Mitsubishi Triton 2007-2015 (ML/MN series) across four configuration options
• 9-inch IPS touchscreen with 1280×720 resolution and 500 nit brightness
• Wireless Apple CarPlay and Android Auto (wired connection for specific Android brands)
• NK 13.0 Android operating system with 4GB RAM and 64GB internal storage
• Built-in GPS with preloaded map data, updatable via Google Play Store
• Bluetooth 5.0 with Enhanced Data Rate for hands-free calling and audio streaming
• AM/FM radio with 18 FM and 12 AM preset stations
• 4×50W maximum power output with 4V pre-out for external amplification
• Compatible with factory steering wheel controls via included harness
• Reverse camera input and auxiliary video input for dash cameras
• Dual USB interfaces: 4-pin for smartphone connection, 6-pin for media playback
• CAN-bus interface for vehicle integration
• Four installation options requiring specific accessories based on factory radio configuration

Installation Options Overview

Option 1: 2007-2014 Models with Factory 1-DIN Radio
For Triton ML/MN models equipped with basic single-DIN factory radios. Includes appropriate fascia adapter and harness for single-slot factory opening integration.

Option 2: 2007-2014 Models with Factory 2-DIN Radio
For Triton ML/MN models equipped with double-DIN factory radios. Includes fascia adapter and harness designed for dual-slot factory opening integration.

Option 3: 2007-2014 Models with Factory 2-DIN Radio (Variant)
Alternative configuration for Triton ML/MN models with specific 2-DIN factory radio variants. Confirm your exact factory setup when ordering.

Option 4: 2015 Models
For 2015 Triton models transitioning to MQ series specifications. Note: If your 2015 Triton has a factory top screen that you wish to retain, the Mitsubishi universal model is required instead of this vehicle-specific unit.

Features & Benefits

Configuration-specific installation ensures proper fitment. Four distinct installation options accommodate the diverse factory radio specifications across 2007-2015 ML/MN Triton production—from basic work truck single-DIN systems to higher-specification dual-DIN setups. This comprehensive approach ensures proper integration regardless of your Triton's original factory equipment level.

Wireless smartphone mirroring for proven work trucks. Wireless CarPlay and Android Auto eliminate cable clutter in cabins where tools, safety equipment, and work documentation already compete for space—perfect for navigating to job sites, coordinating deliveries, or finding coastal fishing spots during weekend downtime without cables interfering with daily work equipment.

ML/MN series specific engineering maintains reliability. This unit respects the proven fourth-generation Triton's reputation for dependable work truck performance. Modern technology integration doesn't compromise the legendary reliability that made ML/MN Tritons popular choices for tradies, contractors, and regional businesses requiring genuine workhorse capability.

Built-in GPS navigates worksites and remote locations. Preloaded GPS map data ensures continuous navigation to rural construction sites, regional delivery addresses, coastal access points, or outback stations. Install specialized apps like Hema Maps for detailed track navigation, or use real-time traffic for efficient metropolitan delivery routing during construction hour movements.

Rugged construction withstands genuine work conditions. The 9-inch IPS screen maintains visibility through construction dust, farm dirt, and harsh Australian sun exposure during all-day outdoor work. The 500 nit brightness cuts through dashboard reflections, while the chassis design handles constant vibration from corrugated site access roads typical of fourth-generation Triton operation.

Bluetooth 5.0 enhances hands-free communication. Enhanced Data Rate technology maintains stable connections even with diesel engine noise, open windows, and worksite background sounds—making hands-free client calls, site manager coordination, and dispatch communication practical and legal during work hours across construction zones and delivery routes.

Steering wheel control retention maintains operational safety. Compatible Triton steering wheel controls remain operational for volume adjustment and track control—essential during trailer towing where removing hands from the wheel creates risk, or during loaded tray driving where concentration on balance prevents accidents.

Expandable audio system supports regional work travel. The 4V pre-output voltage drives external amplifiers to overcome engine, tire, and wind noise during long regional delivery runs. Dedicated subwoofer output and four-channel speaker connections support audio upgrades for operators covering hundreds of kilometres daily across WA regional routes.

Add modern safety features to proven platform. The reverse camera input allows addition of backup cameras to older ML/MN Tritons manufactured before reversing cameras became standard equipment. Auxiliary video input accommodates dash cameras for incident documentation during worksite driving or fleet management monitoring.

Critical: Specify your factory radio configuration. When ordering, you must provide your dash photo, car year (2007-2015), and current factory radio type (1-DIN or 2-DIN) to receive the correct fascia adapter and harness. Incorrect accessories will not fit your specific Triton configuration.

Technical Specs

• Screen: 9" IPS touchscreen, 1280×720 resolution, 500 nit brightness
• Operating System: NK 13.0 Android
• Memory: 4GB RAM, 64GB ROM
• Wireless Connectivity: Wireless Apple CarPlay, Wireless/Wired Android Auto
• Bluetooth: Version 5.0 with Enhanced Data Rate, 2.4GHz frequency, 5m range
• GPS: Built-in GPS receiver with external antenna
• Radio: FM 87.5-108.0 MHz (18 presets), AM 522-1620 kHz (12 presets)
• Audio Output: 4×50W maximum power, 4V/10KΩ pre-output
• Speaker Impedance: 4-8Ω compatible
• Pre-Output Impedance: ≤600Ω
• Audio Outputs: Front L/R, Rear L/R, Subwoofer, Amplifier Control
• Video Inputs: Reverse camera input, AUX video input (F_CAMERA)
• USB Interfaces: 4-pin USB (smartphone connection), 6-pin USB (media playback)
• Additional Inputs: Radio antenna, GPS antenna, external microphone, brake detection, CAN-bus interface (RX/TX)
• Power: 14.4V operating voltage (10.5-16V range), USB 5V±0.25V/1A output
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Compatibility: Mitsubishi Triton 2007-2015 (ML/MN series) with steering wheel control retention
• Installation: Four configuration-specific options requiring correct accessory selection

Frequently Asked Questions

How do I know which installation option I need?
You need to identify your current factory radio configuration. Options 1-3 apply to 2007-2014 models: Option 1 for single-DIN factory radios, Options 2-3 for double-DIN factory radios. Option 4 applies to 2015 models. Message us with your dash photo, car year, and current radio type when ordering so we can confirm the correct option.

What if my 2015 Triton has a factory top screen?
If your 2015 Triton has a factory top screen that you wish to retain, this vehicle-specific unit cannot accommodate it. You would need the Mitsubishi universal model instead. Contact us with your dash photo to discuss the appropriate solution for your specific 2015 configuration.

Will my factory steering wheel controls still work?
Yes, the included harness (specific to your installation option) maintains steering wheel control functionality. Volume adjustment, track skipping, and call answering remain operational through your factory buttons—essential for safe operation during loaded tray driving or trailer towing.

Can I install this myself or do I need professional help?
Installation complexity depends on your technical comfort level and which option applies to your Triton. Options 1-3 (2007-2014) are relatively straightforward with correct accessories. Option 4 (2015) may benefit from professional installation. Having the correct option-specific accessories is critical—incorrect parts will not fit.

What's included for installation and do I need additional parts?
The package includes head unit, option-specific fascia adapter, main harness, RCA cable, camera cable, rear speaker cable, microphone, GPS antenna, user manual, and two USB cables. You must specify your installation option when ordering. Contact us with your dash photo, car year, and factory radio type for confirmation.

Compatible With / Goes Well With

• Mitsubishi Triton ML series (2007-2015)
• Mitsubishi Triton MN series (2007-2015)
• 2007-2014 models with 1-DIN factory radios (Option 1)
• 2007-2014 models with 2-DIN factory radios (Options 2-3)
• 2015 models without factory top screens (Option 4)
• Factory Mitsubishi Triton steering wheel control systems
• Aftermarket reverse cameras with RCA video output
• Heavy-duty dash cameras for work vehicle documentation
• External amplifiers requiring 4V pre-out signal
• Powered subwoofers suitable for diesel vehicle noise environments
• Standard 4-8Ω aftermarket speakers rated for work truck conditions
• GPS external antennas for enhanced reception in remote worksites
• Specialized navigation apps (Hema Maps, Mud Map)
• Towing accessories requiring reverse camera visibility
• UHF radio systems for worksite or convoy communication
