Nakamichi NA9MAZDA620082012 9" Wireless CarPlay Mazda 6 2008-2012

Elevate Your Refined Mazda 6 with Modern Connectivity

Product Overview

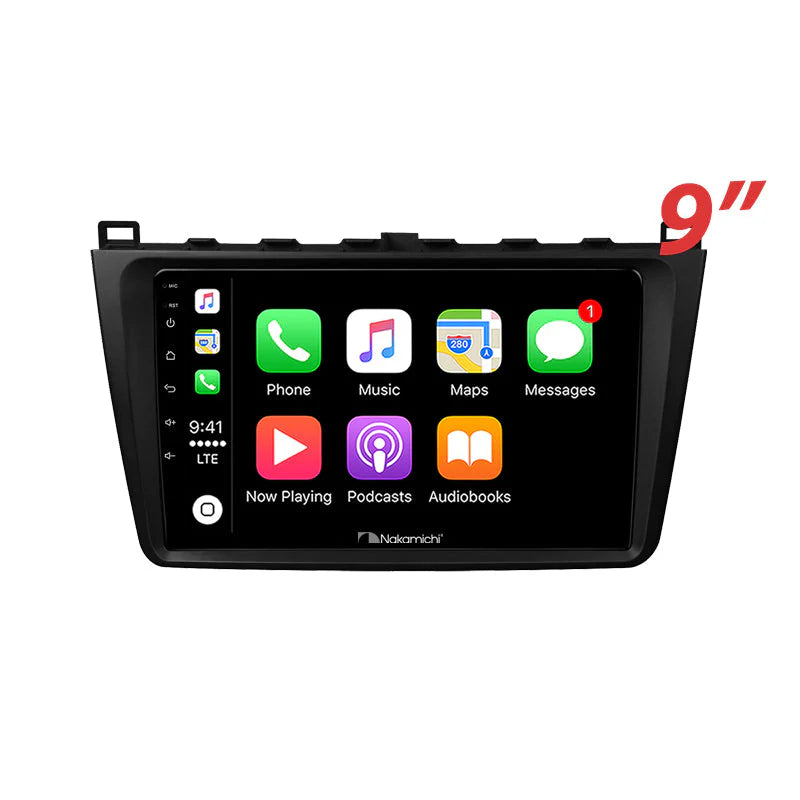

The Nakamichi NA9MAZDA620082012 delivers wireless Apple CarPlay and Android Auto to 2008-2012 Mazda 6 models (GH series) through a sophisticated 9-inch touchscreen system. This Android-based head unit transforms your mid-size sedan's entertainment capabilities with built-in GPS navigation, Bluetooth 5.0 connectivity, and steering wheel control compatibility. Designed for Mazda's refined family sedan that balanced engaging dynamics with practical versatility, this unit provides modern smartphone connectivity for daily commutes, family transport, and weekend touring—note that BOSE-equipped models require professional harness modification, and steering wheel Bluetooth buttons are managed through the head unit's superior Bluetooth 5.0 system.

The system operates on NK 13.0 Android OS with 4GB RAM and 64GB storage, delivering responsive performance for navigation through metropolitan traffic, streaming entertainment during family drives, and hands-free communication while managing daily schedules. The 9-inch 1280×720 IPS display with 500 nit brightness provides clear visibility from the Mazda 6's comfortable driver-focused cockpit, while wireless connectivity eliminates cable clutter in the refined sedan interior. Professional installation is recommended for BOSE-equipped models to ensure premium audio system preservation.

Key Specifications

• Factory-engineered fit for Mazda 6 2008-2012 (GH series, second generation) with included fascia panel
• 9-inch IPS touchscreen with 1280×720 resolution and 500 nit brightness
• Wireless Apple CarPlay and Android Auto (wired connection for specific Android brands)
• NK 13.0 Android operating system with 4GB RAM and 64GB internal storage
• Built-in GPS with preloaded map data, updatable via Google Play Store
• Bluetooth 5.0 with Enhanced Data Rate for hands-free calling and audio streaming
• AM/FM radio with 18 FM and 12 AM preset stations
• 4×50W maximum power output with 4V pre-out for external amplification
• Compatible with factory steering wheel controls (excluding Bluetooth button)
• Reverse camera input and auxiliary video input for dash cameras
• Dual USB interfaces: 4-pin for smartphone connection, 6-pin for media playback
• CAN-bus interface for vehicle integration
• BOSE sound system compatibility: Harness modification required (professional installation recommended)

Features & Benefits

Refined integration for mid-size sedan excellence. This unit complements the second-generation Mazda 6's balance of engaging driving dynamics and practical family transport. Modern smartphone connectivity enhances daily commutes, school runs, and weekend getaways while maintaining the refined character that made the GH-series Mazda 6 popular with families seeking quality without luxury-brand pricing.

Wireless smartphone mirroring maintains sedan sophistication. Wireless CarPlay and Android Auto connect automatically for daily commutes, family coordination, or weekend touring—eliminating cables that would compromise the Mazda 6's clean, purposeful interior design. Perfect for managing busy schedules without visual clutter in a cabin designed for both driver engagement and family comfort.

BOSE system integration preserves premium audio quality. Mazda 6 models equipped with factory BOSE sound systems require professional harness modification for proper integration. This ensures the premium audio system continues delivering quality sound—essential for families who appreciate the refined audio experience during daily commutes or appreciating music during longer drives. Confirm your audio system configuration when ordering.

Steering wheel control retention with Bluetooth consideration. Most factory steering wheel controls remain operational for volume adjustment and track control. The steering wheel Bluetooth button is managed through the head unit's superior Bluetooth 5.0 system, which offers better connectivity and range than factory Bluetooth—a practical improvement for modern smartphone integration.

Built-in GPS enhances family travel confidence. Preloaded GPS map data provides reliable navigation for school runs, shopping centres, sports venues, and weekend destinations across Perth and regional WA. Update maps via Google Play Store, or install real-time traffic apps for optimal route planning during peak hour commutes or avoiding delays during family outings.

Bluetooth 5.0 delivers crystal-clear hands-free calling. Enhanced Data Rate technology maintains stable connections and superior audio quality in the Mazda 6's refined cabin—making phone conversations practical during commutes, coordinating family logistics, or maintaining work contact during travel. Superior to older Bluetooth systems common in 2008-2012 vehicles.

High-brightness IPS display suits sedan driving position. The 9-inch screen integrates appropriately with the Mazda 6's driver-focused yet comfortable seating position. The 500 nit brightness maintains visibility during Australian summer conditions, while sharp 1280×720 resolution ensures navigation text, contact lists, and music information remain legible during quick glances.

Expandable audio system supports quality upgrades. The 4V pre-output voltage drives external amplifiers for enhanced sound quality—many Mazda 6 owners appreciate refined audio systems that complement the sedan's balanced character. Dedicated subwoofer output and four-channel connections support comprehensive audio builds for families who value quality entertainment during drives.

Add modern safety features to proven platform. The reverse camera input enables backup camera addition—useful for confident parking of the mid-size sedan in crowded shopping centres or tight suburban streets. Auxiliary video input accommodates dash cameras for incident documentation during daily commuting or family travel.

Transform family sedan with contemporary convenience. This head unit respects the second-generation Mazda 6's reputation for balanced refinement. Modern smartphone integration doesn't compromise the engaging yet practical character—it simply adds contemporary connectivity to a sedan that represented Mazda's "Zoom-Zoom" philosophy applied to sensible family transport.

Technical Specs

• Screen: 9" IPS touchscreen, 1280×720 resolution, 500 nit brightness
• Operating System: NK 13.0 Android
• Memory: 4GB RAM, 64GB ROM
• Wireless Connectivity: Wireless Apple CarPlay, Wireless/Wired Android Auto
• Bluetooth: Version 5.0 with Enhanced Data Rate, 2.4GHz frequency, 5m range
• GPS: Built-in GPS receiver with external antenna
• Radio: FM 87.5-108.0 MHz (18 presets), AM 522-1620 kHz (12 presets)
• Audio Output: 4×50W maximum power, 4V/10KΩ pre-output
• Speaker Impedance: 4-8Ω compatible
• Pre-Output Impedance: ≤600Ω
• Audio Outputs: Front L/R, Rear L/R, Subwoofer, Amplifier Control
• Video Inputs: Reverse camera input, AUX video input (F_CAMERA)
• USB Interfaces: 4-pin USB (smartphone connection), 6-pin USB (media playback)
• Additional Inputs: Radio antenna, GPS antenna, external microphone, brake detection, CAN-bus interface (RX/TX)
• Power: 14.4V operating voltage (10.5-16V range), USB 5V±0.25V/1A output
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Compatibility: Mazda 6 2008-2012 (GH series, second generation) with steering wheel control retention
• Limitations: Steering wheel Bluetooth button managed through head unit; BOSE system requires harness modification

Frequently Asked Questions

Does this fit all Mazda 6 models from 2008 to 2012?

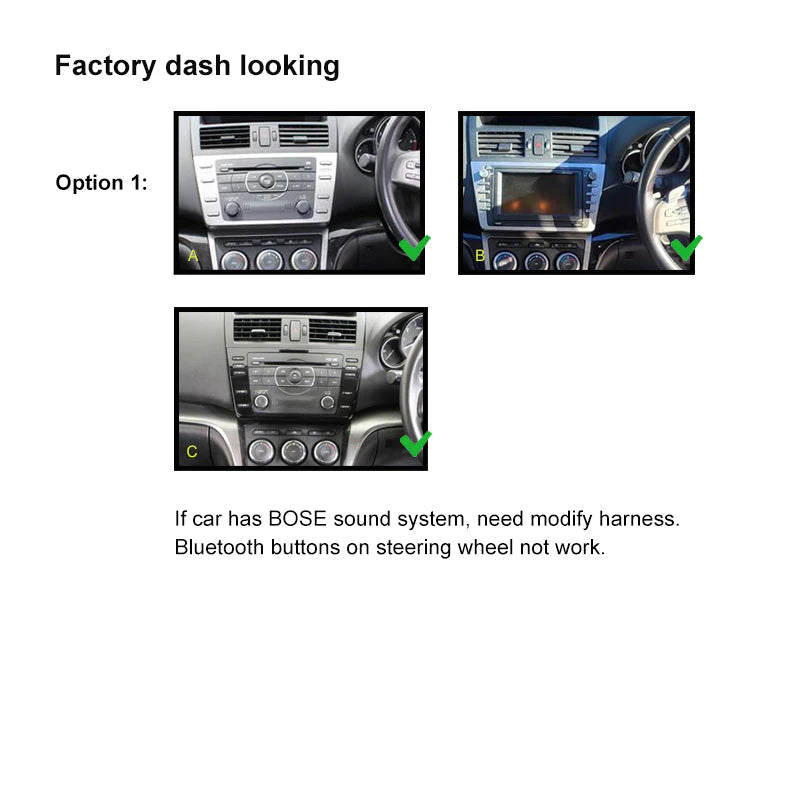

Yes, this unit is engineered specifically for second-generation Mazda 6 (GH series) models (2008-2012). If your Mazda 6 has the factory BOSE sound system, professional harness modification is required for proper integration. Message us with your dash photo, car year, and audio system details when ordering to ensure correct installation approach.

What about the steering wheel Bluetooth button?
The steering wheel Bluetooth button is managed through the head unit's Bluetooth 5.0 system rather than as a separate button function. This is actually an improvement—Bluetooth 5.0 offers superior connectivity, better range, and more reliable pairing than the factory Bluetooth system common in 2008-2012 vehicles. Other steering wheel controls remain fully operational.

What if my Mazda 6 has the BOSE sound system?
BOSE-equipped Mazda 6 models require professional harness modification to integrate properly with the premium audio system. This ensures the factory BOSE amplifier and speakers continue operating at their designed quality level. Professional installation is strongly recommended for BOSE models—budget additional installer time for proper harness modification and audio system integration.

Will my other factory steering wheel controls work?
Yes, the included harness maintains most steering wheel control functionality. Volume adjustment, track skipping, and source selection remain operational through factory buttons—essential for safe operation during commuting or family transport where hands should remain on the wheel.

What's included for installation and do I need additional parts?
The package includes head unit with fascia, main harness, RCA cable, camera cable, rear speaker cable, microphone, GPS antenna, user manual, and two USB cables. BOSE-equipped models require professional harness modification beyond the included components. Contact us with your dash photo and audio system details for specific installation requirements.

Compatible With / Goes Well With

• Mazda 6 2008-2012 (GH series, second generation, all trim levels)
• Factory Mazda 6 steering wheel control systems
• Factory BOSE sound systems (requires professional harness modification)
• Aftermarket reverse cameras with RCA video output
• Front-facing dash cameras for commuter vehicle protection
• Premium external amplifiers requiring 4V pre-out signal
• High-quality powered subwoofers with RCA input
• Premium aftermarket speakers (4-8Ω) for audio enhancement
• GPS external antennas for enhanced satellite reception
• Real-time traffic navigation apps for commuter route optimization
• Family-friendly entertainment apps and streaming services
