Nakamichi 10" Wireless CarPlay Android Auto VW Golf 7 MK7 2013-2020 Head Unit

Transform your Golf 7 with a massive 10-inch display and wireless smartphone integration.

Product Overview

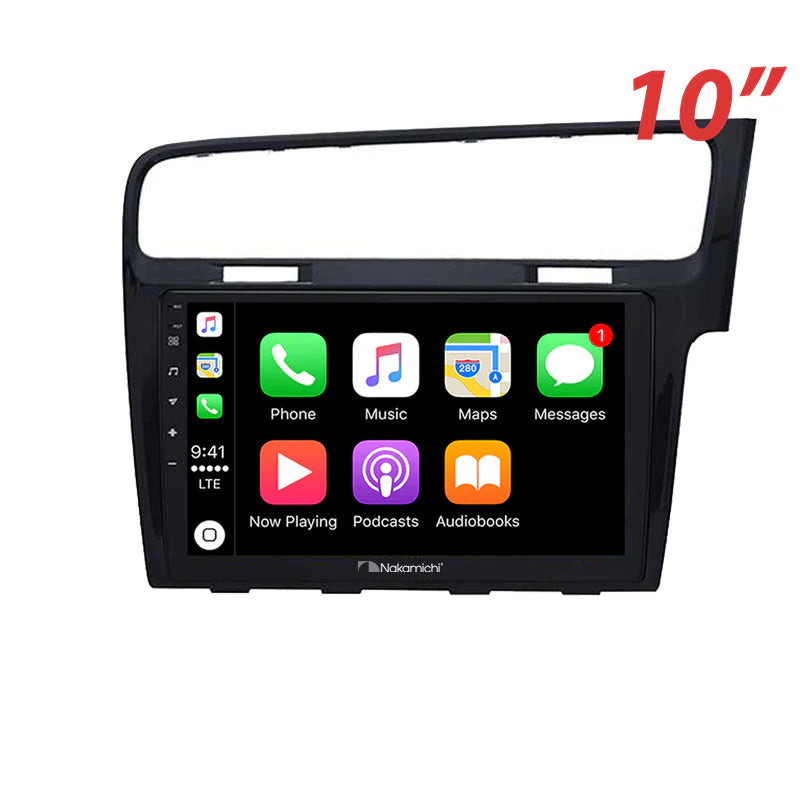

The Nakamichi NAXVWGOLF72013ON transforms your Volkswagen Golf 7 (MK7) factory infotainment into a comprehensive Android 13 multimedia system with wireless Apple CarPlay and Android Auto integration. This vehicle-specific 10-inch IPS touchscreen head unit is engineered exclusively for Golf 7 MK7 models from 2013-2020, replacing the factory display with a plug-and-play solution that includes the matching fascia panel for seamless dashboard integration. The expansive 10-inch screen delivers 25% more display area than standard 9-inch units, transforming your Golf's cabin with tablet-sized visuals for navigation, media, and smartphone interfaces. Running Android 13 (NK 13.0) with 4GB RAM and 64GB internal storage, the system handles navigation, media playback, and app multitasking smoothly while providing ample space for offline maps, music libraries, and Android apps from the Google Play Store. Beyond smartphone mirroring, the system includes built-in GPS with preloaded navigation data, WiFi connectivity, comprehensive AM/FM radio with RDS supporting 18 FM and 12 AM presets, and Bluetooth 5.0 for hands-free calling and wireless audio streaming. The 4×50W amplifier drives factory Golf speakers or upgraded components, while 4V pre-outputs provide clean signal to external amplifiers for premium audio builds. Factory steering wheel controls are retained via CAN bus integration, maintaining the refined driving experience Golf owners expect.

Key Specifications

• 10-inch IPS touchscreen display with 1280×720 resolution and 500nit brightness
• Android 13 operating system (NK 13.0)
• 4GB RAM with 64GB internal storage
• Wireless Apple CarPlay and Android Auto (wired for some Android devices)
• Built-in GPS with preloaded navigation data, updateable via Google Play Store
• WiFi connectivity for internet access and app functionality
• Bluetooth 5.0+EDR (2.4GHz, 5m range)
• AM/FM radio tuner: FM 87.5-108.0MHz, AM 522-1620kHz with 18 FM/12 AM presets
• 4×50W maximum amplifier output to 4-8Ω speakers
• 4V/10kΩ pre-outputs with ≤600Ω impedance for external amplifiers
• Reversing camera input and front camera/auxiliary video input
• Dual USB interfaces: 4-pin for PhoneLink, 6-pin for media playback
• Factory steering wheel control compatibility via CAN bus integration
• External microphone included for enhanced hands-free clarity
• Video format support: H264, MP4, AVI, MKV, FLV
• Audio format support: MP3, APE, AAC, FLAC
• 10.5-16V operating voltage range (14.4V nominal)
• Includes Golf 7 MK7-specific fascia panel for 2013-2020 models
• Compatible exclusively with Volkswagen Golf 7 MK7 2013-2020

Features & Benefits

Golf 7 MK7-Specific Engineering – Designed exclusively for seventh-generation Volkswagen Golf (MK7) models from 2013-2020 with included fascia panel that matches your factory dash perfectly. Plug-and-play harnesses connect to existing wiring without cutting or splicing, maintaining the quality build standards VW engineered into the Golf platform.

Expansive 10-Inch Display – The larger screen provides 25% more viewing area than standard 9-inch units, transforming your Golf's cabin with tablet-like real estate for navigation maps, media controls, and smartphone interfaces. Text remains readable from greater distances, crucial for keeping eyes on the road during urban driving or highway cruising.

Wireless CarPlay Freedom – Connect your iPhone wirelessly and access Apple Maps, Spotify, Messages, and Siri through the expansive 10-inch display without cable clutter. The system remembers your device and connects automatically when you start your Golf, keeping your charging port available for other devices during daily commutes or weekend road trips.

Android Auto Convenience – Pair compatible Android phones wirelessly (some models require wired connection) to mirror Google Maps, YouTube Music, WhatsApp, and Google Assistant on the large touchscreen. Voice commands handle navigation and messaging while your hands remain on the wheel navigating traffic.

Latest Android 13 System – The upgraded NK 13.0 operating system provides enhanced security protocols, improved app compatibility, and refined performance over previous Android versions. Access Google Play Store to download navigation apps, streaming services, and entertainment options while the system manages updates automatically over WiFi.

Expanded 64GB Storage – Double the internal storage of earlier models accommodates extensive offline map data for multiple regions, large music libraries with lossless audio files, multiple navigation apps for redundancy, and various Android applications running simultaneously without storage limitations.

Built-In GPS Navigation – Preloaded GPS data provides offline navigation capability when mobile coverage drops on regional highways or remote routes. Download alternative navigation apps from Google Play Store, update maps over WiFi, or run multiple navigation solutions for comprehensive coverage across Australian conditions.

High-Brightness IPS Display – The 1280×720 resolution IPS panel with 500nit brightness maintains excellent visibility in direct Australian sunlight, essential for Golf drivers navigating sunny conditions. Wide viewing angles ensure passengers can see navigation details clearly, and the capacitive touchscreen responds like your smartphone for intuitive control.

Enhanced Pre-Output Signal – The 4V pre-output voltage delivers twice the signal strength of standard 2V units, reducing noise interference when driving external amplifiers. This clean signal improves sound quality in upgraded audio systems, ideal for Golf enthusiasts building custom audio configurations.

Complete Installation Package – Includes Golf 7 MK7-specific fascia panel, main wiring harness, RCA cables, camera cable, speaker cables, external microphone, GPS antenna, USB cables, and user manual. Everything required for installation is provided, though professional fitting is recommended for optimal integration with factory systems.

Technical Specs

• Display: 10" IPS touchscreen, 1280×720 resolution, 500nit brightness
• System: Android 13 (NK 13.0)
• Memory: 4GB RAM, 64GB internal storage
• Smartphone Integration: Wireless Apple CarPlay, Android Auto (wireless/wired depending on device)
• GPS: Built-in with preloaded data, updateable via Google Play Store
• Connectivity: WiFi
• Bluetooth: Version 5.0+EDR, 2.4GHz frequency, 5m range
• Radio Tuner: FM 87.5-108.0MHz, AM 522-1620kHz, RDS support, 18 FM/12 AM presets
• Audio Output: 4 channels × 50W maximum, 4-8Ω speaker impedance
• Pre-Outputs: 4V/10kΩ, ≤600Ω impedance (front left/right, rear left/right, subwoofer)
• Video Inputs: Reversing camera, front camera/auxiliary
• USB Interfaces: 4-pin (PhoneLink), 6-pin (media playback)
• USB Charging: 5V±0.25V/1A
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Power: 14.4V nominal (10.5-16V operating range)
• CAN Bus: Factory steering wheel control integration
• Microphone: External microphone included
• Antenna: GPS antenna included
• Fascia: VW Golf 7 MK7 2013-2020 specific panel included

Compatible Vehicle:

• Volkswagen Golf 7 MK7: 2013-2020 (all trim levels including GTI, R, and standard variants)

Package Includes:

• 1× Nakamichi head unit with Golf 7 MK7-specific fascia panel
• 1× Main wiring harness
• 1× RCA cable
• 1× Camera cable
• 1× Rear left/right speaker cable
• 1× External microphone
• 1× GPS antenna
• 1× User manual
• 2× USB cables

Frequently Asked Questions

Is this specifically designed for my Golf 7 MK7?

Yes, this unit is engineered exclusively for seventh-generation VW Golf (MK7) models from 2013-2020, including GTI, R, and standard variants. The included fascia panel and wiring harness are configured for Golf 7-specific integration. Contact us with your exact Golf year and trim level plus a photo of your current dash to confirm harness compatibility.

What's the advantage of the 10-inch screen over 9-inch models?

The 10-inch display provides approximately 25% more viewing area than 9-inch units, making navigation maps significantly more readable, improving visibility of media controls, and displaying more information simultaneously. The larger screen transforms your Golf's cabin with a more premium, modern appearance.

Is CarPlay and Android Auto wireless or wired?

Apple CarPlay is wireless for all iPhones. Android Auto is wireless for most modern Android devices, but some specific phone brands may require wired USB connection via the included 4-pin PhoneLink cable. Both connection methods are fully supported through the dual USB interface.

Can I install Android apps from the Play Store?

Yes, the full Android 13 system provides access to Google Play Store. The 64GB internal storage accommodates navigation apps, music streaming services, video players, and most Android applications. Download offline maps, entertainment apps, and productivity tools directly to the unit.

Will my steering wheel controls continue to work?

Yes, CAN bus integration maintains factory Volkswagen Golf 7 steering wheel control functionality. The system communicates directly with your vehicle's control protocols, allowing continued use of volume, track skip, and call management buttons without requiring additional adapters.

Compatible With / Goes Well With

• VW Golf 7 MK7 factory steering wheel control systems (2013-2020)
• Aftermarket reversing cameras with composite video output
• External amplifiers via 4V RCA pre-outputs
• Component speakers and coaxial speakers (4Ω to 8Ω)
• Subwoofer systems via dedicated pre-output
• GPS antenna extension cables for optimal signal placement
• Front-facing dash cameras via auxiliary video input
• Android Auto-compatible apps from Google Play Store
• WiFi-enabled streaming services and navigation apps
• Professional installation services for complex integrations
