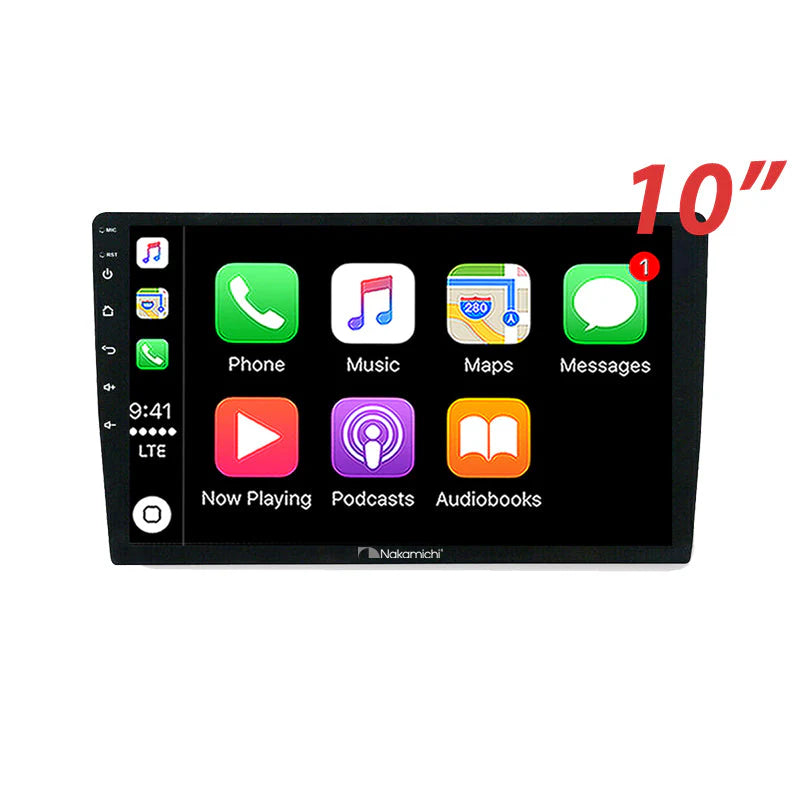

Nakamichi NAXVWUNIVERSAL 10-Inch Android 13 Wireless CarPlay Android Auto for Volkswagen

Upgrade your Volkswagen with a massive 10-inch Android system and wireless smartphone integration.

Product Overview

The Nakamichi NAXVWUNIVERSAL transforms your Volkswagen's factory infotainment into a comprehensive Android 13 multimedia system with wireless Apple CarPlay and Android Auto integration across 13 compatible VW models. This vehicle-specific 10-inch IPS touchscreen head unit replaces factory displays in VW models from 2004-2016, including popular variants like Golf, Amarok, Tiguan, Passat, and Transporter. The expansive 10-inch screen delivers 25% more display area than standard 9-inch units, making navigation details, album artwork, and contact lists significantly more readable at a glance. Running Android 13 (NK 13.0) with 4GB RAM and 64GB internal storage, the system handles navigation, media playback, and app multitasking smoothly while providing ample space for offline maps, music libraries, and Android apps from the Google Play Store. Beyond smartphone mirroring, the NAXVWUNIVERSAL includes built-in GPS with preloaded navigation data, WiFi connectivity, comprehensive AM/FM radio with RDS supporting 18 FM and 12 AM presets, and Bluetooth 5.0 for hands-free calling and wireless audio streaming. The system integrates with factory steering wheel controls via CAN bus interface, supports aftermarket reversing cameras directly, and outputs 4×50W to drive existing speakers or upgraded components. Each unit ships with a vehicle-specific fascia panel and harness configuration tailored to your VW model.

Key Specifications

• 10-inch IPS touchscreen display with 1280×720 resolution and 500nit brightness
• Android 13 operating system (NK 13.0)
• 4GB RAM with 64GB internal storage
• Wireless Apple CarPlay and Android Auto (wired for some Android devices)
• Built-in GPS with preloaded navigation data, updateable via Google Play Store
• WiFi connectivity for internet access and app functionality
• Bluetooth 5.0+EDR (2.4GHz, 5m range)
• AM/FM radio tuner: FM 87.5-108.0MHz, AM 522-1620kHz with 18 FM/12 AM presets
• 4×50W maximum amplifier output to 4-8Ω speakers
• 4V/10kΩ pre-outputs with ≤600Ω impedance for external amplifiers
• Reversing camera input and front camera/auxiliary video input
• Dual USB interfaces: 4-pin for PhoneLink, 6-pin for media playback
• Factory steering wheel control compatibility via CAN bus integration
• External microphone included for enhanced hands-free clarity
• Video format support: H264, MP4, AVI, MKV, FLV
• Audio format support: MP3, APE, AAC, FLAC
• 10.5-16V operating voltage range (14.4V nominal)
• Includes vehicle-specific fascia panel for compatible VW models
• Compatible with 13 Volkswagen models from 2004-2016

Features & Benefits

Expansive 10-Inch Display – The larger screen size provides 25% more viewing area than standard 9-inch units, delivering tablet-like real estate for navigation maps, media controls, and smartphone interfaces. Text remains readable from greater distances, crucial for keeping eyes on the road during highway driving or navigating busy urban intersections.

Universal VW Compatibility – Engineered to fit 13 different Volkswagen models across a 12-year production span, from 2004 Golf to 2016 Transporter variants. The included vehicle-specific fascia panel and tailored wiring harness ensure proper fitment regardless of your VW model, maintaining factory dash appearance while delivering modern functionality.

Wireless CarPlay Freedom – Connect your iPhone wirelessly and access Apple Maps, Spotify, Messages, and Siri through the expansive 10-inch display without cable clutter. The system remembers your device and connects automatically when you start your Volkswagen, keeping your charging port available for other devices during daily commutes or long touring routes.

Android Auto Convenience – Pair compatible Android phones wirelessly (some models require wired connection) to mirror Google Maps, YouTube Music, WhatsApp, and Google Assistant on the large touchscreen. Voice commands handle navigation and messaging while your hands remain on the steering wheel navigating traffic.

Latest Android 13 System – The upgraded NK 13.0 operating system provides enhanced security protocols, improved app compatibility, and refined performance over previous Android versions. Access Google Play Store to download navigation apps, streaming services, and entertainment options while the system manages updates automatically over WiFi.

Expanded 64GB Storage – Double the internal storage of earlier models accommodates extensive offline map data for multiple Australian states, large music libraries with lossless audio files, multiple navigation apps for redundancy, and various Android applications running simultaneously without storage limitations.

Built-In GPS Navigation – Preloaded GPS data provides offline navigation capability when mobile coverage drops on regional highways, outback tracks, or remote touring routes where cellular reception becomes unreliable. Download alternative navigation apps from Google Play Store, update maps over WiFi, or run multiple navigation solutions for comprehensive coverage.

High-Brightness IPS Display – The 1280×720 resolution IPS panel with 500nit brightness maintains excellent visibility in direct Australian sunlight, essential for Volkswagen drivers navigating sunny conditions across varied terrain. Wide viewing angles ensure passengers can see navigation details, and the capacitive touchscreen responds like your smartphone for intuitive control.

Enhanced Pre-Output Signal – The 4V pre-output voltage delivers twice the signal strength of standard 2V units, reducing noise interference when driving external amplifiers. This clean signal improves sound quality in upgraded audio systems, ideal for VW owners building custom audio configurations around the factory installation.

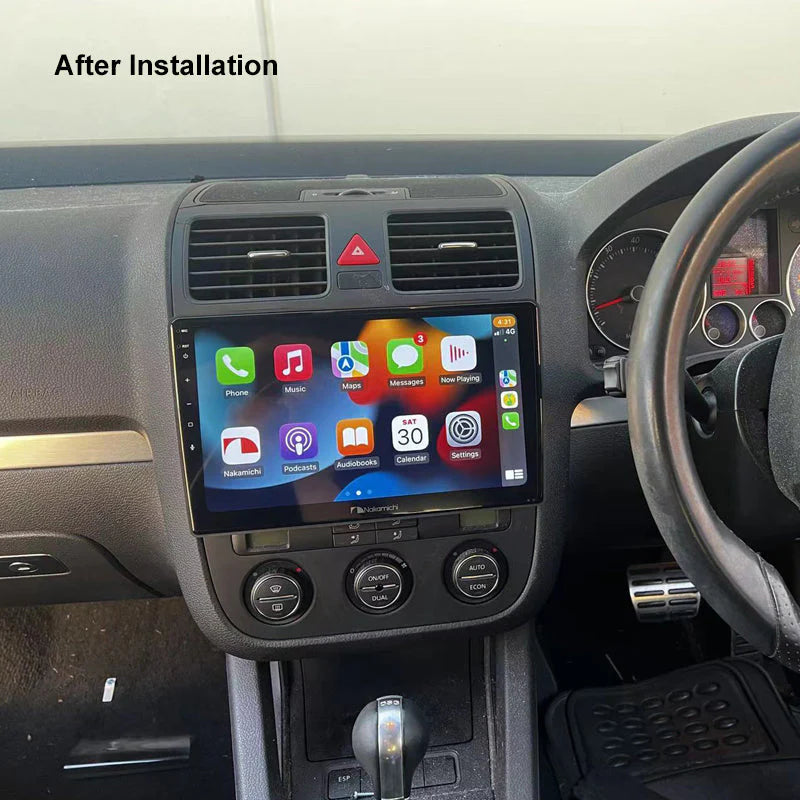

Complete Installation Package – Includes VW-specific fascia panel, main wiring harness, RCA cables, camera cable, speaker cables, external microphone, GPS antenna, USB cables, and user manual. Everything required for installation is provided, though professional fitting is recommended for optimal integration with factory systems and camera retention where applicable.

Technical Specs

• Display: 10" IPS touchscreen, 1280×720 resolution, 500nit brightness
• System: Android 13 (NK 13.0)
• Memory: 4GB RAM, 64GB internal storage
• Smartphone Integration: Wireless Apple CarPlay, Android Auto (wireless/wired depending on device)
• GPS: Built-in with preloaded data, updateable via Google Play Store
• Connectivity: WiFi
• Bluetooth: Version 5.0+EDR, 2.4GHz frequency, 5m range
• Radio Tuner: FM 87.5-108.0MHz, AM 522-1620kHz, RDS support, 18 FM/12 AM presets
• Audio Output: 4 channels × 50W maximum, 4-8Ω speaker impedance
• Pre-Outputs: 4V/10kΩ, ≤600Ω impedance (front left/right, rear left/right, subwoofer)
• Video Inputs: Reversing camera, front camera/auxiliary
• USB Interfaces: 4-pin (PhoneLink), 6-pin (media playback)
• USB Charging: 5V±0.25V/1A
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Power: 14.4V nominal (10.5-16V operating range)
• CAN Bus: Factory steering wheel control integration
• Microphone: External microphone included
• Antenna: GPS antenna included
• Fascia: VW model-specific panel included

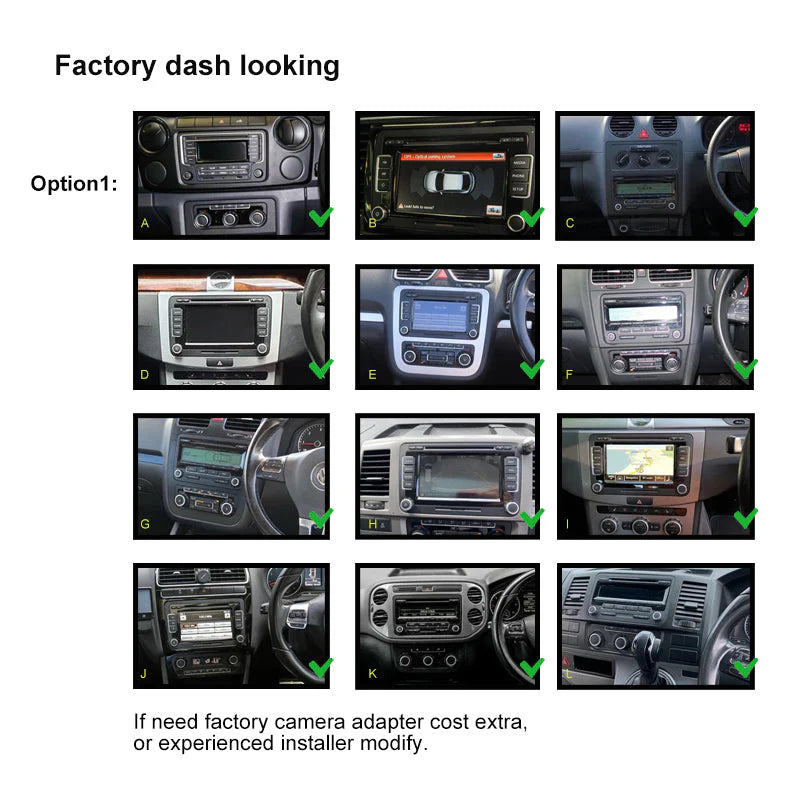

Compatible Volkswagen Models:

• Amarok: 2011+
• Beetle: 2012-2015
• Caddy: 2005-2015
• Caravelle: 2010-2015
• CC: 2012-2015
• EOS: 2007-2014
• Golf: 2004-2013
• Jetta: 2005-2015
• Multivan: 2010-2016
• Passat: 2006-2015
• Polo: 2010-2014
• Tiguan: 2008-2015
• Transporter: 2010-2016

Package Includes:

• 1× Nakamichi head unit with VW-specific fascia panel
• 1× Main wiring harness
• 1× RCA cable
• 1× Camera cable
• 1× Rear left/right speaker cable
• 1× External microphone
• 1× GPS antenna
• 1× User manual
• 2× USB cables

Frequently Asked Questions

Will this fit my specific Volkswagen model and year?

The NAXVWUNIVERSAL is compatible with 13 VW models listed above within specified year ranges. Each installation requires a vehicle-specific fascia panel and wiring harness configuration. Contact us with your vehicle's exact year, model, and a photo of your current dash before purchase to confirm compatibility and ensure correct harness selection.

Does this work with my factory reversing camera?

Factory VW cameras require professional installation to hardwire connections or purchase of a camera adapter (additional cost). Aftermarket reversing cameras connect directly via the included camera cable. Contact us with your vehicle details to determine the correct camera integration method for your specific VW model.

Is CarPlay and Android Auto wireless or wired?

Apple CarPlay is wireless for all iPhones. Android Auto is wireless for most modern Android devices, but some specific phone brands may require wired USB connection via the included 4-pin PhoneLink cable. Both connection methods are supported through the dual USB interface.

Can I install Android apps from the Play Store?

Yes, the full Android 13 system provides access to Google Play Store. The 64GB internal storage accommodates navigation apps, music streaming services, video players, and most Android applications. Download offline maps for multiple regions, entertainment apps, and productivity tools directly to the unit.

What's the advantage of the 10-inch screen over 9-inch models?

The 10-inch display provides approximately 25% more viewing area, making navigation maps significantly more readable, improving visibility of media controls, and displaying more information simultaneously. Text and icons appear larger without zooming, reducing distraction while driving.

Compatible With / Goes Well With

• Vehicle-specific installation harnesses for Volkswagen models
• Aftermarket reversing cameras with composite video output
• Factory VW camera retention adapters (professional installation recommended)
• External amplifiers via 4V RCA pre-outputs
• Component speakers and coaxial speakers (4Ω to 8Ω)
• Subwoofer systems via dedicated pre-output
• GPS antenna extension cables for optimal signal placement
• Front-facing dash cameras via auxiliary video input
• Android Auto-compatible apps from Google Play Store
• WiFi-enabled streaming services and navigation apps
• Professional installation services for complex integrations
