Nakamichi NAXPEUGEOT40082012ON 10" Wireless CarPlay Head Unit Peugeot 4008 2012+

Upgrade Your Peugeot 4008 with Large-Screen Smartphone Integration

Product Overview

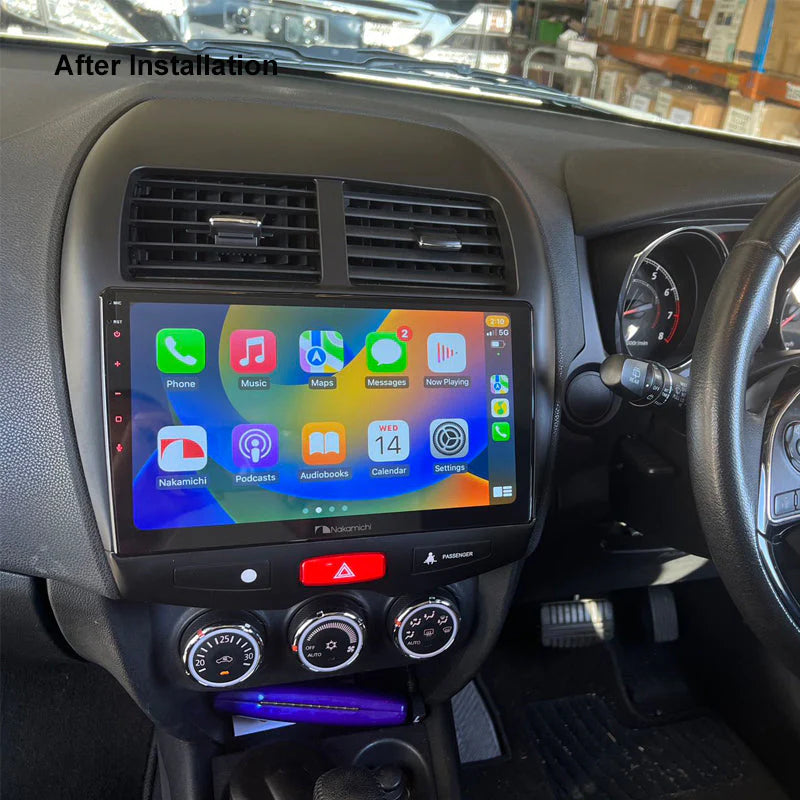

The Nakamichi NAXPEUGEOT40082012ON delivers wireless Apple CarPlay and Android Auto through a premium 10-inch touchscreen engineered specifically for Peugeot 4008 models from 2012 onwards. This Android-based head unit transforms your factory entertainment system with built-in GPS navigation, Bluetooth 5.0 connectivity, and seamless integration with factory reverse cameras and steering wheel controls. Designed for straightforward plug-and-play installation with included vehicle-specific fascia and harnesses, this unit provides modern smartphone connectivity while preserving all factory functionality including your existing backup camera.

The system operates on NK 13.0 Android OS with 4GB RAM and 64GB storage, delivering responsive performance for simultaneous navigation, music streaming, and hands-free communication. The larger 10-inch 1280×720 IPS display provides expansive visibility with 500 nit brightness for clear viewing in Australian sunlight, while wireless connectivity eliminates cable clutter for iPhone users and selected Android devices. Factory reverse camera integration maintains your existing safety features without additional wiring complexity.

Key Specifications

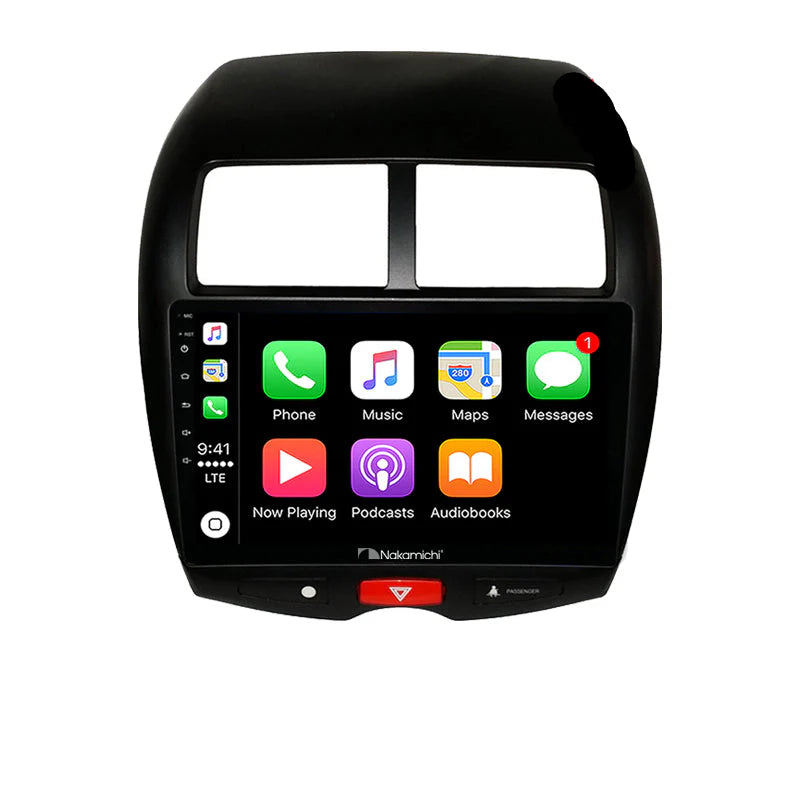

• Factory-engineered fit for Peugeot 4008 2012+ models with included fascia panel
• 10-inch IPS touchscreen with 1280×720 resolution and 500 nit brightness
• Wireless Apple CarPlay and Android Auto (wired connection for specific Android brands)
• NK 13.0 Android operating system with 4GB RAM and 64GB internal storage
• Built-in GPS with preloaded map data, updatable via Google Play Store
• Bluetooth 5.0 with Enhanced Data Rate for hands-free calling and audio streaming
• AM/FM radio with 18 FM and 12 AM preset stations
• 4×50W maximum power output with 4V pre-out for external amplification
• Compatible with factory steering wheel controls via included harness
• Factory reverse camera retention with plug-and-play integration
• Auxiliary video input for front-facing dash cameras
• Dual USB interfaces: 4-pin for smartphone connection, 6-pin for media playback
• CAN-bus interface for vehicle integration

Features & Benefits

Large 10-inch screen provides superior navigation visibility. The expansive touchscreen displays navigation maps, contact lists, and media controls with greater clarity than smaller units—ideal for complex city navigation through Perth or reading detailed maps during regional touring where larger text and graphics reduce driver distraction.

Wireless smartphone mirroring eliminates cable clutter entirely. Wireless CarPlay connects your iPhone automatically at ignition, while Android Auto pairs compatible devices without physical connections—perfect for quick trips around town or extended highway driving where you need seamless connectivity without fumbling with cables.

Factory reverse camera integration preserves existing safety features. Your Peugeot's original backup camera works seamlessly with the new head unit through plug-and-play connection—no additional cameras to purchase, no complex wiring modifications, and familiar camera angles you're already accustomed to for confident reversing in tight spaces.

Peugeot-specific installation maintains factory appearance. The included fascia panel and harness are engineered specifically for Peugeot 4008 dashboards from 2012 onwards, maintaining the refined European aesthetic while adding modern connectivity. Steering wheel controls remain fully operational for volume, track control, and call management without reaching for the screen.

Built-in GPS ensures navigation in remote coverage areas. Preloaded GPS map data maintains continuous navigation through mobile black spots common on Australian regional highways and outback routes. Update maps via Google Play Store when connected to Wi-Fi, or install alternative navigation apps for backup routing through unfamiliar regions.

Bluetooth 5.0 delivers crystal-clear hands-free calling. Enhanced Data Rate technology maintains stable connections and superior audio quality even with road noise and wind buffeting at highway speeds—making phone conversations practical and safe during commutes or long-distance driving across metropolitan and regional areas.

High-brightness IPS display stays readable in harsh sunlight. The 500 nit screen maintains clear visibility during intense Australian summer conditions, while 1280×720 resolution delivers sharp text for navigation prompts and contact lists. Wide viewing angles from the IPS panel ensure both driver and passenger can view screen content comfortably.

Expandable audio system supports premium upgrades. The 4V pre-output voltage drives external amplifiers for significant sound quality improvements, while dedicated subwoofer output enables bass expansion. Four-channel speaker outputs support complete audio system upgrades with amplifier control signal for automatic power management of external components.

Dual-camera capability adds dash cam functionality. While your factory reverse camera remains fully operational, the auxiliary video input allows connection of a front-facing dash camera. Switch between rear parking view and forward incident recording on the 10-inch screen for comprehensive visibility and security documentation.

Technical Specs

• Screen: 10" IPS touchscreen, 1280×720 resolution, 500 nit brightness
• Operating System: NK 13.0 Android
• Memory: 4GB RAM, 64GB ROM
• Wireless Connectivity: Wireless Apple CarPlay, Wireless/Wired Android Auto
• Bluetooth: Version 5.0 with Enhanced Data Rate, 2.4GHz frequency, 5m range
• GPS: Built-in GPS receiver with external antenna
• Radio: FM 87.5-108.0 MHz (18 presets), AM 522-1620 kHz (12 presets)
• Audio Output: 4×50W maximum power, 4V/10KΩ pre-output
• Speaker Impedance: 4-8Ω compatible
• Pre-Output Impedance: ≤600Ω
• Audio Outputs: Front L/R, Rear L/R, Subwoofer, Amplifier Control
• Video Inputs: Reverse camera input (factory camera compatible), AUX video input (F_CAMERA)
• USB Interfaces: 4-pin USB (smartphone connection), 6-pin USB (media playback)
• Additional Inputs: Radio antenna, GPS antenna, external microphone, brake detection, CAN-bus interface (RX/TX)
• Power: 14.4V operating voltage (10.5-16V range), USB 5V±0.25V/1A output
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Compatibility: Peugeot 4008 2012+ models with steering wheel control and factory camera retention

Frequently Asked Questions

Does this fit all Peugeot 4008 models from 2012 onwards?

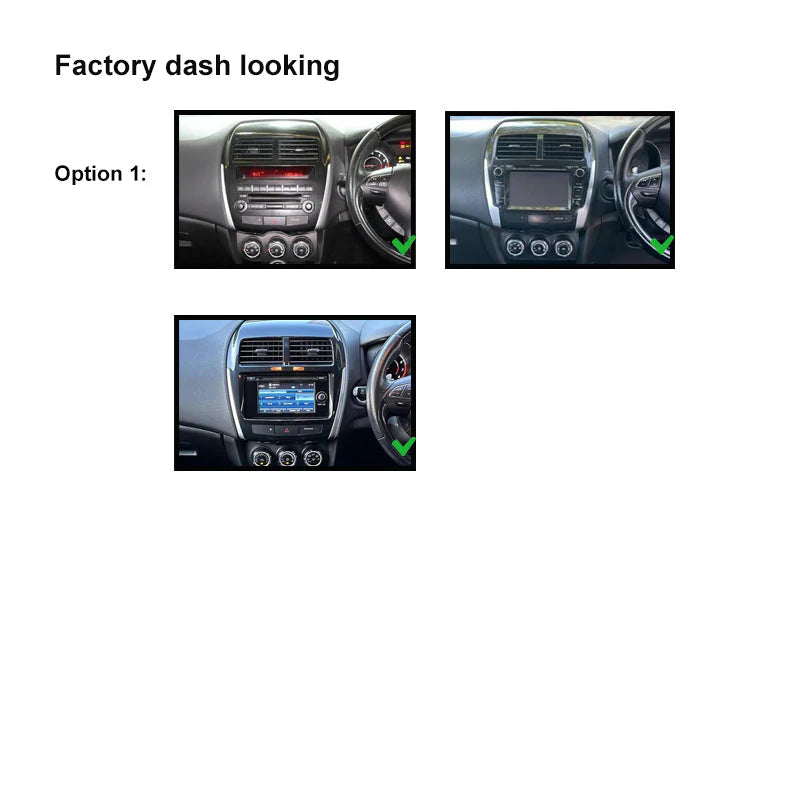

Yes, this unit is engineered specifically for Peugeot 4008 dashboards from 2012 onwards. The included fascia and harness ensure direct fitment without modifications. Message us with your dash photo and car year when ordering to confirm harness compatibility for your specific model year.

Will my factory reverse camera still work?
Yes, your factory reverse camera integrates seamlessly with this head unit through plug-and-play connection. The unit accepts your existing camera's video signal without additional wiring or adapters. Your backup camera displays on the new 10-inch screen when you select reverse gear.

Will my factory steering wheel controls still work?
Yes, the included harness maintains full steering wheel control functionality. Volume adjustment, track skipping, call answering, and source selection remain operational through your factory steering wheel buttons without additional programming required.

Is Android Auto wireless or do I need a cable?
Android Auto connectivity depends on your phone brand. Most modern Android devices support wireless connection, but some specific brands require wired USB connection. iPhone users enjoy fully wireless CarPlay operation for all compatible iPhone models without any cable requirement.

What's included for installation and do I need additional parts?
The package includes head unit with fascia, main harness, RCA cable, camera cable, rear speaker cable, microphone, GPS antenna, user manual, and two USB cables. Different 4008 model years may require specific accessories—contact us with your dash photo for confirmation before purchase.

Compatible With / Goes Well With

• Peugeot 4008 2012+ (all model years and trim levels)
• Factory Peugeot 4008 reverse cameras (plug-and-play compatibility)
• Factory Peugeot steering wheel control systems
• Aftermarket reverse cameras with RCA video output (if replacing factory camera)
• External amplifiers requiring 4V pre-out signal
• Powered subwoofers with RCA input
• Front-facing dash cameras with auxiliary video input
• Standard 4-8Ω aftermarket speakers
• GPS external antennas for enhanced satellite reception
