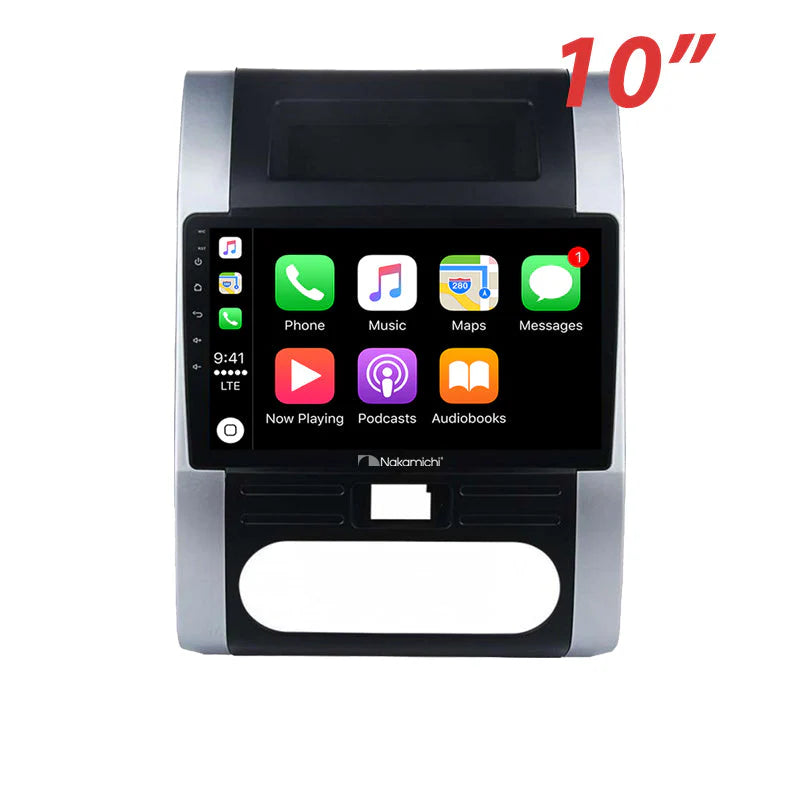

Nakamichi NAXNISSANXTRAIL20072014 10" Wireless CarPlay Nissan X-Trail 2007-2014

Transform Your Nissan X-Trail with Large-Screen Smartphone Connectivity

Product Overview

The Nakamichi NAXNISSANXTRAIL20072014 delivers wireless Apple CarPlay and Android Auto through a premium 10-inch touchscreen engineered specifically for 2007-2014 Nissan X-Trail models (T31 generation). This Android-based head unit transforms your X-Trail's entertainment system with built-in GPS navigation, Bluetooth 5.0 connectivity, and steering wheel control compatibility. Designed for installation with included vehicle-specific fascia and harnesses, this unit provides modern smartphone connectivity while maintaining most factory functionality—note that steering wheel Bluetooth buttons and factory reverse cameras require specific considerations detailed below.

The system operates on NK 13.0 Android OS with 4GB RAM and 64GB storage, delivering responsive performance for simultaneous navigation, music streaming, and hands-free communication. The larger 10-inch 1280×720 IPS display provides expansive visibility with 500 nit brightness for clear viewing in Australian conditions, while wireless connectivity eliminates cable clutter for iPhone users and selected Android devices. Factory reverse camera retention is possible through hardwiring during professional installation.

Key Specifications

• Factory-engineered fit for Nissan X-Trail 2007-2014 (T31 generation) with included fascia panel
• 10-inch IPS touchscreen with 1280×720 resolution and 500 nit brightness
• Wireless Apple CarPlay and Android Auto (wired connection for specific Android brands)
• NK 13.0 Android operating system with 4GB RAM and 64GB internal storage
• Built-in GPS with preloaded map data, updatable via Google Play Store
• Bluetooth 5.0 with Enhanced Data Rate for hands-free calling and audio streaming
• AM/FM radio with 18 FM and 12 AM preset stations
• 4×50W maximum power output with 4V pre-out for external amplification
• Compatible with factory steering wheel controls (excluding Bluetooth button)
• Factory reverse camera compatible with hardwiring during installation
• Auxiliary video input for front-facing dash cameras
• Dual USB interfaces: 4-pin for smartphone connection, 6-pin for media playback
• CAN-bus interface for vehicle integration

Features & Benefits

Large 10-inch screen enhances 4WD navigation visibility. The expansive touchscreen displays detailed off-road maps, navigation prompts, and track information with greater clarity than smaller units—ideal for touring through WA's outback routes, beach tracks, or reading detailed 4WD navigation apps where larger graphics reduce the need to glance away from challenging terrain.

Wireless smartphone mirroring keeps your cabin organized. Wireless CarPlay connects your iPhone automatically at ignition, while Android Auto pairs compatible devices without physical connections—perfect for family camping trips or daily commutes where passengers need quick connectivity without cables trailing across the centre console.

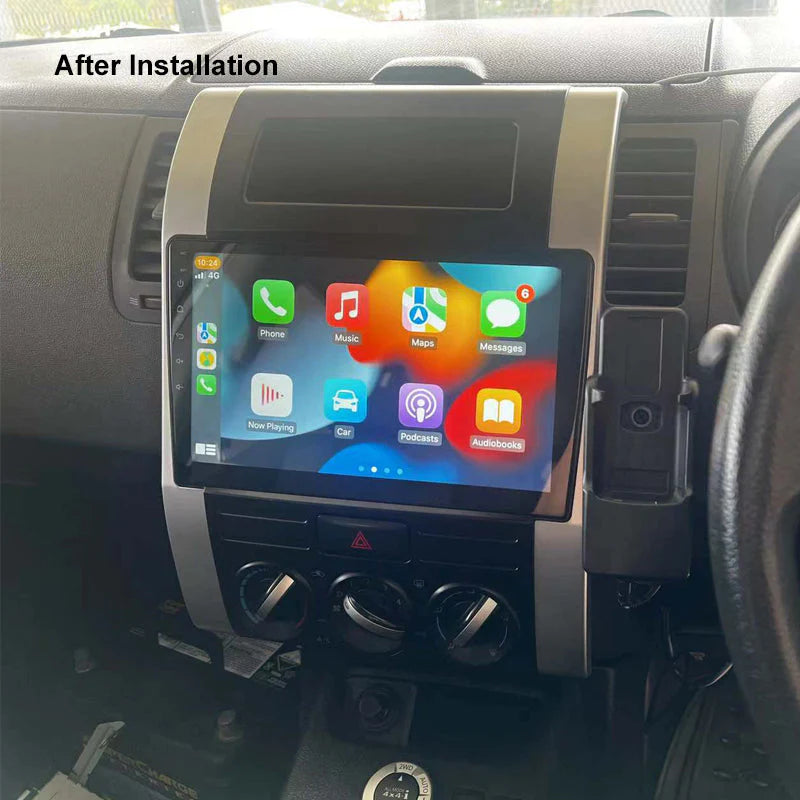

X-Trail specific installation maintains SUV functionality. The included fascia panel and harness are engineered specifically for 2007-2014 X-Trail dashboards, maintaining the rugged aesthetic while adding modern connectivity. Most steering wheel controls remain operational for volume and track management, with Bluetooth pairing handled directly through the new head unit's superior Bluetooth 5.0 system.

Built-in GPS ensures navigation in remote 4WD destinations. Preloaded GPS map data maintains continuous navigation through mobile black spots common on Australian outback tracks, coastal routes, and regional highways. Update maps via Google Play Store when connected to Wi-Fi, or install specialized 4WD navigation apps for detailed track information and points of interest.

Bluetooth 5.0 delivers clear communication in challenging conditions. Enhanced Data Rate technology maintains stable connections and superior audio quality even with diesel engine noise, wind buffeting, and all-terrain tire roar at highway speeds—making hands-free calling practical and safe during long-distance touring or daily commutes across Perth and regional areas.

High-brightness IPS display stays readable in harsh Australian conditions. The 500 nit screen maintains clear visibility during intense summer conditions and dusty environments typical of outback touring, while 1280×720 resolution delivers sharp text for navigation instructions and contact lists. Wide viewing angles ensure both driver and passenger can view screen content comfortably.

Expandable audio system supports touring upgrades. The 4V pre-output voltage drives external amplifiers for improved sound quality in noisy 4WD environments, while dedicated subwoofer output enables bass expansion. Four-channel speaker outputs support complete audio system upgrades with amplifier control signal for automatic power management of external components.

Dual-camera capability enhances off-road awareness. While factory reverse cameras require hardwiring during installation, they remain functional for confident reversing with caravans or trailers. The auxiliary video input allows connection of a front-facing dash camera for incident recording during touring or daily driving through metropolitan areas.

Factory camera retention preserves safety investment. Although hardwiring is required, your X-Trail's existing reverse camera can be integrated during professional installation. This maintains your familiar camera angle and display position for confident reversing in tight campsite situations or navigating crowded shopping centre car parks.

Technical Specs

• Screen: 10" IPS touchscreen, 1280×720 resolution, 500 nit brightness
• Operating System: NK 13.0 Android
• Memory: 4GB RAM, 64GB ROM
• Wireless Connectivity: Wireless Apple CarPlay, Wireless/Wired Android Auto
• Bluetooth: Version 5.0 with Enhanced Data Rate, 2.4GHz frequency, 5m range
• GPS: Built-in GPS receiver with external antenna
• Radio: FM 87.5-108.0 MHz (18 presets), AM 522-1620 kHz (12 presets)
• Audio Output: 4×50W maximum power, 4V/10KΩ pre-output
• Speaker Impedance: 4-8Ω compatible
• Pre-Output Impedance: ≤600Ω
• Audio Outputs: Front L/R, Rear L/R, Subwoofer, Amplifier Control
• Video Inputs: Reverse camera input (hardwire required for factory camera), AUX video input (F_CAMERA)
• USB Interfaces: 4-pin USB (smartphone connection), 6-pin USB (media playback)
• Additional Inputs: Radio antenna, GPS antenna, external microphone, brake detection, CAN-bus interface (RX/TX)
• Power: 14.4V operating voltage (10.5-16V range), USB 5V±0.25V/1A output
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Compatibility: Nissan X-Trail 2007-2014 (T31 generation) with partial steering wheel control retention
• Limitations: Steering wheel Bluetooth button non-functional, factory camera requires hardwiring

Frequently Asked Questions

Does this fit all Nissan X-Trail models from 2007 to 2014?

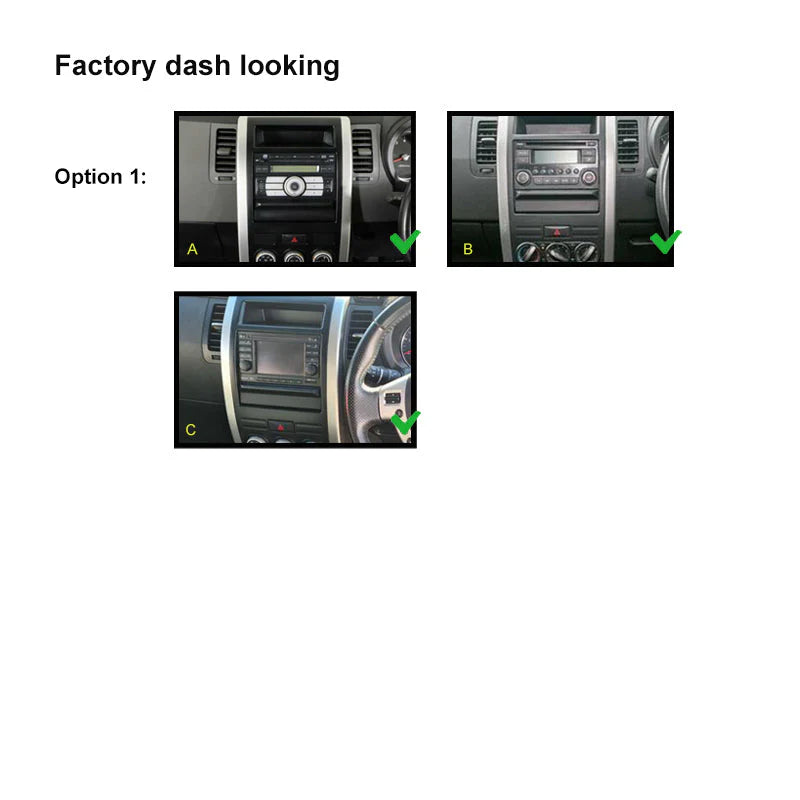

Yes, this unit is engineered specifically for T31 generation X-Trail dashboards (2007-2014). The included fascia and harness ensure direct fitment without modifications. Message us with your dash photo and car year when ordering to confirm harness compatibility for your specific model year.

Will all my steering wheel controls work?
Most steering wheel controls remain operational including volume adjustment and track skipping. However, the factory Bluetooth button on the steering wheel will not function. Bluetooth connections are managed directly through the new head unit's Bluetooth 5.0 system, which offers superior connectivity and range compared to factory Bluetooth.

Can I keep my factory reverse camera?
Yes, your factory reverse camera can be retained, but hardwiring is required during installation. The camera will not connect via plug-and-play. Budget additional installation time for proper camera integration. Professional installation is recommended to ensure correct wiring and display functionality.

Is Android Auto wireless or do I need a cable?
Android Auto connectivity depends on your phone brand. Most modern Android devices support wireless connection, but some specific brands require wired USB connection. iPhone users enjoy fully wireless CarPlay operation for all compatible iPhone models without any cable requirement.

What's included for installation and do I need additional parts?
The package includes head unit with fascia, main harness, RCA cable, camera cable, rear speaker cable, microphone, GPS antenna, user manual, and two USB cables. Factory camera retention requires hardwiring during installation. Contact us with your dash photo for confirmation before purchase.

Compatible With / Goes Well With

• Nissan X-Trail 2007-2014 (T31 generation, all trim levels including ST, ST-L, Ti, TS)
• Factory Nissan X-Trail steering wheel controls (excluding Bluetooth button)
• Factory Nissan X-Trail reverse cameras (hardwiring required during installation)
• Aftermarket reverse cameras with RCA video output
• External amplifiers requiring 4V pre-out signal
• Powered subwoofers with RCA input
• Front-facing dash cameras with auxiliary video input
• Standard 4-8Ω aftermarket speakers
• GPS external antennas for enhanced satellite reception in remote areas
• 4WD navigation apps and off-road mapping software
