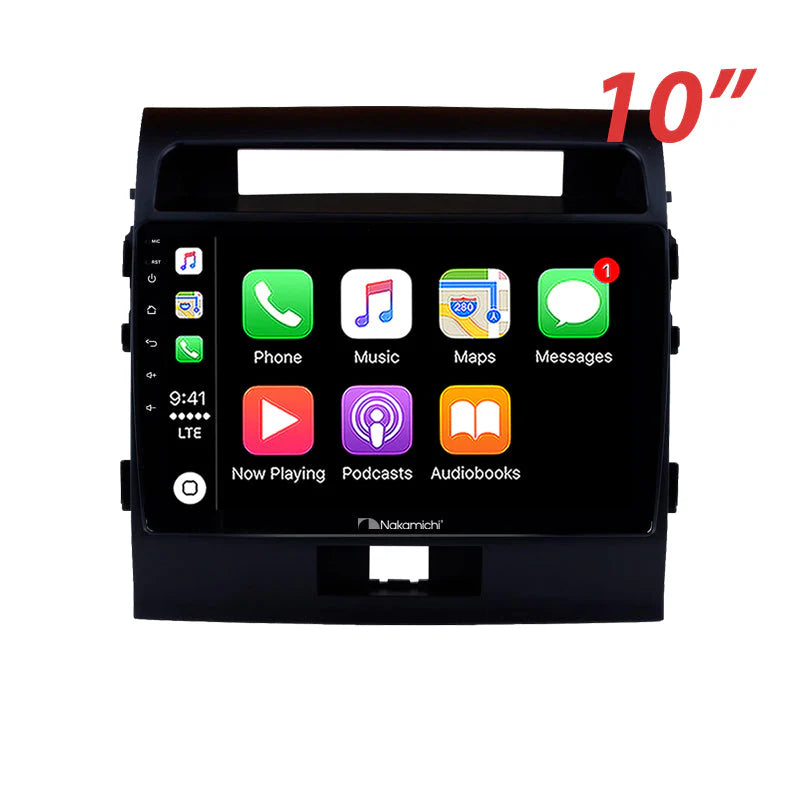

Nakamichi NAXTOYOTALANDCRUISER20072015 10" Wireless CarPlay Android Auto Toyota Landcruiser 2007-2015 Head Unit

Transform your Toyota Landcruiser 200 Series with a massive 10-inch display and wireless smartphone integration.

Product Overview

The Nakamichi NAXTOYOTALANDCRUISER20072015 transforms your Toyota Landcruiser's factory infotainment into a comprehensive Android 13 multimedia system with wireless Apple CarPlay and Android Auto integration. This vehicle-specific 10-inch IPS touchscreen head unit is engineered for Toyota Landcruiser 200 Series models from 2007-2015 without factory large screens, replacing the standard factory display with a plug-and-play solution that includes the matching fascia panel for seamless dashboard integration. The expansive 10-inch screen delivers 25% more display area than standard 9-inch units, transforming your Landcruiser's cabin with tablet-sized visuals for navigation, media, and smartphone interfaces. Running Android 13 (NK 13.0) with 4GB RAM and 64GB internal storage, the system handles navigation, media playback, and app multitasking smoothly while providing ample space for offline maps, music libraries, and Android apps from the Google Play Store. Beyond smartphone mirroring, the system includes built-in GPS with preloaded navigation data, WiFi connectivity, comprehensive AM/FM radio with RDS supporting 18 FM and 12 AM presets, and Bluetooth 5.0 for hands-free calling and wireless audio streaming. The 4×50W amplifier drives factory Landcruiser speakers or upgraded components, while 4V pre-outputs provide clean signal to external amplifiers. Factory steering wheel controls are retained via CAN bus integration, maintaining the premium control experience Landcruiser owners expect during remote touring, family adventures, and serious off-road exploration.

Key Specifications

• 10-inch IPS touchscreen display with 1280×720 resolution and 500nit brightness
• Android 13 operating system (NK 13.0)
• 4GB RAM with 64GB internal storage
• Wireless Apple CarPlay and Android Auto (wired for some Android devices)
• Built-in GPS with preloaded navigation data, updateable via Google Play Store
• WiFi connectivity for internet access and app functionality
• Bluetooth 5.0+EDR (2.4GHz, 5m range)
• AM/FM radio tuner: FM 87.5-108.0MHz, AM 522-1620kHz with 18 FM/12 AM presets
• 4×50W maximum amplifier output to 4-8Ω speakers
• 4V/10kΩ pre-outputs with ≤600Ω impedance for external amplifiers
• Reversing camera input and front camera/auxiliary video input
• Dual USB interfaces: 4-pin for PhoneLink, 6-pin for media playback
• Factory steering wheel control compatibility via CAN bus integration
• External microphone included for enhanced hands-free clarity
• Video format support: H264, MP4, AVI, MKV, FLV
• Audio format support: MP3, APE, AAC, FLAC
• 10.5-16V operating voltage range (14.4V nominal)
• Includes Landcruiser-specific fascia panel for 2007-2015 models
• Compatible with Toyota Landcruiser 2007-2015 (excludes factory large screen models)

Features & Benefits

Landcruiser 200 Series-Specific Engineering – Designed for Toyota Landcruiser 200 Series models from 2007-2015 without factory large screens, with included fascia panel that matches your factory dash perfectly. Plug-and-play harnesses connect to existing wiring without cutting or splicing, maintaining the legendary reliability and build quality Toyota engineered into this premium 4WD platform.

Expansive 10-Inch Display – The larger screen provides 25% more viewing area than standard 9-inch units, transforming your Landcruiser's cabin with tablet-like real estate for navigation maps, media controls, and smartphone interfaces. Text remains readable from greater distances, crucial for keeping eyes on challenging terrain during serious off-road exploration.

Wireless CarPlay Freedom – Connect your iPhone wirelessly and access Apple Maps, Spotify, Messages, and Siri through the expansive 10-inch display without cable clutter. The system remembers your device and connects automatically when you start your Landcruiser, keeping your charging port available for other devices during remote touring or family road trips.

Android Auto Convenience – Pair compatible Android phones wirelessly (some models require wired connection) to mirror Google Maps, YouTube Music, WhatsApp, and Google Assistant on the large touchscreen. Voice commands handle navigation and messaging while your hands remain on the wheel navigating corrugated tracks, sand dunes, and challenging terrain.

Latest Android 13 System – The upgraded NK 13.0 operating system provides enhanced security protocols, improved app compatibility, and refined performance over previous Android versions. Access Google Play Store to download navigation apps, weather radar tools, and offline mapping solutions while the system manages updates automatically over WiFi.

Expanded 64GB Storage – Double the internal storage of earlier models accommodates extensive offline map data for remote touring routes, large music libraries with lossless audio files, multiple navigation apps for redundancy, and various Android applications essential for extended outback journeys where Landcruiser 200 Series vehicles excel.

Built-In GPS Navigation – Preloaded GPS data provides offline navigation capability when mobile coverage drops on remote tracks, Cape York routes, or Simpson Desert crossings where Landcruisers prove their legendary capability. Download alternative navigation apps from Google Play Store, update maps over WiFi, or run multiple navigation solutions for comprehensive coverage.

High-Brightness IPS Display – The 1280×720 resolution IPS panel with 500nit brightness maintains excellent visibility in harsh Australian sunlight, essential for Landcruiser owners navigating exposed desert country, coastal tracks, and high-country routes. Wide viewing angles ensure all passengers can see navigation details, and the capacitive touchscreen responds reliably even with dusty conditions.

Enhanced Pre-Output Signal – The 4V pre-output voltage delivers twice the signal strength of standard 2V units, reducing noise interference when driving external amplifiers. This clean signal improves sound quality in upgraded audio systems, ideal for Landcruiser owners building premium audio configurations to match the vehicle's luxury positioning.

Complete Installation Package – Includes Landcruiser-specific fascia panel, main wiring harness, RCA cables, camera cable, speaker cables, external microphone, GPS antenna, USB cables, and user manual. Everything required for installation is provided, though professional fitting is recommended for optimal integration with factory systems.

Technical Specs

• Display: 10" IPS touchscreen, 1280×720 resolution, 500nit brightness
• System: Android 13 (NK 13.0)
• Memory: 4GB RAM, 64GB internal storage
• Smartphone Integration: Wireless Apple CarPlay, Android Auto (wireless/wired depending on device)
• GPS: Built-in with preloaded data, updateable via Google Play Store
• Connectivity: WiFi
• Bluetooth: Version 5.0+EDR, 2.4GHz frequency, 5m range
• Radio Tuner: FM 87.5-108.0MHz, AM 522-1620kHz, RDS support, 18 FM/12 AM presets
• Audio Output: 4 channels × 50W maximum, 4-8Ω speaker impedance
• Pre-Outputs: 4V/10kΩ, ≤600Ω impedance (front left/right, rear left/right, subwoofer)
• Video Inputs: Reversing camera, front camera/auxiliary
• USB Interfaces: 4-pin (PhoneLink), 6-pin (media playback)
• USB Charging: 5V±0.25V/1A
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Power: 14.4V nominal (10.5-16V operating range)
• CAN Bus: Factory steering wheel control integration
• Microphone: External microphone included
• Antenna: GPS antenna included
• Fascia: Toyota Landcruiser 2007-2015 specific panel included

Compatible Vehicle:

• Toyota Landcruiser 200 Series: 2007-2015 (models WITHOUT factory large screen)
• IMPORTANT: Not compatible with Landcruiser models that came with factory large screens from the factory

Package Includes:

• 1× Nakamichi head unit with Landcruiser-specific fascia panel
• 1× Main wiring harness
• 1× RCA cable
• 1× Camera cable
• 1× Rear left/right speaker cable
• 1× External microphone
• 1× GPS antenna
• 1× User manual
• 2× USB cables

Frequently Asked Questions

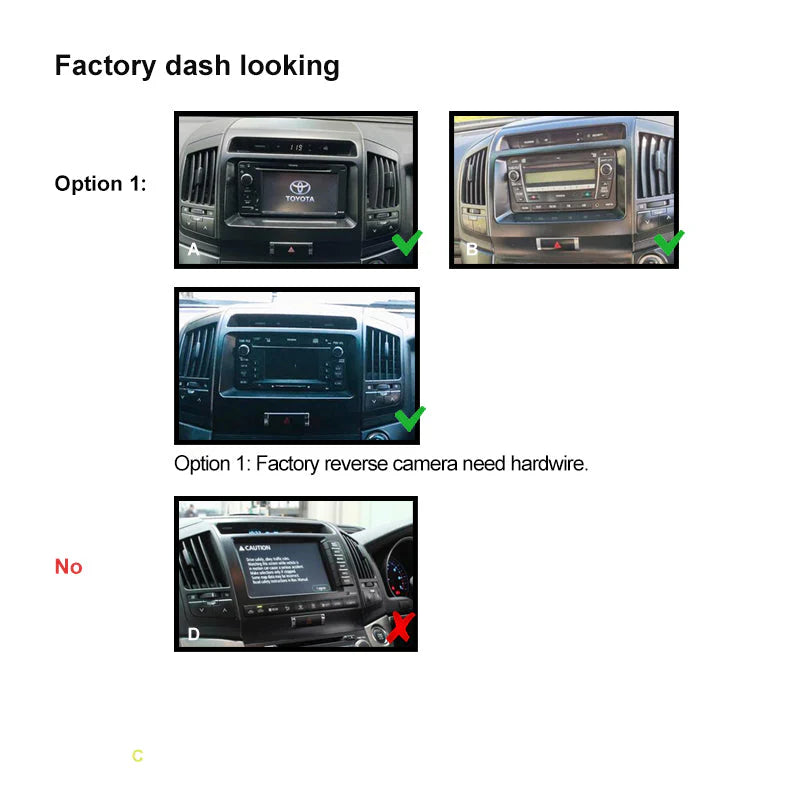

How do I know if my Landcruiser has a factory large screen?

Landcruiser 200 Series models from 2007-2015 came with different screen configurations. If your Landcruiser has a large factory touchscreen (typically 8+ inches), this unit is NOT compatible. If you have a standard small screen or single/double DIN opening, this unit will fit. Send us a photo of your current dash to confirm compatibility before purchase.

Does this work with my factory reversing camera?

Factory Toyota Landcruiser cameras require professional installation to hardwire connections properly. Aftermarket reversing cameras connect directly via the included camera cable and work plug-and-play. Professional installation is strongly recommended for factory camera retention to ensure reliable operation during trailer reversing and off-road maneuvers.

What's the advantage of the 10-inch screen over 9-inch models?

The 10-inch display provides approximately 25% more viewing area than 9-inch units, making navigation maps significantly more readable during off-road navigation, improving visibility of terrain details, and displaying more information simultaneously. The larger screen transforms your Landcruiser's cabin with a more premium, modern appearance.

Is CarPlay and Android Auto wireless or wired?

Apple CarPlay is wireless for all iPhones. Android Auto is wireless for most modern Android devices, but some specific phone brands may require wired USB connection via the included 4-pin PhoneLink cable. Both connection methods are fully supported through the dual USB interface.

Will my steering wheel controls continue to work?

Yes, CAN bus integration maintains factory Toyota Landcruiser steering wheel control functionality. The system communicates directly with your vehicle's control protocols, allowing continued use of volume, track skip, and call management buttons without requiring additional adapters.

Compatible With / Goes Well With

• Toyota Landcruiser 200 Series 2007-2015 factory steering wheel control systems
• Aftermarket reversing cameras with composite video output
• Factory Landcruiser camera hardwire integration (professional installation required)
• External amplifiers via 4V RCA pre-outputs
• Component speakers and coaxial speakers (4Ω to 8Ω)
• Subwoofer systems via dedicated pre-output
• GPS antenna extension cables for optimal signal placement on bull bars
• Front-facing dash cameras via auxiliary video input
• Android Auto-compatible apps from Google Play Store
• Offline mapping applications for remote touring
• Weather radar and satellite communication apps
• Professional installation services for premium 4WD integration
