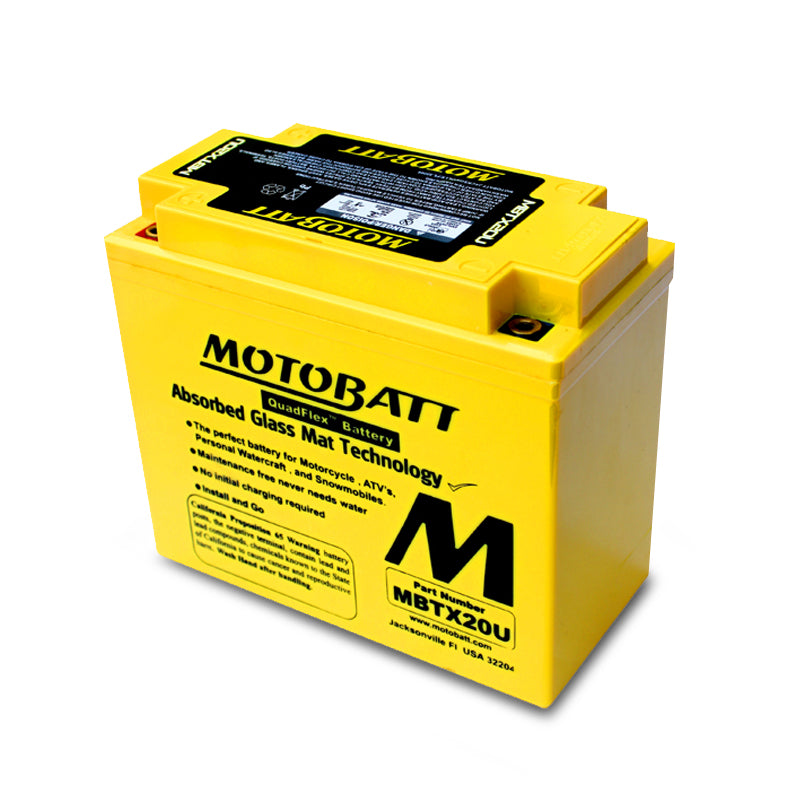

Motobatt MBTX20U yellow AGM motorcycle battery with the four terminals on top
Motobatt MBTX20U yellow AGM motorcycle battery with the four terminals on top
Motobatt MBTX20U AGM Quadflex features: sealed maintenance free AGM, fibreglass mat separators, 4 threaded brass terminals, no activation required
Motobatt MBTX20U AGM Quadflex features: sealed maintenance free AGM, fibreglass mat separators, 4 threaded brass terminals, no activation required
Motobatt MBTX20U specifications: 12 V, 23.8 Ah, 335 CCA, 175 x 87 x 154 mm, 6.6 kg, 4 terminals
Motobatt MBTX20U specifications: 12 V, 23.8 Ah, 335 CCA, 175 x 87 x 154 mm, 6.6 kg, 4 terminals
Click to open expanded view

Pairs perfectly with

Keepower KE800-12 0.8A/12V Micro Battery Charger
Keepower KE800-12 0.8A/12V Micro Battery Charger

Keepower

Keepower KE800-12 0.8A/12V Micro Battery Charger

$49
MOTOBATT logo

MotoBatt MBTX20U 12V 21Ah AGM Quadflex Motorcycle Battery

SKU: MBTX20U
Price
$191.50
Recommended retail price
$197.57
Difference from recommended retail price
$6 below RRP
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Pairs perfectly with

Keepower KE800-12 0.8A/12V Micro Battery Charger
Keepower KE800-12 0.8A/12V Micro Battery Charger

Keepower

Keepower KE800-12 0.8A/12V Micro Battery Charger

$49
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Motobatt MBTX20U yellow AGM motorcycle battery with the four terminals on top

MotoBatt MBTX20U 12V 21Ah AGM Quadflex Motorcycle Battery

$191.50
Recommended retail price
$197.57
Difference from recommended retail price
$6 below RRP

Product features

The MotoBatt MBTX20U is a 12V AGM motorcycle battery rated 320 CCA and 21Ah, with four brass Quadflex terminals.

It comes factory activated and is listed as a replacement for the YTX20 family and 12N16 batteries.

Problems it solves

  • Battery leads that only reach one side of the tray. With four terminals, the MBTX20U lets them connect on either side.
  • Weak starts on a big twin. The MBTX20U gives 320 CCA.
  • Filling acid at home. It is factory activated and sealed.

MBTX20U specifications

  • Voltage: 12V
  • Type: AGM, factory activated
  • Capacity: 21.0Ah (10 hour), 22.3Ah (20 hour)
  • Cold cranking amps: 320
  • Dimensions: 175 x 87 x 154 mm
  • Total height: 174 mm
  • Terminals: Four, brass
  • Weight: 6.50 kg approx
  • Replaces: YTX20 family, 12N16

Fitment and compatibility

Listed by MotoBatt to replace YTX20 family and 12N16 batteries. Make sure the 175 x 87 x 154 mm case drops into your battery box.

Install notes

Use whichever pair of terminals lines up with your leads and cap the unused pair. The battery arrives activated, so no acid filling is needed.

Warranty

Your rights under the Australian Consumer Law always apply. Keep your receipt and contact us first if anything goes wrong.

MBTX20U FAQs

Will the MBTX20U fit a bike that takes a YTX20L?

Yes. MotoBatt names the YTX20 family and the 12N16 as direct swaps. Measure your battery box against its 175 x 87 x 154 mm case.

Which MBTX20U terminals do I connect?

Use the positive and negative pair nearest your leads.

Is the MBTX20U ready to fit straight from the carton?

Yes. MotoBatt activates and seals it at the factory, so no acid goes in at home.
