Experience unrivalled high frequency performance with Morel's new generation tweeter designed for incredible power handling and ultra-low distortion in a compact format.

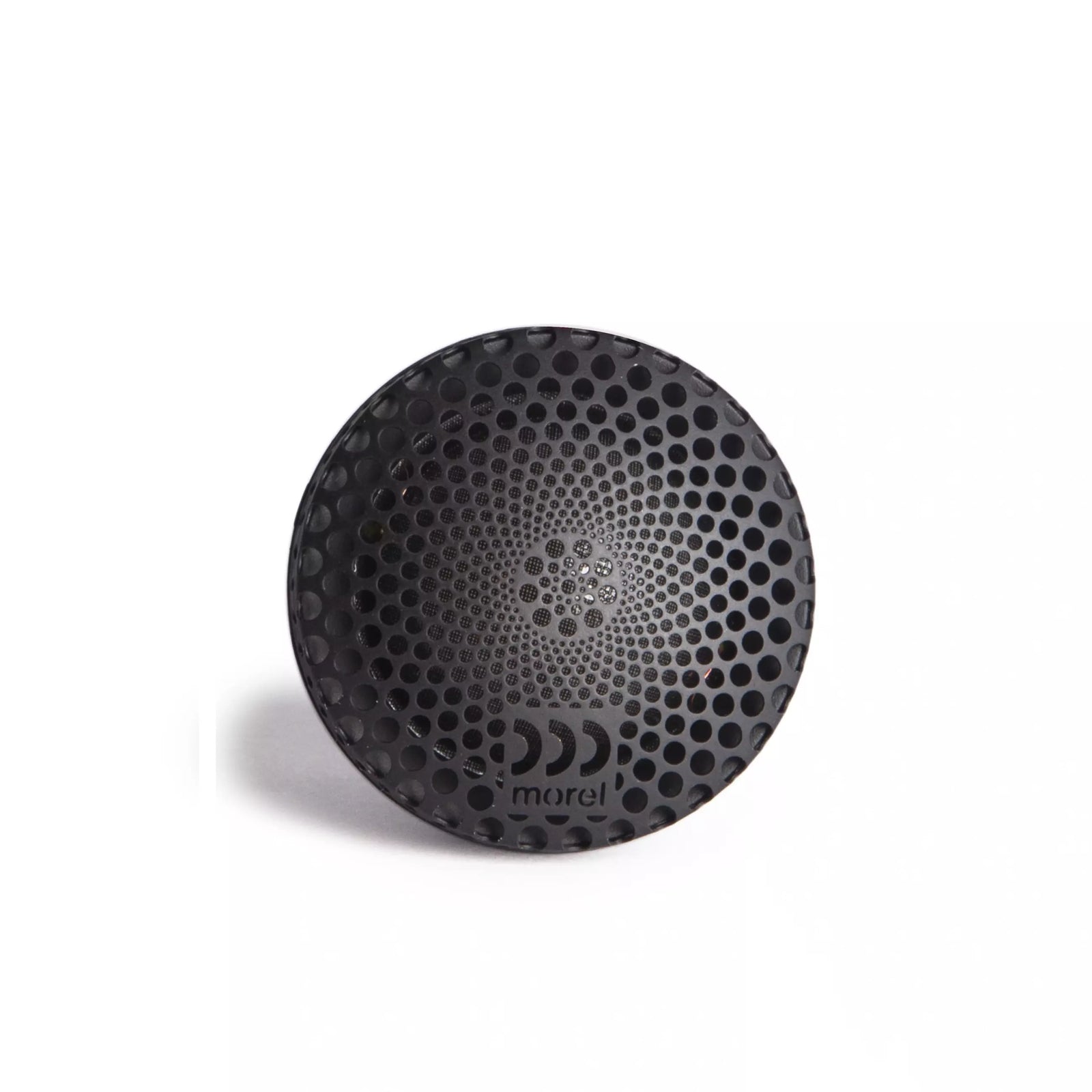

The Morel Virtus Nano MT-120N represents the new generation of reference-quality tweeter technology, delivering unrivalled high frequency performance in a remarkably compact design with incredible high power handling capabilities at very low distortion levels. This precision-engineered tweeter features an Acuflex™ hand-coated soft dome constructed from silk material, providing exceptional detail and natural sound reproduction across the critical 1800-25000 Hz frequency range. The advanced 28mm aluminum voice coil former with copper wire construction enables remarkable 80W RMS power handling while maintaining exceptional 90dB sensitivity for maximum efficiency. The powerful neodymium magnet system ensures consistent magnetic field strength and optimal driver control, while the compact 43mm unit diameter with only 13.20mm mounting depth allows installation flexibility in space-constrained applications. With its impressive 250W maximum transient power handling and low 5.2 ohm DC resistance, the Virtus Nano MT-120N delivers reference-level performance that complements high-end component systems. Ideal for Australian drivers seeking premium tweeter performance in custom installations, component system upgrades, or professional audio applications where uncompromising high-frequency reproduction and exceptional power handling are essential for audiophile-quality sound systems.
Model | Virtus Nano MT-120N |
---|---|
Nominal Impendance (ohm) | 8 |
Power Handling Wrms | 80 |
Max. Trans. Pwr Handling Wrms (10ms) | 250 |
Sensitivity (2.83 V/1M) dB | 90 |
Frequency Response Hz | 1800-25000 |
FS Hz | 1200 |
Voice Coil Diameter mm (inch) | 28 (1.125) |
Voice Coil Former | Aluminium |
Voice Coil Wire | Copper |
DC Resistance ohm | 5.2 |
Magnet System | Neodymium |
Dome Type | Acuflex™ hand coated soft dome |
Dome Material | Silk |
Unit Diameter mm (inch) | 43 (1.69) |
Mounting Depth mm (inch) | 13.20 (0.52) |
Mounting Cutout mm (inch) | 47 (2.00) |
Net Weight Kg (lb) | 0.07(0.15) |
