Mongoose MCD6 1080P/720P Adjustable Bracket Reverse Camera - Professional Selectable HD Reversing Camera with 160° Super Wide Angle, Universal Mounting Bracket, Distance Guidelines, and IP67 Weatherproof Rating

Mongoose MCD6 1080P/720P Adjustable Bracket Reverse Camera - Professional Selectable HD Reversing Camera with 160° Super Wide Angle, Universal Mounting Bracket, Distance Guidelines, and IP67 Weatherproof Rating

Maximize installation versatility with Mongoose MCD6 Adjustable Bracket Reverse Camera—featuring universal adjustable mounting bracket enabling flexible positioning above license plate area or alternative mounting locations for diverse vehicle configurations, selectable high-definition resolution with factory 1080P PAL output switchable to 720P PAL via wire loop configuration matching monitor capabilities, exceptional 160-degree diagonal super wide-angle lens providing comprehensive rear coverage eliminating blind spots, integrated distance guideline overlay with on/off selection assisting obstacle proximity judgment during reversing operations, reversible front/rear view orientation enabling camera use for rear reversing or front blind spot monitoring applications, professional IP67 weatherproof rating ensuring reliable operation in rain, dust, vehicle washing, and extreme temperature conditions, adjustable bracket design making MCD6 highly popular for versatile fitting across passenger cars, commercial vans, utes, and trucks, complete installation kit with 1-meter power cable and 6-meter RCA video cable plus monitor trigger wire, 12V DC automotive electrical system compatibility, universal RCA connector compatibility with all Mongoose color monitors and aftermarket display systems, and proven Mongoose quality engineering delivering super HQ picture quality for enhanced vehicle safety.

Product Overview

With 160 degree diagonal viewing angle, distance guidelines and a super HQ picture quality, what more could you want from a reversing camera? Comes default as 1080p but can cut wire loop and change camera to 720p to suit your monitor. Adjustable bracket makes this a very popular camera due to its versatile fitting. The guidelines can be turned on or off at installation.

The Mongoose range of reverse cameras and monitors are designed as a simple upgrade to your vehicle to provide the driver with increased vision via the camera when reversing. Mongoose have a wide range of cameras, monitors and accessories to suite a wide range for vehicles and driver requirements.

A good camera and monitor are a great driving aid to help when driving or reversing your vehicle. Our range of products can help you enhance your safety with your personal or work vehicle. All our products are design to be installed to assist you, as a driver you must always be responsible and check your surrounding to ensure you are operating your vehicles safely.

Key Features

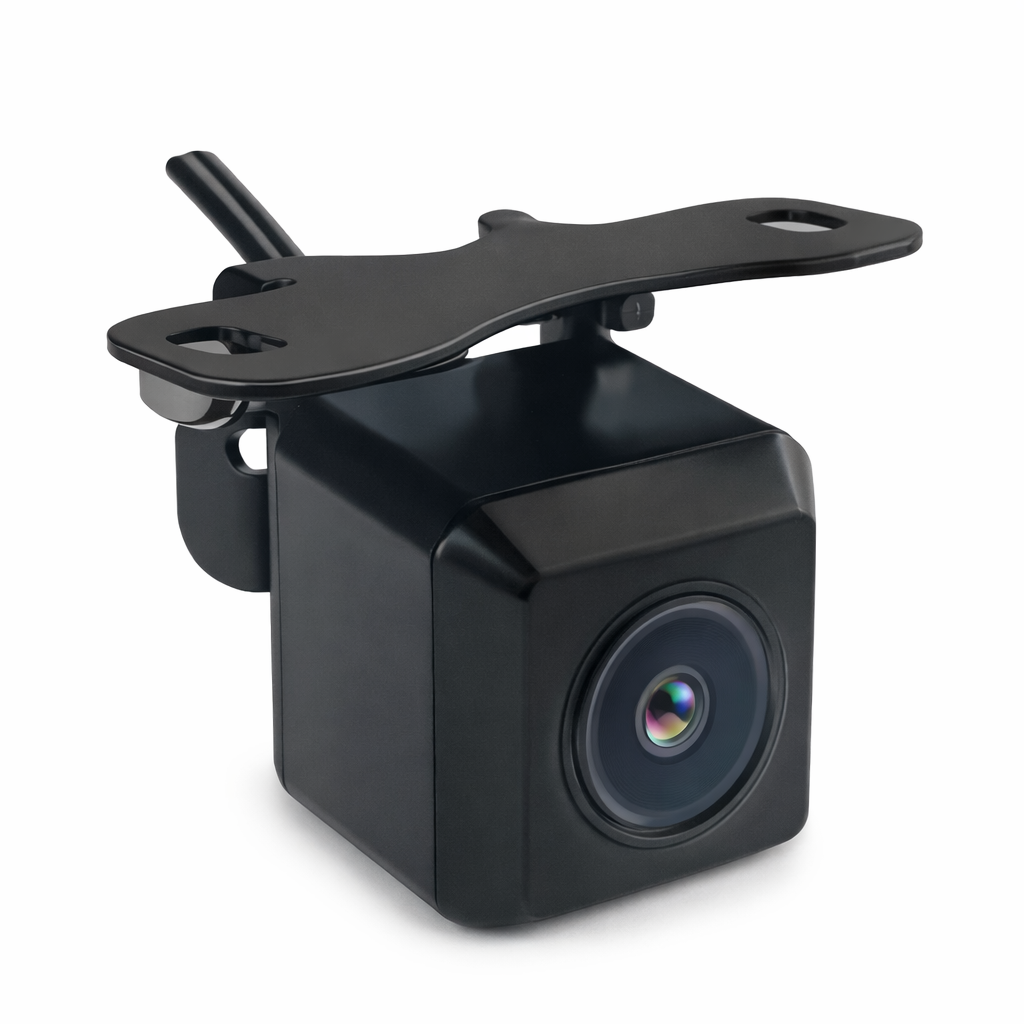

Universal Adjustable Mounting Bracket - Innovative adjustable bracket system enables flexible camera positioning and angle adjustment accommodating diverse vehicle mounting locations and rear panel configurations. Universal bracket design mounts above license plate area (most common installation), below license plate, bumper surfaces, tailgate panels, or alternative locations where traditional fixed-mount cameras impractical. Multi-axis adjustment capability provides precise camera angle optimization—vertical tilt adjustment for proper ground coverage and auto-iris exposure, horizontal rotation for centered rear view alignment, bracket positioning flexibility for various mounting surface angles. Adjustable bracket makes MCD6 highly popular for professional installers—single versatile camera model adapts to different vehicle types eliminating need for multiple camera models with fixed mounting configurations. Bracket accommodates uneven mounting surfaces, angled bumpers, curved tailgates where fixed-mount cameras require shimming or custom modifications. Secure mounting hardware included ensuring vibration-resistant installation withstanding rough roads, off-road conditions, and vehicle operation vibration. Adjustable design also simplifies installation troubleshooting—if initial camera angle produces suboptimal view or exposure, bracket adjustment corrects positioning without reinstallation. Universal bracket compatibility spans passenger cars, commercial vans, utes, trucks, SUVs, and specialty vehicles requiring customized camera positioning for optimal rear visibility.

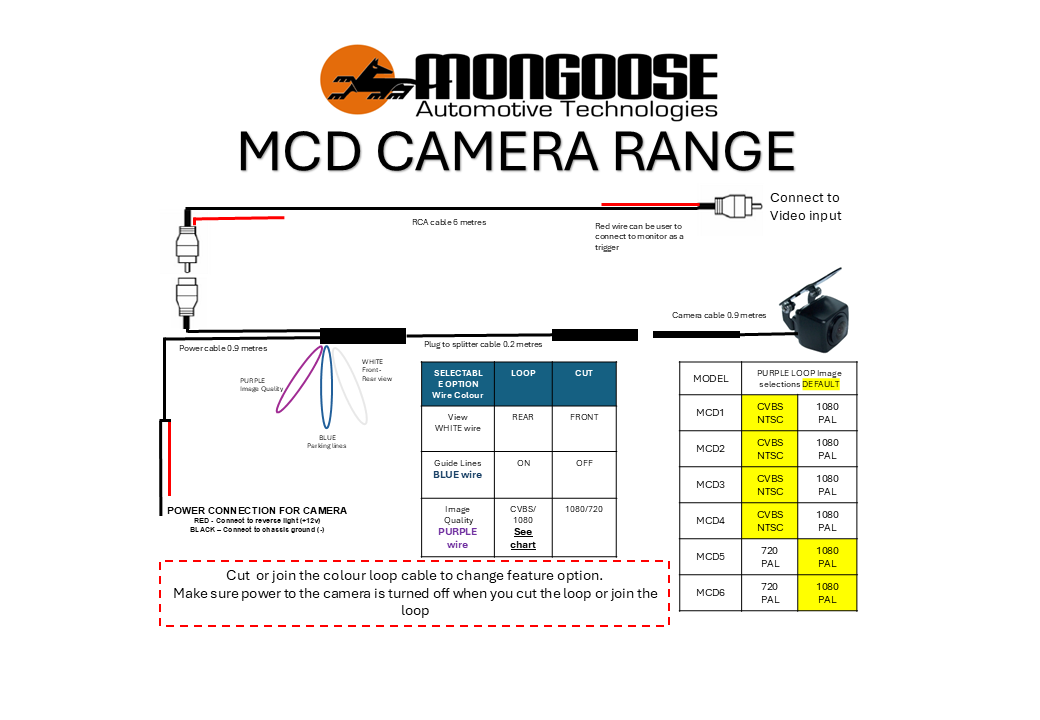

Selectable HD Resolution Configuration - Advanced resolution selection system ships factory-configured as 1080P PAL high-definition output with field-configurable downgrade to 720P PAL via simple wire loop cutting procedure matching camera output to specific monitor capabilities. 1080P PAL format delivers super HQ picture quality with exceptional image clarity, enhanced detail resolution, superior low-light performance, and professional-grade video quality ideal for modern HD-capable monitors and advanced display systems. 720P PAL format provides compatibility with mid-range HD monitors or display systems with limited processing capability unable to accept full 1080P signals. Resolution selection via permanent wire loop configuration—cutting designated wire converts camera from 1080P to 720P output ensuring stable format without switches or jumpers prone to accidental changes. Factory 1080P default ensures optimal image quality when paired with HD monitors, 720P conversion available when monitor compatibility requires lower resolution. Selectable resolution feature protects installation investment—camera adapts to current monitor capabilities while supporting future monitor upgrades without camera replacement. Professional installers appreciate resolution flexibility—single MCD6 model compatible with customer's existing monitor systems regardless of HD capability, eliminating inventory complexity and simplifying parts stocking for diverse installation requirements.

160° Super Wide-Angle Coverage - Exceptional 160-degree diagonal super wide-angle lens captures comprehensive rear coverage spanning full vehicle width plus extended peripheral visibility eliminating dangerous blind spots common with standard rearview mirrors and narrow-angle cameras. Ultra-wide coverage particularly critical for larger vehicles (commercial vans, utes, trucks) with extensive side blind spots or vehicles with restricted rear window visibility requiring camera-based situational awareness. 160-degree field of view enables complete monitoring of obstacles, pedestrians, vehicles, loading dock edges, trailer hitches, and side-approaching hazards during reversing operations. Professional-grade super wide-angle optics maintain image clarity across entire viewing angle without excessive fisheye distortion typical of inferior camera lenses—central image area remains proportionally accurate for distance judgment while peripheral zones capture approaching hazards. Super wide-angle design reduces need for multiple camera installations—single MCD6 provides coverage equivalent to multiple narrow-angle cameras simplifying installation complexity and reducing system cost. Wide viewing angle combined with super HQ picture quality delivers professional reversing camera performance matching or exceeding OEM factory camera systems at fraction of cost.

Integrated Distance Guidelines with On/Off Selection - Intelligent distance guideline overlay system provides selectable reference lines assisting accurate obstacle proximity judgment during tight parking and reversing operations. Distance guidelines display colored zones indicating clearance levels—typically green zone (safe distance 2+ meters), yellow zone (caution distance 1-2 meters), red zone (immediate proximity under 1 meter) enabling driver assessment of available clearance during parking maneuvers. Guidelines configured at installation via selection switch or wire configuration—permanently enabled for drivers benefiting from distance references, permanently disabled for experienced operators preferring unobstructed view. Distance reference lines calibrated for typical passenger vehicle dimensions—provide general proximity guidance for safe reversing operations. Guideline overlay does not obstruct camera view—translucent colored lines superimposed over video feed maintaining full visibility of rear obstacles while providing distance references. Professional installers can advise optimal guideline configuration based on driver experience level and vehicle application—new drivers benefit from guideline assistance, experienced commercial operators often prefer guideline-free unobstructed view. Guidelines particularly valuable for vehicles with challenging rear visibility (high-deck utes, windowless vans) where driver lacks natural depth perception requiring camera-based distance references for safe reversing confidence.

Professional IP67 Weatherproof Rating with Reversible Orientation - Certified IP67 weatherproof rating ensures reliable operation in demanding automotive environments—complete protection against dust ingress (dust-tight seal) and protection against temporary water immersion up to 1 meter depth for 30 minutes. IP67 rating guarantees MCD6 withstands rain, snow, vehicle washing high-pressure spray, road splash, dust contamination, and humidity exposure typical of exterior camera mounting locations. Professional weatherproofing critical for Australian conditions—harsh sunlight, tropical humidity in northern regions, coastal salt spray, dusty outback conditions, and extreme temperature ranges from desert heat to alpine cold. Durable camera construction with weatherproof connectors and sealed cable entries prevents moisture intrusion protecting internal electronics ensuring long-term reliability. Reversible front/rear view orientation enables camera use for traditional rear reversing applications or front-mounted blind spot monitoring through selectable image orientation configuration. Mirror image adjustment at installation provides correct perspective regardless of mounting location—rear view mode for standard reversing camera, front view mode for front bumper mounting applications. Front camera capability expands MCD6 applications beyond traditional reversing—blind spot monitoring when pulling forward, caravan coupling camera for hitch alignment, loading dock approach visibility for commercial vehicles. Complete installation kit includes all required components: MCD6 camera with adjustable bracket, 1-meter power cable, 6-meter RCA video cable with monitor trigger wire, mounting hardware, installation instructions. Extended 6-meter cable accommodates most vehicle configurations, universal RCA connector provides compatibility with Mongoose color monitors and aftermarket displays, monitor trigger wire enables automatic activation integration with compatible display systems.

Versatile Mounting Locations Beyond License Plate - Adjustable bracket design accommodates diverse mounting locations beyond traditional license plate installation enabling customized camera positioning for optimal vehicle-specific rear visibility. License plate area mounting (most common): mount bracket above or below license plate, adjust bracket angle for proper ground coverage, position camera centered for balanced left-right coverage. Alternative mounting locations: bumper surface mounting for vehicles with recessed license plates or limited plate area space, tailgate mounting on utes and trucks for elevated rear view perspective, side mounting for specialty applications (caravan monitoring, side blind spot coverage), custom bracket fabrication locations for unique vehicle configurations. Adjustable bracket accommodates various surface angles and mounting orientations—vertical surfaces, angled bumpers, curved panels, recessed areas requiring bracket offset positioning. Universal mounting flexibility makes MCD6 ideal for challenging installations where fixed-mount cameras inadequate: aftermarket bull bars or nudge bars blocking traditional camera positions, European vehicles with side-mounted license plates requiring alternative camera locations, commercial vehicles with complex rear equipment (tow hitches, spare tire carriers, ladder racks) limiting standard mounting options. Professional installers appreciate MCD6 versatility—single camera model solves diverse installation challenges reducing need for specialized camera variants and simplifying parts inventory while maintaining consistent super HQ picture quality across all installations.

Technical Specifications

Frequently Asked Questions

Q: What makes the adjustable bracket on MCD6 better than fixed-mount cameras?

A: MCD6 adjustable bracket provides superior installation flexibility compared to fixed-mount cameras through multi-axis adjustment capability enabling precise camera angle optimization after installation. Fixed-mount cameras require correct positioning during initial installation—incorrect angle means reinstallation or acceptance of suboptimal view. MCD6 adjustable bracket enables post-installation refinement: mount bracket in approximate position, temporarily power camera viewing live feed on monitor, adjust bracket vertical tilt for optimal ground coverage and auto-iris exposure, adjust horizontal rotation for centered rear view, fine-tune positioning without removing camera from bracket, lock bracket at optimal angle with secure mounting hardware. Adjustable bracket accommodates uneven mounting surfaces, angled bumpers, curved tailgates where fixed cameras require shimming or custom modifications. Installation flexibility particularly valuable for DIY installers—ability to adjust camera angle during testing ensures optimal results without professional installer experience. Professional installers benefit from adjustable bracket versatility—single MCD6 model adapts to different vehicle types (passenger cars with flat bumpers, utes with angled tailgates, vans with curved rear panels) eliminating need for multiple camera models with different fixed angles. Adjustable bracket also enables mounting location variety—above license plate, below license plate, bumper surfaces, alternative locations where traditional fixed cameras impractical. Universal bracket design makes MCD6 Mongoose's most popular camera for versatile fitting requirements across diverse vehicle applications.

Q: How do I achieve optimal camera angle to prevent auto-iris problems?

A: Optimal camera angle critical for proper auto-iris exposure control ensuring ground surface visibility—excessive sky in frame causes iris to close darkening road surface despite bright overall lighting. Recommended angle adjustment procedure: mount camera with adjustable bracket in approximate position (typically slight downward tilt from horizontal), temporarily connect camera power and video to monitor for live feed viewing, adjust bracket vertical tilt observing monitor display, position horizon line in upper 20-30% of camera frame maximizing ground surface coverage while limiting sky exposure, verify near-ground obstacles clearly visible with proper brightness, check distant obstacles remain visible without overexposure, test in various lighting conditions (bright sunlight, cloudy, dusk) ensuring consistent ground visibility, secure bracket at optimal angle with mounting hardware preventing vibration-induced movement. Too much downward angle creates ground overexposure making distant obstacles difficult to see, too much upward angle includes excessive sky causing iris to close darkening ground. Perfect angle balances near-field ground visibility with distant obstacle coverage enabling auto-iris to maintain proper exposure. License plate mounting typically requires 10-15 degree downward tilt from horizontal, bumper mounting may require different angle depending on bumper curvature and camera height. Test camera angle before final installation—adjustable bracket enables easy repositioning if initial angle produces suboptimal results. Professional installers experienced with camera systems achieve optimal angle efficiently, DIY installers should allocate time for adjustment and testing ensuring best possible super HQ picture quality.

Q: Can I switch MCD6 between 720P and 1080P after installation?

A: Resolution selection performed via wire loop cutting creating permanent configuration—cannot switch between formats after wire loop cut without wire repair. MCD6 ships factory-configured as 1080P PAL (default)—provides super HQ picture quality when connected to HD-capable monitors. If monitor cannot accept 1080P signal (displays no image, incorrect format, or incompatibility error), cut designated wire loop converting camera to 720P PAL for mid-range HD monitor compatibility. Resolution selection procedure: verify monitor specifications before installation determining supported video formats (CVBS, 720P, 1080P), select highest resolution your monitor supports for optimal image quality, leave wire loop intact for 1080P operation (most modern monitors support this format), cut wire loop only if monitor specifically requires 720P reducing resolution for compatibility. Once wire loop cut, camera permanently operates at 720P—reverting to 1080P requires wire repair or camera replacement. Professional recommendation: test camera at default 1080P resolution first, if monitor displays image correctly leave wire loop intact maintaining maximum picture quality, cut wire loop only if monitor compatibility definitely requires 720P conversion. Most current Mongoose monitors and aftermarket displays support 1080P—wire loop cutting typically unnecessary unless using specific mid-range monitors with limited format support. If uncertain about monitor compatibility, consult monitor specifications or contact supplier for resolution compatibility verification before permanent wire loop modification.

Q: Is MCD6 suitable for front bumper mounting as blind spot camera?

A: Yes—MCD6 reversible front/rear view orientation specifically designed enabling front bumper mounting for blind spot monitoring applications. Configure camera for front view mode via mirror image adjustment at installation (consult installation instructions for selection procedure)—inverts image orientation providing correct perspective for forward viewing. Front camera installation using adjustable bracket: mount bracket on front bumper, grille area, or license plate location (some vehicles have front license plates), adjust bracket angle for optimal forward ground coverage (typically downward tilt showing ground immediately ahead of bumper), configure front view mirror image orientation, connect camera power to ignition-switched 12V circuit (rather than reverse light circuit) enabling activation when vehicle running, connect video output to secondary monitor input if using dual-input display system or dedicated front camera monitor. Front camera applications: blind spot monitoring when pulling forward into tight parking spaces eliminating front bumper guesswork, loading dock approach visibility for commercial vehicles showing ground clearance and obstacle proximity, caravan or boat trailer coupling camera providing precise hitch alignment view, delivery vehicle curb approach monitoring for safe parking and loading operations. Dual MCD6 installation popular for comprehensive vehicle coverage—rear camera with reverse light activation, front camera with constant ignition power, both cameras connected to dual-input monitor (like MCM43CA) enabling seamless front/rear view switching. Adjustable bracket particularly valuable for front mounting—enables precise angle adjustment for optimal forward visibility compensating for different bumper heights and angles across vehicle types. 160-degree super wide angle provides comprehensive forward coverage including peripheral vision for approaching obstacles from sides.

Q: What does IP67 weatherproof rating mean for camera reliability?

A: IP67 rating represents professional weatherproof protection standard defined by International Protection (IP) code—first digit (6) indicates complete dust protection (dust-tight seal preventing any dust ingress), second digit (7) indicates protection against temporary water immersion up to 1 meter depth for 30 minutes. IP67 certification ensures MCD6 withstands demanding automotive environmental conditions: heavy rain exposure during vehicle operation, high-pressure spray during vehicle washing (including automatic car washes), temporary water immersion from deep puddles or minor flooding, road splash from wet conditions, dust contamination in unpaved environments, humidity exposure in tropical or coastal climates, temperature extremes from -20°C to +70°C typical in Australian conditions. Professional IP67 rating provides confidence for exterior camera mounting—camera operates reliably regardless of weather conditions, cleaning procedures, or environmental exposure. Weatherproof construction includes sealed camera housing preventing moisture ingress, weather-resistant cable connectors with rubber seals, sealed lens assembly protecting imaging sensor from condensation. IP67 rating particularly important for Australian conditions—harsh sunlight degrading inferior camera plastics, tropical humidity in northern regions causing moisture damage, coastal salt spray corroding unprotected electronics, dusty outback conditions contaminating unsealed cameras. MCD6 IP67 rating ensures long-term reliability in commercial fleet applications, rental vehicles experiencing varied conditions, and personal vehicles requiring dependable year-round operation. Regular maintenance recommendation: periodic inspection of camera lens for dirt accumulation, gentle cleaning with damp cloth removing road grime maintaining optimal picture quality, verification of cable connections remaining sealed and weather-resistant. IP67 rating does not guarantee unlimited submersion or continuous water exposure—not suitable for underwater applications but provides complete protection for normal exterior automotive mounting scenarios.
