Mongoose MCD5 1080P/720P Dual-Mount Reverse Camera - Professional Selectable HD Reversing Camera with 160° Viewing Angle, Butterfly Bracket or Flush Mount Options, Parking Guidelines, and Universal Monitor Compatibility

Mongoose MCD5 1080P/720P Dual-Mount Reverse Camera - Professional Selectable HD Reversing Camera with 160° Viewing Angle, Butterfly Bracket or Flush Mount Options, Parking Guidelines, and Universal Monitor Compatibility

Maximize installation flexibility with Mongoose MCD5 Dual-Mount Reverse Camera—featuring innovative dual mounting system supporting both butterfly bracket surface mount and flush bezel installation for versatile vehicle integration, selectable high-definition resolution with factory 1080P PAL output switchable to 720P PAL via wire loop configuration matching monitor capabilities, ultra-wide 160-degree diagonal viewing angle providing comprehensive rear coverage eliminating blind spots, integrated parking guideline overlay with on/off selection assisting distance judgment during reversing operations, reversible front/rear view orientation enabling camera use for rear reversing or front blind spot monitoring applications, professional auto-iris light exposure system ensuring optimal image brightness in varying lighting conditions from direct sunlight to dark parking areas, butterfly bracket mounting system ideal for license plate area installation with adjustable downward angle positioning, flush mount capability with included hole cutting tool enabling discreet integration into vertical surfaces including ute tailgates and van rear doors, complete installation kit with 1-meter power cable and 6-meter RCA video cable plus monitor trigger wire, 12V DC automotive electrical system compatibility, and universal compatibility with Mongoose color monitors and aftermarket display systems requiring best-selling professional-grade reversing camera solutions.

Product Overview

Our Best selling Camera. Comes default as 1080p PAL but can cut wire loop and change camera to 720P PAL to suit your monitor. Help judge distances thanks to the built-in guidelines that can be turned on or off at installation. The camera can be used for either rear or forward view. Produces a bright clear image behind your vehicle so you can see obstacles - or people.

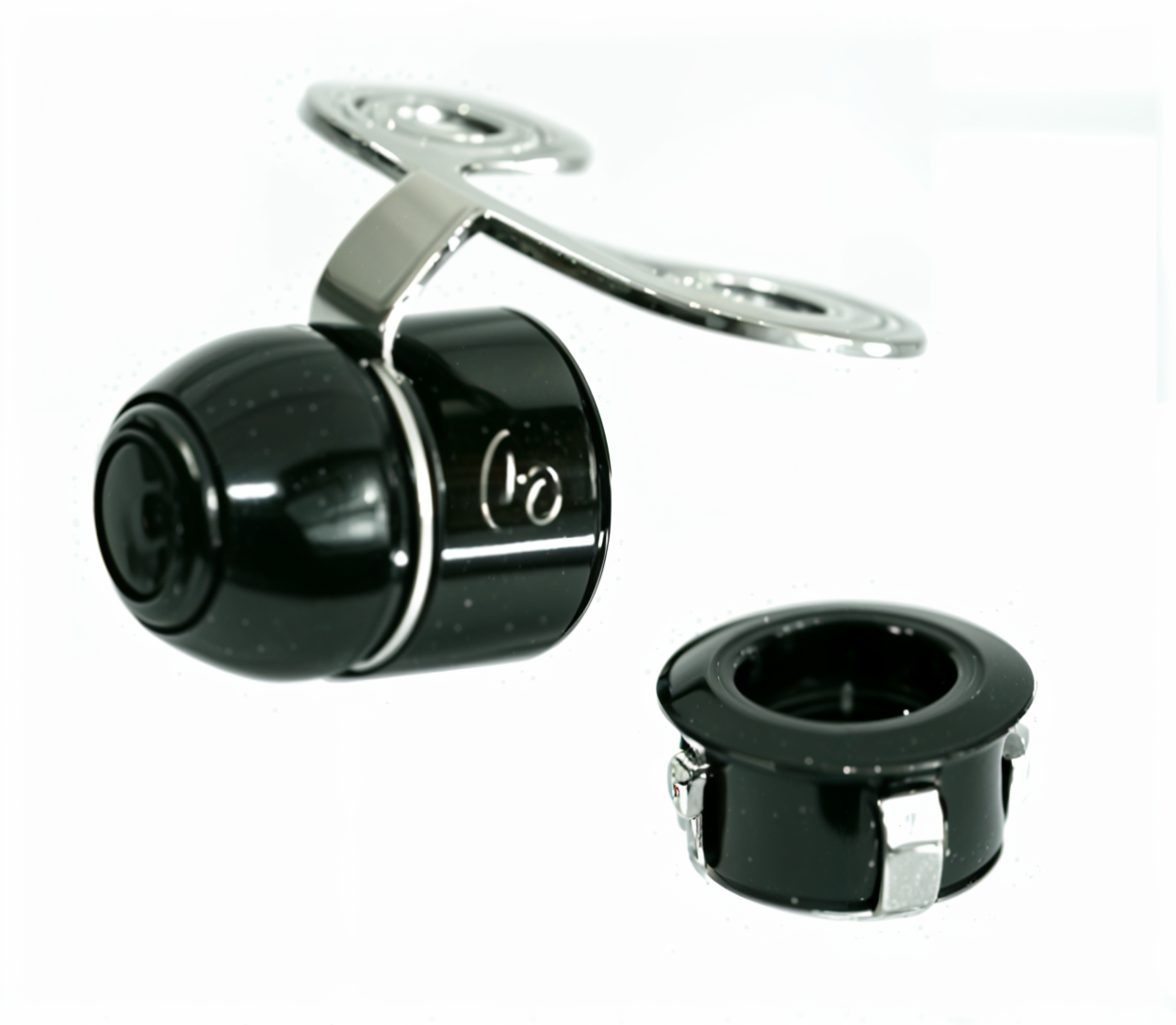

The camera is able to be mounted 2 ways:

1. Butterfly bracket mount - The normal position is above the rear number plate. The mounting bracket should be angled slightly downwards to get the best view and light exposure - too much sky and the auto iris closes making road surfaces too dark.
2. Flush mount - By flush mounting the camera, it can be positioned in any vertical surface such as a ute's tailgate, or a vans rear door.

A good camera and monitor are a great driving aid to help when driving or reversing your vehicle. Our range of products can help you enhance your safety with your personal or work vehicle. All our products are design to be installed to assist you, as a driver you must always be responsible and check your surrounding to ensure you are operating your vehicles safely.

Key Features

Dual Mounting System Versatility - Revolutionary dual-purpose mounting design supporting both butterfly bracket surface mount and flush bezel installation providing unprecedented installation flexibility across diverse vehicle types and mounting locations. Butterfly bracket mount ideal for traditional license plate area installations—adjustable bracket enables precise downward angle positioning for optimal rear view coverage and proper auto-iris exposure preventing sky overexposure that darkens road surface visibility. Flush mount option with included hole cutting tool enables professional bezel installation in any vertical surface—ute tailgates, van rear doors, bumper panels, or custom mounting locations where surface-mounted camera aesthetically unacceptable or physically impractical. Single camera model eliminates inventory complexity—installers carry one versatile MCD5 unit adaptable to various installation scenarios rather than separate models for different mounting types. Dual mounting capability makes MCD5 Australia's best-selling reversing camera—proven installation flexibility across passenger cars, commercial vans, utes, trucks, caravans, and specialty vehicles. Butterfly mount uses included adjustable bracket securing to license plate area or bumper surface, flush mount uses integrated bezel threading into drilled mounting hole with supplied cutting tool ensuring clean professional appearance. Installation choice determined by vehicle configuration and aesthetic preference—surface mount faster and simpler, flush mount provides refined integrated appearance worth additional installation effort for premium installations.

Selectable HD Resolution Configuration - Advanced resolution selection system ships factory-configured as 1080P PAL high-definition output with field-configurable downgrade to 720P PAL via simple wire loop cutting procedure matching camera output to specific monitor capabilities. 1080P PAL format delivers superior image clarity with enhanced detail resolution, improved low-light performance, and professional-grade video quality ideal for modern HD-capable monitors and advanced display systems. 720P PAL format provides compatibility with mid-range HD monitors or display systems with limited processing capability unable to accept full 1080P signals. Resolution selection via permanent wire loop configuration—cutting designated wire converts camera from 1080P to 720P output ensuring stable format without switches or jumpers prone to accidental changes. Factory 1080P default ensures optimal image quality when paired with HD monitors, 720P conversion available when monitor compatibility requires lower resolution. Selectable resolution feature protects installation investment—camera adapts to current monitor capabilities while supporting future monitor upgrades without camera replacement. MCD5 also supports CVBS NTSC analog output for legacy monitor compatibility—comprehensive format support spanning analog standard-definition through digital high-definition displays ensuring universal compatibility across monitor generations.

Ultra-Wide 160° Viewing Coverage - Exceptional 160-degree diagonal viewing angle captures comprehensive rear coverage spanning full vehicle width plus extended peripheral visibility eliminating dangerous blind spots common with standard rearview mirrors and narrow-angle cameras. Ultra-wide coverage particularly critical for larger vehicles (commercial vans, utes, trucks) with extensive side blind spots or vehicles with restricted rear window visibility requiring camera-based situational awareness. 160-degree field of view enables complete monitoring of obstacles, pedestrians, vehicles, loading dock edges, and trailer hitches approaching from sides during reversing operations. Professional-grade wide-angle optics maintain image clarity across entire viewing angle without excessive fisheye distortion typical of inferior camera lenses—central image area remains proportionally accurate for distance judgment while peripheral zones capture approaching hazards. Wide viewing angle reduces need for multiple camera installations—single MCD5 provides coverage equivalent to multiple narrow-angle cameras simplifying installation complexity and reducing system cost. Auto-iris light exposure system automatically adjusts image brightness compensating for changing lighting conditions—bright sunlight exposure closes iris preventing image washout, low-light conditions open iris maximizing available light for night visibility. Proper butterfly bracket angle positioning critical for optimal auto-iris performance—excessive sky in frame causes iris to close darkening ground surface, optimal downward angle balances horizon and ground for best exposure.

Integrated Parking Guidelines with On/Off Selection - Intelligent parking guideline overlay system provides selectable distance reference lines assisting accurate obstacle proximity judgment during tight parking and reversing operations. Parking guidelines display colored distance zones indicating clearance levels—typically green zone (safe distance 2+ meters), yellow zone (caution distance 1-2 meters), red zone (immediate proximity under 1 meter) enabling driver assessment of available clearance during parking maneuvers. Guidelines configured at installation via selection switch or wire configuration—permanently enabled, permanently disabled, or automatically activated depending on installation preference and driver requirements. Distance reference lines calibrated for typical passenger vehicle dimensions—may require mental adjustment for vehicles with non-standard heights, extended rear overhangs, or towing applications. Guideline overlay does not obstruct camera view—translucent colored lines superimposed over video feed maintaining full visibility of rear obstacles while providing distance references. Some drivers prefer guideline-free unobstructed view—disabling guidelines provides clear camera feed particularly beneficial for experienced operators or security monitoring applications where distance references unnecessary. Professional installers can advise optimal guideline configuration based on vehicle type and driver experience level.

Reversible Front/Rear View Orientation - Flexible image orientation system enables camera use for traditional rear reversing applications or front-mounted blind spot monitoring through selectable front/rear view configuration. Rear view mode (default) provides standard reversing camera perspective—video feed displays as driver expects when viewing rearward with left-right orientation matching natural perspective. Front view mode inverts image orientation for front bumper mounting applications—enables front blind spot monitoring for pulling forward into tight spaces, loading dock approach visibility for commercial vehicles, or caravan coupling camera for precise hitch alignment. View orientation selection typically via DIP switch, jumper configuration, or wire loop similar to resolution selection—field-configurable without requiring camera disassembly or specialized tools. Front camera capability expands MCD5 applications beyond traditional reversing—single versatile camera model serves multiple vehicle monitoring requirements. Dual MCD5 installation popular for comprehensive vehicle coverage—rear-mounted camera in standard reversing application, front-mounted camera for blind spot monitoring, both cameras connected to dual-input monitor for complete front/rear visibility. View orientation flexibility makes MCD5 suitable for specialty applications: side-mounted camera for caravan monitoring with orientation adjusted for proper perspective, angled camera installations requiring image correction for level horizon presentation.

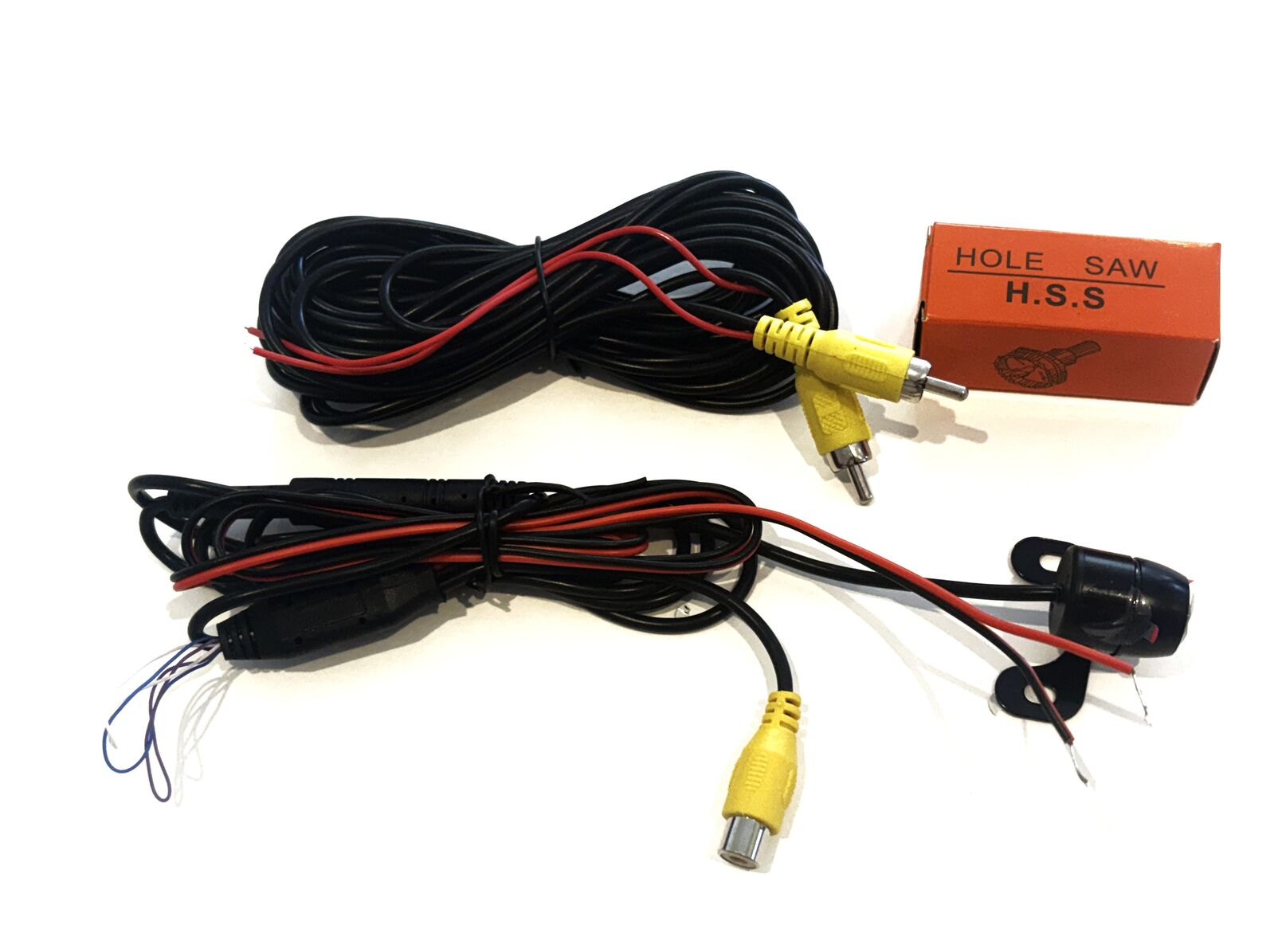

Professional Auto-Iris Exposure System with Complete Installation Kit - Advanced automatic iris control continuously adjusts lens aperture responding to ambient lighting conditions ensuring optimal image brightness across wide exposure range from bright direct sunlight to dark underground parking areas. Auto-iris prevents image washout in bright conditions by closing aperture reducing light transmission, prevents image darkening in low light by opening aperture maximizing available light capture. Proper camera mounting angle critical for auto-iris effectiveness—butterfly bracket installations require slight downward tilt preventing excessive sky in frame which causes iris to close darkening ground surface visibility. Comprehensive installation package includes all required components: MCD5 camera unit with dual mounting capability, butterfly bracket for surface mounting, flush mount bezel hardware, specialized hole cutting tool for flush installations (critical for clean bezel mounting in metal panels), 1-meter power cable, 6-meter RCA video cable with integrated monitor trigger wire, mounting hardware, weatherproof connectors, installation instructions. Extended 6-meter video cable accommodates most vehicle configurations from compact cars to extended cab utes and commercial vans. RCA video output provides universal compatibility with Mongoose color monitors and aftermarket displays accepting composite video or HD video inputs. Monitor trigger wire enables automatic display activation—connects to compatible monitor trigger input causing display to switch to camera view when reverse gear engaged. 12V DC power integration with automotive electrical systems—typically connected to reverse light circuit for automatic camera activation or constant power for continuous security monitoring applications.

Technical Specifications

Frequently Asked Questions

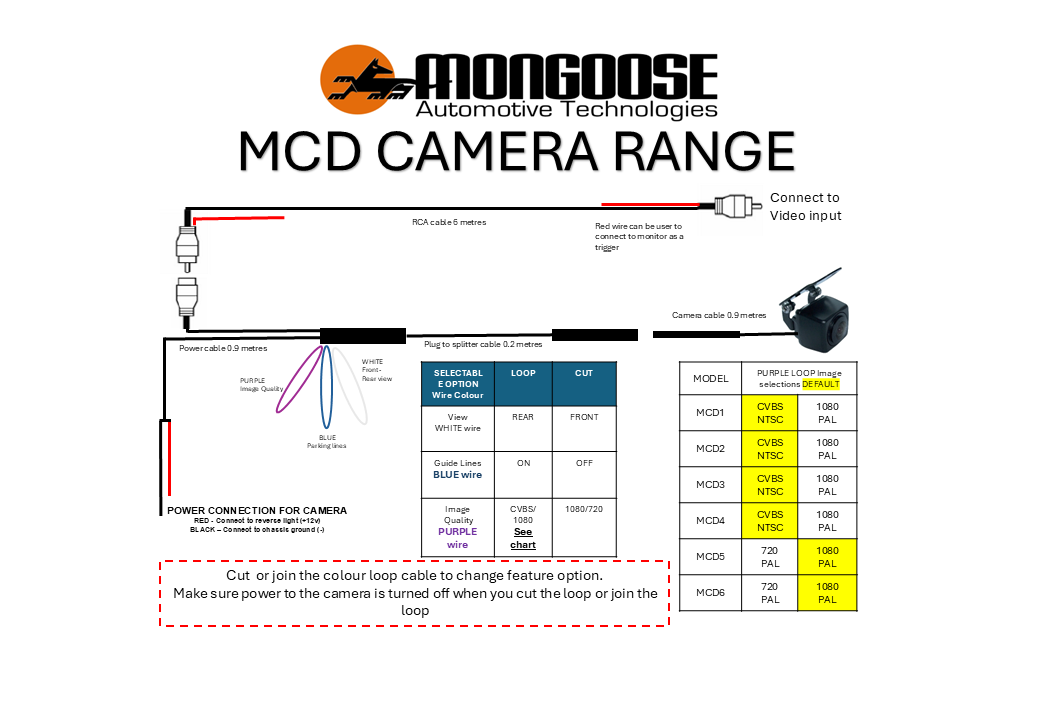

Q: How do I switch MCD5 between 1080P and 720P resolution?

A: MCD5 ships factory-configured as 1080P PAL output with permanent resolution downgrade available via wire loop cutting procedure. Locate designated resolution selection wire loop in camera cable assembly—typically labeled or identified in installation instructions. For 1080P operation (default): leave wire loop intact maintaining factory configuration, connect camera to HD monitor supporting 1080P video input. For 720P operation: carefully cut designated wire loop using wire cutters creating permanent configuration change, connect camera to monitor supporting 720P video input. Resolution selection permanent once wire loop cut—cannot revert to 1080P without wire repair or camera replacement. Select resolution matching monitor capabilities before installation: verify monitor specifications for supported video formats (CVBS, 720P, 1080P), choose highest resolution your monitor supports for optimal image quality, cut wire loop only if monitor cannot accept 1080P signals. If uncertain about monitor compatibility: test camera initially at default 1080P resolution, if monitor displays no image or incorrect format, cut wire loop converting to 720P. Professional installer can advise appropriate resolution selection based on specific monitor model and verify proper video format compatibility before permanent wire loop modification. Most modern monitors support 1080P—wire loop cutting typically unnecessary unless using mid-range or legacy HD monitors with limited format support.

Q: What's the difference between butterfly mount and flush mount installation?

A: Butterfly mount uses included adjustable surface bracket attaching to vehicle exterior (typically above license plate)—camera body remains visible with bracket providing adjustable angle positioning for optimal rear view and auto-iris exposure. Installation advantages: faster simpler installation (30-45 minutes), no drilling large holes in vehicle bodywork, easily adjustable camera angle after installation, suitable for vehicles where flush mounting impractical (plastic bumpers, curved surfaces). Butterfly mount ideal for: license plate area installations on passenger cars and utes, temporary installations requiring easy removal, vehicles where surface-mounted camera aesthetically acceptable. Flush mount uses integrated bezel threading into drilled mounting hole—camera recesses into vehicle panel with only lens protruding creating refined integrated appearance. Installation requirements: use included hole cutting tool to drill precise mounting hole in vertical surface (ute tailgate, van rear door, bumper panel), thread camera bezel into hole from rear side, secure with locking ring creating weatherproof seal. Flush mount advantages: professional integrated appearance with minimal external camera profile, vandalism resistance with recessed lens, protected installation in flush bezel cavity. Flush mount ideal for: premium vehicle installations prioritizing aesthetics, commercial vehicles requiring durable vandal-resistant installation, vertical surface mounting locations (tailgates, doors) where butterfly bracket impractical. Choose mounting method based on vehicle configuration and installation priorities—both options use identical camera with same image quality and features.

Q: Why is downward camera angle important for butterfly bracket installations?

A: Downward camera angle critical for optimal auto-iris exposure control and proper rear view coverage in butterfly bracket installations. Auto-iris system automatically adjusts lens aperture based on overall scene brightness—bright areas in camera view (sky, direct sunlight) cause iris to close reducing light transmission, dark areas cause iris to open increasing light capture. Excessive sky in camera frame causes auto-iris to close compensating for bright sky exposure—results in darkened ground surface making road obstacles difficult to see despite bright overall lighting. Optimal downward angle positions horizon line in upper portion of camera view maximizing ground surface coverage while limiting sky exposure—enables auto-iris to maintain balanced exposure with clear ground visibility. Recommended installation procedure: mount camera with butterfly bracket, temporarily power camera and view live feed on monitor, adjust bracket angle positioning horizon in upper 20-30% of frame, verify ground surface clearly visible with proper brightness, secure bracket at optimal angle. Too much downward angle creates opposite problem—ground surface excessively bright while distant obstacles underexposed. Perfect angle balances near-ground visibility with distant obstacle coverage. Professional installers experienced with camera installations can achieve optimal angle efficiently—DIY installers should allocate time for bracket angle adjustment and testing ensuring best possible image quality before final installation.

Q: Can I use MCD5 as a front-mounted camera for blind spot monitoring?

A: Yes—MCD5 reversible front/rear view orientation specifically designed enabling front bumper mounting applications for blind spot monitoring when pulling forward. Configure camera for front view mode via selection switch or wire configuration (consult installation instructions)—inverts image orientation providing correct perspective for forward viewing. Front camera installation procedure: mount camera on front bumper, grille, or license plate area using butterfly bracket or flush mount, configure front view orientation, connect camera power to ignition-switched 12V circuit (rather than reverse light circuit) for activation when vehicle running, connect video output to secondary monitor input if using dual-input display system or dedicated front camera monitor. Front camera applications: blind spot monitoring when pulling forward into tight parking spaces or loading docks eliminating front bumper guesswork, caravan or boat trailer coupling camera providing precise hitch alignment view, commercial vehicle loading area monitoring for safe approach to docks or obstacles. Dual MCD5 installation popular for comprehensive vehicle coverage—rear camera connected to reverse light circuit for automatic reversing activation, front camera connected to constant ignition power with manual monitor input switching for selective viewing. Both cameras connect to dual-input monitor system like MCM43CA enabling seamless switching between front and rear views. Front camera particularly valuable for vehicles with limited forward visibility (high hoods on trucks, panel vans without front windows) or precision parking applications requiring front bumper clearance awareness.

Q: Is the included hole cutting tool necessary for flush mount installations?

A: Yes—included hole cutting tool essential for proper flush mount installation ensuring clean precise mounting hole in vehicle bodywork panels. Tool specifically sized matching MCD5 bezel diameter creating correct fit for threading camera into flush mount position. Professional hole cutting tool advantages: precise diameter ensuring tight weatherproof seal between camera bezel and panel, smooth cut edges preventing sharp metal that could damage camera weatherproofing gaskets, clean hole appearance for refined professional installation. Alternative hole cutting without proper tool risks: undersized hole preventing camera installation, oversized hole allowing water ingress around bezel, irregular hole edges damaging camera seals or causing difficult fitment. Flush mount installation procedure: select mounting location on vertical surface (ute tailgate center, van door upper section), mark hole center point, use center punch creating drill starter point, drill pilot hole using small drill bit, enlarge hole using included cutting tool following manufacturer instructions, deburr hole edges removing sharp metal, test-fit camera bezel verifying proper fitment, apply weatherproof sealant to bezel threads, thread camera through hole from inside panel, secure with locking ring from inside creating weatherproof compression seal. Proper tool use critical for premium flush mount appearance—messy irregular holes compromise installation aesthetics and weatherproofing. Professional installers use proper hole cutting tools ensuring consistent quality installations—DIY installers should use included tool following instructions carefully. Metal panels require lubrication during cutting preventing tool damage and achieving clean cuts.
