Enhance reversing safety with Mongoose MCD4 Flush Mount Reverse Camera—featuring discrete horizontal surface mounting design installing beneath number plate light for minimal visual presence, selectable image quality supporting both CVBS NTSC and 1080P PAL formats for broad monitor compatibility, ultra-wide 160-degree diagonal viewing angle capturing comprehensive rear coverage eliminating blind spots, selectable parking guideline overlay providing distance reference lines for precise parking and reversing operations, reversible front/rear view orientation adapting camera perspective for front or rear mounting applications, professional metal body construction ensuring durability in demanding automotive environments, threaded shaft mounting system enabling secure installation on horizontal surfaces including number plate housings and bumper recesses, included 1-meter power cable and 6-meter RCA video cable with monitor trigger wire providing sufficient length for most vehicle installations, 12V DC operation integrating seamlessly with standard automotive electrical systems, distance guidelines assisting accurate obstacle proximity judgment, and universal compatibility with Mongoose color monitors and aftermarket display systems requiring professional-grade reversing camera solutions.

Product Overview

This camera can be mounted on a HORIZONTAL surface, it is discrete as it mounts on the underside of your number plate light so is barely visible. MCD4 comes with selectable ON or OFF guide lines and selectable image quality CVBS NTSC OR 1080P PAL. The Mongoose range of reverse cameras and monitors are designed as a simple upgrade to your vehicle to provide the driver with increased vision via the camera when reversing. Mongoose have a wide range of cameras, monitors and accessories to suite a wide range for vehicles and driver requirements.

A good camera and monitor are a great driving aid to help when driving or reversing your vehicle. Our range of products can help you enhance your safety with your personal or work vehicle. All our products are design to be installed to assist you, as a driver you must always be responsible and check your surrounding to ensure you are operating your vehicles safely.

Key Features

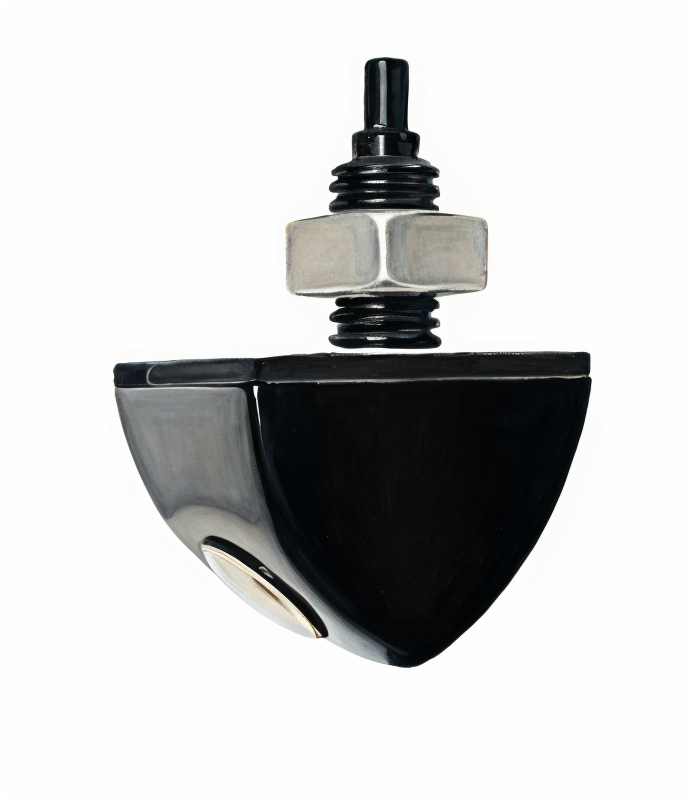

Discrete Flush Mount Design - Professional flush mount installation system designed specifically for horizontal surface mounting beneath number plate lights creating virtually invisible camera profile from external view. Camera body recesses into mounting surface with only lens protruding maintaining vehicle aesthetics while providing essential rear visibility. Threaded shaft mounting system enables secure attachment to number plate housing, license plate light bracket, or custom horizontal mounting location with threaded hardware ensuring vibration-resistant installation. Flush mount design protects camera lens from accidental impacts, reduces vandalism visibility, and maintains clean professional appearance suitable for personal vehicles and commercial fleet applications. Horizontal mounting orientation optimized for common installation locations on passenger cars, utes, vans, and light trucks where vertical mounting impractical or aesthetically undesirable. Discrete installation particularly beneficial for vehicles where external modifications minimized or vehicles requiring subtle security camera integration without obvious surveillance appearance.

Selectable Image Quality Formats - Advanced dual-format output supporting both CVBS (Composite Video Broadcast Signal) NTSC and 1080P PAL formats ensuring universal compatibility with existing monitors and display systems. CVBS NTSC format provides standard-definition analog video output compatible with legacy monitors, basic reversing displays, and cost-effective monitoring solutions requiring reliable composite video signal. 1080P PAL format delivers high-definition digital video output providing superior image clarity, enhanced detail resolution, and improved low-light performance for modern HD-capable monitors and advanced display systems. Format selection via integrated switch or jumper configuration enabling camera adaptation to specific monitor requirements without requiring multiple camera models for different display types. Dual-format capability makes MCD4 ideal for upgrade installations replacing older CVBS cameras with HD-compatible option or fleet applications standardizing on single camera model compatible with various monitor generations. Format flexibility ensures investment protection—camera remains compatible when upgrading monitors from standard definition to high definition displays without requiring camera replacement.

Ultra-Wide 160° Viewing Angle - Exceptional 160-degree diagonal viewing angle provides comprehensive rear coverage capturing full vehicle width plus extended side visibility eliminating dangerous blind spots common with standard rearview mirrors. Wide-angle lens design enables complete monitoring of obstacles, pedestrians, vehicles, and loading dock edges approaching from sides during reversing operations. 160-degree coverage particularly valuable for larger vehicles (vans, utes, trucks) where side blind spots extensive or vehicles with restricted rear window visibility requiring camera-based situational awareness. Wide viewing angle reduces need for multiple camera installations—single MCD4 camera provides coverage equivalent to multiple narrow-angle cameras simplifying installation and reducing system cost. Professional-grade optical system maintains image clarity across entire viewing angle without excessive distortion typical of inferior wide-angle cameras—central image area remains proportionally accurate for distance judgment while peripheral vision captures approaching hazards.

Selectable Parking Guidelines and View Orientation - Intelligent guideline overlay system provides selectable distance reference lines assisting accurate parking and reversing operations. Parking guidelines display colored distance zones indicating obstacle proximity—typically green zone (safe distance), yellow zone (caution distance), red zone (immediate proximity) enabling driver assessment of available clearance during tight parking maneuvers. Guidelines adjustable or deactivatable via configuration switch accommodating driver preference and different vehicle applications—some commercial operators prefer guideline-free view for unobstructed visibility, personal vehicle users benefit from distance reference assistance. Reversible front/rear view orientation enables camera adaptation for front bumper mounting or rear mounting applications—image flip function ensures correct perspective regardless of mounting location. Front mounting capability expands MCD4 applications beyond traditional reversing camera—front blind spot monitoring for pulling forward into tight spaces, loading dock approach visibility for commercial vehicles, caravan coupling camera for precise hitch alignment. View orientation selection typically via DIP switch or menu configuration ensuring simple field adjustment without requiring camera disassembly.

Professional Metal Body Construction - Robust metal housing construction provides superior durability compared to plastic-bodied cameras ensuring reliable long-term operation in demanding automotive environments. Metal body withstands impact from road debris, stone chips, vehicle washing high-pressure spray, and accidental contact during loading operations common in commercial vehicle applications. Superior thermal management from metal construction dissipates internal heat more effectively than plastic housings improving camera reliability in high-temperature environments (engine bay proximity, direct sunlight exposure, tropical climates). Metal housing provides enhanced electromagnetic interference (EMI) shielding protecting camera electronics from vehicle electrical system noise, ignition interference, and radio frequency emissions ensuring clean video signal without interference artifacts. Professional-grade weatherproofing with IP67 or higher rating protects internal components from water ingress, dust contamination, and humidity exposure typical of exterior mounting locations. Threaded shaft construction uses corrosion-resistant materials (stainless steel or zinc-plated hardware) preventing rust degradation in salt spray environments (coastal areas, winter road salt exposure).

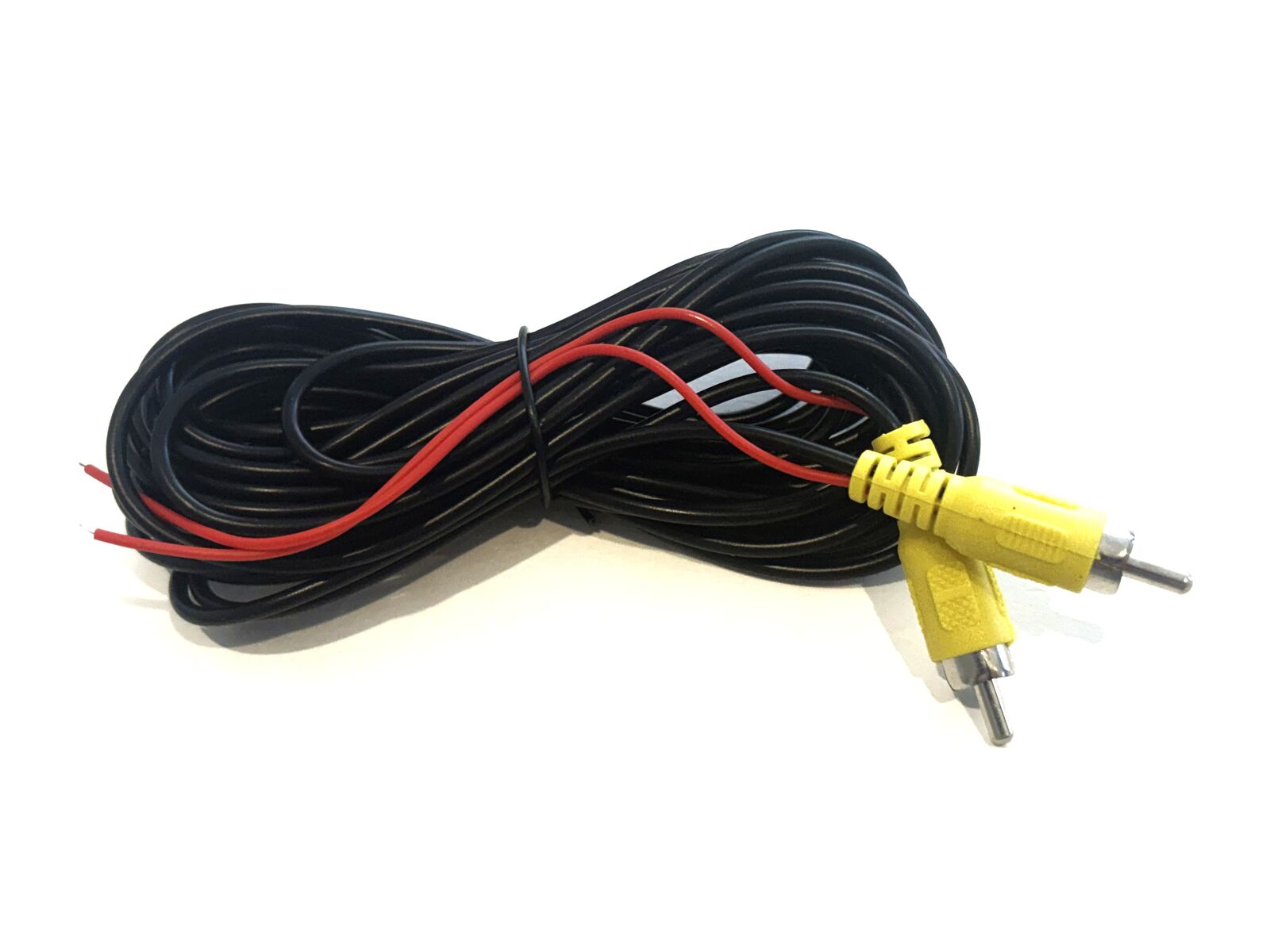

Complete Installation Kit with Extended Cabling - Comprehensive package includes all required components for professional installation—MCD4 camera unit, 1-meter power cable, 6-meter RCA video cable, monitor trigger wire, mounting hardware, installation instructions. Extended 6-meter video cable length accommodates most vehicle configurations from compact passenger cars to extended cab utes and vans without requiring cable extensions or splicing. Separate power and video cables enable flexible routing through vehicle bodywork optimizing installation path for different vehicle layouts. RCA video connector provides universal compatibility with aftermarket monitors using standard composite video input—plug-and-play connection to Mongoose color monitors and other brand displays accepting RCA video signals. Monitor trigger wire enables automatic display activation integration—connects to monitor trigger input causing display to automatically switch to camera view when reverse gear engaged. 12V DC power requirement integrates with standard automotive electrical systems—typically connected to reverse light circuit for automatic camera activation when reversing or constant 12V circuit for continuous operation in security monitoring applications. Installation hardware includes threaded mounting components, sealing gaskets, and weather-resistant connectors ensuring professional weatherproof installation.

Technical Specifications

Frequently Asked Questions

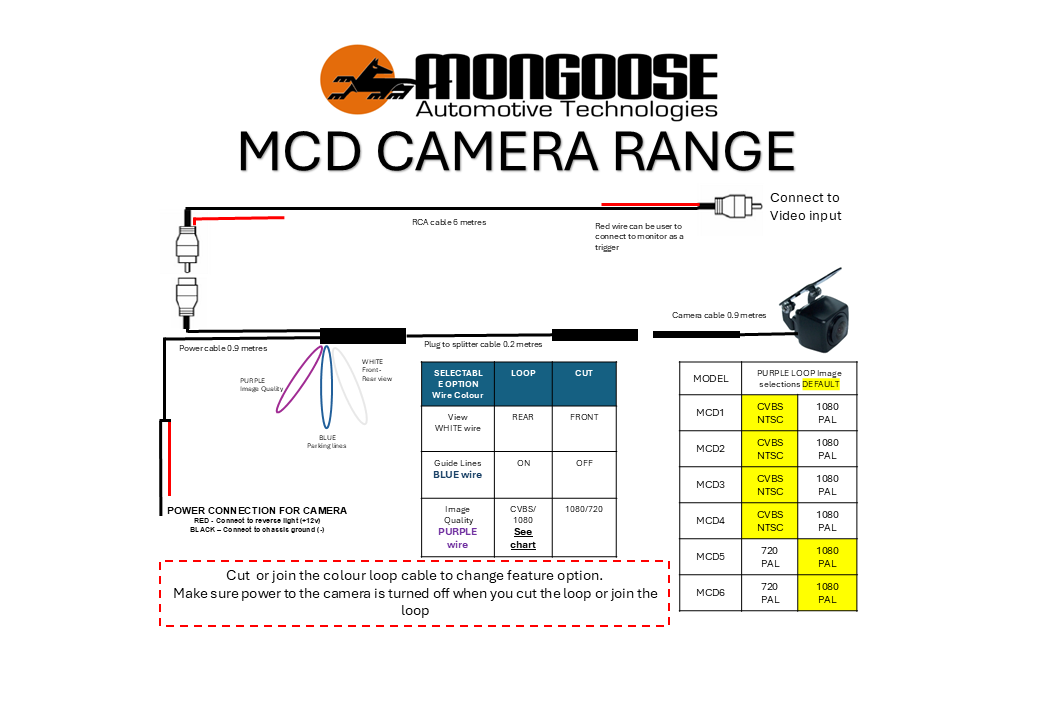

Q: How do I select between CVBS NTSC and 1080P PAL formats on MCD4?

A: Format selection typically via DIP switch or jumper configuration located on camera body or integrated cable connection—consult installation instructions for specific MCD4 configuration procedure. Common selection methods: small DIP switch on camera rear panel toggling between CVBS and 1080P modes, jumper pins requiring repositioning for format change, or integrated switch on video cable connector. Select format matching your monitor's input capability: choose CVBS NTSC if using standard-definition analog monitor, legacy display, or basic reversing screen supporting composite video input only, choose 1080P PAL if using high-definition monitor, modern multimedia display, or advanced reversing system supporting HD video input. Verify monitor specifications before format selection—connecting 1080P output to CVBS-only monitor may result in no image or incorrect display, connecting CVBS output to HD monitor typically displays but at reduced quality. If uncertain about monitor compatibility, start with CVBS format for universal compatibility then upgrade to 1080P if monitor supports higher resolution. Format selection configurable in field without tools or camera disassembly—enables simple adaptation to different monitor systems or format changes during monitor upgrades.

Q: Can MCD4 be mounted on vertical surfaces or only horizontal?

A: MCD4 specifically designed for horizontal surface mounting only—threaded shaft orientation and lens angle optimized for installation on horizontal planes such as beneath number plate lights, license plate housings, or horizontal bumper recesses. Vertical surface mounting not recommended as camera orientation would position lens incorrectly requiring excessive angle adjustment to achieve proper rear view. For vertical surface applications (tailgate, rear panel, bumper face), consider alternative Mongoose camera models designed specifically for vertical mounting with appropriate lens angles and mounting hardware. MCD4 horizontal mounting design provides advantages for number plate area installations: flush mount beneath plate light creates discrete appearance, horizontal mounting protects camera from direct impact, threaded installation into existing light housing simplifies installation. Installation procedure: position camera beneath number plate light with threaded shaft extending through mounting hole, secure with included nut and washer ensuring weatherproof seal, adjust camera angle if adjustable to achieve optimal rear view, route power and video cables through vehicle bodywork to monitor location. Thread up installation orientation recommended—ensures proper camera perspective and lens protection from road debris accumulation.

Q: What does the monitor trigger wire do and is it required?

A: Monitor trigger wire enables automatic display activation integration—when connected to compatible monitor trigger input, signal activates monitor display automatically when camera receives power. Common trigger wire application: connect camera power to vehicle reverse light circuit for automatic camera activation when reverse gear engaged, connect trigger wire to monitor causing display to automatically switch to camera view simultaneously, monitor returns to previous source (radio, navigation, media player) when vehicle shifted out of reverse gear. Trigger wire connection optional depending on monitor type and installation requirements: required for monitors with multiple input sources needing automatic camera view switching, not required for dedicated camera-only monitors remaining constantly active, not required if manual camera view switching acceptable via monitor input selection button. Trigger wire typically uses positive voltage signal (12V pulse) when camera powered—verify monitor trigger input specifications for voltage and polarity requirements. Alternative installation without trigger wire: connect monitor to constant power with manual input selection for camera view, use dedicated camera monitor without additional input sources. Trigger wire functionality enhances installation convenience enabling seamless automatic camera operation without manual monitor control requirements—particularly beneficial for OEM-style integration where automatic activation expected.

Q: How do I adjust or disable the parking guidelines?

A: Parking guideline adjustment typically via configuration switch, button sequence, or menu system depending on MCD4 specific implementation—consult installation instructions for detailed procedure. Common adjustment methods: DIP switch on camera body toggling guidelines on/off, button press sequence during power-up entering configuration mode, or monitor-based menu system if camera supports OSD (on-screen display) control. Guidelines typically adjustable for: on/off state (display parking lines or clear unobstructed view), distance zone positioning (calibrating colored zones for specific vehicle dimensions), line color selection (matching personal preference or visibility requirements). Guideline calibration importance: default guideline positions may not accurately represent distances for all vehicle types—taller vehicles require different calibration than lower cars, vehicles with extended rear overhangs need adjusted reference points. If guidelines appear inaccurate: measure actual distances from camera to obstacles at guideline positions, adjust guideline positioning via camera configuration to match measured distances, verify accuracy with test objects at known distances. Disable guidelines when: driver prefers unobstructed camera view without overlay graphics, guidelines inaccurate for specific vehicle and recalibration unavailable, using camera for security monitoring where distance references unnecessary. Professional installer can assist with guideline calibration ensuring accurate distance representation for safe reversing operations.

Q: Is MCD4 compatible with monitors from other brands besides Mongoose?

A: Yes—MCD4 universal compatibility design works with most aftermarket reversing monitors and display systems accepting standard RCA composite video input regardless of brand. Video output format (CVBS NTSC or 1080P PAL) uses industry-standard video signals ensuring broad compatibility with displays from various manufacturers. Connection requirements for non-Mongoose monitors: RCA video input jack accepting composite video signal, monitor trigger input (optional) for automatic activation integration if desired, 12V DC power supply for monitor operation. When using MCD4 with non-Mongoose displays: verify monitor video format compatibility (NTSC or PAL)—select matching format on MCD4 configuration switch, confirm monitor input voltage matches camera output, test trigger wire compatibility if using automatic activation—some monitors use different trigger voltage levels or polarity. MCD4 particularly suitable for upgrade installations replacing factory or aftermarket cameras in existing monitor systems—universal RCA output enables direct connection to installed displays without rewiring. For optimal compatibility: purchase complete Mongoose monitor and camera kit ensuring verified component compatibility, or contact monitor manufacturer confirming camera input specifications before installation. Professional car audio or auto electrical installer experienced with aftermarket camera systems can verify compatibility and ensure proper integration with existing or new monitor installations.
