Maximize compatibility across monitor generations with Mongoose MCD3 Adjustable Bracket Reverse Camera—featuring universal adjustable mounting bracket enabling flexible positioning above license plate area or alternative mounting locations for diverse vehicle configurations, selectable video format with factory CVBS NTSC analog output upgradable to 1080P PAL high-definition via wire loop configuration accommodating both legacy and modern monitor systems, exceptional 160-degree diagonal super wide-angle lens providing comprehensive rear coverage eliminating blind spots, integrated distance guideline overlay with on/off selection assisting obstacle proximity judgment during reversing operations, reversible front/rear view orientation through mirror image adjustment enabling camera use for rear reversing or front blind spot monitoring applications, adjustable bracket design making MCD3 highly popular for versatile fitting across passenger cars, commercial vans, utes, and trucks, clear bright picture quality ensuring excellent visibility of obstacles and pedestrians during reversing operations, complete installation kit with 1-meter power cable and 6-meter RCA video cable plus monitor trigger wire, 12V DC automotive electrical system compatibility, and universal RCA connector compatibility with all Mongoose color monitors and aftermarket display systems requiring flexible format support.

Product Overview

The MCD3 with its 160 degree diagonal viewing angle, mirror imaging option and a clear bright picture give the driver great vision when reversing. Comes default as CVBS NTSC but can cut wire loop and change camera to 1080P PAL to suit your monitor. Adjustable bracket makes this a very popular camera due to its versatile fitting. The guidelines can be turned on or off at installation.

The Mongoose range of reverse cameras and monitors are designed as a simple upgrade to your vehicle to provide the driver with increased vision via the camera when reversing. Mongoose have a wide range of cameras, monitors and accessories to suite a wide range for vehicles and driver requirements.

A good camera and monitor are a great driving aid to help when driving or reversing your vehicle. Our range of products can help you enhance your safety with your personal or work vehicle. All our products are design to be installed to assist you, as a driver you must always be responsible and check your surrounding to ensure you are operating your vehicles safely.

Key Features

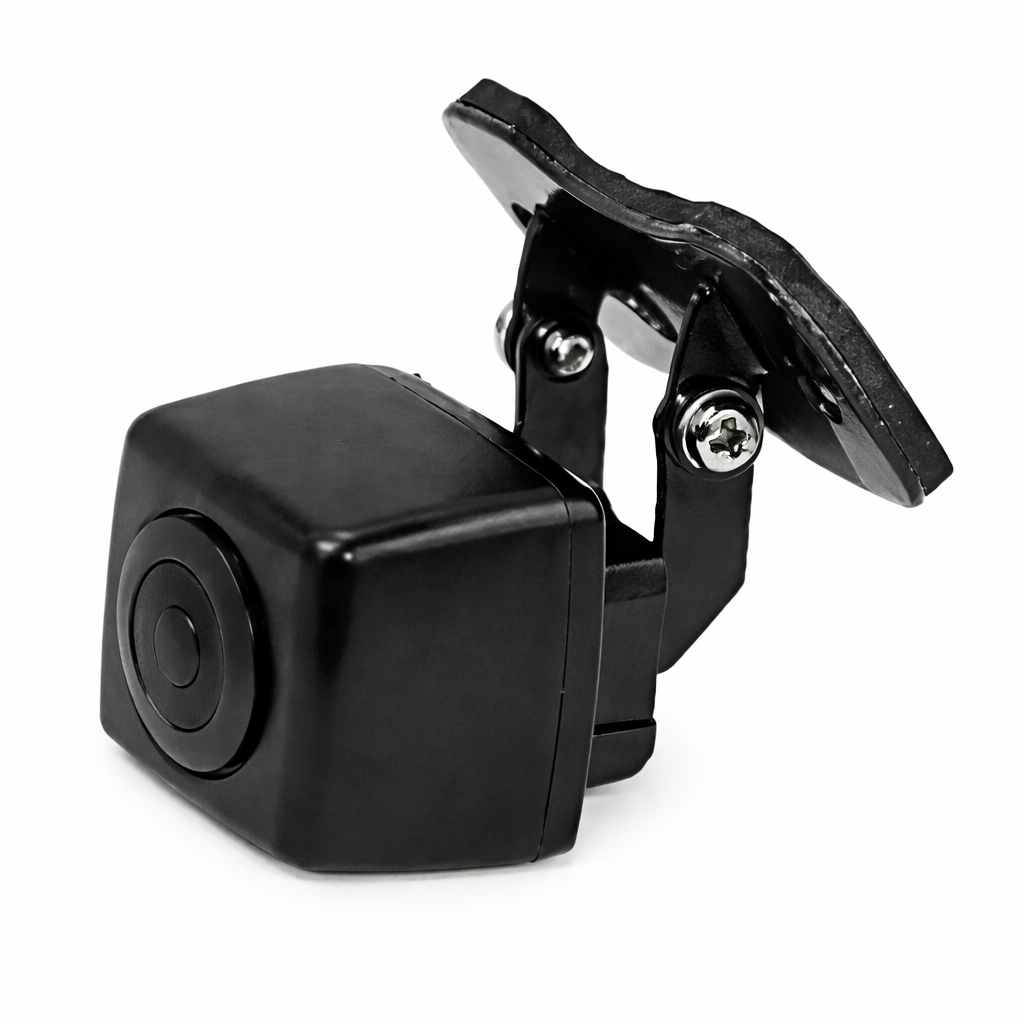

Universal Adjustable Mounting Bracket - Innovative adjustable bracket system enables flexible camera positioning and angle adjustment accommodating diverse vehicle mounting locations and rear panel configurations. Universal bracket design mounts above license plate area (most common installation), below license plate, bumper surfaces, tailgate panels, or alternative locations where traditional fixed-mount cameras impractical. Multi-axis adjustment capability provides precise camera angle optimization—vertical tilt adjustment for proper ground coverage and optimal exposure, horizontal rotation for centered rear view alignment, bracket positioning flexibility for various mounting surface angles. Adjustable bracket makes MCD3 highly popular for professional installers—single versatile camera model adapts to different vehicle types eliminating need for multiple camera models with fixed mounting configurations. Bracket accommodates uneven mounting surfaces, angled bumpers, curved tailgates where fixed-mount cameras require shimming or custom modifications. Secure mounting hardware included ensuring vibration-resistant installation withstanding rough roads, off-road conditions, and vehicle operation vibration. Adjustable design simplifies installation troubleshooting—if initial camera angle produces suboptimal view or exposure, bracket adjustment corrects positioning without reinstallation. Universal bracket compatibility spans passenger cars, commercial vans, utes, trucks, SUVs, and specialty vehicles requiring customized camera positioning for optimal rear visibility. Pivot capability enables precise angle adjustment during installation ensuring perfect rear view perspective and proper lighting exposure for clear bright picture quality.

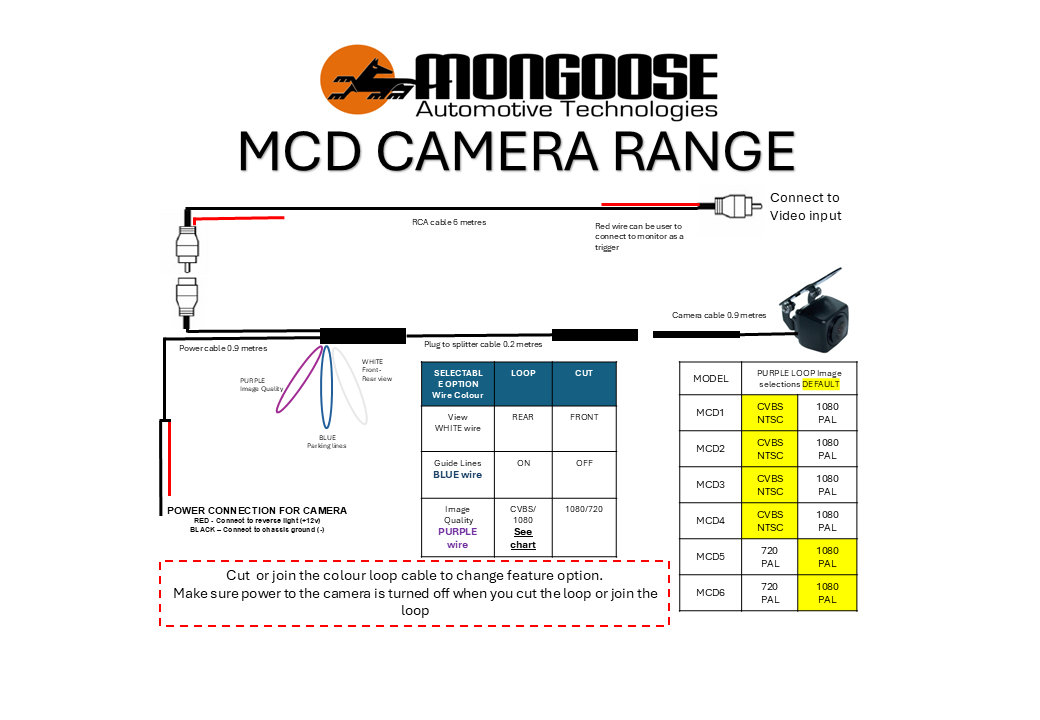

Selectable CVBS NTSC and 1080P PAL Formats - Flexible format selection system ships factory-configured as CVBS NTSC analog output with field-upgradable conversion to 1080P PAL high-definition via simple wire loop cutting procedure ensuring compatibility with both legacy and modern monitor systems. CVBS NTSC default format provides universal compatibility with older monitors, basic reversing displays, and standard-definition systems using traditional composite video input—ideal for upgrading vehicles with existing analog monitor installations or budget-conscious applications requiring reliable video transmission without high-definition requirements. 1080P PAL format available through wire loop cutting delivers high-definition video output providing superior image clarity, enhanced detail resolution, and improved low-light performance for modern HD-capable monitors and advanced display systems. Format selection via permanent wire loop configuration—cutting designated wire converts camera from CVBS NTSC to 1080P PAL output ensuring stable format without switches or jumpers prone to accidental changes. Factory CVBS default ensures immediate compatibility with widest range of existing monitor systems, 1080P upgrade available when monitor capabilities support high-definition input. MCD3 format flexibility particularly valuable for fleet upgrades replacing older cameras in existing monitor systems—start with CVBS compatibility then upgrade to 1080P when monitors replaced with HD models without requiring camera changes. Professional installers appreciate dual-format capability—single MCD3 model services customers with legacy analog systems and modern HD installations eliminating inventory complexity and simplifying parts stocking.

160° Super Wide-Angle Coverage with Clear Bright Picture - Exceptional 160-degree diagonal super wide-angle lens captures comprehensive rear coverage spanning full vehicle width plus extended peripheral visibility eliminating dangerous blind spots common with standard rearview mirrors and narrow-angle cameras. Ultra-wide coverage particularly critical for larger vehicles (commercial vans, utes, trucks) with extensive side blind spots or vehicles with restricted rear window visibility requiring camera-based situational awareness. 160-degree field of view enables complete monitoring of obstacles, pedestrians, vehicles, loading dock edges, trailer hitches, and side-approaching hazards during reversing operations. Professional-grade super wide-angle optics maintain clear bright picture quality across entire viewing angle without excessive fisheye distortion typical of inferior camera lenses—central image area remains proportionally accurate for distance judgment while peripheral zones capture approaching hazards. Clear bright picture ensures excellent visibility in various lighting conditions from bright sunlight to dark parking areas—optimized imaging sensor and lens system deliver consistent image quality enabling confident reversing operations regardless of ambient lighting. Wide viewing angle combined with clear bright picture quality provides professional reversing camera performance suitable for demanding commercial applications and personal vehicle safety enhancement. Super wide-angle design reduces need for multiple camera installations—single MCD3 provides coverage equivalent to multiple narrow-angle cameras simplifying installation complexity and reducing system cost.

Integrated Distance Guidelines with On/Off Selection - Intelligent distance guideline overlay system provides selectable reference lines assisting accurate obstacle proximity judgment during tight parking and reversing operations. Distance guidelines display colored zones indicating clearance levels—typically green zone (safe distance 2+ meters), yellow zone (caution distance 1-2 meters), red zone (immediate proximity under 1 meter) enabling driver assessment of available clearance during parking maneuvers. Guidelines configured at installation via selection switch or wire configuration—permanently enabled for drivers benefiting from distance references, permanently disabled for experienced operators preferring unobstructed view. Distance reference lines calibrated for typical passenger vehicle dimensions—provide general proximity guidance for safe reversing operations. Guideline overlay does not obstruct camera view—translucent colored lines superimposed over video feed maintaining full visibility of rear obstacles while providing distance references. Professional installers can advise optimal guideline configuration based on driver experience level and vehicle application—new drivers benefit from guideline assistance, experienced commercial operators often prefer guideline-free unobstructed clear bright picture. Guidelines particularly valuable for vehicles with challenging rear visibility (high-deck utes, windowless vans) where driver lacks natural depth perception requiring camera-based distance references for safe reversing confidence.

Mirror Image Adjustment for Front/Rear Applications - Reversible front/rear view orientation through selectable mirror image adjustment enables camera use for traditional rear reversing applications or front-mounted blind spot monitoring. Mirror image adjustment at installation provides correct perspective regardless of mounting location—rear view mode (default) for standard reversing camera application displaying natural perspective, front view mode for front bumper mounting applications inverting image orientation for correct forward viewing perspective. Front camera capability expands MCD3 applications beyond traditional reversing: blind spot monitoring when pulling forward into tight parking spaces or loading docks, caravan or boat trailer coupling camera providing precise hitch alignment view, commercial vehicle loading area approach monitoring for safe docking operations, delivery vehicle curb approach visibility showing front bumper proximity to obstacles. Mirror image selection typically via DIP switch, jumper configuration, or wire loop similar to format selection—field-configurable without requiring camera disassembly or specialized tools. Dual MCD3 installation popular for comprehensive vehicle coverage—rear camera with reverse light activation for automatic reversing operation, front camera with constant ignition power for selective blind spot monitoring, both cameras connected to dual-input monitor system enabling seamless front/rear view switching. Adjustable bracket accommodates both rear and front mounting locations—rear mounting above/below license plate, front mounting on bumper or grille area depending on vehicle configuration and application requirements.

Complete Installation Kit with Universal Compatibility - Comprehensive installation package includes all required components for professional camera integration: MCD3 camera unit with adjustable bracket, 1-meter power cable for connection to reverse light circuit or constant 12V power, 6-meter RCA video cable providing sufficient length for most vehicle configurations from compact cars to extended cab utes and commercial vans, integrated monitor trigger wire enabling automatic display activation with compatible monitors, mounting hardware for secure bracket installation, installation instructions with configuration guidance. Extended 6-meter video cable accommodates routing through vehicle bodywork from rear-mounted camera to dashboard monitor location—eliminates need for cable extensions or splicing maintaining reliable video signal transmission. Universal RCA connector provides compatibility with all Mongoose color monitors and aftermarket display systems accepting composite video or HD video inputs—plug-and-play connection to existing monitor installations or new display systems. Monitor trigger wire enables automatic activation integration—connects to compatible monitor trigger input causing display to switch to camera view when reverse gear engaged, monitor returns to previous source when vehicle shifted out of reverse. 12V DC power requirement integrates with standard automotive electrical systems—typically connected to reverse light circuit for automatic camera activation during reversing operations or constant 12V circuit for continuous security monitoring applications. RCA video standard ensures universal compatibility across monitor brands and generations—from legacy analog displays to modern HD-capable systems accepting composite video input alongside digital formats. Adjustable bracket, clear bright picture quality, flexible format selection, and universal RCA compatibility make MCD3 ideal solution for diverse vehicle installations requiring reliable reversing camera performance.

Technical Specifications

Frequently Asked Questions

Q: What's the difference between MCD3 and MCD6 cameras?

A: MCD3 and MCD6 share similar adjustable bracket design and 160-degree super wide-angle coverage but differ in default video format and target applications. MCD3 ships factory-configured as CVBS NTSC analog output (upgradable to 1080P PAL via wire loop cutting)—ideal for upgrading vehicles with existing analog monitor systems, budget installations using standard-definition displays, or applications where legacy monitor compatibility essential. MCD6 ships factory-configured as 1080P PAL high-definition output (downgradable to 720P PAL via wire loop cutting)—optimized for modern HD monitor installations, applications prioritizing maximum image quality, or new installations with HD-capable displays. Format selection: choose MCD3 if using existing analog monitor system, replacing older camera in legacy installation, or cost-conscious application where standard-definition sufficient, choose MCD6 if installing new HD monitor system, upgrading to high-definition display, or application requiring super HQ picture quality with maximum detail resolution. Both cameras feature identical adjustable bracket, 160-degree viewing angle, selectable guidelines, mirror image adjustment, and universal RCA compatibility—format default represents primary difference enabling targeted compatibility with different monitor generations. Professional recommendation: verify existing monitor capabilities before ordering—MCD3 ensures compatibility with widest range of legacy systems, MCD6 delivers optimal quality with modern HD displays.

Q: Can I upgrade from CVBS to 1080P after installing MCD3?

A: Yes—MCD3 format upgrade available after installation through wire loop cutting procedure converting camera from default CVBS NTSC analog output to 1080P PAL high-definition output. Upgrade scenario: install MCD3 with CVBS format for compatibility with existing analog monitor, later upgrade monitor to HD-capable display, access camera and cut designated wire loop converting to 1080P format matching new monitor capabilities. Wire loop typically accessible without complete camera removal—may require loosening bracket to access camera body or wire loop location depending on installation configuration. Format upgrade permanent once wire loop cut—cannot revert to CVBS without wire repair. Upgrade procedure enables investment protection—MCD3 adapts to future monitor upgrades without requiring complete camera replacement. Alternative approach: if planning near-term monitor upgrade to HD display, consider cutting wire loop during initial installation configuring camera for 1080P operation from start (assuming new monitor supports HD input). Verify new monitor specifications before format upgrade—confirm monitor accepts 1080P PAL video input before permanently cutting wire loop. Professional installer can advise optimal upgrade timing and verify monitor compatibility ensuring successful format conversion. Format upgrade particularly valuable for fleet applications—standardize on MCD3 cameras across vehicles with phased monitor upgrade program, convert cameras to 1080P as individual vehicle monitors replaced with HD models maintaining camera investment while improving image quality progressively.

Q: How does adjustable bracket mounting work for different vehicle types?

A: MCD3 adjustable bracket provides multi-axis pivot capability accommodating diverse vehicle mounting surfaces and rear panel configurations. Installation procedure for different vehicle types: Passenger cars - mount bracket above license plate on flat bumper surface, adjust vertical tilt approximately 10-15 degrees downward for optimal ground coverage, center bracket horizontally for balanced left-right rear view, secure with included mounting hardware. Utes and trucks - mount bracket above license plate on tailgate or bumper, adjust vertical tilt accounting for higher rear deck height requiring steeper downward angle, verify ground surface immediately behind vehicle visible in camera view, adjust horizontal rotation if tailgate or bumper angled. Commercial vans - mount bracket on rear door panel or bumper, adjust bracket compensating for curved van rear panels or recessed surfaces, position camera for maximum coverage of loading area and side blind spots, verify bracket securely mounted withstanding door opening/closing vibration. SUVs and 4WDs - mount bracket on spare tire carrier, bumper, or tailgate depending on configuration, adjust bracket angle accounting for spare tire obstruction if present, ensure camera positioned for clear rear view without spare tire blocking coverage. Bracket adjustment tips: temporarily power camera before final installation viewing live feed on monitor, adjust bracket while viewing monitor display ensuring optimal perspective, verify horizon line in upper portion of frame preventing excessive sky exposure, test adjusted angle in various lighting conditions, secure bracket tightly preventing vibration-induced movement. Adjustable bracket accommodates uneven surfaces by pivoting to desired angle regardless of mounting surface orientation—critical for angled bumpers, curved panels, or vehicles with non-standard rear configurations.

Q: What does "clear bright picture" mean compared to standard cameras?

A: MCD3 "clear bright picture" refers to optimized imaging performance delivering consistently visible camera feed across various lighting conditions—combination of quality imaging sensor, professional lens system, and proper exposure control ensuring obstacles clearly visible during reversing operations. Clear picture quality: high signal-to-noise ratio minimizing video grain or static, sharp focus across depth of field from near-ground obstacles to distant objects, accurate color reproduction enabling natural obstacle identification, minimal motion blur during vehicle movement. Bright picture capability: effective performance in low-light conditions (dusk, dark parking areas, covered loading docks), automatic exposure adjustment compensating for changing ambient lighting, sufficient sensitivity for night reversing operations without auxiliary lighting, resistance to image washout in bright direct sunlight. Clear bright picture essential for safe reversing operations—driver must identify obstacles, pedestrians, vehicles, and hazards quickly and accurately. Inferior cameras produce dim images in low light rendering obstacles invisible, washed-out images in bright conditions making contrast detection difficult, grainy images with poor signal quality hampering obstacle identification. MCD3 imaging optimization ensures reliable visibility regardless of conditions. Comparison to premium cameras: while MCD3 delivers clear bright picture suitable for most applications, higher-end cameras like MCD5/MCD6 with "super HQ picture quality" provide enhanced detail resolution through 1080P native imaging and advanced processing. MCD3 clear bright picture represents excellent balance of performance and value—professional image quality adequate for safe reversing without premium pricing of highest-resolution systems. CVBS format delivers clear bright analog picture, 1080P upgrade provides enhanced clarity through higher resolution digital imaging.

Q: Is MCD3 suitable for 24/7 security monitoring or only reversing?

A: MCD3 designed primarily for reversing camera application but suitable for 24/7 security monitoring with appropriate power and recording system configuration. Reversing application (typical): connect camera power to reverse light circuit for automatic activation when reverse gear engaged, camera operates only during reversing providing rear visibility when needed, monitor displays camera feed automatically during backing maneuvers. Security monitoring application: connect camera power to constant 12V circuit (battery, fused power distribution) enabling continuous operation regardless of vehicle state, camera operates 24/7 providing rear area surveillance when vehicle parked, connect video output to recording system (DVR, vehicle security system) for continuous footage capture, optional monitor connection for live view when desired. Security monitoring considerations: verify camera remains powered when vehicle ignition off—requires constant 12V connection not ignition-switched circuit, plan power routing avoiding excessive battery drain in extended parking situations—consider solar panel supplementation for long-term parking, connect to recording system capturing footage rather than relying on monitor display—enables evidence collection for theft or vandalism incidents, position camera for optimal coverage of valuable cargo area or vehicle vulnerable zones. Adjustable bracket enables precise angle positioning for security coverage—different perspective than reversing application may be optimal for surveillance. Clear bright picture quality ensures visible footage in various lighting conditions critical for security applications. IP rating verification recommended for extended outdoor exposure in security role—ensure camera weatherproofing adequate for continuous operation. Professional security installers can integrate MCD3 into comprehensive vehicle security systems with proper power management and recording integration. MCD3 particularly suitable for commercial vehicle security—cargo vans, delivery trucks, equipment vehicles requiring rear area monitoring for theft prevention.
