Mongoose MC6P/N | Heavy Duty Metal Camera

Quick answer

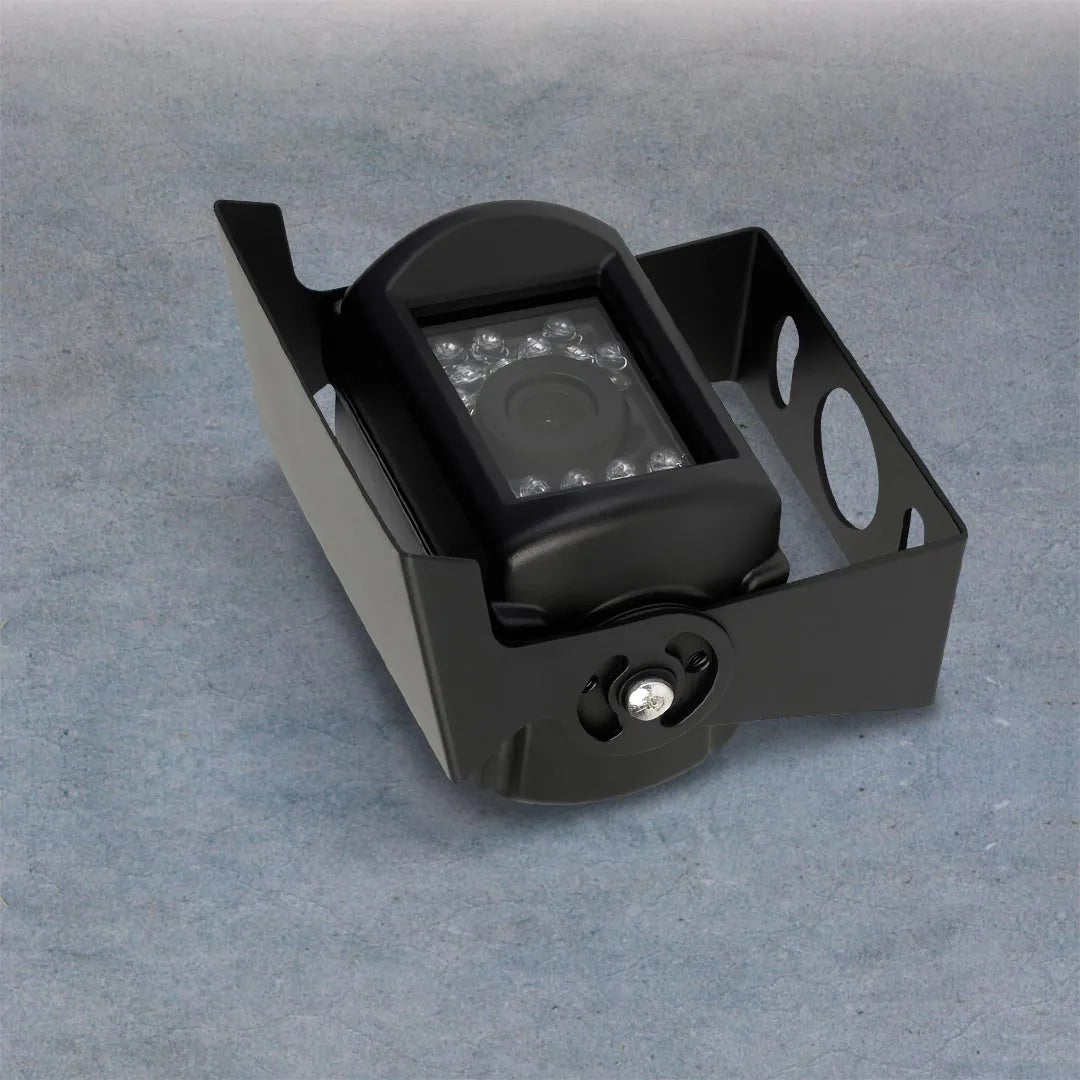

The Mongoose MC6P/N is a heavy duty metal body reverse camera with a Sony CCD sensor, IP69K sealing and 18 infrared LEDs, offered in PAL (MC6P) or NTSC (MC6N).

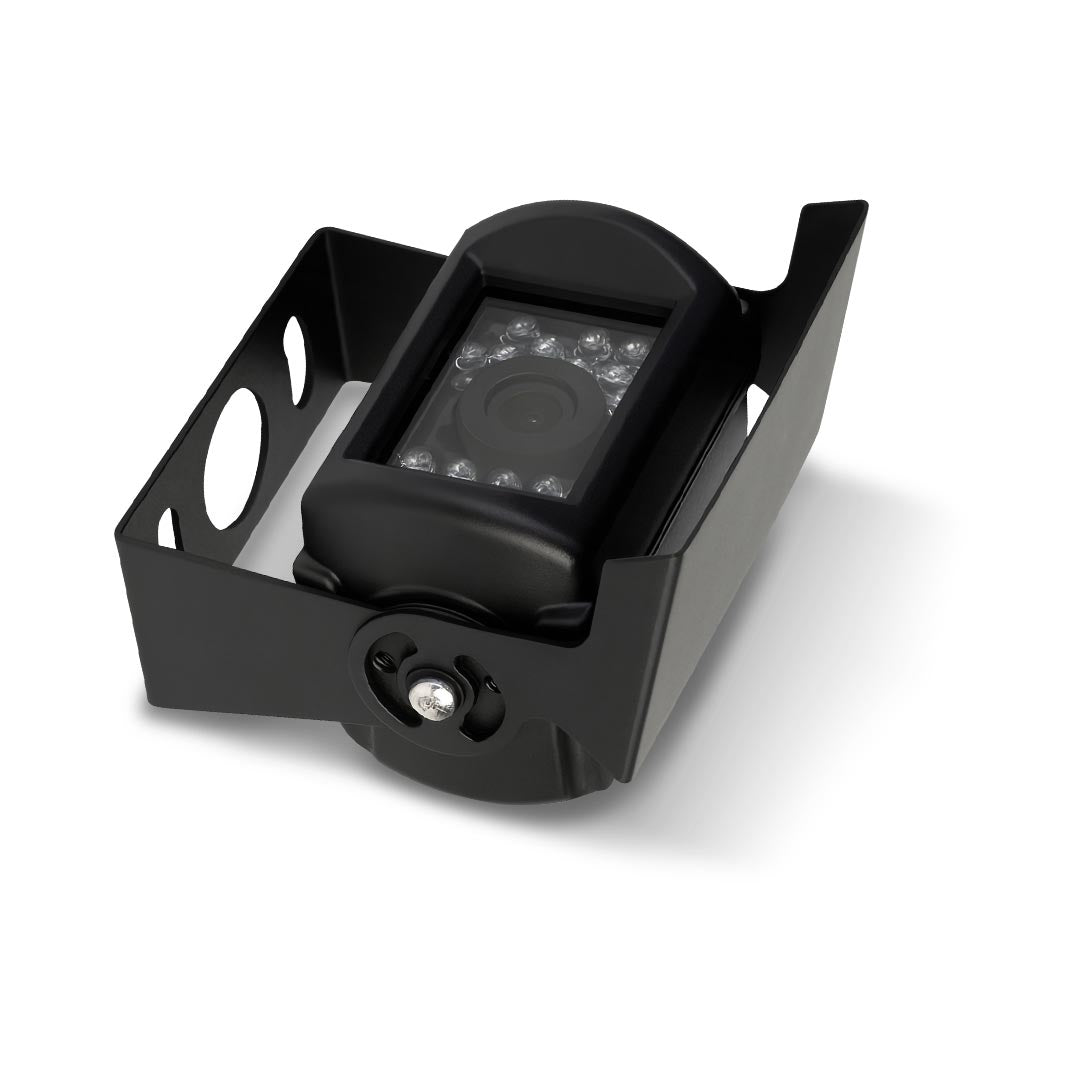

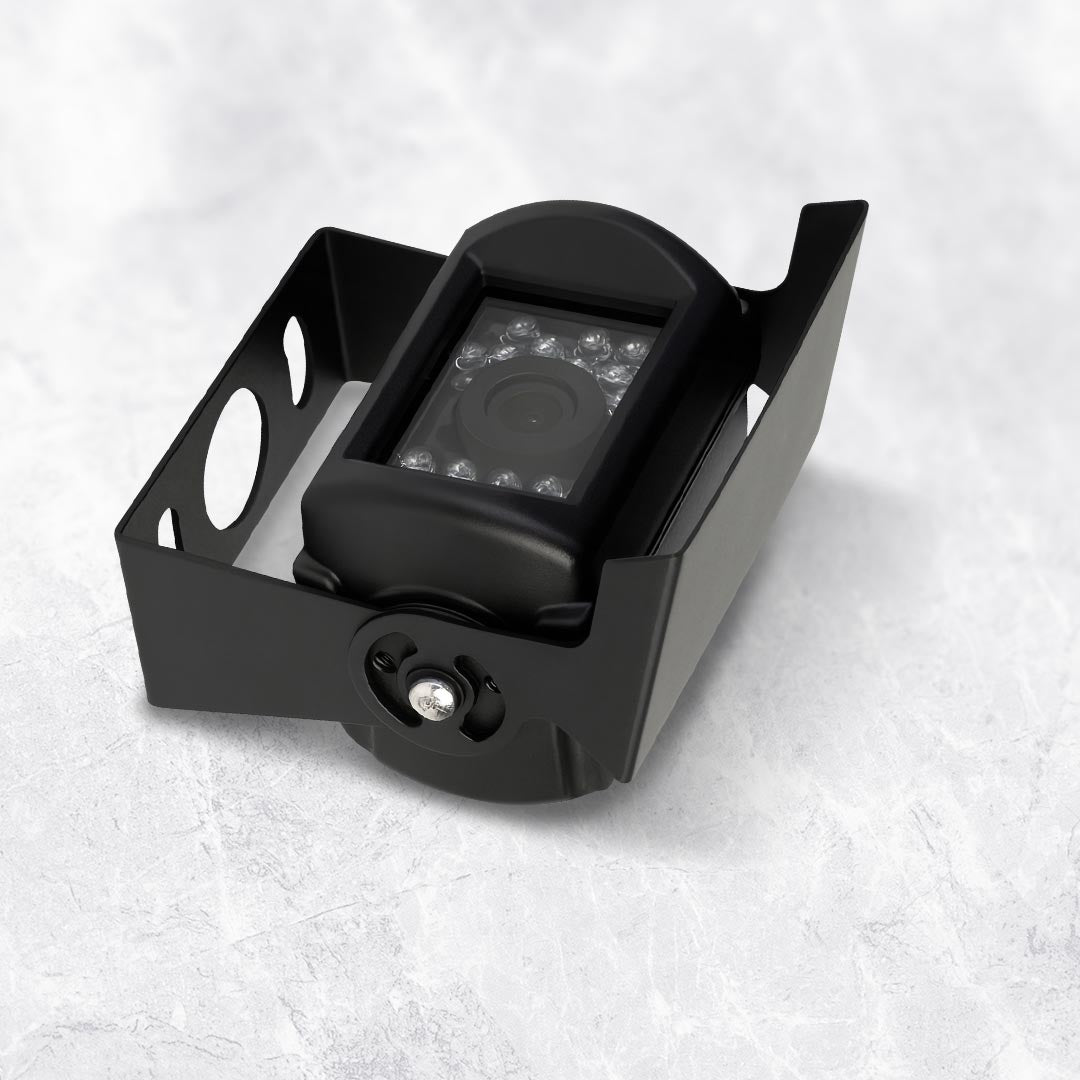

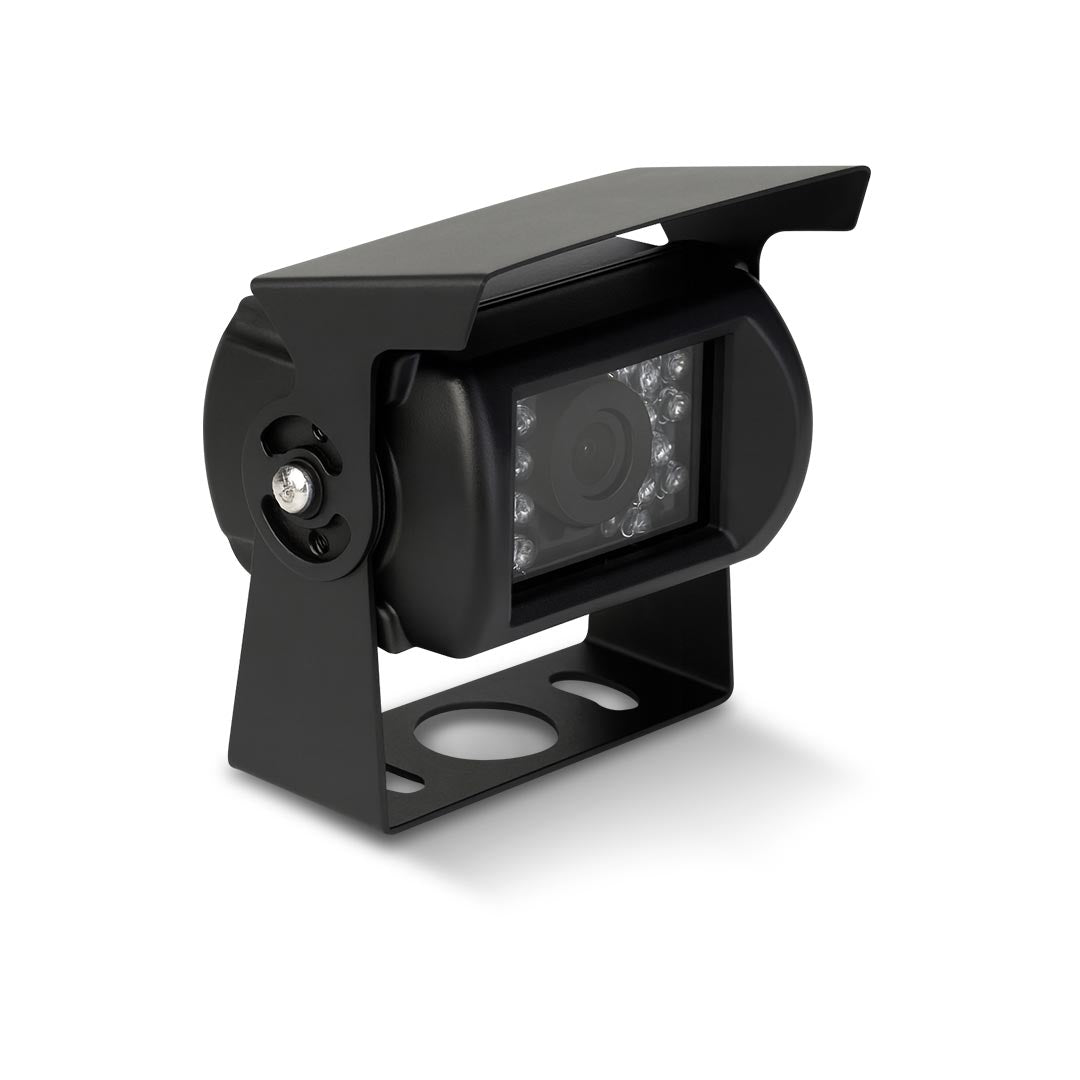

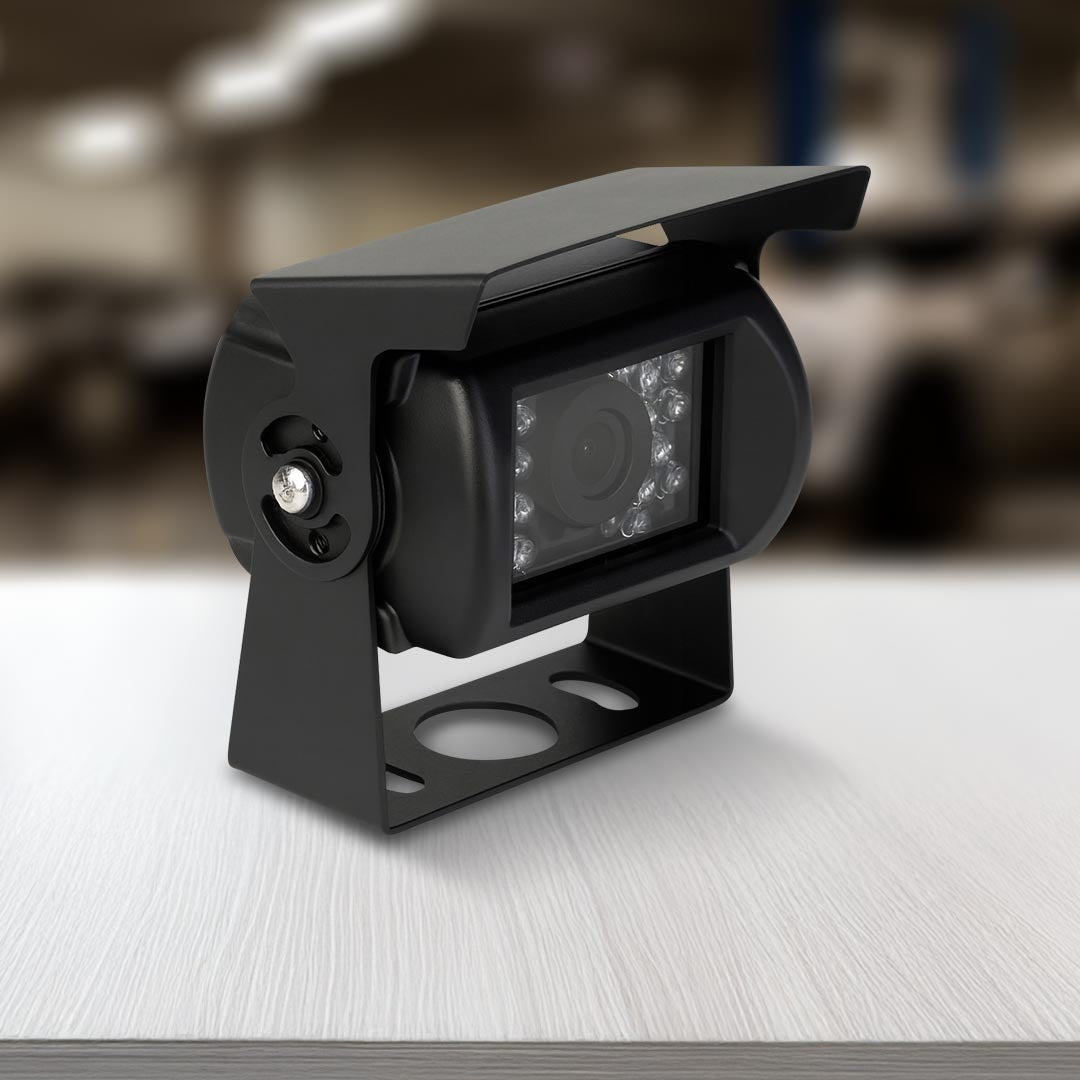

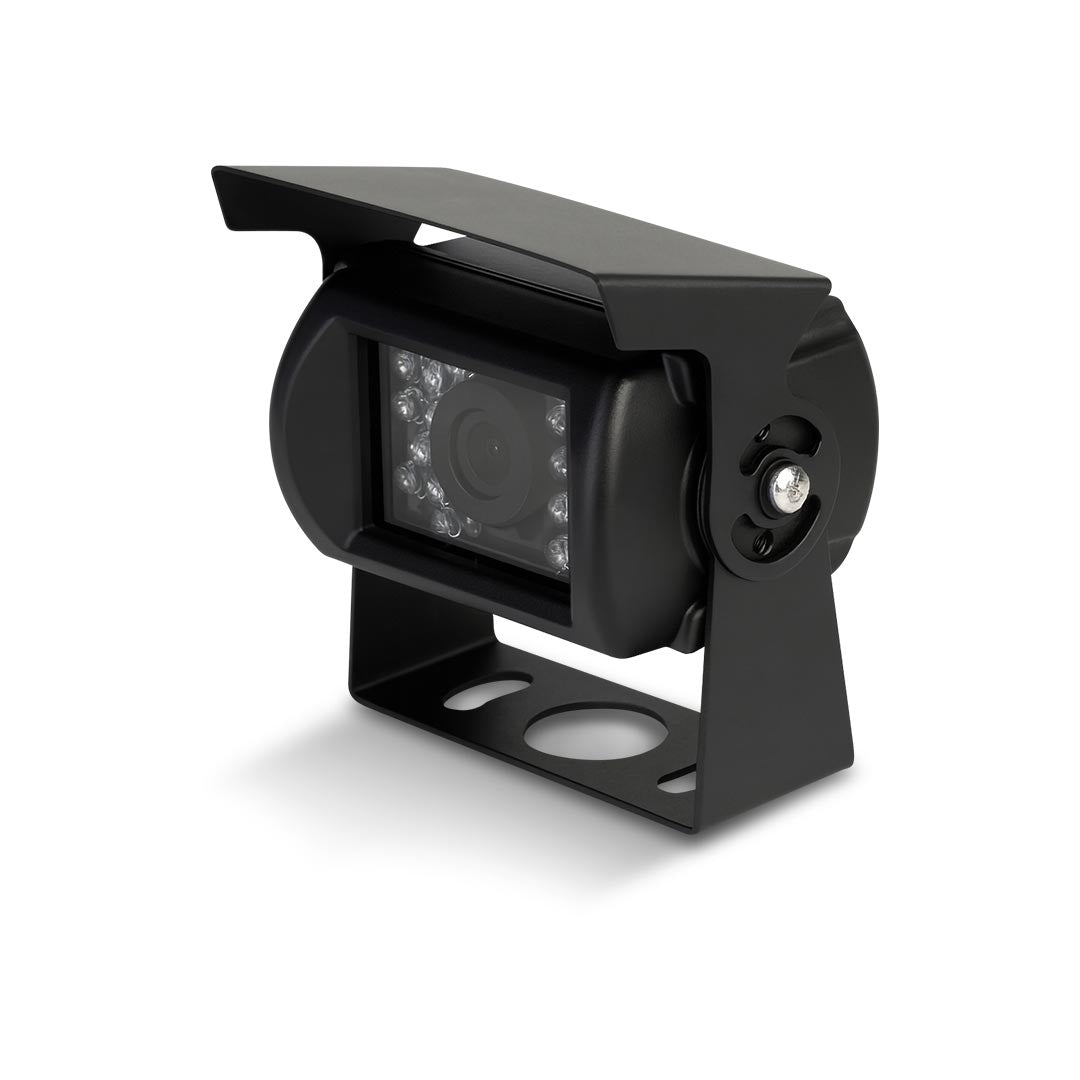

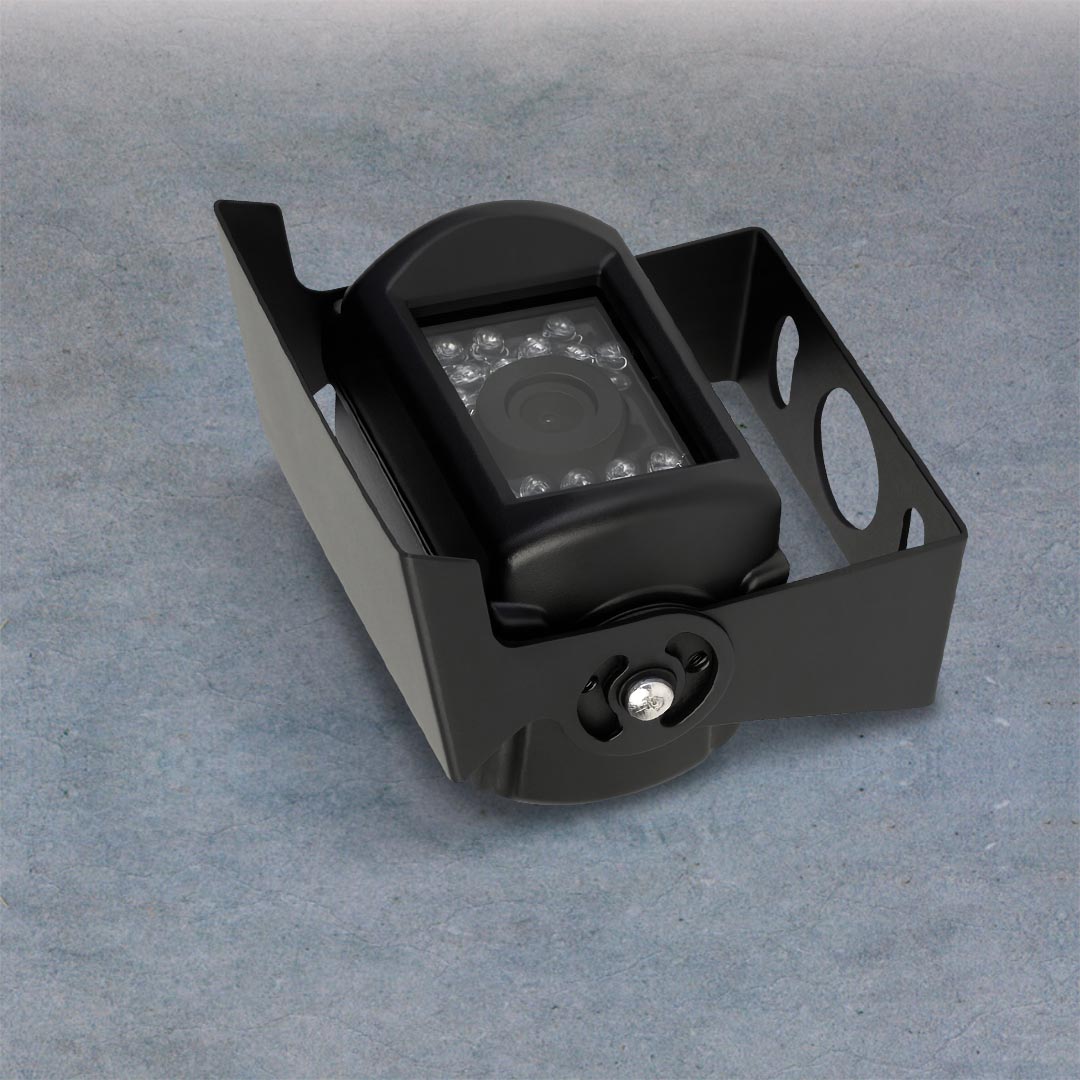

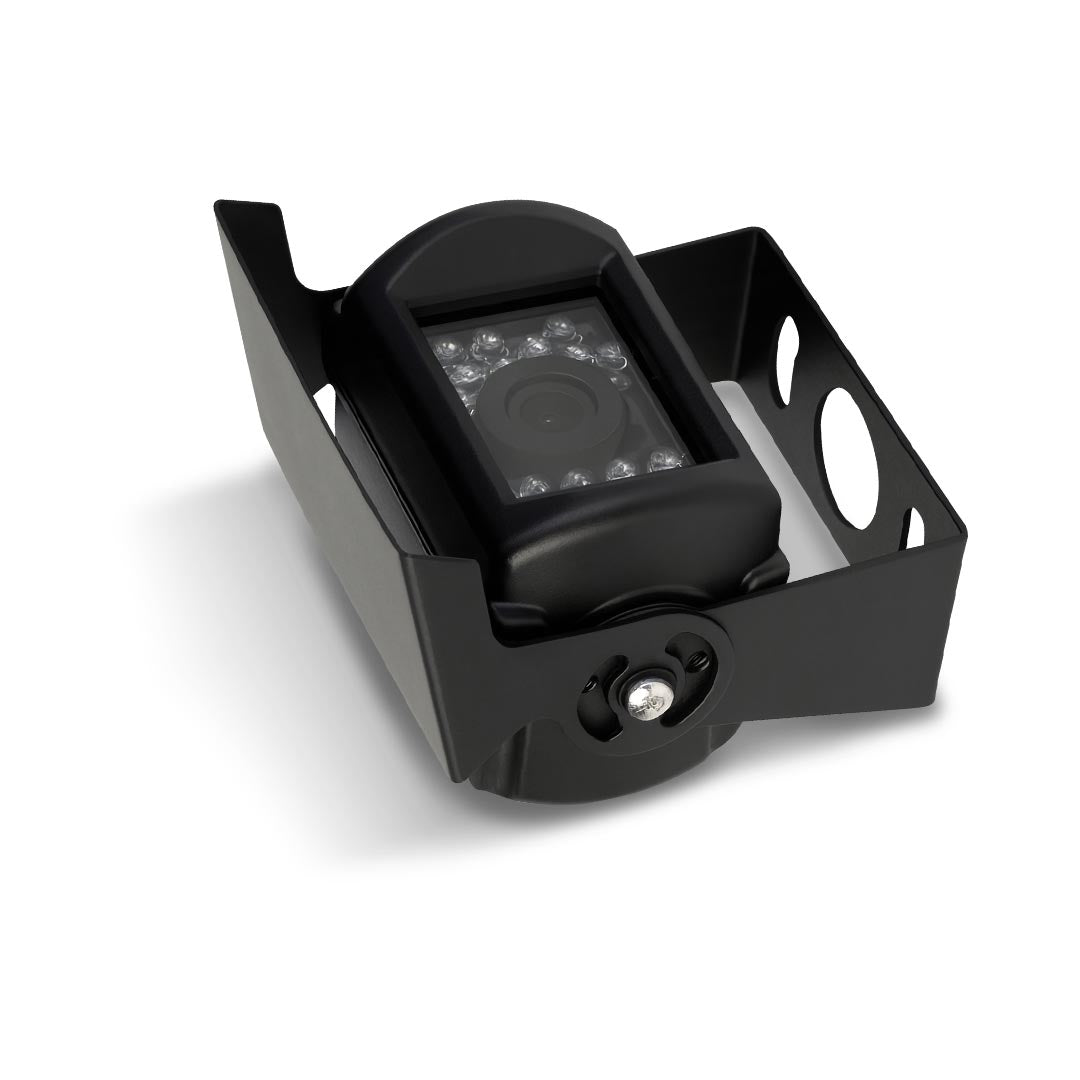

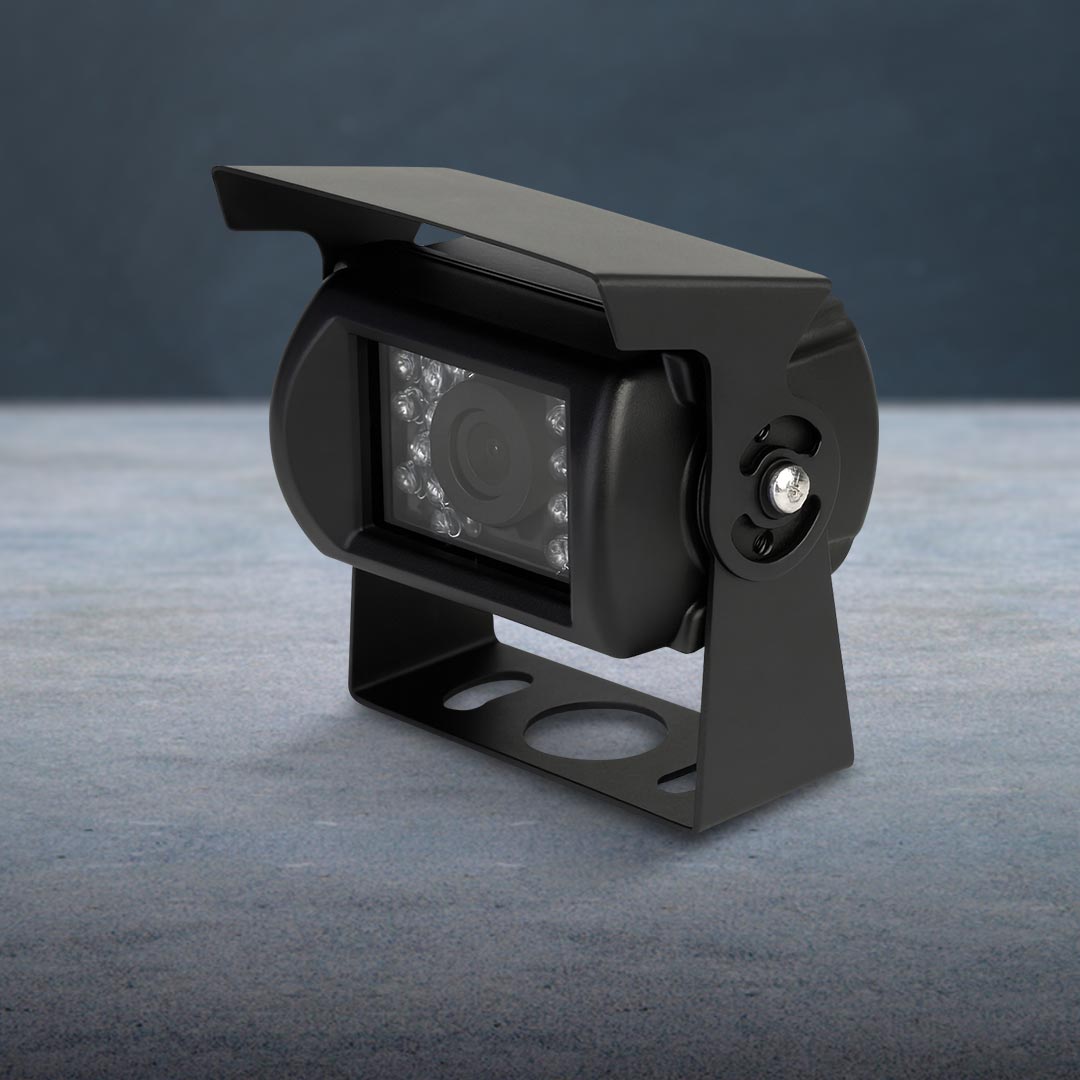

It is built for trucks, plant and work vehicles, with a U bracket and a sunshade to keep glare and rain off the lens.

Problems it solves

• Cameras that die from pressure washing and road grime. The MC6P/N is rated IP69K.
• Vibration on heavy vehicles that shakes cheap housings apart. This one carries a 4G vibration rating.
• Reversing in the dark. The 18 IR LEDs give a usable picture down to 0.1 lux.

Specifications

• Sensor: Sony CCD
• Resolution: 420TV lines
• Signal: MC6P PAL, MC6N NTSC
• Viewing angle: 90 degrees horizontal, 70 vertical, 100 diagonal
• Night vision: 18 IR LEDs, 0.1 lux
• Sealing: IP69K
• Vibration rating: 4G
• Supply: 12V
• Connector: 4 pin aviation, 0.6 m power lead
• Dimensions: 86.5 x 77 x 75 mm, black
• Operating temperature: minus 20 to 70 degrees C

Fitment and compatibility

The MC6P/N is a universal surface mount camera for 12V vehicles. Mongoose pairs it with its MCK513 and MCK712 kits, and other monitors work if they accept the matching PAL or NTSC signal through the supplied 4 pin to RCA adaptor.

What is in the box

The camera on its U bracket with a sunshade, hexagon screws and wrench, a 4 pin to RCA adaptor, a DC power cable and the user manual.

Install notes

The camera sits on its U bracket with the supplied hex screws and wrench. Ask us to fit it and run the cable to the cab.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the MC6P/N

Which monitors work with the MC6P/N?

Mongoose lists its MCK513 and MCK712 kits. Other monitors work when they take the matching PAL or NTSC signal.

Should I order the MC6P or the MC6N?

Pick MC6P for a PAL monitor and MC6N for NTSC. Most Australian monitors run PAL, so check the monitor manual.

What comes with the MC6P/N camera?

The U bracket, sunshade, hex screws and wrench, a 4 pin to RCA adaptor, a DC power cable and the manual.
