Gator GRVTK1 Heavy-Duty Trailer Add-On Reverse Camera Kit
Click to open expanded view
GATOR logo

Gator GRVTK1 Heavy-Duty Trailer Add-On Reverse Camera Kit

SKU: GRVTK1
Price
$314.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Gator GRVTK1 Heavy Duty Trailer Reverse Camera Add-On Kit

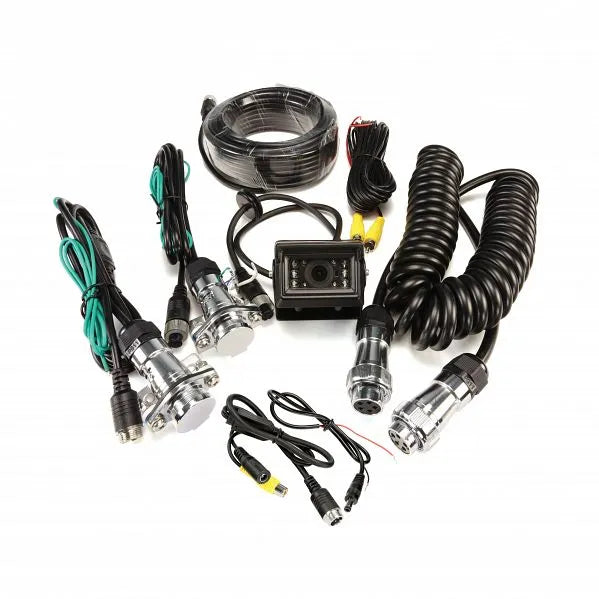

A complete add-on camera kit for trailers, caravans, and horse floats bundles the GT50L heavy duty camera, GTK1 quick-connect trailer kit, PLC10 10m PROLINK extension, and G5MRCA 6m RCA extension. Connects to an existing reverse camera system or display.

Display not included requires an existing reverse camera system or display to connect to.

Product Overview

The Gator GRVTK1 is a convenience bundle providing everything needed to add a trailer or caravan camera to an existing reverse camera system. It connects to an existing PROLINK II or RCA-based reverse camera system or display.

Included components:

  • GTK1 — 4-pin PROLINK trailer quick-connect kit (2m curly cable, weatherproof sockets, reverse trigger built in)
  • G5MRCA — 6m RCA extension cable with reverse trigger (for connecting to RCA-based systems on the vehicle)
  • PLC10 — 10m 4-pin PROLINK II extension cable (for running from the quick-connect point to the camera on the trailer)
  • GT50L — heavy duty IP68 CMOS camera with 10 IR LEDs, loop system for PAL/NTSC/gridlines/mirror, PROLINK II connector with RCA adaptor included

Loop system on the GT50L camera:

  • Blue loop: Default NTSC → cut for PAL
  • Green loop: Default no gridlines → cut for gridlines
  • White loop: Default rear view image → cut for reverse (mirror) image

For a standard Australian PAL reverse installation: cut the blue loop and the white loop.

Connection notes:

  • Connecting to an existing PROLINK II system: the kit provides the trailer connection (GTK1 + PLC10 + GT50L). A separate PROLINK II vehicle extension cable is not included — purchase a PLC3, PLC5, or PLC10 separately if needed.
  • Connecting to an RCA system: the G5MRCA 6m RCA cable is provided for the vehicle side.

Features & Benefits

  • Complete bundle — all trailer camera hardware in one kit
  • IP68 heavy duty GT50L camera — waterproof, 10 IR LEDs, 0 lux
  • Quick-connect trailer system (GTK1) — easy attach/disconnect
  • 10m PROLINK II extension cable for trailer (PLC10)
  • 6m RCA extension cable for vehicle (G5MRCA)
  • PAL/NTSC, gridlines, and mirror image all switchable via loop
  • Suits both PROLINK II and RCA camera systems

Technical Specs

Specification Detail
SKU / Part Number GRVTK1
Brand Gator
Display Not included — connects to existing system
Includes GT50L camera (PROLINK II + RCA adaptor), GTK1 trailer connection kit, PLC10 10m PROLINK extension, G5MRCA 6m RCA extension cable
Camera IP Rating IP68
Camera Lens Angle 120 degrees
Camera IR LEDs 10
Camera Video Standard PAL/NTSC switchable (default NTSC)
Loop System Blue (PAL/NTSC), Green (gridlines), White (mirror)
Vehicle Cable 6m RCA (G5MRCA)
Trailer Cable 10m PROLINK II (PLC10)
Trailer Connector GTK1 quick-connect with curly cable

Compatible With / Goes Well With

Direct Vehicle Fit:

  • Universal — adds to any existing 12V reverse camera system or display with PROLINK II or RCA input

Goes Well With:

  • Gator GT700SD, GT704SD, GT904SD, GT704DVR monitors (PROLINK II — spare input for trailer)
  • Gator GRV70TKT (if adding a second trailer camera)
  • Gator PLC3, PLC5, PLC10 additional PROLINK II extension cables (if a vehicle-side extension is also needed)

Frequently Asked Questions

Does this kit include a display?

No. The GRVTK1 is an add-on kit — it connects to an existing reverse camera system or display. A monitor, head unit, or existing camera system must already be in place.

What loop cuts are required for a standard Australian PAL installation?

The GT50L defaults to NTSC and rear view (non-mirrored). For a standard Australian PAL reverse installation: cut the blue loop (PAL) and white loop (mirror/reverse image). Cut the green loop if parking gridlines are also wanted.

Does this kit work with PROLINK II monitors like the GT700SD?

Yes. The GT50L camera uses PROLINK II connectors, and the GTK1 and PLC10 are PROLINK II cables. Connect via a spare PROLINK II input on the monitor. If the vehicle side also needs an extension, purchase a PLC3, PLC5, or PLC10 separately — these are not included in the GRVTK1.

Can I use this with a head unit or RCA-only display?

Yes. The GT50L includes a PROLINK II to RCA adaptor. The G5MRCA 6m RCA extension cable is also included for the vehicle side. Connect the RCA adaptor output from the GT50L (via the trailer connector) to the G5MRCA, and then to the RCA camera input on your head unit or monitor.

Is the GTK1 trailer connection already included in this kit?

Yes. The GTK1 4-pin PROLINK trailer connection kit with curly cable, weatherproof sockets, and built-in reverse trigger is included. If you already own a GTK1, the GRVTK1 still provides added value through the camera, cables, and RCA adaptor bundled together.
