MB Quart MBQ-DS2-216 | 6.5 Inch Component Car Speaker System | Discus

Quick answer

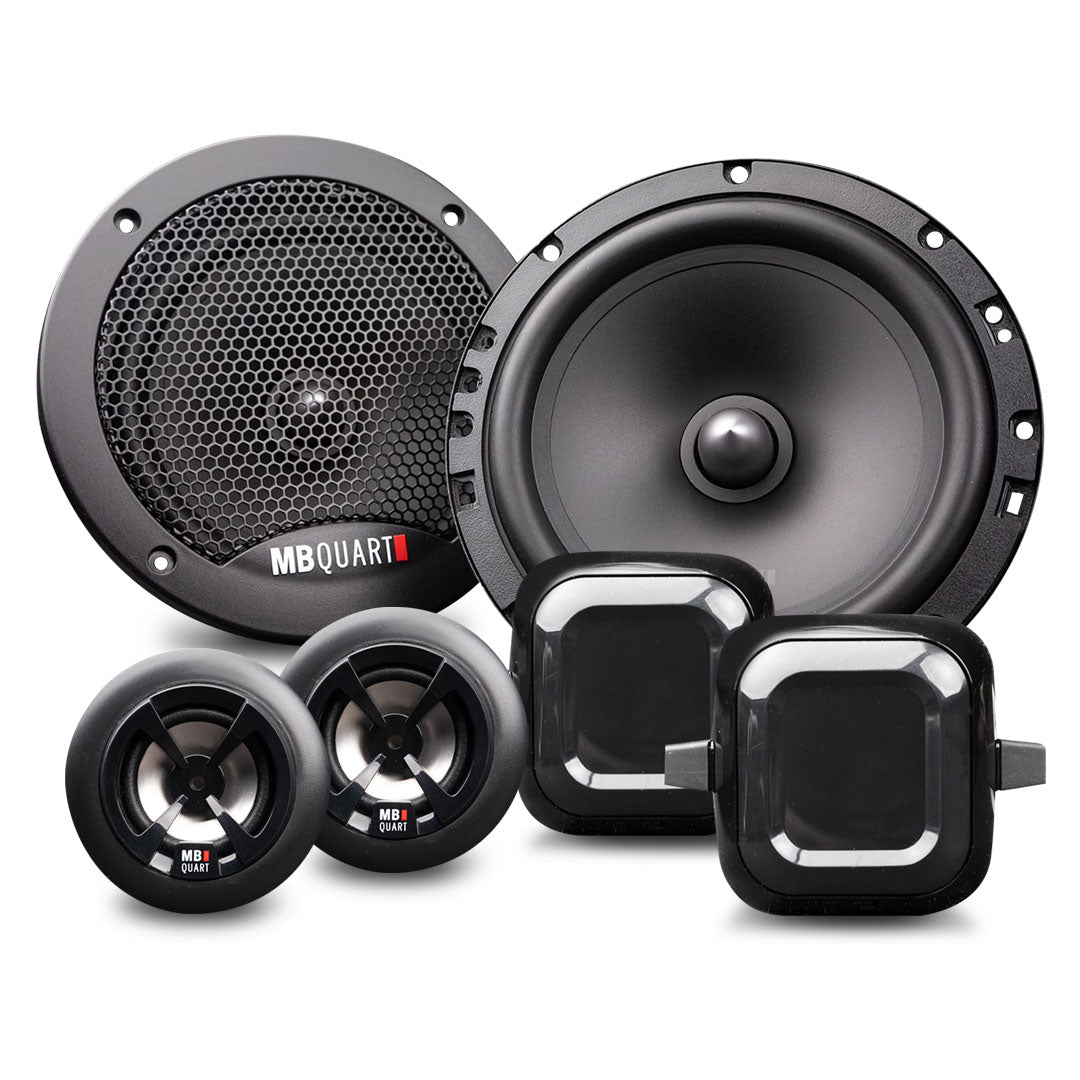

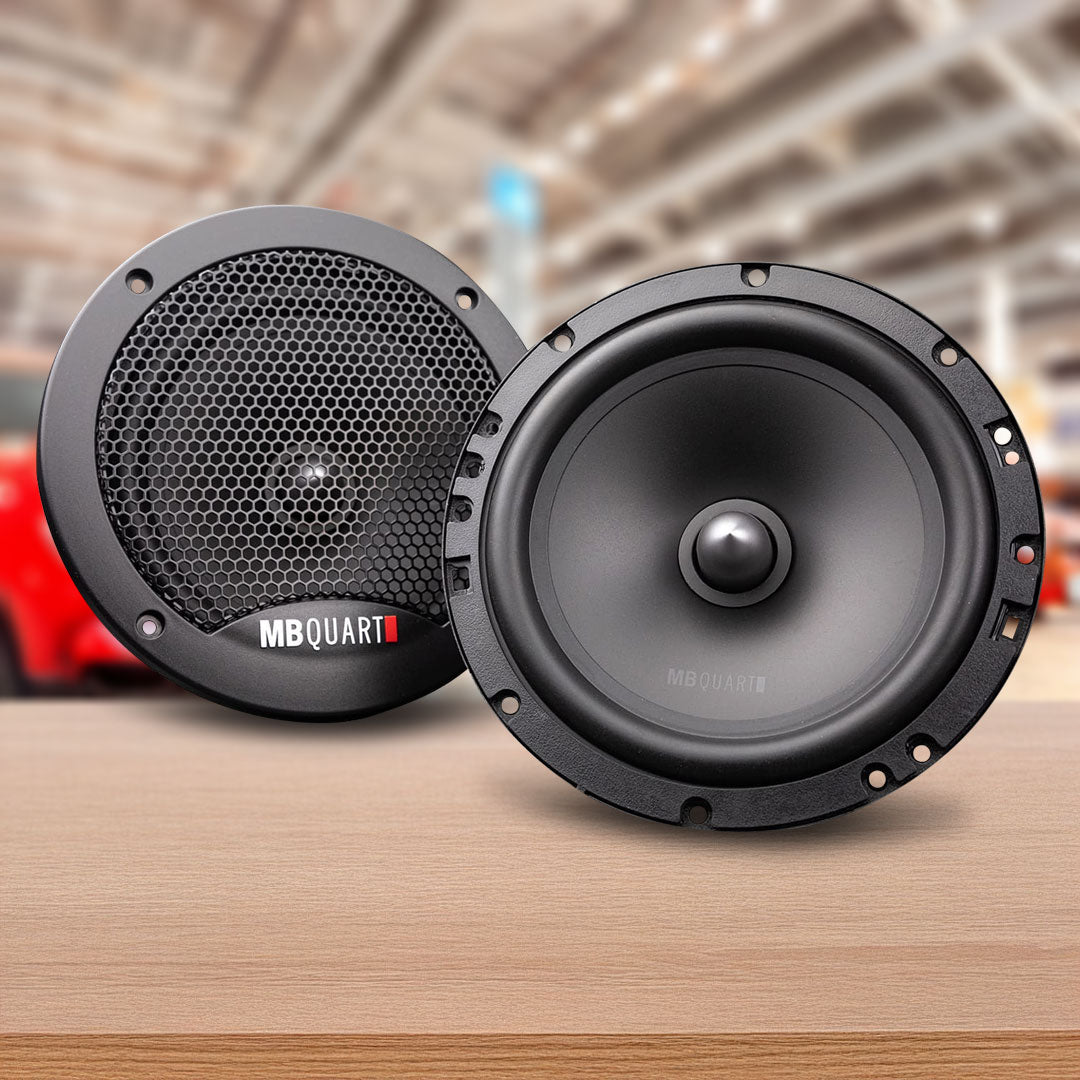

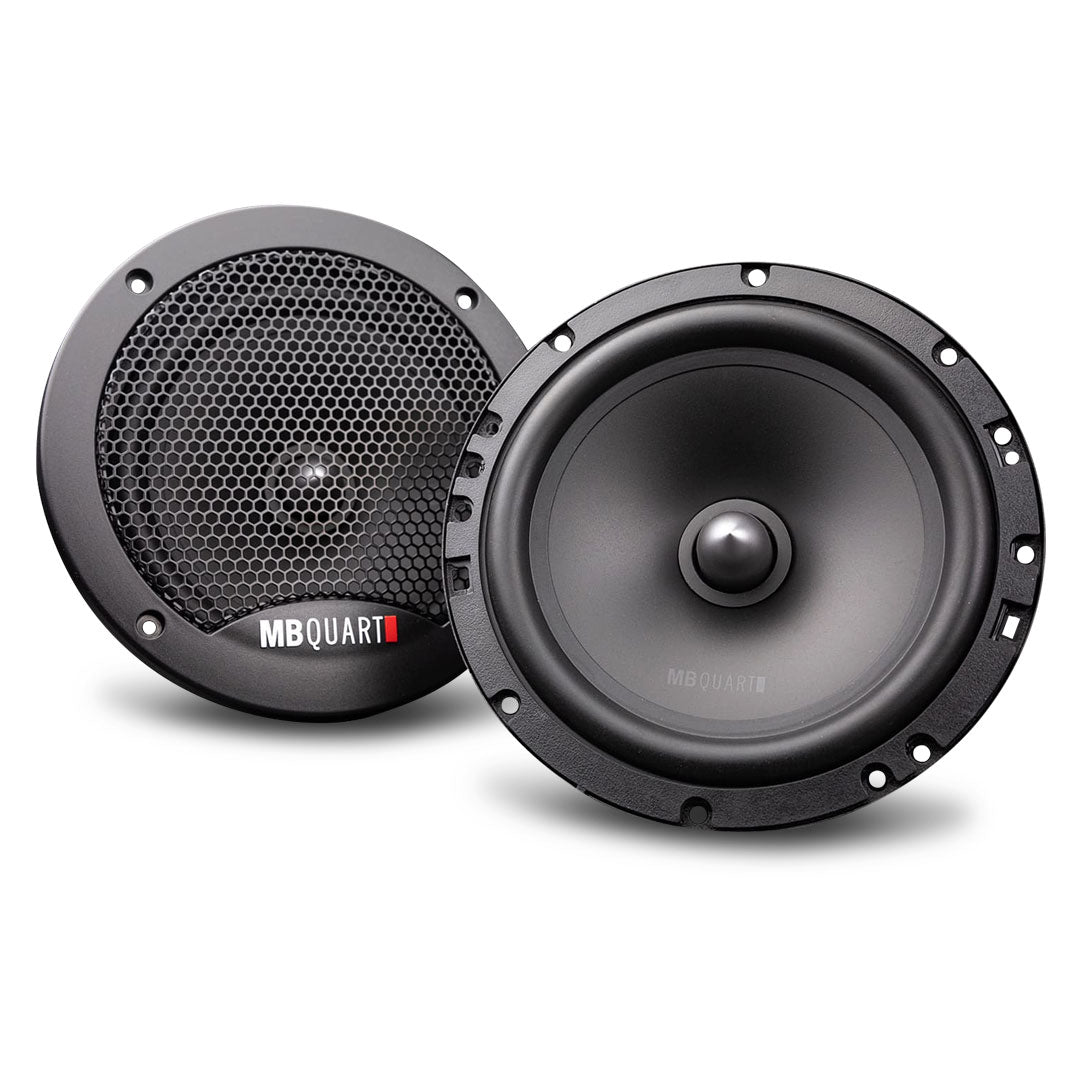

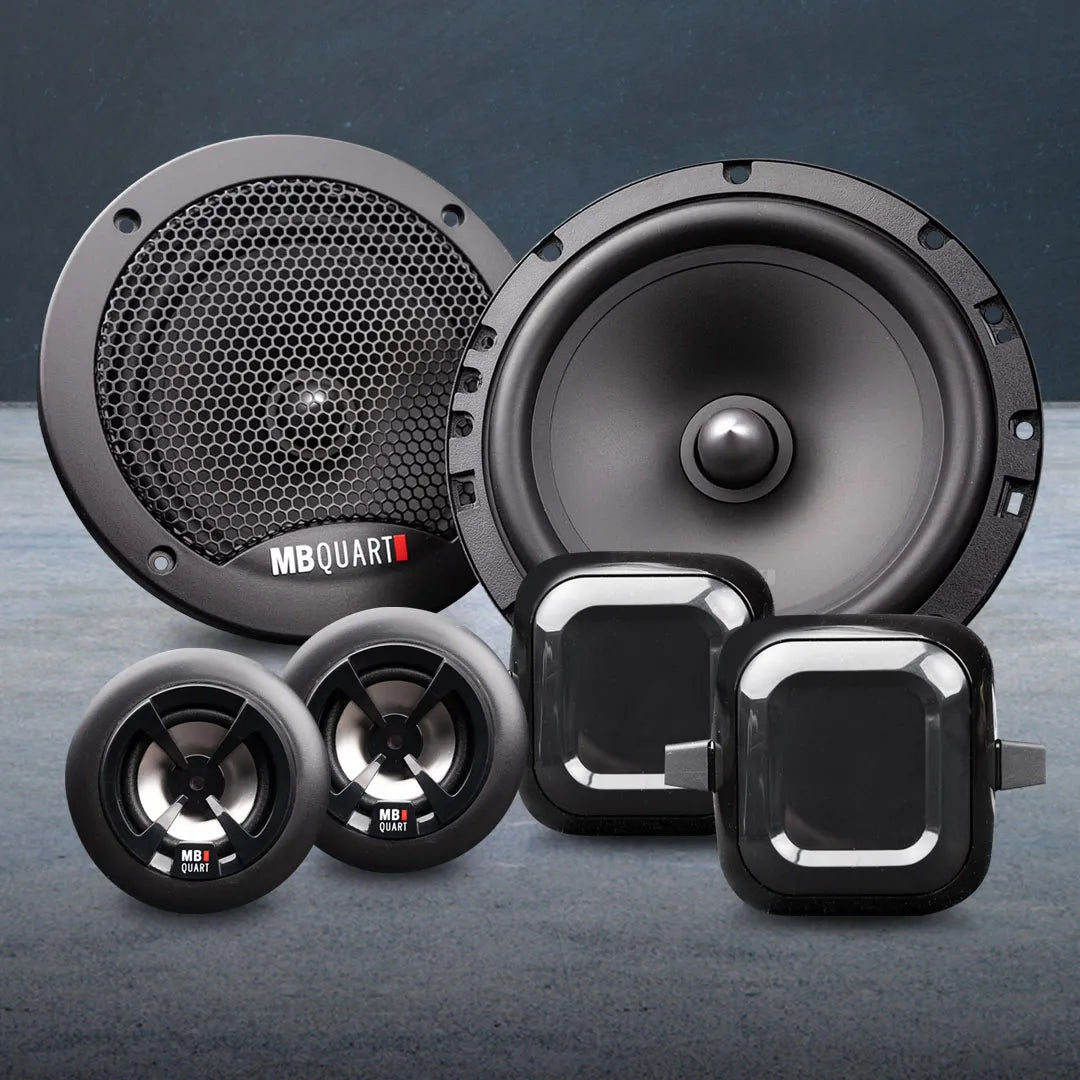

The MB Quart DS2-216 is a 6.5 inch two way component speaker set from the Discus range, rated at 70W RMS per side.

Woofers and tweeters mount apart, so the highs can sit up on the dash or pillar where they are easier to hear.

Problems it solves

• Factory speakers that sound flat at volume. Polypropylene cones and butyl surrounds tighten the midbass.
• Treble aimed at your knees. Separate tweeters can be mounted higher.

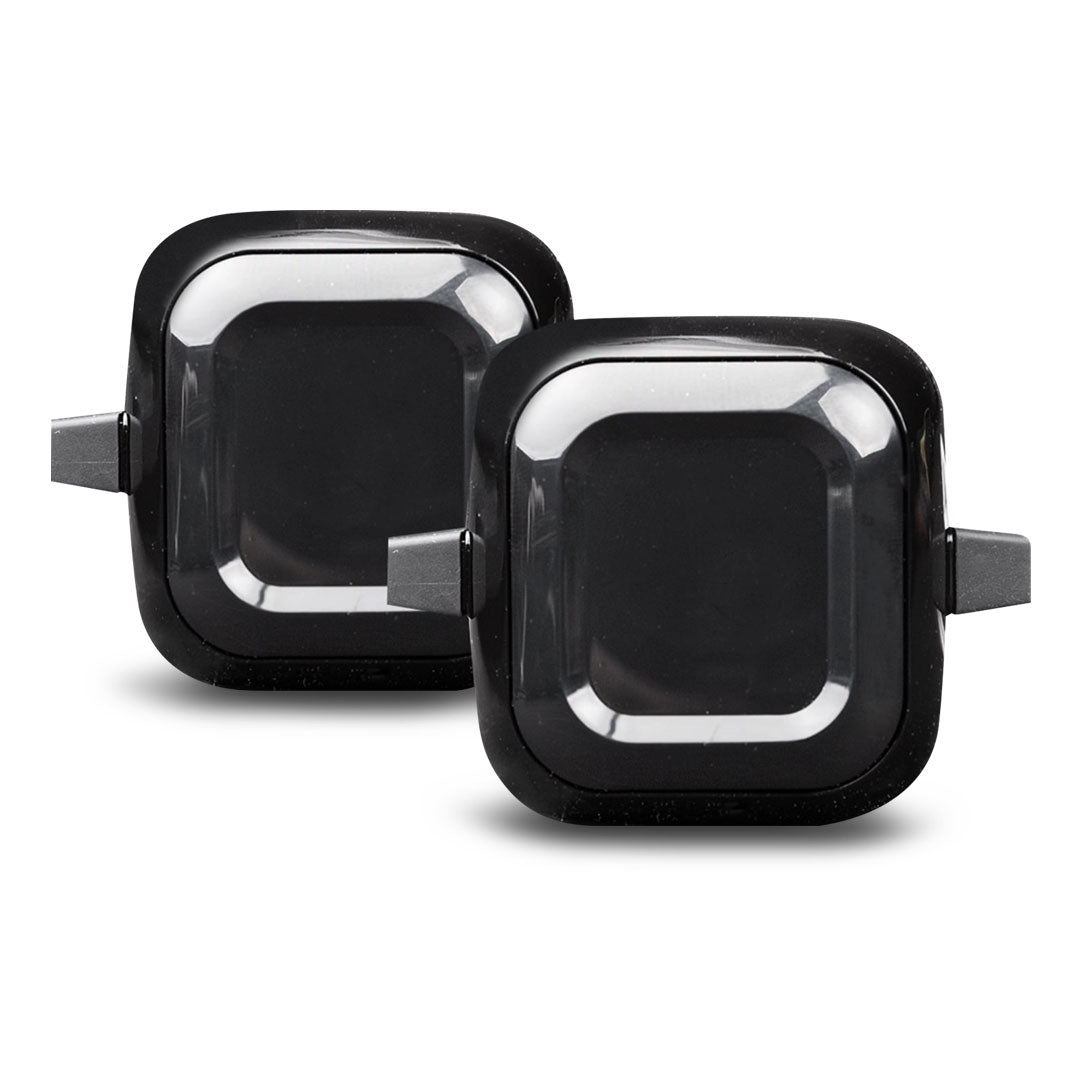

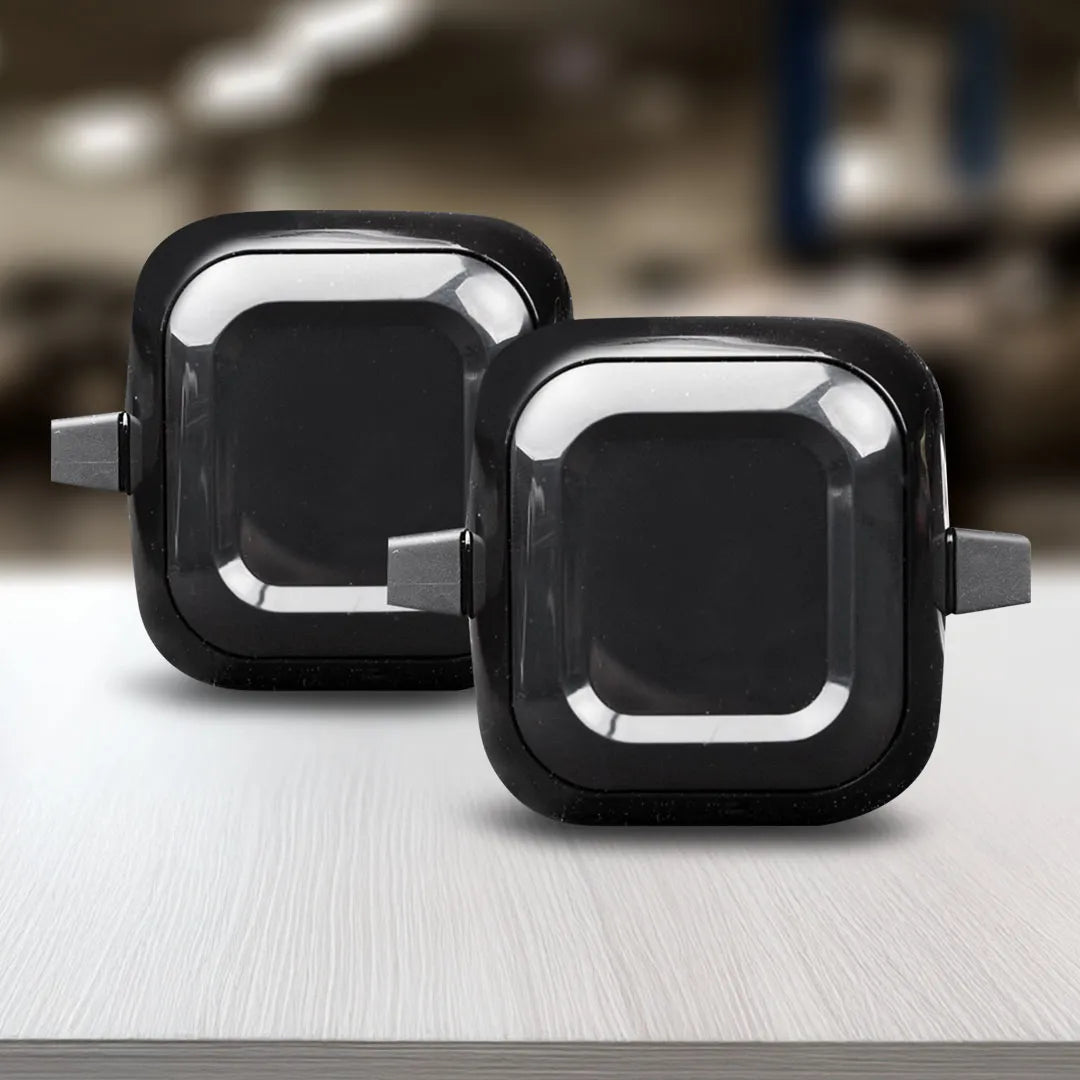

• Harsh crossover points. An external 12 dB per octave crossover blends woofer and tweeter.

Specifications

• Size: 6.5 inch

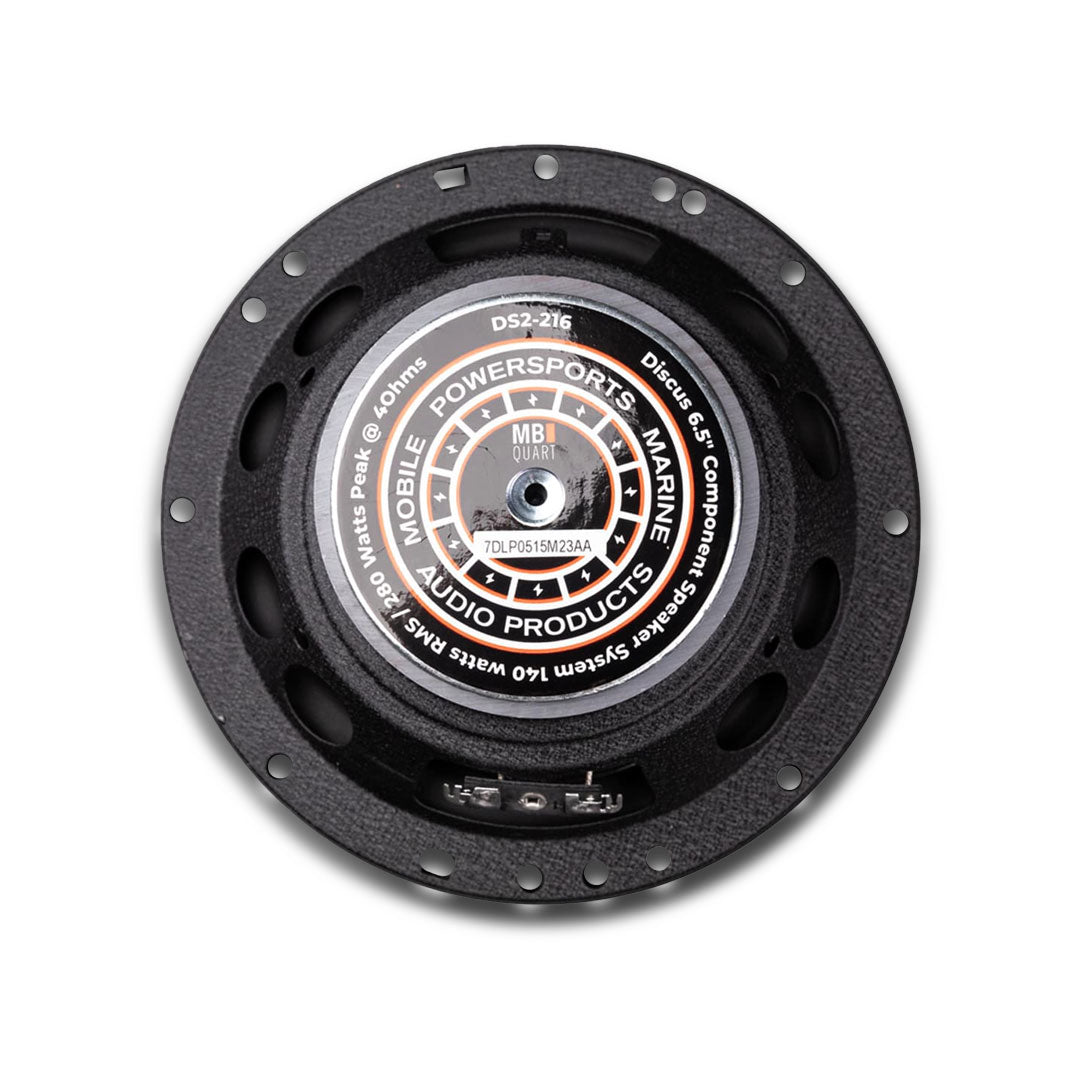

• Power: 70W RMS each, 140W RMS system; 140W peak each
• Impedance: 4 ohm
• Sensitivity: 88 dB
• Frequency response: 55 Hz to 20 kHz
• Crossover: external, 12 dB per octave
• Cutout: 142 mm (5.59 in)

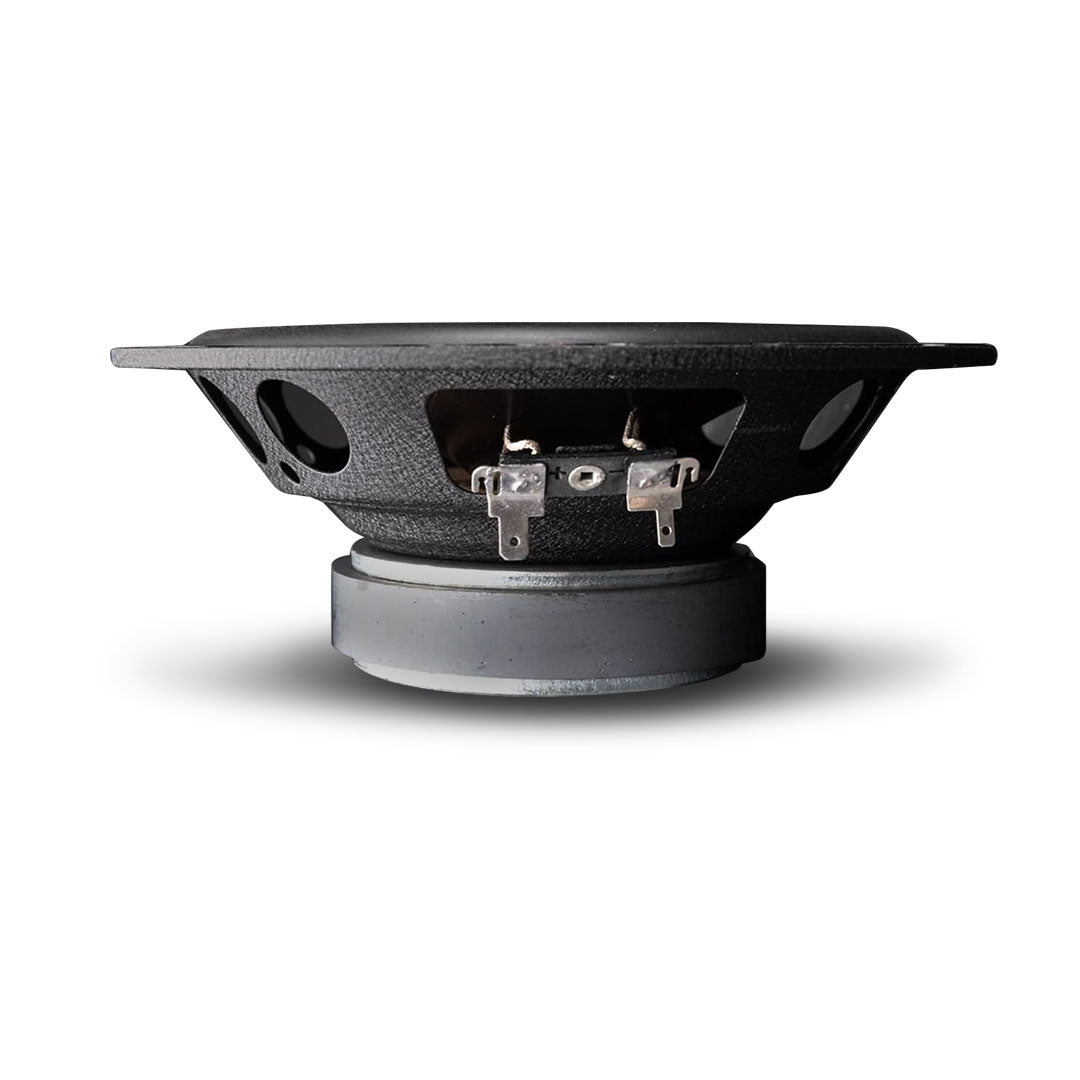

• Mounting depth: 54 mm (2.12 in)

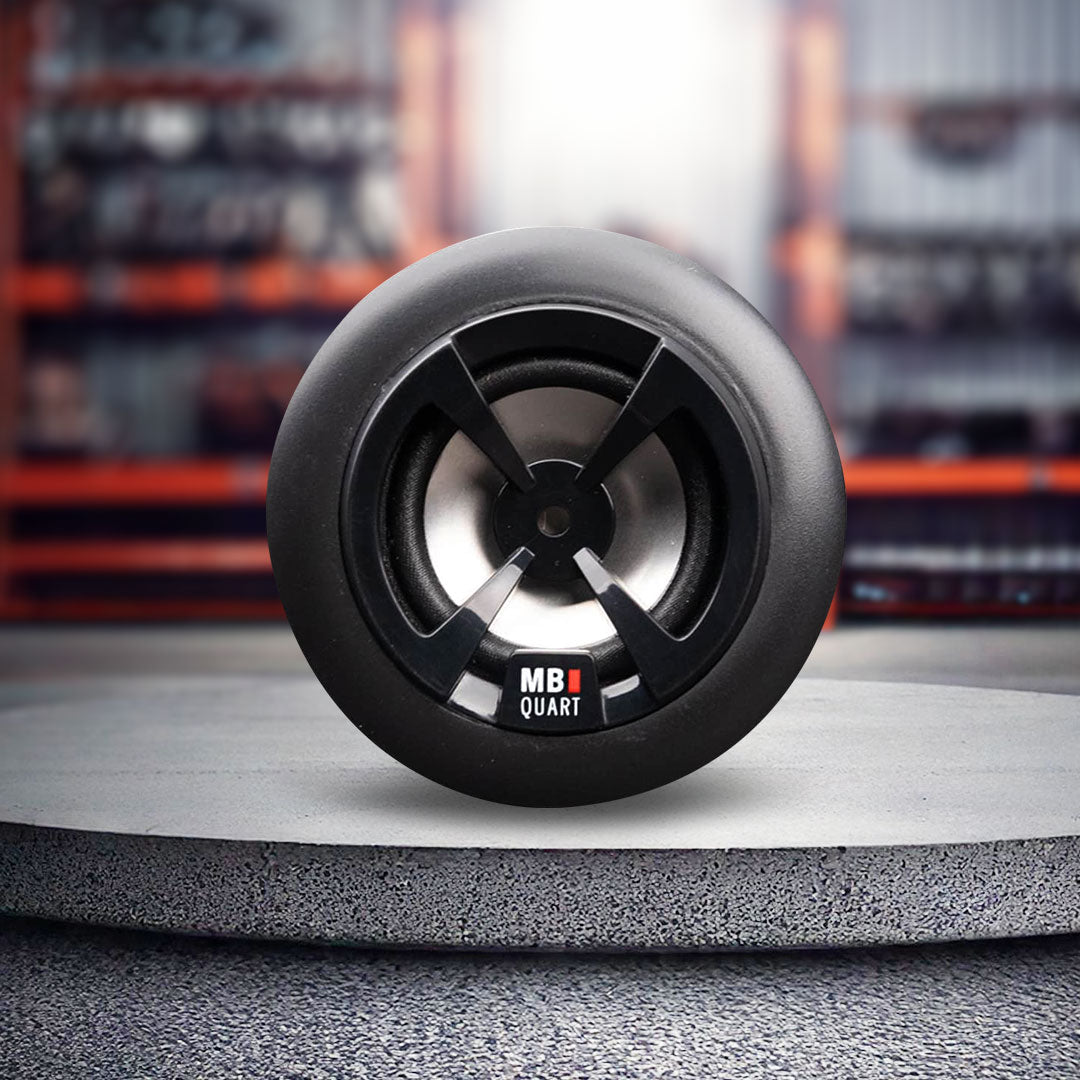

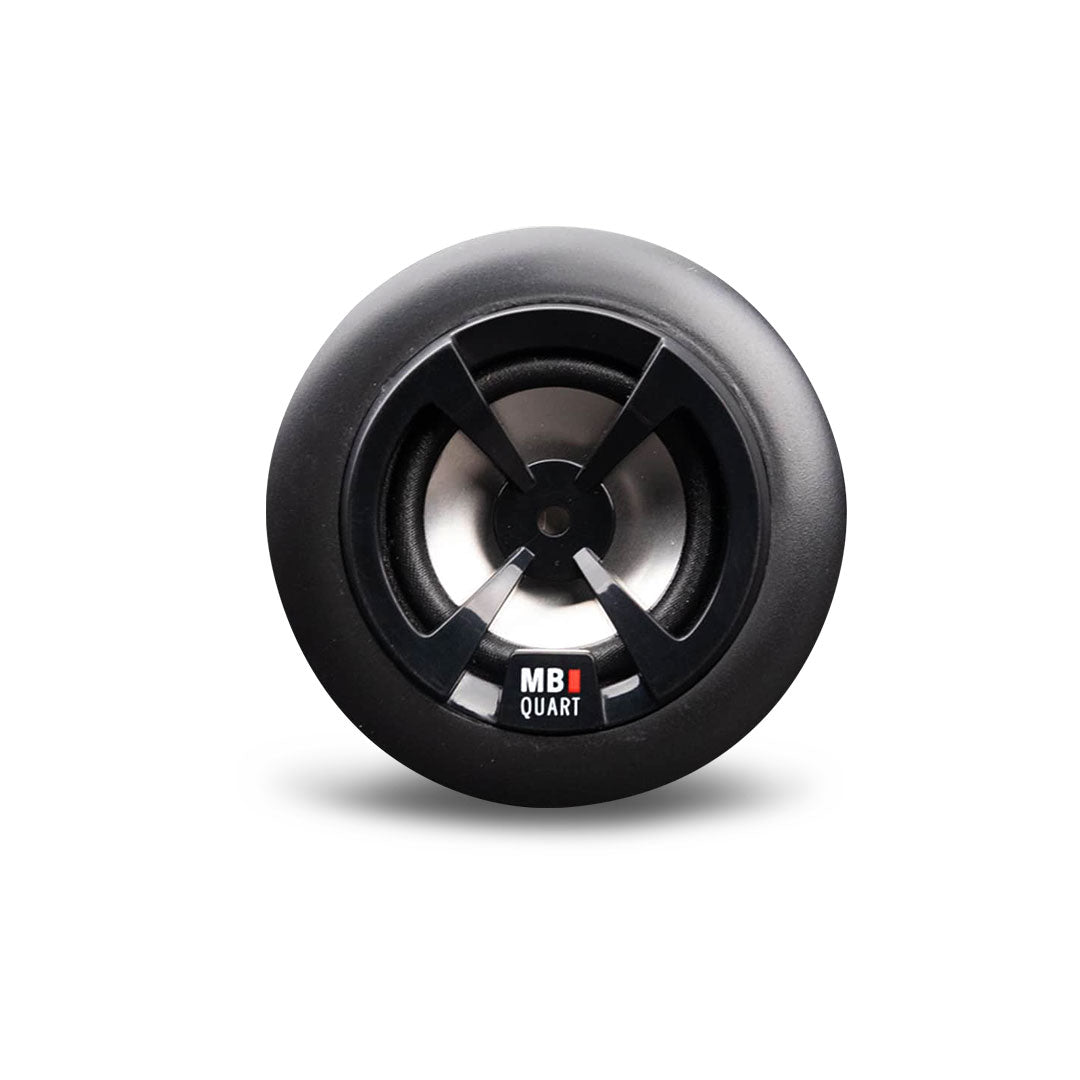

• Tweeter: aluminium inverted dome

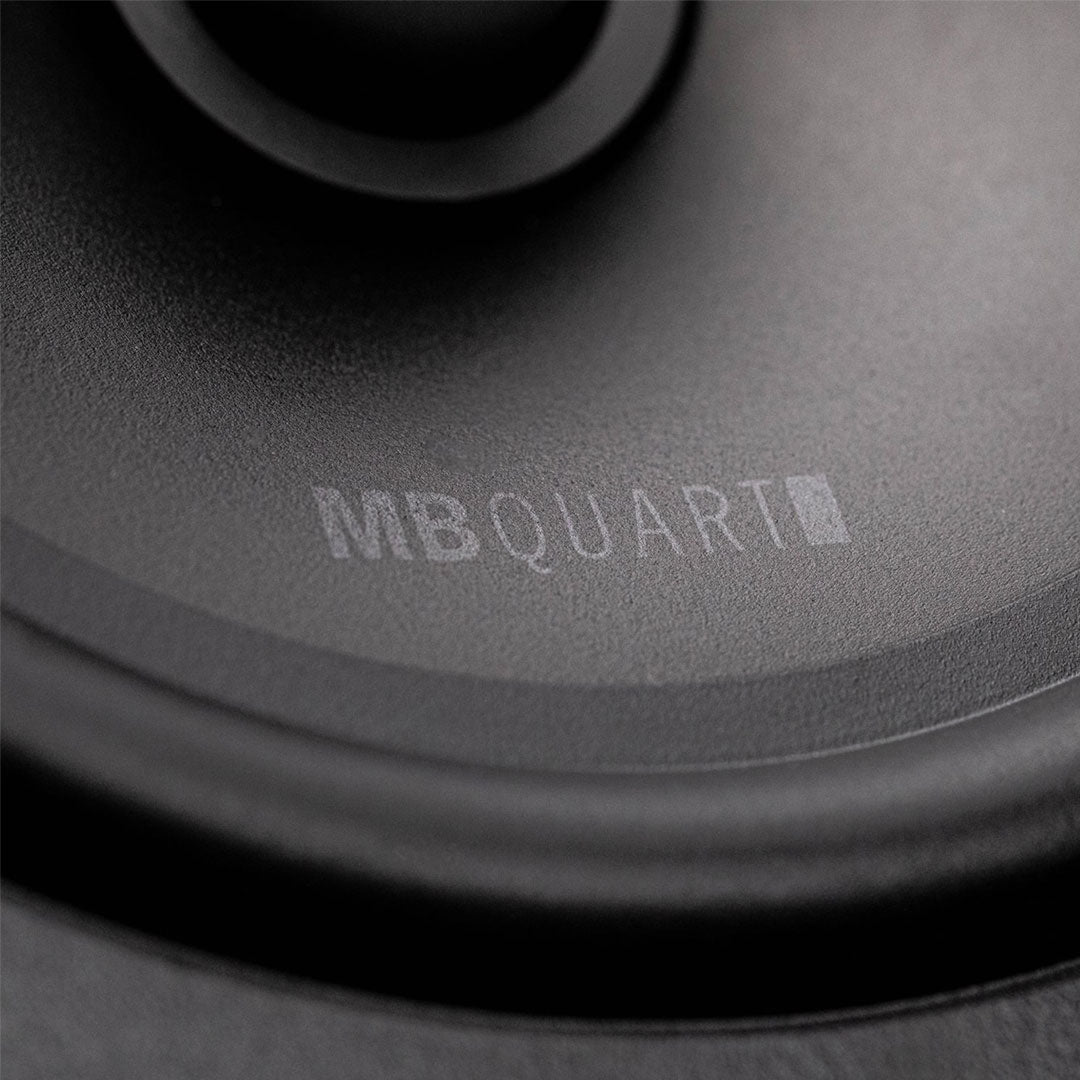

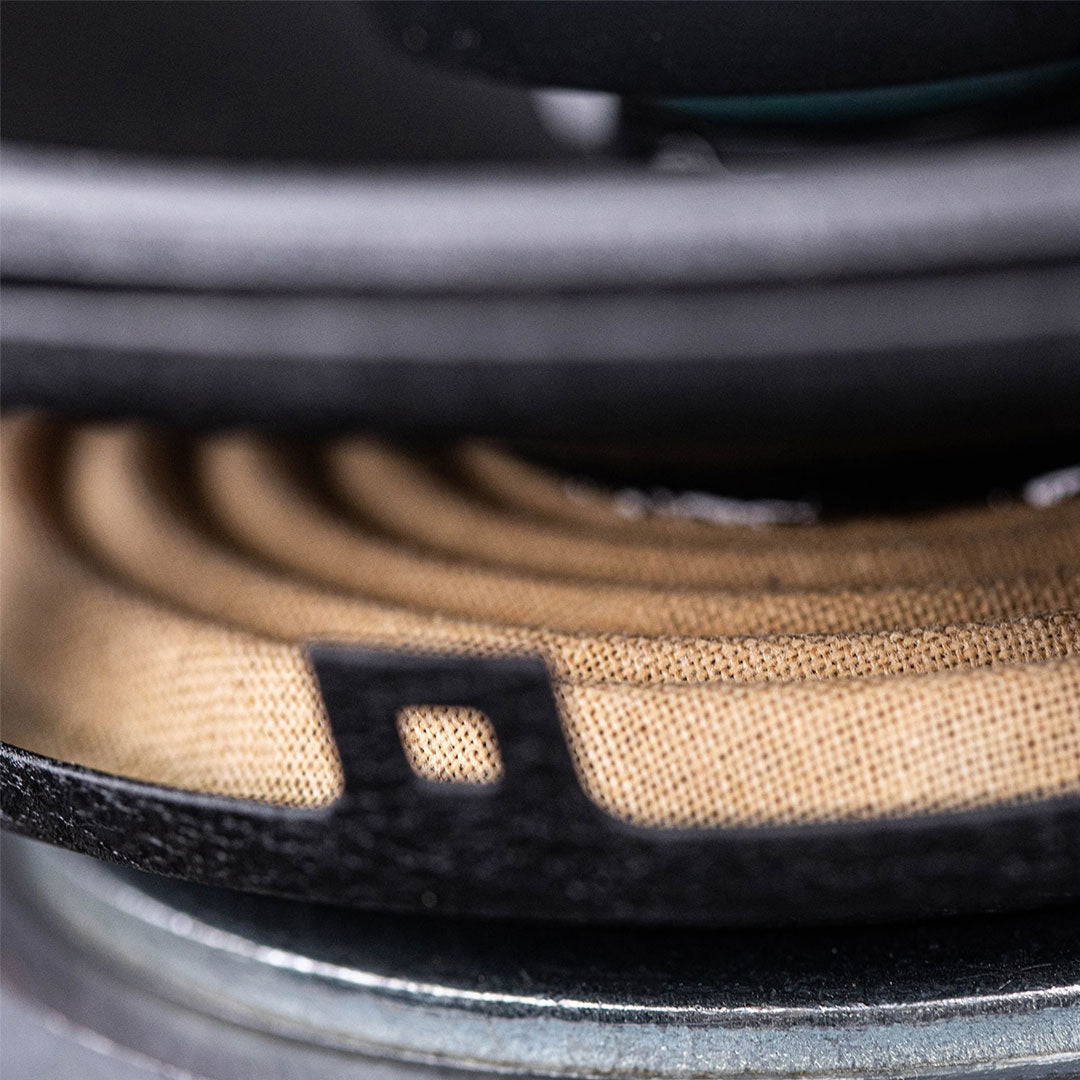

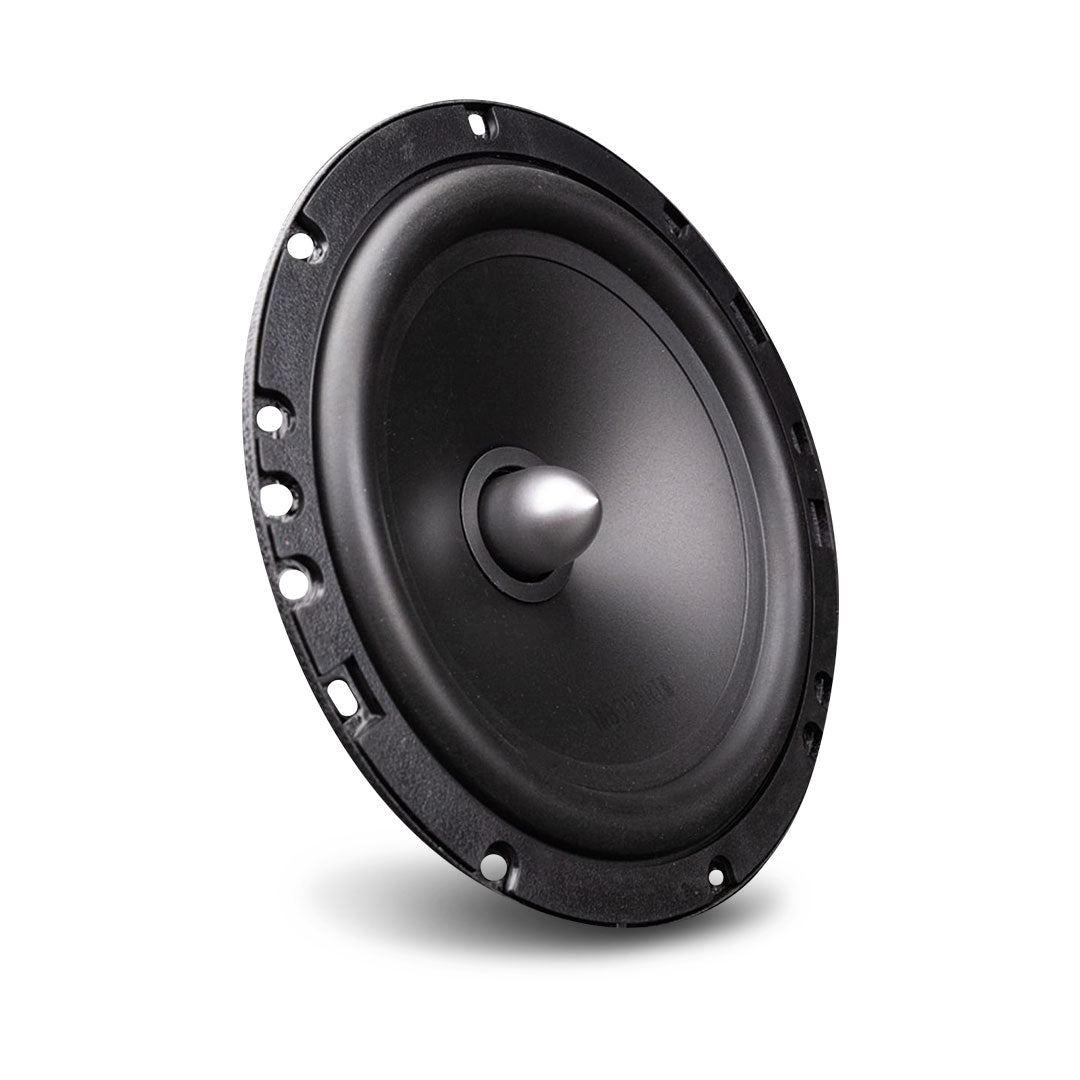

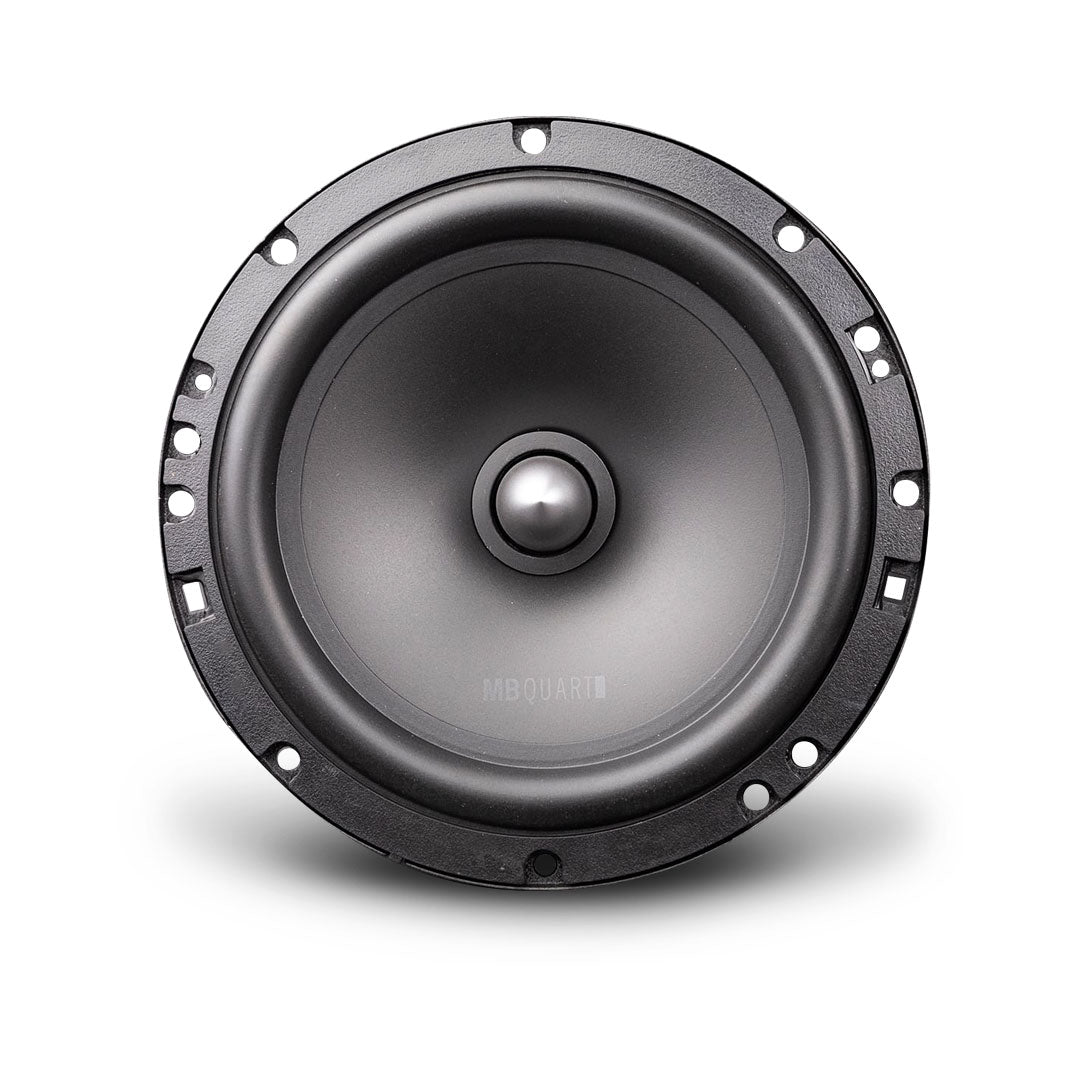

• Woofer: polypropylene cone, butyl surround, copper voice coil on Kapton former

Fitment and compatibility

Needs a 142 mm cutout and 54 mm of depth behind the mount. Many cars also need adaptor rings, and the tweeter needs a spot on the dash, pillar or door trim.

What is in the box

Check with us for the exact box contents before you buy.

Install notes

Hide the crossovers where they stay dry and run the tweeter leads from them. Use spade connectors or solder on the tinsel lead tabs.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the DS2-216

Will the DS2-216 fit my front doors?

Check for a 142 mm cutout and 54 mm of depth. Adaptor rings sort out most factory mounts.

Can the DS2-216 run off a factory head unit?

Yes, at 88 dB they work on head unit power, though a small amplifier brings out more. Hide the crossovers where they stay dry and run the tweeter leads from them.

Where should I mount the DS2-216 tweeters?

On the dash, the A pillar or high on the door, aimed at the cabin. Needs a 142 mm cutout and 54 mm of depth behind the mount.
