MB Quart MBQ-FSB216 Formula 6.5 Inch 2 Way Component Speakers

SKU: MBQFSB216
Price
$179
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

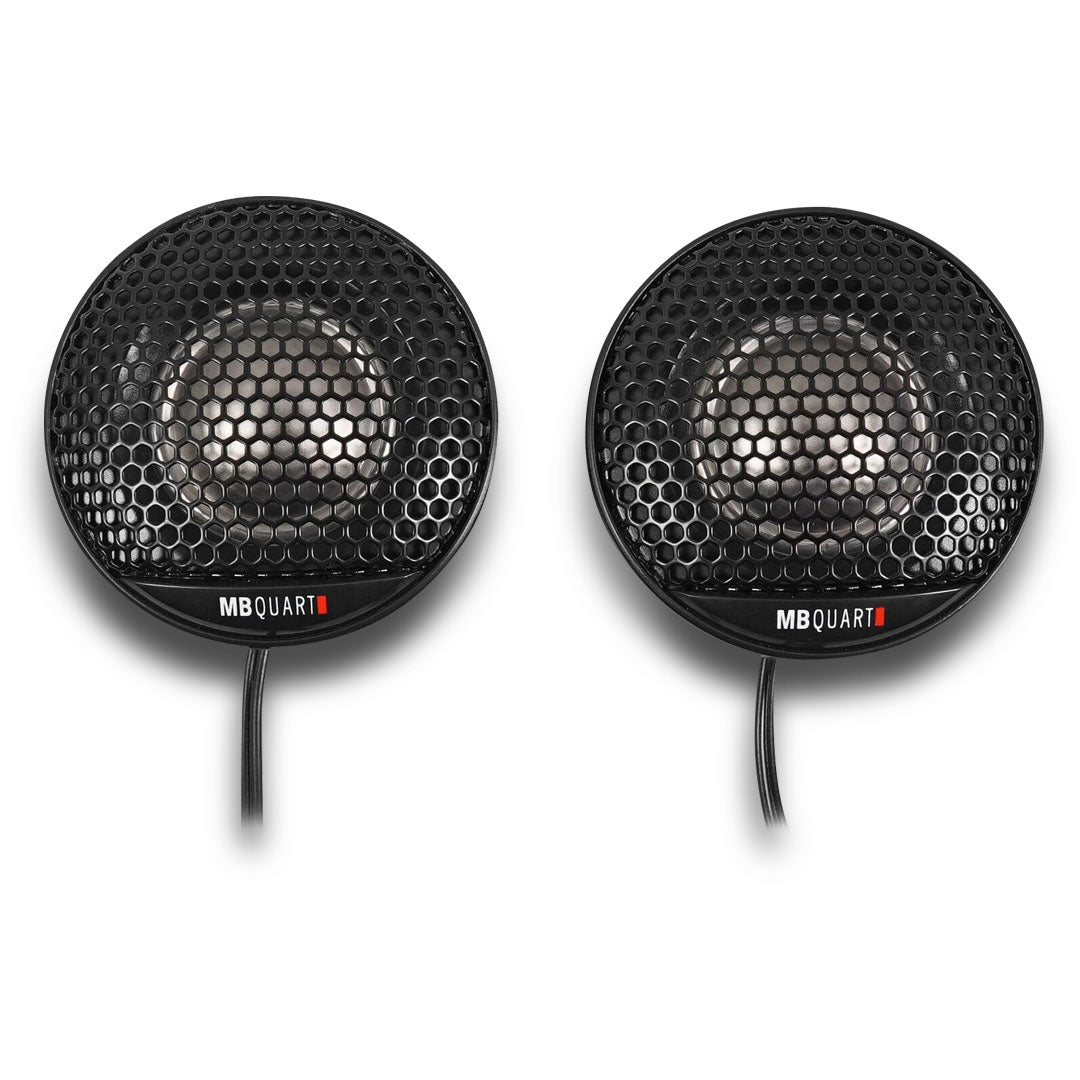

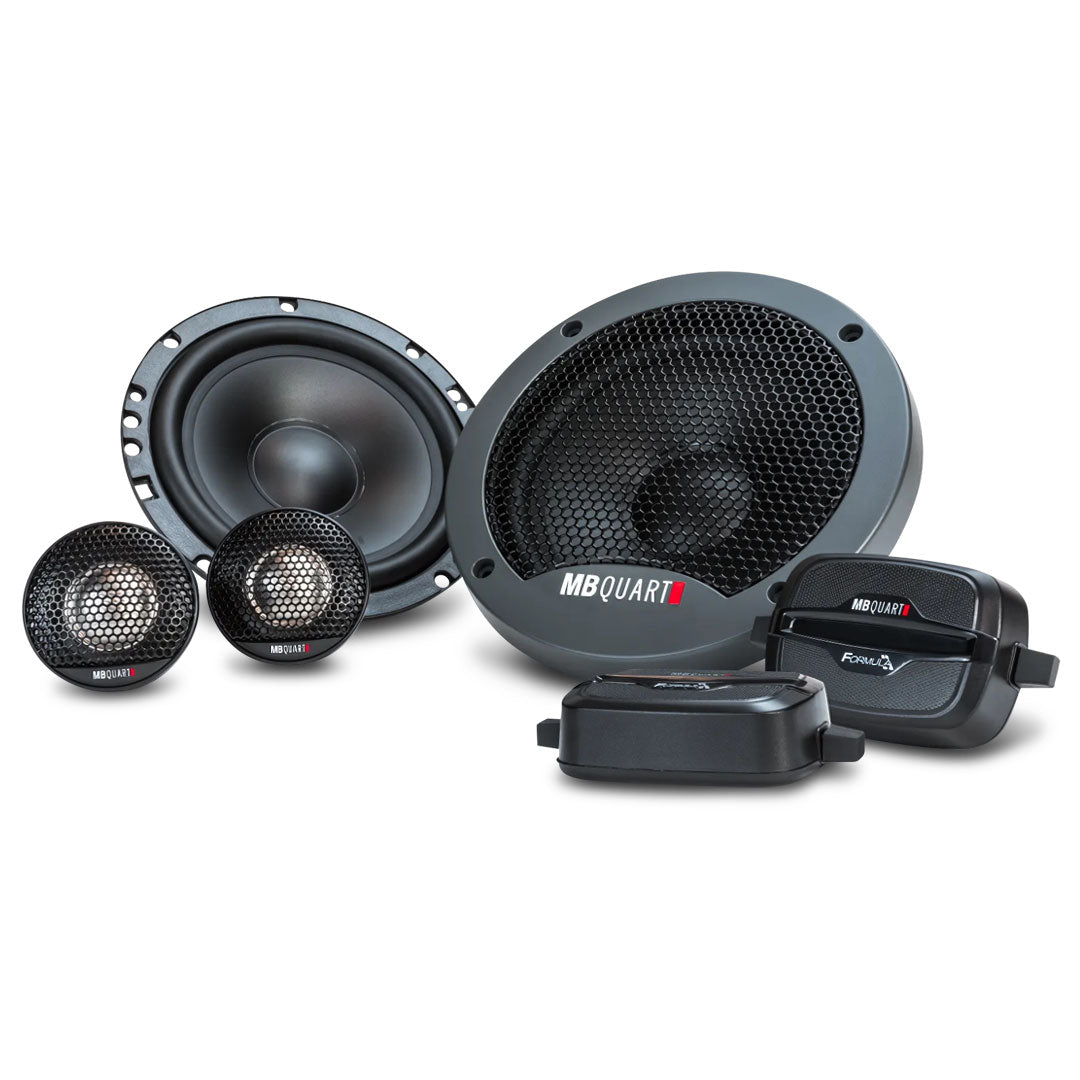

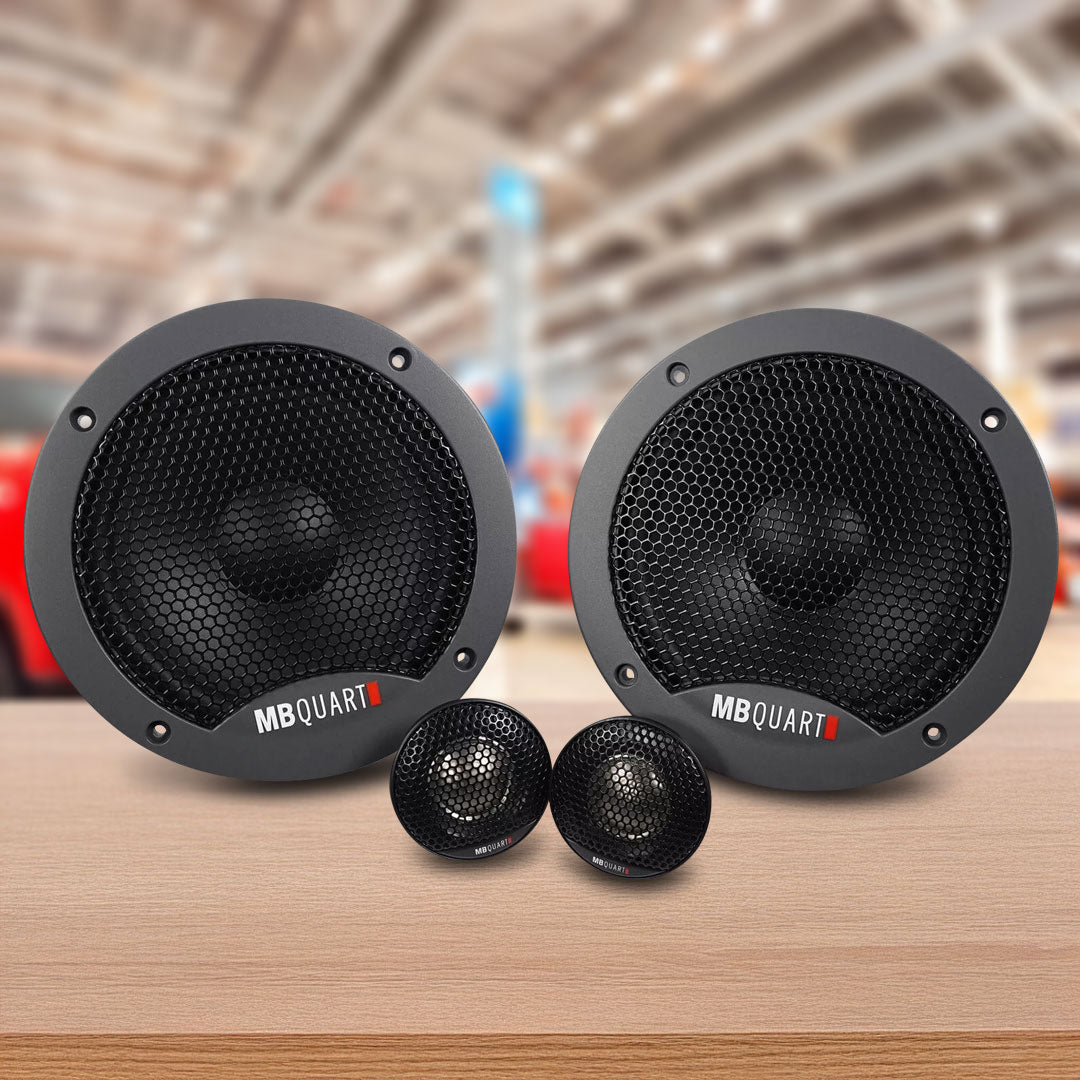

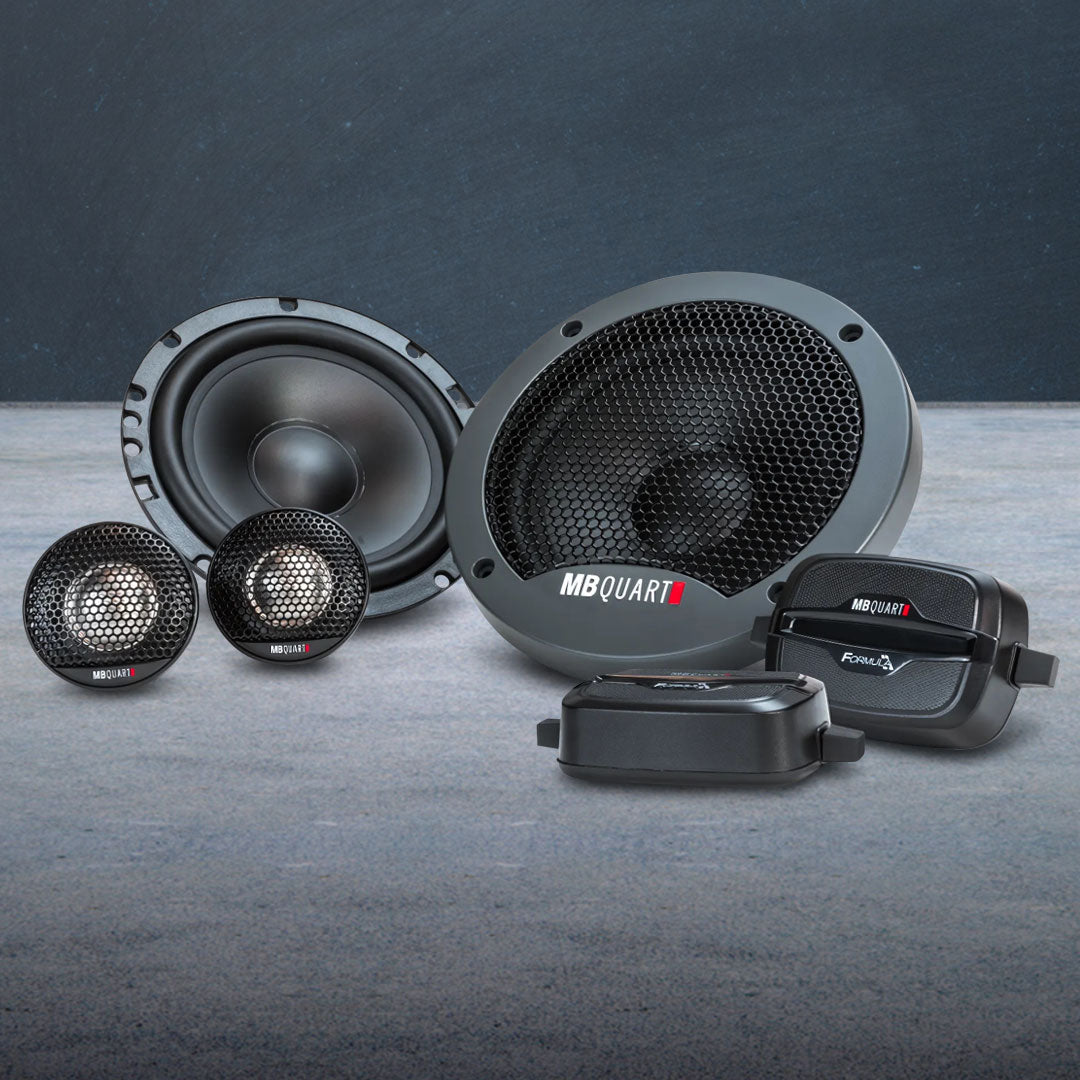

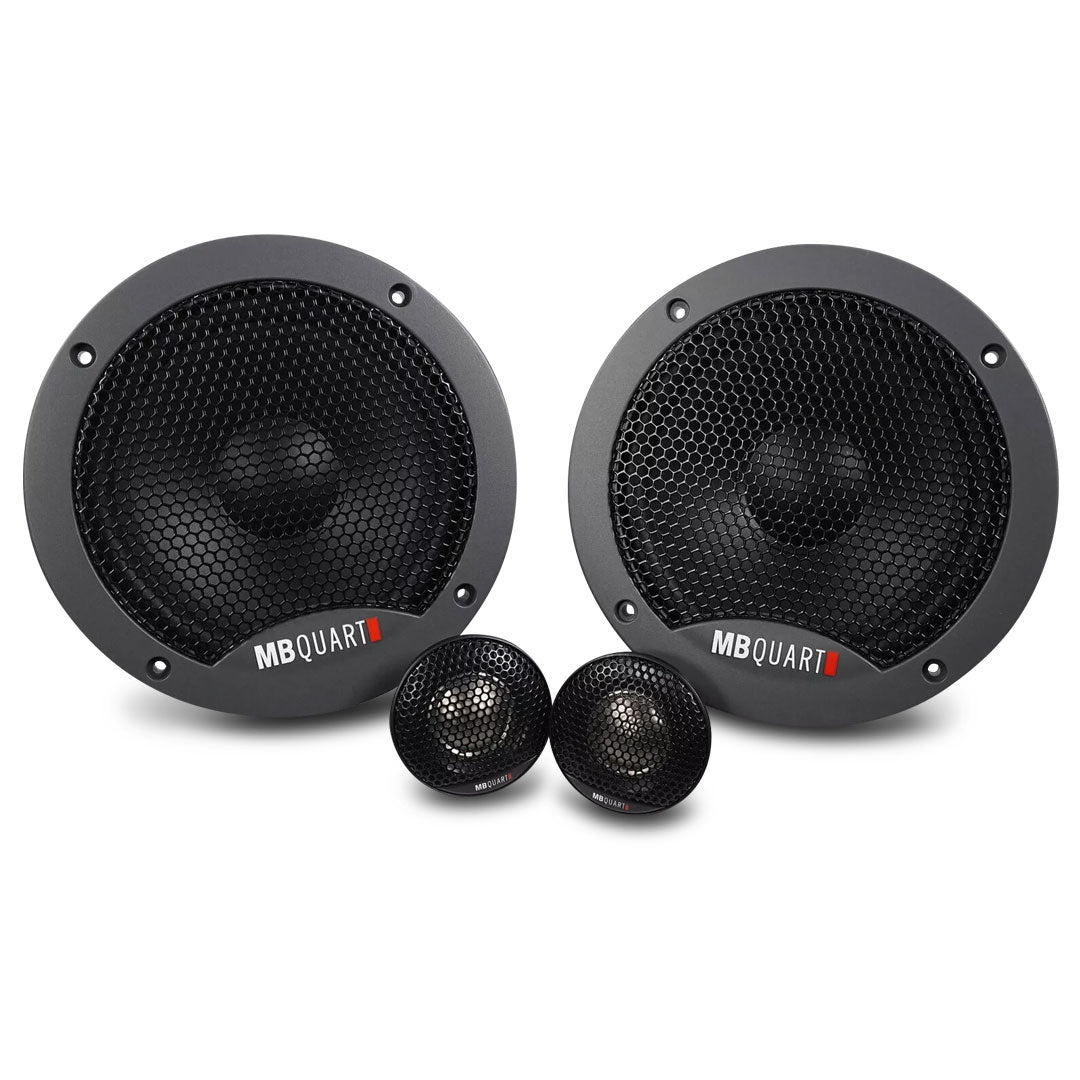

MB Quart MBQ-FSB216 Formula component set, two woofers, two tweeters and two crossover boxes

MB Quart MBQ-FSB216 Formula 6.5 Inch 2 Way Component Speakers

Price
$179

Product features

When the tweeters need to sit away from the woofers, this Formula 6.5 inch component set uses an external Butterworth crossover.

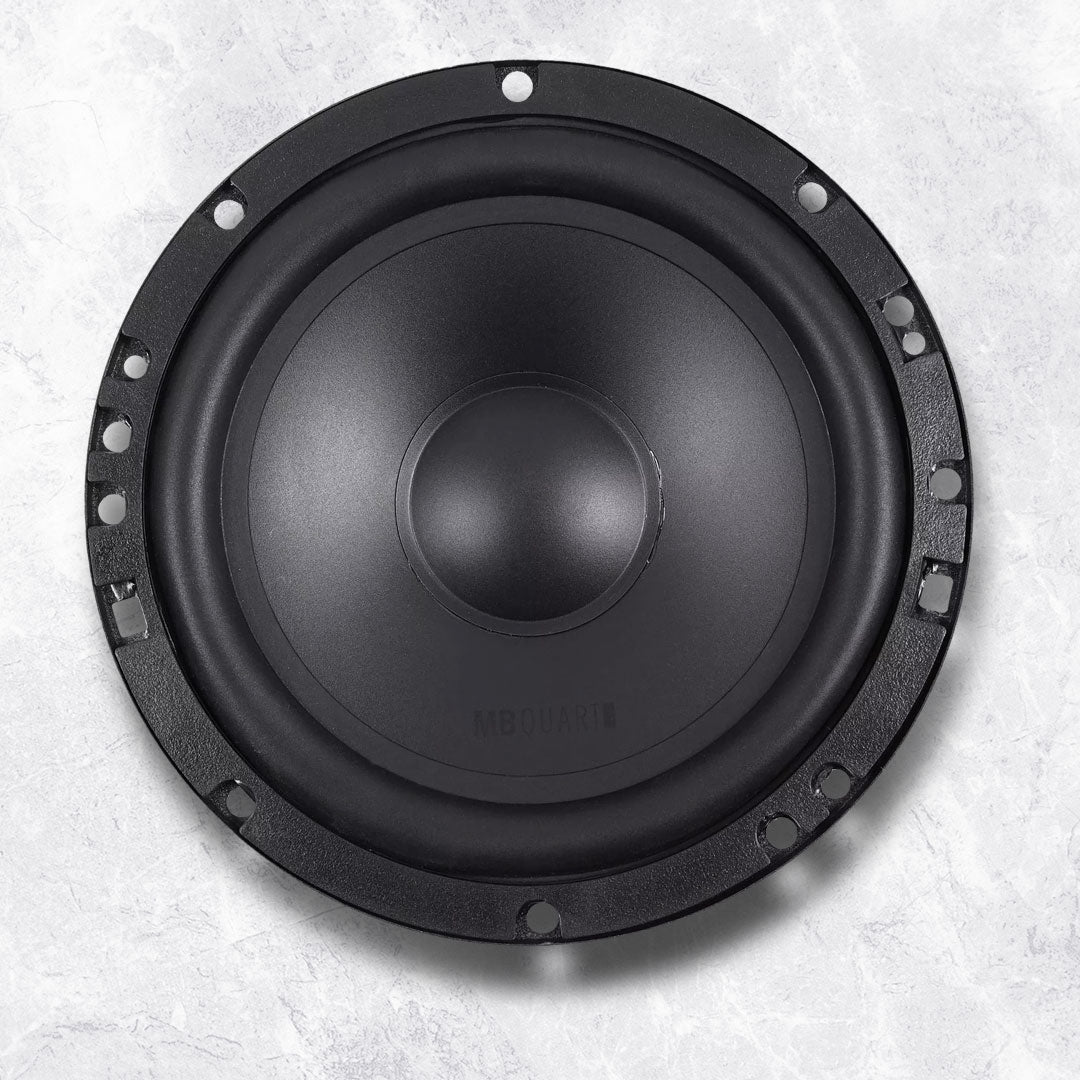

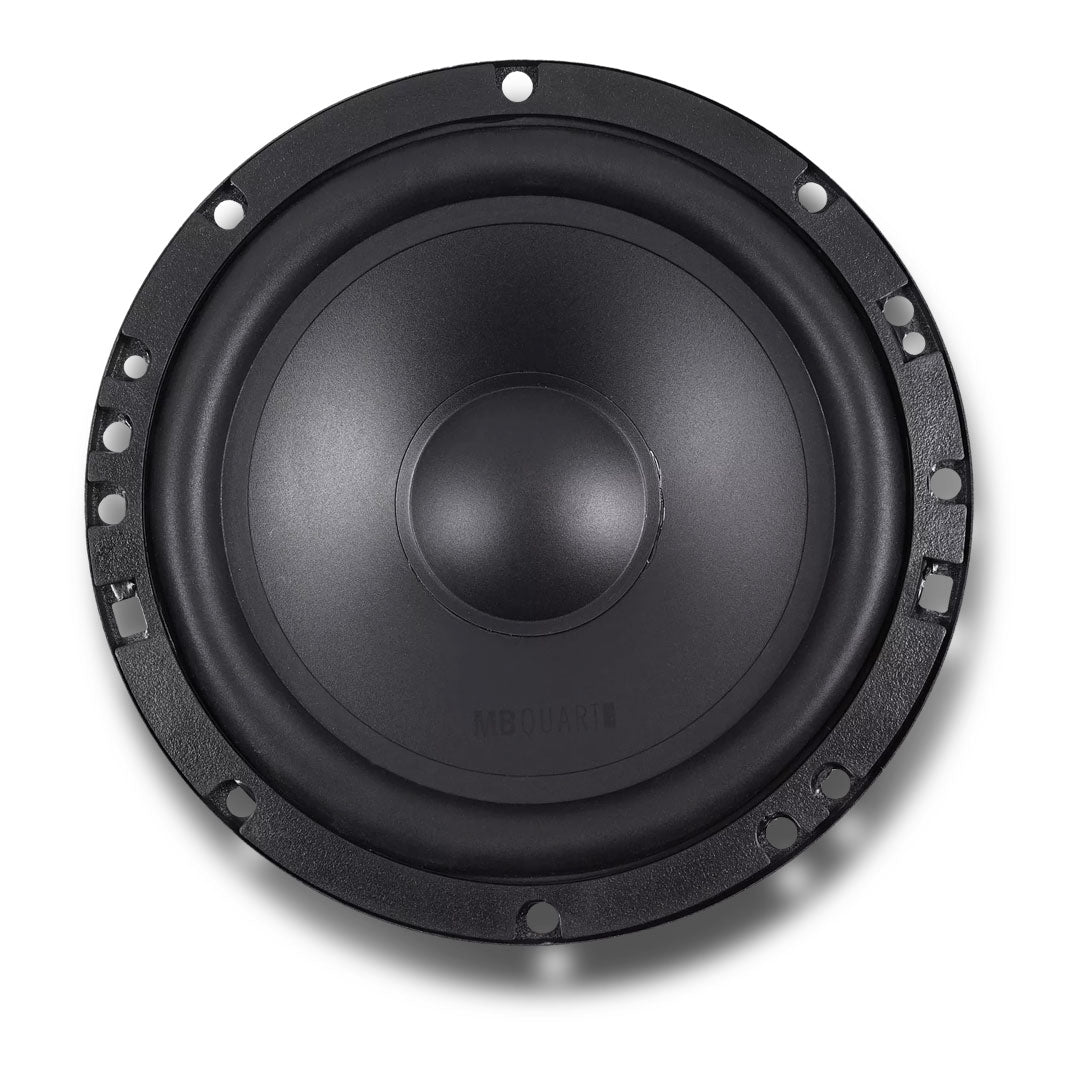

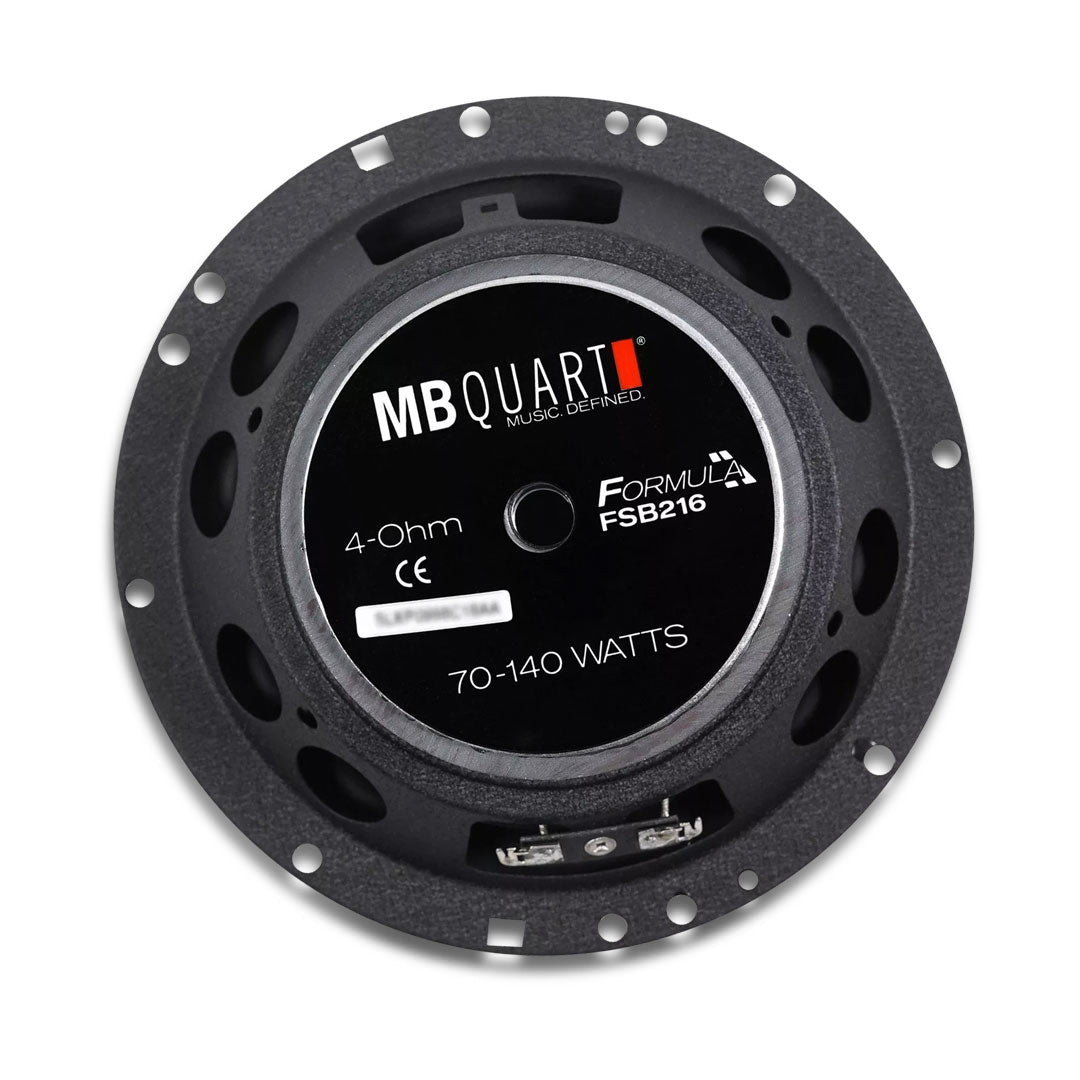

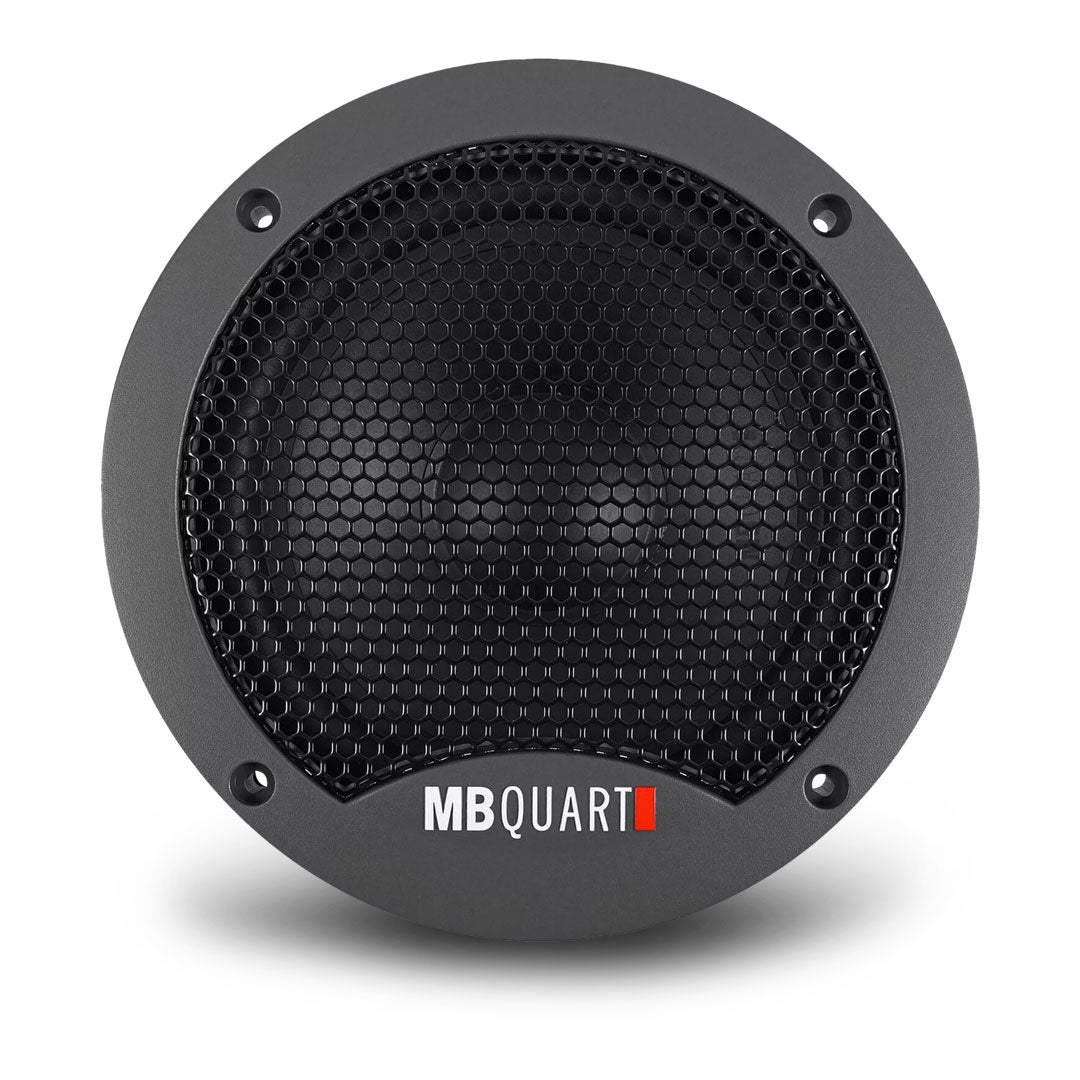

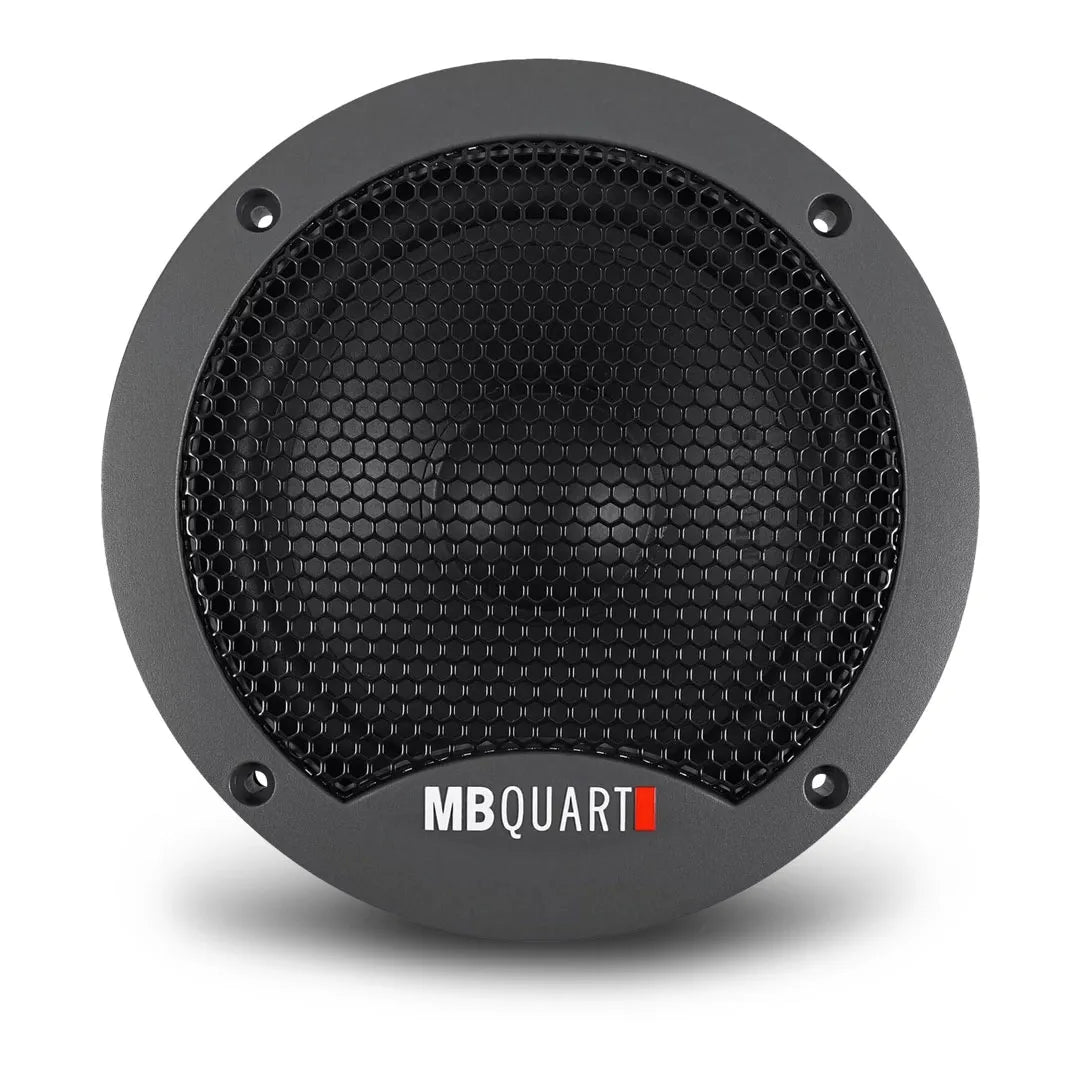

Woofer cones are lightweight thermal formed polypropylene. An over coil cooling path lets air move over the voice coil through the spider, and a natural fibre spider sits under the cone. The voice coil is pure copper on a Kapton former, which sheds heat efficiently. Butyl rubber surrounds are bonded to the cone with a high temperature adhesive, and the frames are heavy gauge progressive die stamped steel.

Key features

  • External passive Butterworth crossover, Cauer topology
  • Butyl rubber surrounds bonded to the cone with a high temperature adhesive
  • Pure copper voice coil on a Kapton former
  • Heavy gauge progressive die stamped steel frames
  • Ferrite magnet motor

Specifications

Brand MB Quart
Model MBQ-FSB216
Type 6.5 inch 2 way component speakers
RMS power handling 70W
Peak power handling 140W
Impedance 4 ohms
Frequency response 55Hz to 20kHz
Sensitivity 88dB
Crossover slope 12dB octave
Cut out 5.59 inches
Colour Black

Common questions

How does the gasket seal to the mounting surface?

A textured ABS gasket is used for a rigid, linear seal.

Can the terminals take a soldered joint as well as a spade connector?

Yes. You can use spade connectors, or solder direct.

Do the tinsel leads stay flexible when the cone moves hard?

Yes. The tinsel leads stay flexible in high power use.

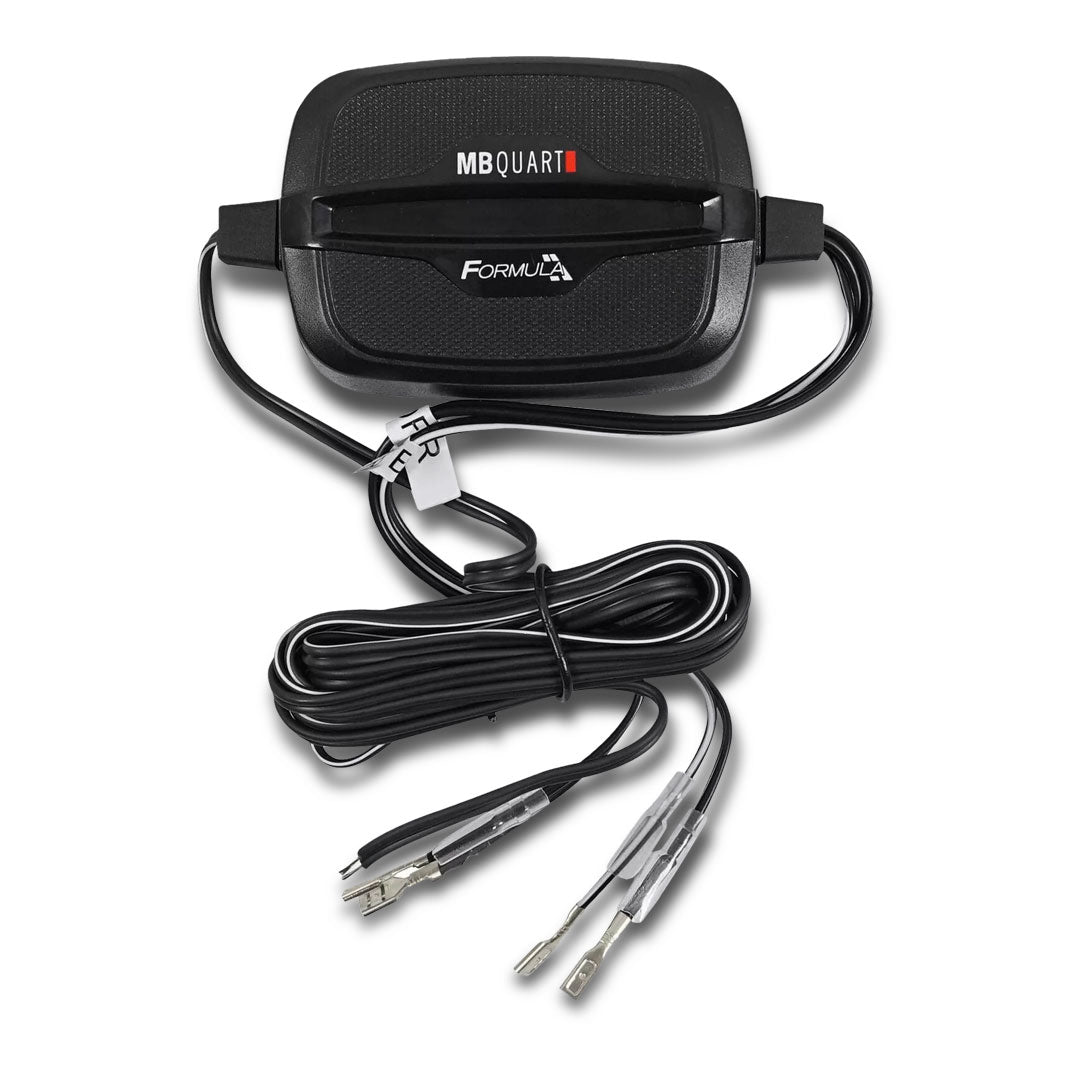

Where does the Butterworth filter live?

It sits in a compact crossover housing.

What warranty does it have?

Your rights under the Australian Consumer Law apply.

We can fit it at our Albion Park Rail or South Nowra workshop.
