Product features

ADR-Approved White LED Front Position Marker Classic Truck Style, Chrome Bracket, Clip-In Lens.

Product Overview

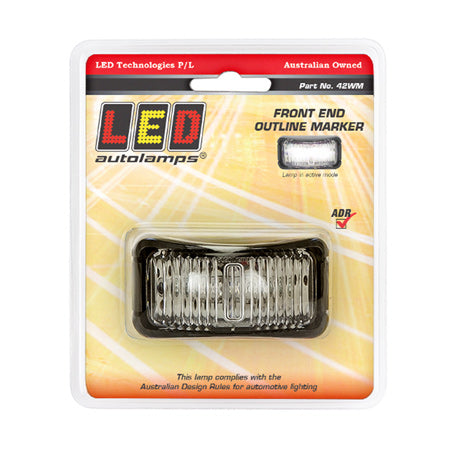

The LED Autolamps 42WM is a white LED front position marker lamp in the classic truck style, featuring a chrome bracket, polycarbonate clip-in clear lens, and internal white LEDs. Measuring 74mm x 38mm x 35mm, the 42WM shares the same proven 42 series form factor as the amber 42AM and red 42RM making it the front-position white companion in a consistent, matched 42 series lamp installation across trailer and truck builds.

ADR approved (CTA-042840) and IP67 rated for complete weatherproof protection, the 42WM operates on both 12V and 24V systems. The surface mount chrome bracket secures horizontally to the mounting surface, with the white lens clipping in cleanly for a finished, professional result. Supplied individually in blister packaging and backed by LED Autolamps' 5-year warranty.

Key Specifications

  • Function: Front position / end outline marker lamp (white)
  • LED colour: White
  • Housing/bracket colour: Chrome
  • Lens: Clear polycarbonate clip-in
  • Dimensions: 74mm x 38mm x 35mm
  • Mount type: Surface mount horizontal screw bracket with clip-in lamp
  • IP rating: IP67
  • Input voltage: 12–24V DC (multivolt)
  • Compliance: ADR approved CTA-042840
  • Warranty: 5 years
  • Packaging: Blister pack single unit
  • Brand: LED Autolamps
  • SKU: 42WM

Features & Benefits

  • White LED front position marker: Confirmed for front end outline and position marker applications where a white ADR-compliant lamp is required at the front of the vehicle or trailer
  • ADR approved CTA-042840: Fully compliant with Australian Design Rules for legal use as a white front position/end outline marker on Australian road vehicles and trailers
  • Classic truck style: The 42 series form factor is one of the most widely recognised lamp profiles on Australian trucks and trailers, providing a consistent, professional appearance across the full 42 series range
  • Chrome bracket: Chrome bracket finish suits traditional trailer and truck builds; the black bracket alternative (42WMB) is available for those preferring a darker aesthetic
  • Polycarbonate clip-in lens: Replaceable clip-in lens allows lens swap without removing the bracket from the mounting surface
  • Clear lens with internal white LEDs: Maintains colour accuracy and brightness without UV-related lens discolouration over time
  • 12V and 24V compatible: Multivolt operation suits passenger and caravan trailer applications through to 24V commercial trucks
  • IP67 weatherproof: Completely protected against dust ingress and temporary water immersion for reliable outdoor performance year-round
  • 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

Technical Specs

Specification Detail
SKU 42WM
Brand LED Autolamps
Function Front Position / End Outline Marker (White)
LED Colour White
Housing/Bracket Colour Chrome
Lens Clear polycarbonate clip-in
Dimensions 74mm x 38mm x 35mm
Mount Type Surface mount horizontal screw bracket, clip-in lamp
IP Rating IP67
Input Voltage 12–24V DC (multivolt)
ADR Compliance CTA-042840
Warranty 5 Years
Packaging Blister Pack single unit

Compatible With

Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring ADR-compliant white front position or end outline marker lamps including:

  • Box trailers, car trailers, and boat trailers
  • Caravans and camper trailers
  • Light and heavy commercial trucks
  • Agricultural and construction trailers

Pairs well with:

  • LED Autolamps MAXILAMPC3XR or MAXILAMPC3XRWB combination lamps
  • LED Autolamps 42RM red rear marker
  • LED Autolamps 42AM amber side direction indicator
  • LED Autolamps 35CARM red/amber side marker

Frequently Asked Questions

What is this lamp used for?

The 42WM is a white LED front position and end outline marker lamp, used to mark the front extremities of a vehicle or trailer with white light in accordance with ADR requirements.

What is the difference between the 42WM and the 42WMB?

The 42WM has a chrome bracket while the 42WMB has a black bracket. Both are otherwise identical in function, dimensions, and specifications. Choose based on your preferred bracket finish.

Is this lamp ADR approved for Australian road use?

Yes the 42WM is ADR approved under CTA-042840, confirming it meets Australian legal requirements for white front position/end outline marker use on trailers and commercial vehicles.

Can the lens be replaced without removing the bracket?

Yes the clip-in lens design allows lens replacement without removing the bracket from the mounting surface, making maintenance on installed units straightforward.
