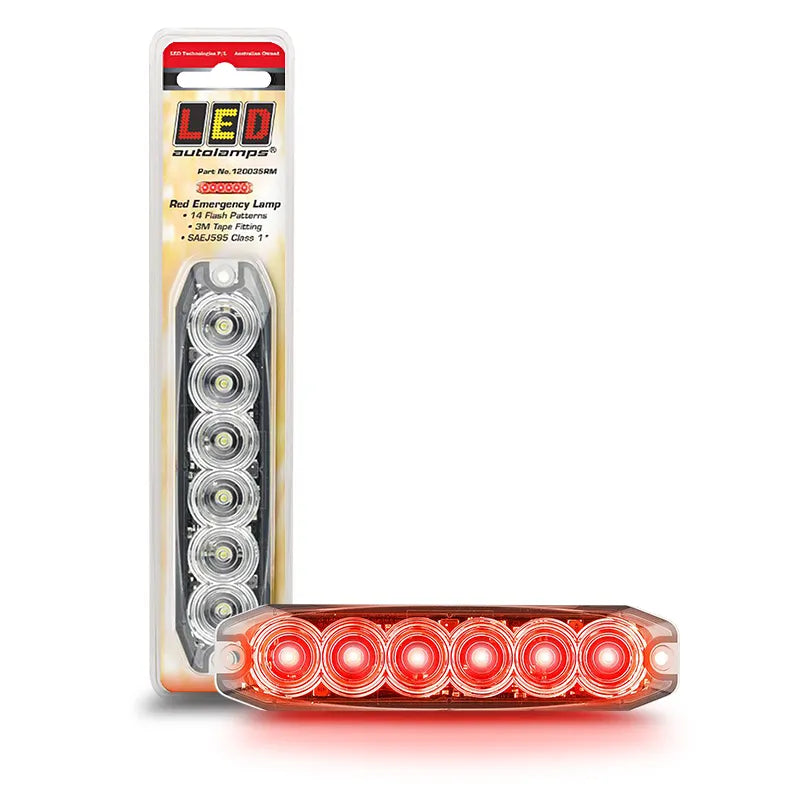

Red LED Autolamps 120035RM emergency lamp shown lit beside its pack card
Red LED Autolamps 120035RM emergency lamp shown lit beside its pack card
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 120035RM 12/24V Red Emergency Lamp 14 Flash Patterns With Sync Wire

SKU: 120035RM
Price
$148
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Red LED Autolamps 120035RM emergency lamp shown lit beside its pack card

LED Autolamps 120035RM 12/24V Red Emergency Lamp 14 Flash Patterns With Sync Wire

$148

Product features

Quick answer

The LED Autolamps 120035RM is a red 12 to 24V emergency warning lamp with six 3W LEDs, 14 flash patterns and a sync wire.

The housing is only 8 mm thick and the lens stays clear when the lamp is off.

Problems it solves

  • Warning lamps flashing out of step across a vehicle. The brown wire links up to 20 lamps.
  • Mixed 12V and 24V fleets. One part number runs on both.
  • Bulky beacons that spoil the body line. This lamp sits 8 mm proud.

Specifications

  • Colour: red
  • LEDs: 6 x 3W
  • Voltage: 12 to 24V
  • Draw: 0.29A at 13.8V, 0.153A at 28V on constant
  • Flash patterns: 14, with patterns 8 to 12 meeting SAE J595 Class 1
  • Approvals: ECE R10
  • Sealing: IP67
  • Dimensions: 131 x 30 x 8 mm
  • Cable: 25 cm
  • Fixing: 3M tape or screws

Fitment and compatibility

Suits 12V and 24V vehicles and plant. Check your state road authority rules on red warning lamps for your vehicle class before ordering.

What is in the box

One 120035RM lamp with its 25 cm three core lead.

Install notes

Red goes to power and black to earth. Tapping the brown wire to power steps through the patterns, and holding it for 7 seconds resets to pattern 1. Joining brown wires syncs lamps, and grouping mode sets alternate flashing.

Warranty

The 120035RM red lamp carries a 3 year LED Autolamps warranty. This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the 120035RM

Is the 120035RM suitable for my vehicle?

Your state road authority sets the rules on red lamps, so check them for your vehicle first.

How do I wire the 120035RM lamp?

Red to power, black to earth, and tap the brown wire to power to change pattern. Tapping the brown wire to power steps through the patterns, and holding it for 7 seconds resets to pattern 1.

How many 120035RM lamps can flash in sync?

Up to 20, with the brown wires joined. Grouping mode makes two groups alternate. The brown wire links up to 20 lamps. Check your state road authority rules on red warning lamps for your vehicle class before ordering.
