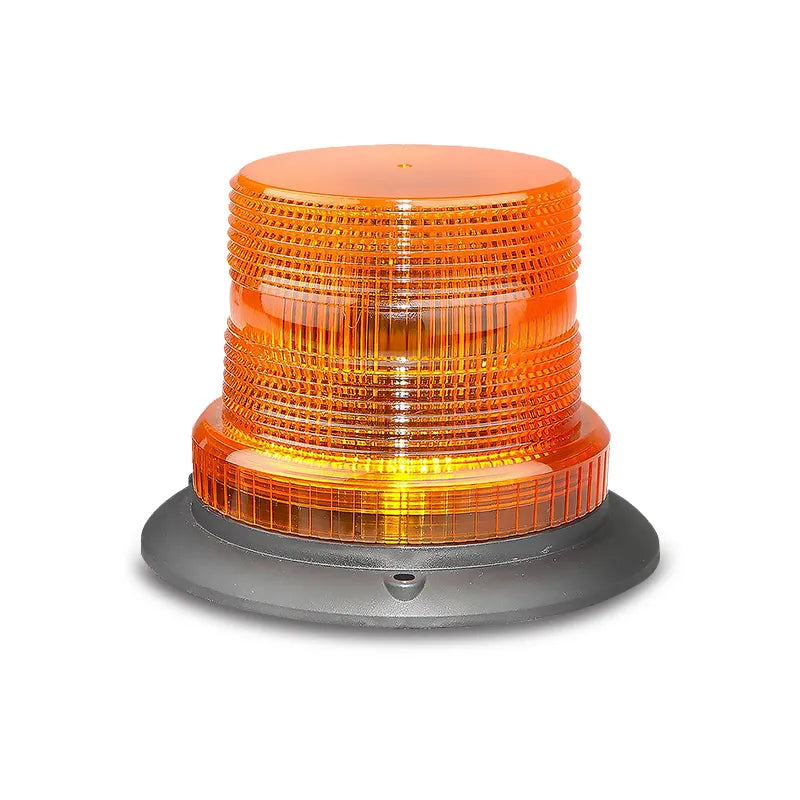

LED Autolamps 128AMF Amber Strobe Beacon Fixed Mount
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 128AMF Amber Strobe Beacon Fixed Mount

SKU: 128AMF
Price
$98
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 128AMF Amber LED Strobe Beacon Fixed Permanent Mount 11-48V 4 LED Rotating Effect SAE J845 Class 2 IP67 130mm

The LED Autolamps 128AMF is an 11-48V amber LED strobe beacon with a rotating pattern effect for permanent fixed mounting. 4 LEDs, 82-92 FPM flash rate, amber polycarbonate lens, SAE J845 Class 2 certified, IP67 waterproof, 0.39A at 13.8V. 130mm x 97mm. Three-year warranty. Sold individually.

Product overview

The 128AMF is a fixed-mount amber strobe beacon suited to trucks, plant equipment, forklifts, and commercial vehicles requiring a permanently mounted warning beacon. The rotating LED pattern simulates a traditional rotating beacon effect using LEDs. The 11-48V operating range is broad enough to suit 12V, 24V, and 48V electrical systems. SAE J845 Class 2 certification confirms warning beacon compliance. The amber polycarbonate lens and black housing are rated IP67 for full waterproof and submersion protection. Flash rate is 82-92 FPM.

Features and benefits

Rotating LED pattern: Simulates a rotating beacon effect for high-visibility amber warning output.

11-48V operating range: Compatible with 12V, 24V, and 48V electrical systems — suits trucks, plant equipment, and forklifts.

SAE J845 Class 2 certified: Warning beacon compliance for commercial and industrial applications.

Fixed permanent mount: Suited to permanently mounted vehicle warning beacon installations.

Amber polycarbonate lens: Durable lens for demanding outdoor and industrial environments.

IP67 fully waterproof and submersible: Suited to outdoor, construction, and transport environments.

82-92 FPM flash rate.

0.39A current draw at 13.8V.

130mm x 97mm housing.

Three-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 128AMF
Brand LED Autolamps
Type Strobe beacon
LED Count 4
LED Colour Amber
Lens Colour Amber
Lens Material Polycarbonate
Housing Colour Black
Operating Voltage 11V to 48V
Current Draw 0.39A at 13.8V
Flash Rate 82-92 FPM
Flash Pattern Rotating effect
Mount Type Fixed permanent
Certification SAE J845 Class 2
Dimensions 130mm (diameter) x 97mm (height)
Waterproof Rating IP67
Weight 0.4kg
Manufactured In China (Taiwan)
Sold As Each
Warranty Three years

Frequently asked questions

What compliance certification does the 128AMF carry? The 128AMF is certified to SAE J845 Class 2, a standard for vehicle warning beacons specifying photometric output requirements for amber strobe and rotating beacons.

What does the rotating pattern effect mean? The 128AMF uses LEDs to simulate a rotating beacon effect producing a sweeping amber warning pattern without a mechanical rotating mechanism, providing the visual appearance of a traditional rotating beacon with the durability and efficiency of LED technology.

What voltage systems is the 128AMF compatible with? The 128AMF operates from 11V to 48V, covering 12V passenger and light commercial vehicles, 24V trucks and heavy transport, and 48V plant and industrial equipment.

How is the 128AMF mounted? The 128AMF is designed for permanent fixed mounting. Contact us to confirm the mounting hardware and thread specifications required for your application before purchasing.

Is the 128AMF suitable for outdoor and construction environments? Yes. The IP67 rating confirms the 128AMF is fully sealed against dust and submersible in water up to 1 metre for up to 30 minutes, suited to outdoor, construction, transport, and industrial environments.
