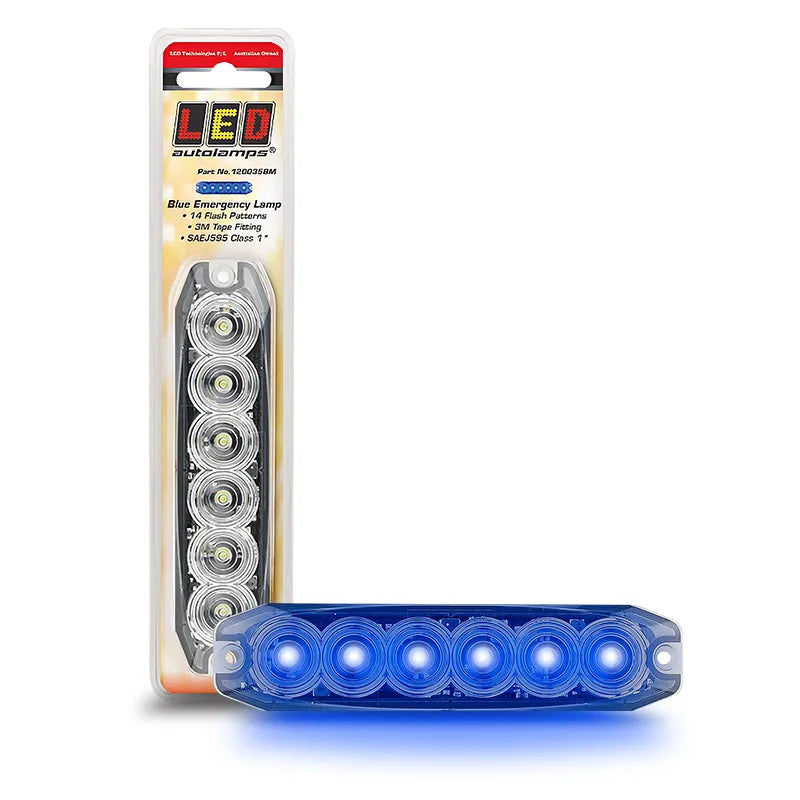

LED Autolamps 120035BM lit blue on its retail display card
LED Autolamps 120035BM lit blue on its retail display card
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 120035BM 12/24V Blue Emergency Lamp 14 Flash Patterns With Sync Wire

SKU: 120035BM
Price
$148
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
LED Autolamps 120035BM lit blue on its retail display card

LED Autolamps 120035BM 12/24V Blue Emergency Lamp 14 Flash Patterns With Sync Wire

$148

Product features

Quick answer

The LED Autolamps 120035BM is a blue 12 to 24V emergency lamp, 131 x 30 x 8 mm, carrying six 3W LEDs and 14 selectable flash patterns.

A brown control wire changes pattern and ties several lamps together so they flash as one or in alternating groups.

Problems it solves

  • Lamps on the same vehicle that drift apart in timing. Twenty can be locked together on one brown wire.
  • Running separate parts for 12V utes and 24V trucks. The 120035BM covers both.
  • Weather getting into cheap warning lamps. It is sealed to IP67.

Specifications

  • Colour: blue
  • LEDs: six at 3W each
  • Supply: 12 to 24V
  • Current: 0.29A at 13.8V or 0.153A at 28V, constant mode
  • Patterns: 14; 8 to 12 are SAE J595 Class 1
  • Approval: ECE R10
  • Ingress rating: IP67
  • Size: 131 x 30 x 8 mm
  • Lead: 25 cm
  • Mounting: 3M tape or screw

Fitment and compatibility

Works on both 12V and 24V vehicle supplies. Read your state rules on blue warning lamps for your vehicle type before ordering.

What is in the box

A single 120035BM blue lamp on a short 25 cm lead.

Install notes

Power the red lead and earth the black. A tap of brown to power moves to the next pattern and a 7 second hold resets it. Link brown leads to sync lamps, or use grouping mode for an alternate flash.

Warranty

The blue 120035BM is backed by LED Autolamps for 3 years. This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the 120035BM

Is the 120035BM allowed to fit on my vehicle?

Check with your state road authority, as it sets the rules on blue lamps. Read your state rules on blue warning lamps for your vehicle type before ordering.

How do I connect the 120035BM wires?

Red to a fused supply, black to earth, and brown taps step the flash pattern.

Can several 120035BM lamps alternate?

Yes. Grouping mode sets each lamp to group 1 or 2, and opposite groups alternate.
