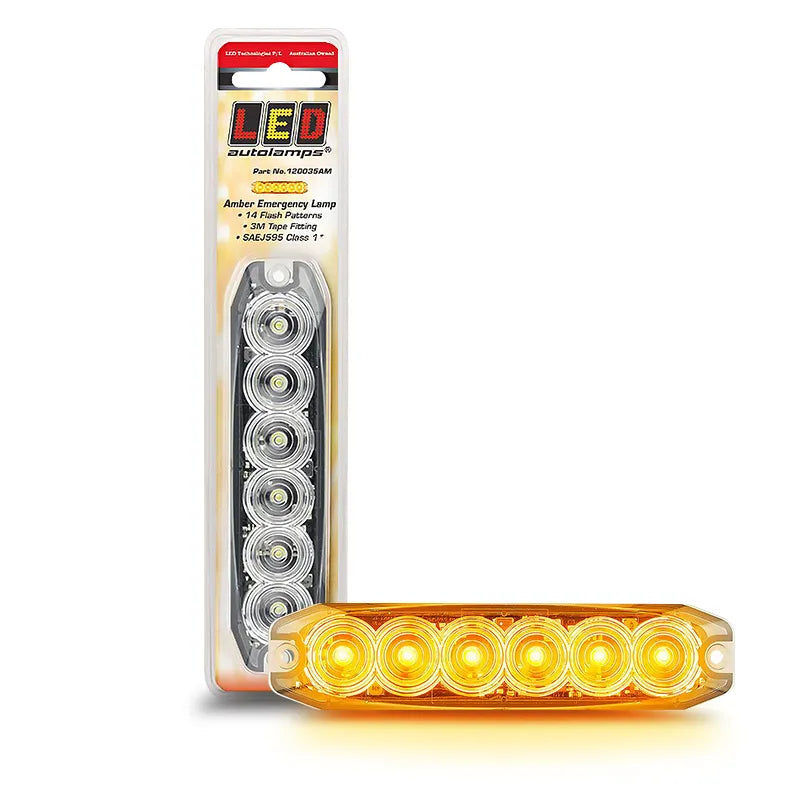

LED Autolamps 120035AM 12 to 24V Amber LED Emergency Light with Sync Wire

The LED Autolamps 120035AM, SKU 120035AM, is an amber warning lamp with six 3W LEDs that runs on 12 or 24V.

It is 131 x 30 x 8 mm, with 14 flash patterns and a clear lens.

Problems it solves

• Amber lamps on a tow truck flashing at random. One brown wire keeps up to 20 in step.
• Mounting on a curved panel. It sticks on with 3M tape or screws down.
• Needing one part for light trucks and heavy rigs. It takes 12V or 24V.

120035AM specifications

• Colour: amber
• LEDs: 6 x 3W
• Voltage: 12 to 24V
• Draw: 0.29A at 13.8V on constant
• Flash patterns: 14, patterns 8 to 12 meet SAE J595 Class 1
• Approvals: ECE R10
• Sealing: IP67
• Size: 131 x 30 x 8 mm
• Lead: 25 cm
• Mounting: 3M tape or screws

Fitment and compatibility

Runs on 12V and 24V vehicles and machines. Your state road authority sets the rules on amber warning lamps, so check them for your use.

What is in the box

One 120035AM amber lamp on its 25 cm lead, with 3M tape on the back and screws to secure it.

Install notes

Connect the red lead to positive and the black lead to earth. A tap of the brown lead to power moves to the next pattern, and joined brown leads keep lamps flashing together.

Warranty

The 120035AM comes with 3 years of LED Autolamps warranty. This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

120035AM FAQs

Will the 120035AM amber light suit a 24V truck?

Yes, it takes 12 or 24 volts. Check your state rules on amber warning lamps for your use.

How do I change the 120035AM flash pattern?

Touch the brown lead to power to step through the 14 patterns.

Can several 120035AM lamps flash together?

Yes. Join the brown leads to sync up to 20 lamps.
