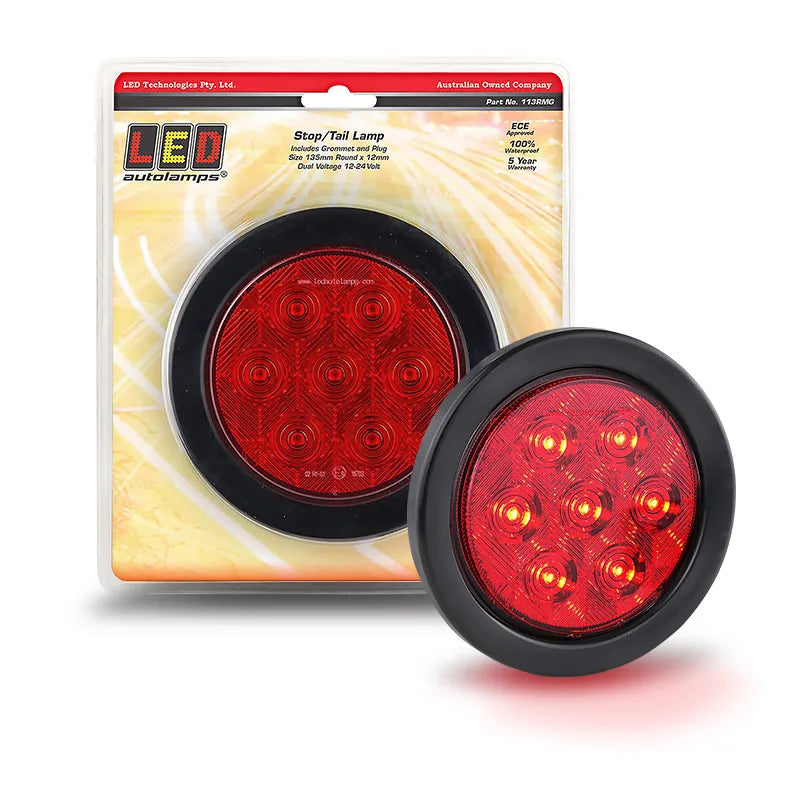

LED Autolamps 113RMG 12/24V LED Stop/Tail Lamp Red Lens Round Grommet/Plug
Click to open expanded view
LED AUTOLAMPS logo

LED Autolamps 113RMG 12/24V LED Stop/Tail Lamp Red Lens Round Grommet/Plug

SKU: 113RMG
Price
$66
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

LED Autolamps 113RMG 12-24V Round LED Stop Tail Lamp Red Acrylic Lens 113mm with 135mm Grommet and 3-Pin Plug ECE Approved IP67

The LED Autolamps 113RMG is a 12-24V round LED stop/tail lamp with a red acrylic lens, supplied with a 135mm x 12mm grommet and 3-pin plug and cable. ECE approved (ECE R1-S1-E9-02 16703), IP67 waterproof. Five-year warranty. Sold individually.

Product overview

The 113RMG is the complete installation version of the 113 series red stop/tail lamp, including the grommet and plug for a ready-to-install panel-mount setup. The 113mm lamp body fits into a 135mm x 12mm grommet cutout. The red acrylic lens provides correct stop/tail output. Current draw at 13.8V: stop 0.23A, tail 0.08A. ECE R1-S1-E9-02 16703 approval confirms road-legal use as a stop/tail lamp. For a matched amber indicator in the same format, see the 113AMG. 12-24V compatible across light vehicle and heavy transport applications.

Features and benefits

Grommet and 3-pin plug and cable included: Complete panel-mount installation hardware supplied.

Red acrylic lens: Correct red stop/tail output for ECE-compliant road use.

113mm lamp, 135mm x 12mm grommet cutout: Low-profile flush mount for a clean panel installation.

ECE approved (ECE R1-S1-E9-02 16703): Meets international road approval standards for legal on-road use.

IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.

12V and 24V compatible: Suits light vehicle trailers and 24V heavy transport.

Five-year warranty.

Sold individually.

Technical specs

Specification Detail
SKU 113RMG
Brand LED Autolamps
Type Stop/tail lamp
Light Type LED
Lens Colour Red
Lens Material Acrylic
Operating Voltage 12V to 24V
Current Draw (Stop) 0.23A at 13.8V
Current Draw (Tail) 0.08A at 13.8V
Lamp Diameter 113mm
Grommet Size 135mm x 12mm
Mount Type Flush
Connector 3-pin plug and cable
Waterproof Rating IP67
ECE Compliance ECE R1-S1-E9-02 16703
Weight 0.23kg
Manufactured In China (Taiwan)
Sold As Each
Warranty Five years

Frequently asked questions

Is the 113RMG approved for road use in Australia? Yes. The 113RMG holds ECE approval ECE R1-S1-E9-02 16703, meeting international road approval standards accepted for on-road use in Australia as a stop/tail lamp.

What is the grommet size for the 113RMG? The 113RMG uses a 135mm x 12mm grommet. The lamp body is 113mm in diameter.

Is a matched indicator lamp available in the same format? Yes. The LED Autolamps 113AMG is a round amber indicator lamp in the same 113mm format with 135mm grommet and 3-pin plug included.

What is the current draw of the 113RMG? At 13.8V: stop draws 0.23A and tail draws 0.08A.

Does the 113RMG work on both 12V and 24V systems? Yes. The 113RMG operates across 12V to 24V, making it compatible with light vehicle trailers and 24V heavy transport without modification.
