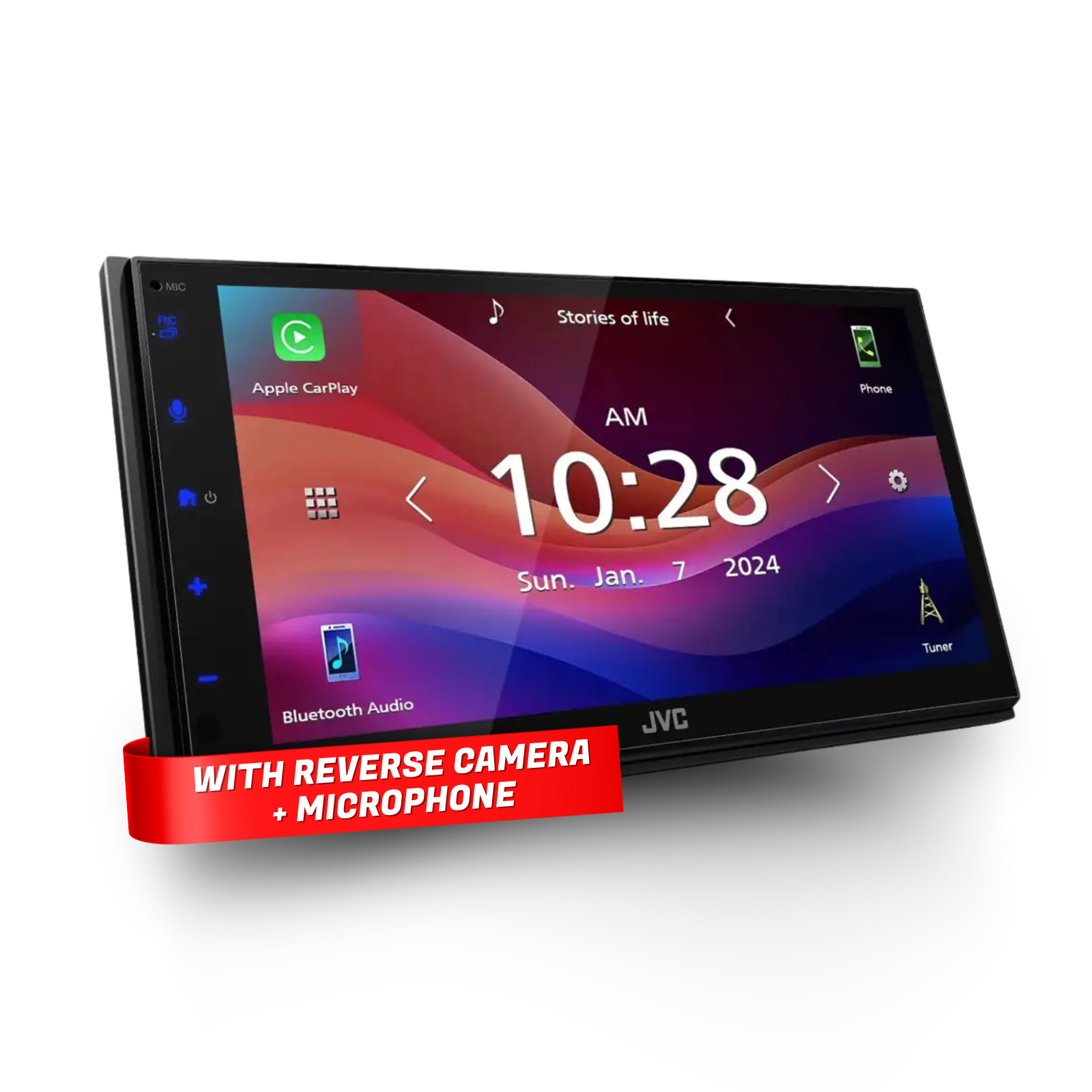

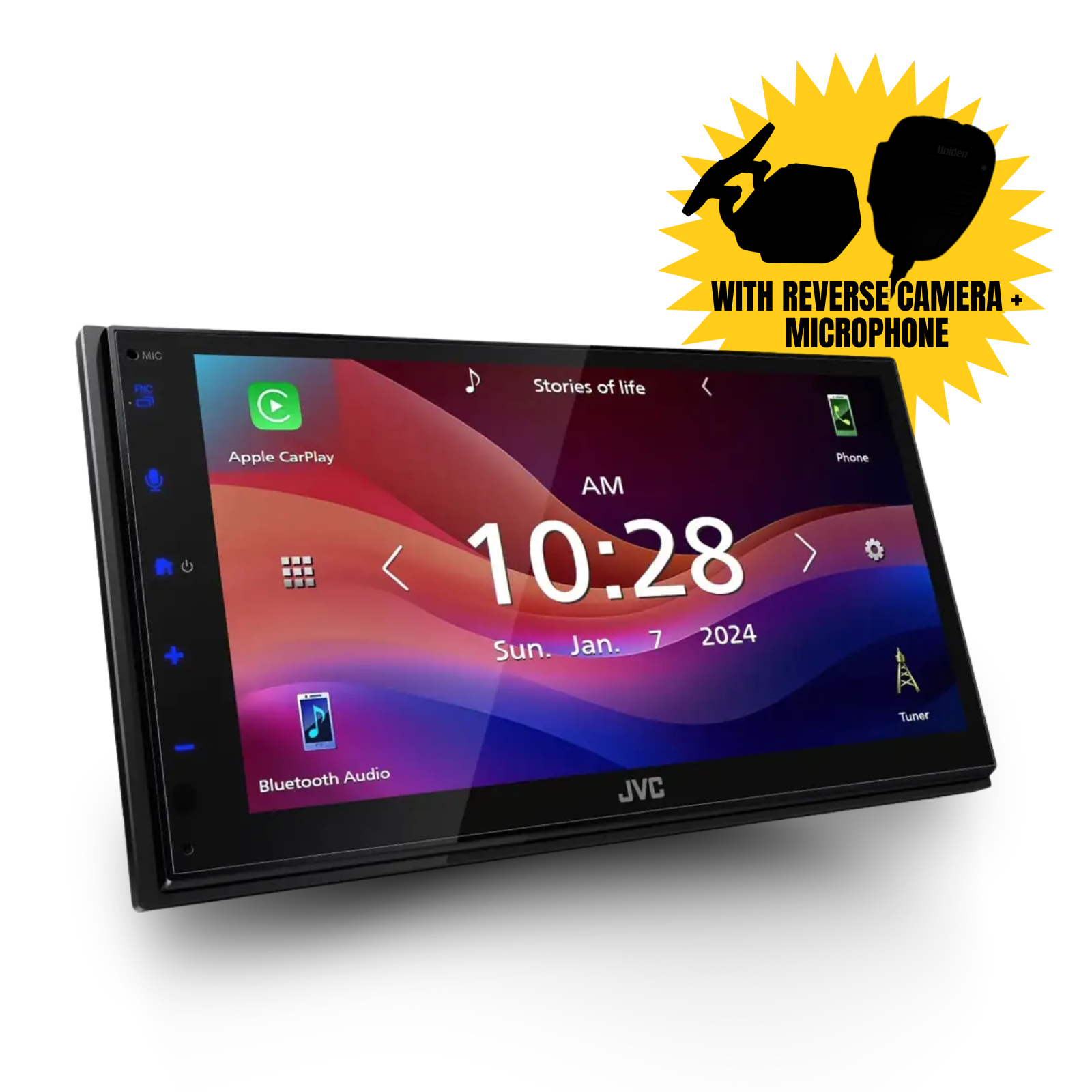

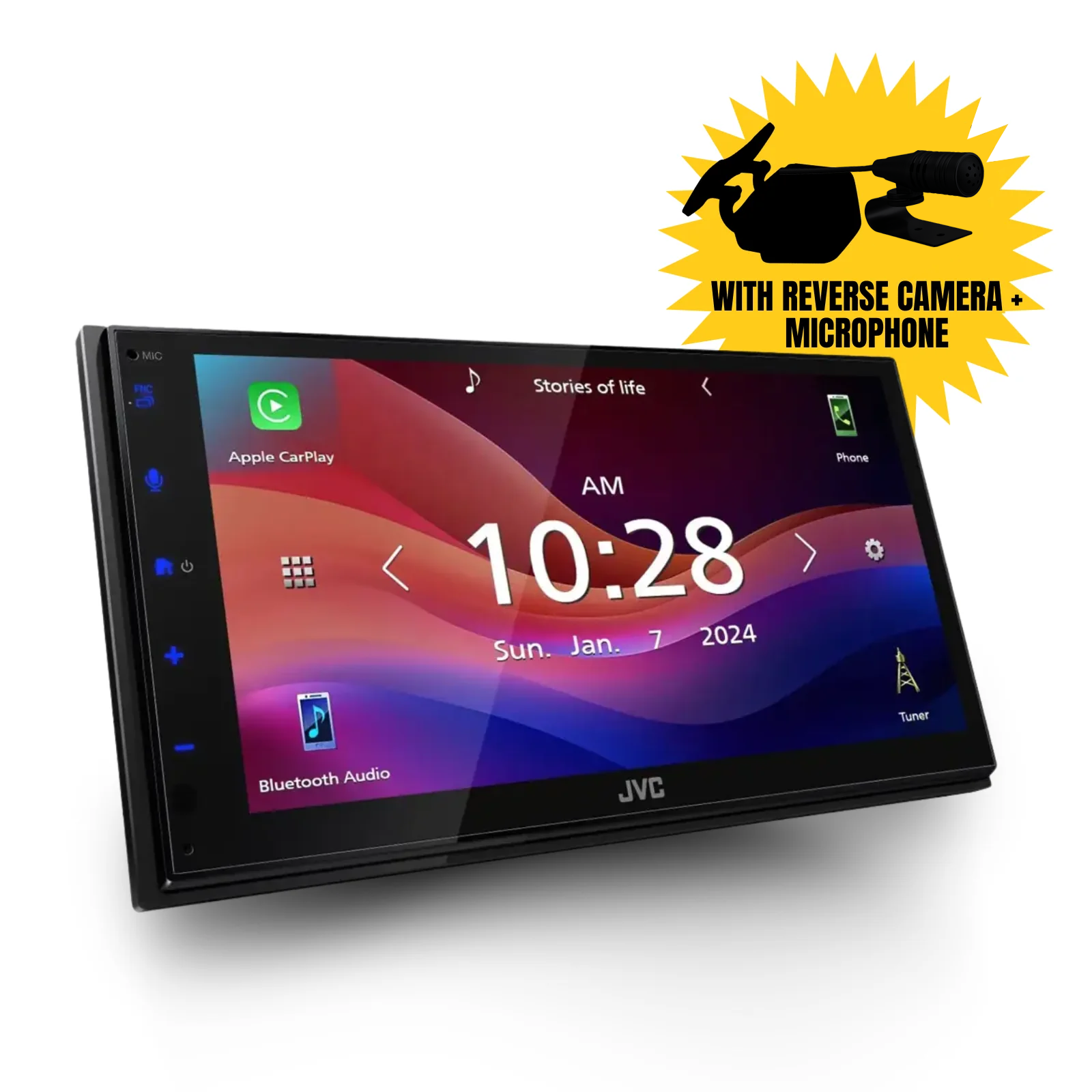

JVC KW-M690BW 6.8" Head Unit Capacitive Touch Monitor Apple CarPlay/Android Auto Wireless Mirroring Digital Media Receiver with Reverse Camera & Microphone

JVC KW-M690BW 6.8" Head Unit Capacitive Touch Monitor Apple CarPlay/Android Auto Wireless Mirroring Digital Media Receiver with Reverse Camera & Microphone

Professional 6.8" WSVGA capacitive touchscreen digital media receiver featuring wireless Apple CarPlay and Android Auto smartphone integration with wireless mirroring capability, Bluetooth hands-free calling with built-in microphone, advanced audio processing including 13-Band graphic equalizer and time alignment, iDatalink Maestro ready for factory integration, 2.1A high-current USB charging, gesture touch control, short chassis design for easy installation, steering wheel remote control compatibility, supporting extensive media formats including MP3 WMA WAV AAC FLAC H.264 WMV MPEG MKV through USB playback, 50W x 4 maximum power output, rear view camera input, dual preouts plus subwoofer output, learning direct OEM remote function for Japanese and Korean vehicles, multilingual display support across 10 languages, complete with reverse camera and microphone included in package for comprehensive in-car entertainment upgrade solution.

Product Overview

The JVC KW-M690BW represents cutting-edge digital media receiver technology combining modern smartphone integration with professional-grade audio processing in compact short chassis design. The 6.8" WSVGA capacitive touchscreen delivers 1.6 times higher resolution than conventional WVGA displays, providing crystal-clear visuals for navigation, video playback, and interface interaction. Wireless connectivity for both Apple CarPlay and Android Auto eliminates cable clutter while maintaining full smartphone functionality including voice control, navigation, music streaming, and hands-free calling through integrated Bluetooth with HFP 1.8 for HD Voice quality.

Advanced audio features include 13-Band graphic equalizer with 7 preset curves plus 3 user-customizable settings, time alignment for optimal soundstage positioning, bass boost, and comprehensive filtering options. The receiver outputs 50W x 4 maximum power with dual preouts plus dedicated subwoofer output featuring level and frequency control for complete system integration. iDatalink Maestro RR/RR2 compatibility (sold separately) enables retention of factory steering wheel controls, amplifiers, and vehicle information displays. The learning direct OEM remote function works with most Japanese and Korean vehicles without requiring third-party adapters, simplifying installation in popular Asian market cars. This complete package includes professional-grade reverse camera and external microphone, providing exceptional value for comprehensive vehicle entertainment upgrades. The short chassis design (85.7mm depth) ensures compatibility with tight dashboard spaces common in modern vehicles. Gesture touch control, wireless mirroring via MirrorApp+ for apps like Waze and YouTube, 2.1A high-current USB charging, and support for extensive media formats make the KW-M690BW ideal for drivers seeking premium features at accessible pricing.

Key Features

Wireless Apple CarPlay & Android Auto – Connect iPhone or Android smartphone wirelessly eliminating cable clutter while enjoying full voice control, navigation, music streaming, and hands-free calling with intuitive interface designed for safe driving operation.

6.8" WSVGA High-Resolution Display – Capacitive touchscreen delivers 1.6 times higher resolution than conventional WVGA displays providing crystal-clear visuals for navigation maps, video playback, and interface interaction with superior clarity and lifelike color gradients.

Wireless Mirroring Capability – MirrorApp+ enables wireless display of smartphone screen on receiver allowing access to popular apps like Waze for navigation, YouTube for video content, and Instagram for social media with touch control from both screen and phone.

Advanced 13-Band Equalizer – Professional-grade graphic equalizer with 13 adjustable frequency bands plus 7 preset curves and 3 user-customizable settings enables precise audio tuning matching personal preferences and vehicle acoustics for optimal sound quality.

Time Alignment Technology – Automatically adjusts timing of sound output from each speaker ensuring audio from all speakers arrives simultaneously at listening position, creating precise soundstage and imaging for concert-hall listening experience in vehicle.

Bluetooth HD Voice Quality – HFP 1.8 support provides HD Voice during hands-free calling improving clarity and voice recognition accuracy, while AVRCP 1.6 enables versatile song browsing and selection directly from receiver interface.

Short Chassis Design – Remarkably compact 85.7mm rear depth despite double-DIN display ensures hassle-free installation in tight dashboard spaces with optimal cable management, compatible with modern vehicles having limited installation depth behind dashboards.

2.1A High-Current USB Charging – Rapidly charges smartphones and tablets through rear-mounted USB port providing up to 2.1A charging current, keeping devices powered during navigation and streaming usage throughout long drives.

iDatalink Maestro Ready – Compatible with iDatalink Maestro RR/RR2 modules (sold separately) enabling retention of factory steering wheel audio controls, factory amplifiers, secondary displays, and vehicle information including performance data and climate controls.

Learning Direct OEM Remote – Works with factory steering wheel controls on most Japanese and Korean vehicles without requiring third-party adapters, simplifying installation in Toyota, Lexus, Subaru, Honda, Mazda, Nissan, Hyundai, and Kia models.

Gesture Touch Control – Intuitive touch-and-swipe finger movements provide quick access to functions corresponding to gestures, enabling safer operation of in-car entertainment without diverting attention from road for extended periods.

Comprehensive Media Format Support – Plays extensive audio formats (MP3, WMA, WAV, AAC, FLAC) and video formats (H.264, WMV, MPEG1/2/4, MKV) via USB, supporting wide range of media libraries and downloaded content for complete entertainment flexibility.

Reverse Camera Included – Complete package includes professional-grade reverse camera providing essential rear visibility for safe parking and reversing operations, adding significant value to entertainment system upgrade investment.

Microphone Included – External microphone ensures optimal voice clarity for hands-free calling and voice command recognition with Apple CarPlay and Android Auto, positioned strategically for clear audio pickup away from cabin noise.

Dual Preouts + Subwoofer Output – 2.5V preout voltage drives external amplifiers with dual preout channels plus dedicated mono subwoofer output featuring level and frequency control for complete system expansion and low-frequency management.

Technical Specifications

Frequently Asked Questions

Q: Does this work wirelessly with both iPhone and Android phones?

A: Yes, the JVC KW-M690BW supports both wireless Apple CarPlay (iPhone 6s and newer) and wireless Android Auto (compatible Android phones with active data plan). You can connect via wireless connectivity eliminating cables, or use USB connection if preferred. The wireless functionality works seamlessly for navigation, music, calls, and voice control.

Q: What's included in the package with the reverse camera and microphone?

A: The complete package includes the JVC KW-M690BW head unit with trim plate, a professional-grade reverse camera for rear visibility during parking and reversing, and an external microphone for enhanced voice clarity during hands-free calling and voice commands. This provides everything needed for comprehensive installation except vehicle-specific mounting and wiring accessories.

Q: Will this fit in my vehicle's dashboard?

A: The KW-M690BW uses standard double-DIN size (178 x 100mm) fitting most vehicles with double-DIN openings. The short chassis design (85.7mm depth) ensures compatibility even in vehicles with limited space behind dashboards. However, you'll need to verify your vehicle has a double-DIN opening and check for any vehicle-specific installation requirements or fascia adapters needed.

Q: Can I keep my factory steering wheel controls?

A: Yes, the KW-M690BW features learning direct OEM remote function working with factory steering wheel controls on most Japanese and Korean vehicles (Toyota, Lexus, Subaru, Honda, Mazda, Nissan, Hyundai, Kia) without requiring third-party adapters. For other vehicles or advanced integration including factory amplifiers and vehicle information displays, iDatalink Maestro RR/RR2 (sold separately) provides comprehensive factory integration.

Q: What audio improvements does the 13-Band equalizer and time alignment provide?

A: The 13-Band graphic equalizer enables precise audio tuning across the frequency spectrum, allowing you to adjust sound to compensate for vehicle acoustics and personal preferences with 7 preset curves or 3 custom settings. Time alignment adjusts speaker timing so audio from all speakers arrives simultaneously at the listening position, creating accurate soundstage and imaging dramatically improving clarity and detail compared to standard receivers without these features.

Q: What is wireless mirroring and which apps does it support?

A: Wireless mirroring via MirrorApp+ allows you to display your smartphone screen on the receiver wirelessly, giving you access to apps beyond CarPlay/Android Auto. Supported apps include Waze for navigation, YouTube for video content, and Instagram for social media. You can control these apps using both the touchscreen and your phone, providing expanded functionality while driving.
