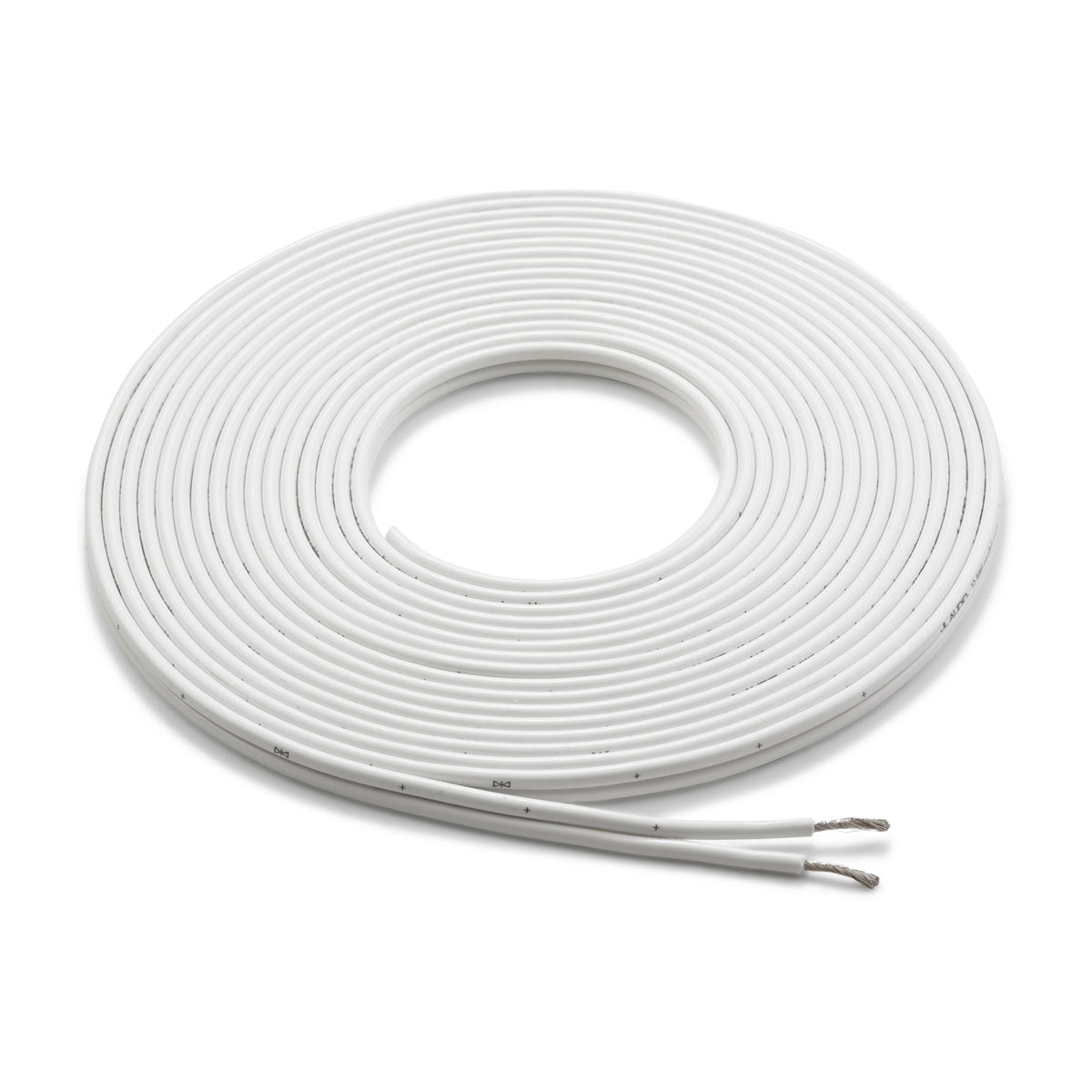

JL Audio JLA-010-13449-00 XM-WHTSC12-25 12AWG Marine Speaker Cable

Heavy-duty 12 AWG marine-grade speaker cable engineered with tinned copper for high-power applications and extended wire runs.

Product Overview

The JL Audio XM-WHTSC12-25 heavy-duty speaker cable delivers reliable high-power signal transmission for demanding marine speaker systems, subwoofers, and extended wire runs. Featuring robust 12 AWG specification with all-copper wire construction, this parallel conductor cable ensures minimal resistance signal transmission across the 25-foot (7.62-metre) length—ideal for high-output tower speakers, marine subwoofers, and long-distance speaker runs where thinner gauge wire compromises performance. The tinned copper construction provides exceptional corrosion resistance—critical for Australian coastal boating, saltwater exposure, and marine environments where standard copper wire rapidly deteriorates from salt spray and moisture ingress.

The soft, flexible white PVC jacket enables easy routing through tight bilge spaces, bulkhead penetrations, overhead panels, and cramped equipment bays despite the heavier gauge construction. Unlike stiff heavy-gauge cables that resist bending and create installation challenges, the XM-WHTSC12's flexible construction simplifies wire runs around corners, through conduit, and along existing cable bundles. The white jacket colour provides aesthetic compatibility with white gelcoat interiors, headliners, and panel surfaces typical in marine vessels. The 25-foot length accommodates typical marine installations: amplifier to tower speakers, cabin head unit to subwoofers, or distributed audio system power runs where 12 AWG capacity prevents power loss and maintains clean audio reproduction.

Key Specifications

• Heavy-duty 12 AWG specification for high-power applications
• All-copper wire construction (not CCA copper-clad aluminum)
• Tinned copper for marine-grade corrosion resistance
• Parallel conductor configuration
• Soft, flexible white PVC jacket
• Length: 25 feet (7.62 metres)
• Minimal resistance signal transmission
• Suitable for extended wire runs and high-power speakers
• Marine-ready construction
• Weight: Not specified
• Warranty: Not specified

Features & Benefits

Heavy-Duty 12 AWG for High-Power Applications
The robust 12 AWG gauge handles higher current loads than standard 16 AWG speaker wire, making it ideal for marine subwoofers, high-output tower speakers, and amplified systems delivering substantial power. The heavier gauge reduces resistance across the wire run, ensuring maximum power transfer from amplifier to speaker without voltage drop that compromises bass impact, dynamic range, and overall volume capability. Essential for JL Audio M6/M7 subwoofers, MHD/MX amplifiers, or any high-power marine audio system where 16 AWG wire becomes a performance bottleneck.

Extended Wire Run Capability
While 16 AWG wire is suitable for runs up to 50 feet with 4Ω speakers, 12 AWG extends this capability to 80+ feet without significant power loss. Perfect for tower speaker installations on larger vessels where wire runs exceed 50 feet, distributed audio systems spanning multiple cabin zones, or flybridge installations requiring long cable runs from cabin-mounted amplifiers. The heavier gauge maintains signal integrity across distances where thinner wire causes audible performance degradation.

Tinned Copper for Marine Corrosion Resistance
The tinned copper construction prevents the green oxidation (verdigris) that destroys standard copper wire in marine environments. Tin plating creates a protective barrier against salt spray, bilge moisture, and the corrosive conditions encountered in Australian coastal boating from tropical Queensland to Southern Ocean conditions. Unlike bare copper that corrodes within months of marine exposure, tinned copper maintains conductivity and connection integrity for years—critical for high-power applications where resistance increase from corrosion causes power loss and heat generation at connections.

Soft, Flexible PVC Jacket Despite Heavy Gauge
Despite the robust 12 AWG conductor size, the soft PVC jacket remains pliable enough for routing through tight spaces, sharp corners, and bulkhead penetrations. Many heavy-gauge cables become too stiff for practical marine installations, resisting bends and creating installation challenges. The XM-WHTSC12's flexible construction enables professional wire routing without kinking, maintains bend radius around corners, and reduces strain on speaker terminals compared to rigid heavy-gauge alternatives.

Parallel Conductor Configuration
The parallel conductor design (two insulated wires side-by-side rather than twisted pair) simplifies termination and connection—especially important with 12 AWG wire where conductor thickness makes twisting and untwisting more difficult than thinner gauges. Easily separate conductors for connection to binding posts, spade terminals, or screw terminals without wrestling with twisted pairs. The parallel configuration maintains consistent conductor spacing along the entire run, ensuring predictable electrical characteristics.

White Jacket for Marine Aesthetics
The white PVC jacket matches common marine interior colours—white gelcoat, headliners, cabin panels, and overhead surfaces typical in boats. Visible wire runs maintain clean professional appearance without the visual clash of black cables against white backgrounds. The white colour also simplifies wire identification during troubleshooting or system modifications—white speaker cable stands out against bilge areas, behind-panel spaces, and equipment bay environments where black wire disappears.

25-Foot Length for Typical High-Power Installations
The 25-foot (7.62-metre) length accommodates typical marine high-power installations: amplifier to subwoofer locations, cabin head unit to tower speakers on medium vessels, or power amplifier to demanding cabin speaker zones. The single continuous length eliminates mid-run splices that create connection points vulnerable to corrosion and increase resistance—particularly important for high-power applications where every connection introduces potential power loss and heat generation.

Technical Specs

Wire Specifications:

• Gauge: 12 AWG (heavier than standard 16 AWG)
• Conductor material: All-copper wire construction
• Conductor treatment: Tinned for corrosion resistance
• Conductor configuration: Parallel (side-by-side)

Jacket Specifications:

• Material: PVC (polyvinyl chloride)
• Colour: White
• Flexibility: Soft, pliable construction despite heavy gauge
• Marine-grade: Yes (tinned copper, corrosion-resistant jacket)

Physical Specifications:

• Length: 25 feet (7.62 metres)
• Weight: Not specified
• Warranty: Not specified

Application:

• High-power marine speaker connections
• Marine subwoofer installations
• Tower speaker systems with extended runs
• High-output marine amplifier connections
• Long-distance speaker runs (up to 80+ feet)

Compatible JL Audio Products (as listed by manufacturer):

• JL Audio M3 Enclosed Tower Speakers
• JL Audio M3 Marine Speakers
• JL Audio M3 Marine Subwoofer
• JL Audio M6 Enclosed Tower Speakers
• JL Audio M6 Marine Speakers
• JL Audio M6 Marine Subwoofer
• JL Audio M7 Marine Subwoofer
• JL Audio MediaMaster 55 stereo
• JL Audio MHD Marine Amplifier
• JL Audio MVi Marine Amplifier
• JL Audio MX Marine and Powersports Amplifiers
• JL Audio VeX Enclosed System
• JL Audio XDM Car and Marine Amplifier

Important Note: This is a 25-foot continuous length. For installations requiring different lengths, measure your specific wire runs before ordering. Standard practice is to add 10-15% additional length for routing flexibility, drip loops, and service slack.

Compatible With / Goes Well With

High-Power Speaker Applications:

• Marine subwoofers rated 200W+ RMS (M3, M6, M7 series)
• High-output tower speakers rated 150W+ RMS (M3, M6 enclosed systems)
• Marine component speakers in high-power systems (100W+ RMS)
• Wakeboard tower speakers with extended wire runs
• Distributed audio systems requiring long cable runs

High-Power Amplifier Applications:

• JL Audio MHD marine amplifiers (high-power monoblock and multi-channel)
• JL Audio MVi marine amplifiers (high-output integrated systems)
• JL Audio MX marine and powersports amplifiers
• JL Audio XDM amplifiers in high-power configurations
• Any marine amplifier delivering 200W+ to individual speaker loads

Installation Accessories:

• Marine-grade heat shrink tubing (larger diameter for 12 AWG)
• Dielectric grease for terminal corrosion prevention
• Heavy-duty wire ferrules or spade connectors (12 AWG compatible)
• Cable ties (UV-resistant, heavy-duty for thicker cable)
• Split loom tubing for wire bundling and protection (larger diameter)
• Weatherproof grommets for bulkhead penetrations (accommodate 12 AWG)
• Marine sealant for deck penetrations

Tools Required:

• Wire strippers with 12 AWG capacity (adjustable or indexed)
• Heavy-duty crimping tool (for 12 AWG connectors)
• Multimeter for continuity and resistance testing
• Heat gun for heat shrink application
• Cable pulling lubricant (for conduit runs with heavier wire)

Wire Run Planning:

• 12 AWG suitable for speaker runs up to 80+ feet for 4Ω speakers
• Ideal for subwoofers regardless of run length (handles high current)
• Excellent choice for tower speakers with runs exceeding 50 feet
• Recommended for any high-power application over 150W RMS per channel
• Always use matched wire gauge for both positive and negative conductors

Caution: 12 AWG wire requires larger connectors, terminals, and installation hardware compared to 16 AWG. Verify your speaker terminals, amplifier binding posts, and connection hardware accommodate 12 AWG wire before ordering. Some compact speakers with small screw terminals may not accept 12 AWG comfortably—verify compatibility for your specific installation.

Frequently Asked Questions

When should I use 12 AWG instead of 16 AWG speaker wire?
Use 12 AWG for: marine subwoofers (any run length), tower speakers with runs exceeding 50 feet, high-power speakers receiving 150W+ RMS, or any installation where amplifier power and wire run length combine to create noticeable power loss with 16 AWG. The heavier gauge prevents voltage drop that compromises bass impact, dynamic range, and maximum volume capability.

Is 25 feet enough for tower speaker installations?
For small-to-medium vessels (up to 25-foot boats), 25 feet typically accommodates cabin-mounted amplifiers to tower positions. Measure your specific run: cabin amplifier location, routing path to tower (avoiding sharp bends), plus 10-15% for drip loops and service slack. Larger vessels or complex routing may require 50-foot lengths—always measure before ordering.

Can I use 12 AWG wire with my existing 16 AWG connections?
Verify compatibility first. 12 AWG wire is thicker and requires larger terminal accommodation. Amplifier binding posts usually accept 12 AWG without issues. Speaker terminals vary—some compact marine speakers have small screw terminals designed for 16 AWG maximum. Check your specific speaker and amplifier terminal specifications before ordering to avoid connection difficulties.

What's the advantage of 12 AWG for subwoofer installations?
Subwoofers draw high current, especially during bass peaks. 12 AWG reduces resistance, ensuring maximum power transfer from amplifier to subwoofer without voltage drop that softens bass impact. Even for short subwoofer runs (10-15 feet), 12 AWG maintains signal integrity during demanding passages where thinner wire causes compression and power loss audible as weak or distorted bass.

How do I properly terminate 12 AWG speaker cable?
Strip 10-12mm of insulation, twist strands tightly (12 AWG has more strands than thinner gauges), and tin with solder if desired for easier handling. For binding posts, wrap bare wire clockwise and tighten firmly—12 AWG requires good terminal grip. For crimped connections, use heavy-duty 12 AWG-rated crimp connectors and appropriate crimping tool. Apply marine-grade heat shrink over all connections for moisture protection.
