JBL Club 64SQ | 6.5" 225W Two-Way Coaxial Car Speakers (Pair) | JBLSPKСB64SQ

Quick answer

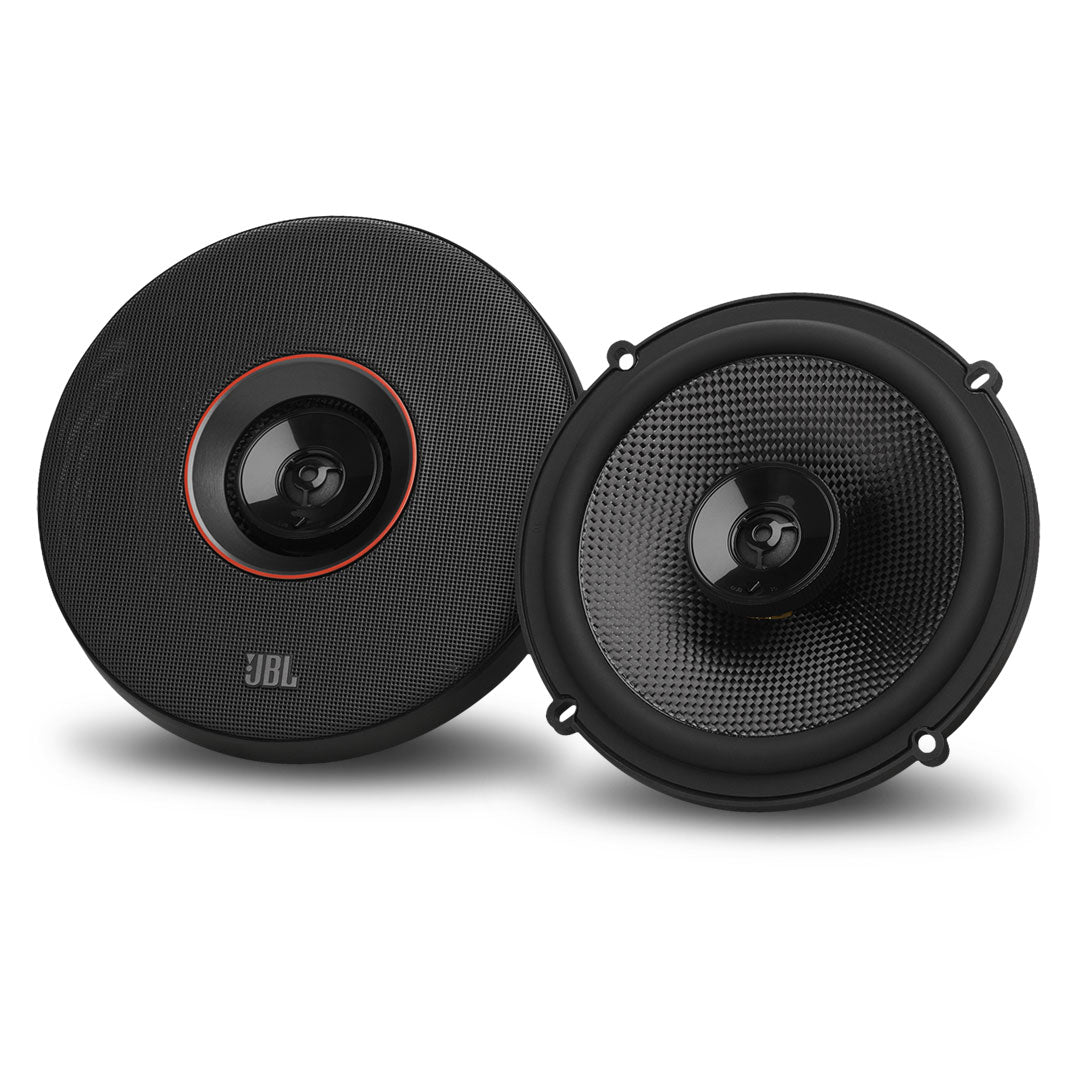

The JBL Club 64SQ is a 6.5 inch two way coaxial speaker pair from the third generation Club SQ range, rated at 75W RMS.

Its carbon fibre Plus One woofer gives more cone area than a typical 6.5 inch driver, and the edge driven silk dome tweeter stays smooth when turned up.

Problems it solves

• Factory door speakers that run out of punch. 93 dB sensitivity makes good use of a factory radio.
• Treble that is too bright or too dull for where the speaker sits. A tweeter level switch gives 0 or +3 dB.
• Odd screw patterns. Multi hole adaptor rings and speed clips are supplied.

Specifications

• Size: 6.5" two way coaxial
• Power: 75W RMS, 225W peak
• Sensitivity: 93 dB at 2.83V
• Frequency response: 48 Hz to 21 kHz
• Impedance: 3 ohm
• Woofer: carbon fibre Plus One
• Tweeter: edge driven silk dome, 0 or +3 dB
• Magnet: Y40 ferrite

Fitment and compatibility

JBL designed the Club range to fit more vehicles than many rivals, and the plastic multi hole rings help with different factory screw patterns. Measure your door opening and depth before ordering.

What is in the box

Two speakers, two grilles, a foam gasket, 16 screws, 8 speed clips, two plastic multi hole adaptor rings and two JBL badges.

Install notes

Set the tweeter level to +3 dB if the speakers sit low in the door, or 0 dB if they point at you. Add the foam gasket to seal against the panel.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the Club 64SQ

Will the Club 64SQ suit my factory 6.5 inch holes?

Most 6.5 inch openings take it; the multi hole rings cover several patterns. Check your depth first. JBL designed the Club range to fit more vehicles than many rivals, and the plastic multi hole rings help with different factory screw patterns.

Does the Club 64SQ need an amplifier?

No. 93 dB sensitivity suits a factory radio, though an amp lets it reach 75W RMS.

Which hardware comes with the Club 64SQ pair?

Grilles, gasket, 16 screws, 8 speed clips, two adaptor rings and badges.
