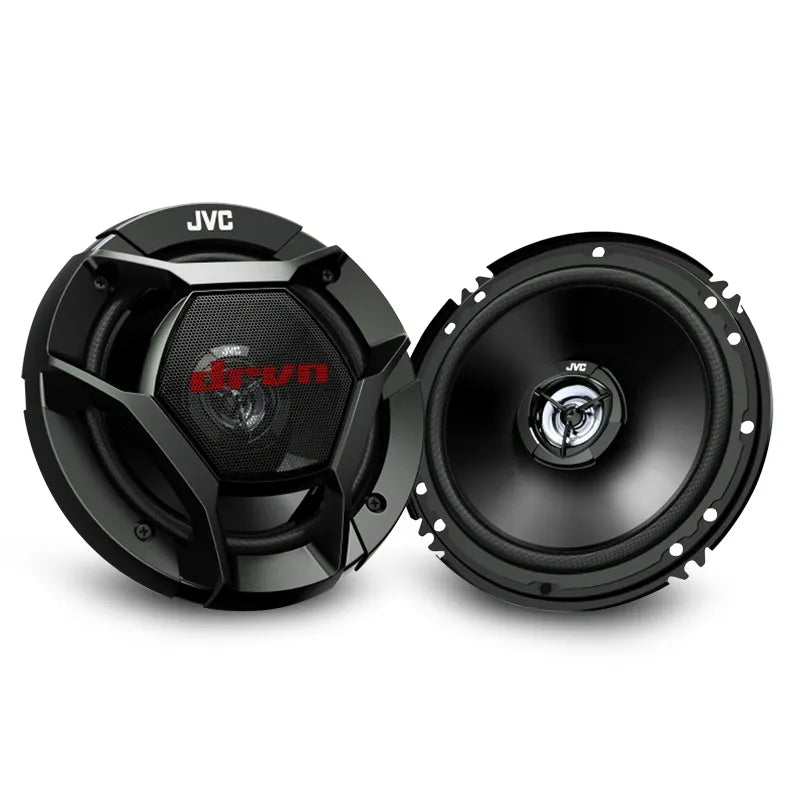

JVC CS-DR521 DRVN DR Series 5-1/4" 260W 2-Way Coaxial Speakers

SKU: CSDR521
Price
$37.20
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
JVC CS-DR521 car speakers

JVC CS-DR521 DRVN DR Series 5-1/4" 260W 2-Way Coaxial Speakers

$37.20

Product features

JVC DRVN DR Series 5-1/4" 260W 2-Way Coaxial Speakers: Increase Your Music's Clarity!

JVC's CS-DR521 5-1/4" 2-way speakers make the upgrade less of a strain on your wallet.

Balanced Neodymium Tweeter
It provides detailed high range and smooth mid range.

Great Factory Replacement
Installable vehicle types are greatly increased thanks to its shorter height.

Wide Opening Grill
Grill’s opening ratio is 30% wider than the conventional model, enabling increased durability and clear sound.

Carbon Mica Cone
Robust and lightweight carbon mica material provides highly responsive, clear and undistorted reproduction.

Hybrid Surround
Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.

Small Design Tweeter Cover
Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.

JVC CS-DR521 Specifications:

Woofer

  • Size 13 cm (5-1/4'')
  • Diaphragm Carbon Mica Cone
  • Surround Hybrid Surround (Rubber & Cloth)
  • Magnet Ferrite

Tweeter

  • Size 2.5 cm (1'')
  • Type Balanced
  • Diaphragm Poly-Ether Imide
  • Magnet Neodymium

General

  • Power Handling Capacity (Peak Power) 260W
  • Power Handling Capacity (RMS) 40W
  • Impedance 4 ohms
  • Sound Pressure Level 88dB
  • Frequency Response 85 to 25,000Hz

Weight

  • Weight (w.Grille) 0.51kg (1.2lbs)
  • Weight (w/o Grille) 0.46kg (1.1lbs)
  • Magnet Mass 153g (5.4oz)
  • Mounting Depth 44.5 mm (1-25/32")

FAQ

What is the mounting depth of the JVC CS-DR521?

The listed mounting depth is 44.5mm. Measure your door or enclosure before you order.

What impedance is the JVC CS-DR521?

It is a 4 ohm design.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
