CAC F7HY9 Double DIN Fascia Kit for Hyundai IX-35

Professional double DIN installation solution engineered specifically for Hyundai IX-35 models.

Product Overview

The F7HY9 fascia kit delivers a seamless integration solution for installing aftermarket double DIN head units in Hyundai IX-35 vehicles (2009-2015). This complete installation kit replaces the factory dash panel, enabling modern head unit upgrades while maintaining OEM-quality finish and precise factory fitment. Manufactured from high-quality ABS plastic moulding, the kit provides durability for Australian conditions with UV-resistant black finish. The kit includes all necessary components: fascia panel, decorative trim ring, mounting brackets, and installation hardware for a complete plug-and-play installation experience. Compatible with both automatic and manual transmission variants, the F7HY9 ensures consistent fitment across the entire IX-35 model range.

Key Specifications

• Double DIN fascia plate engineered for Hyundai IX-35 (2009-2015)
• Internal aperture dimensions: 173mm (W) × 98mm (H) with trim ring, 178mm (W) × 102mm (H) without trim ring
• High-grade ABS plastic construction with UV-resistant finish

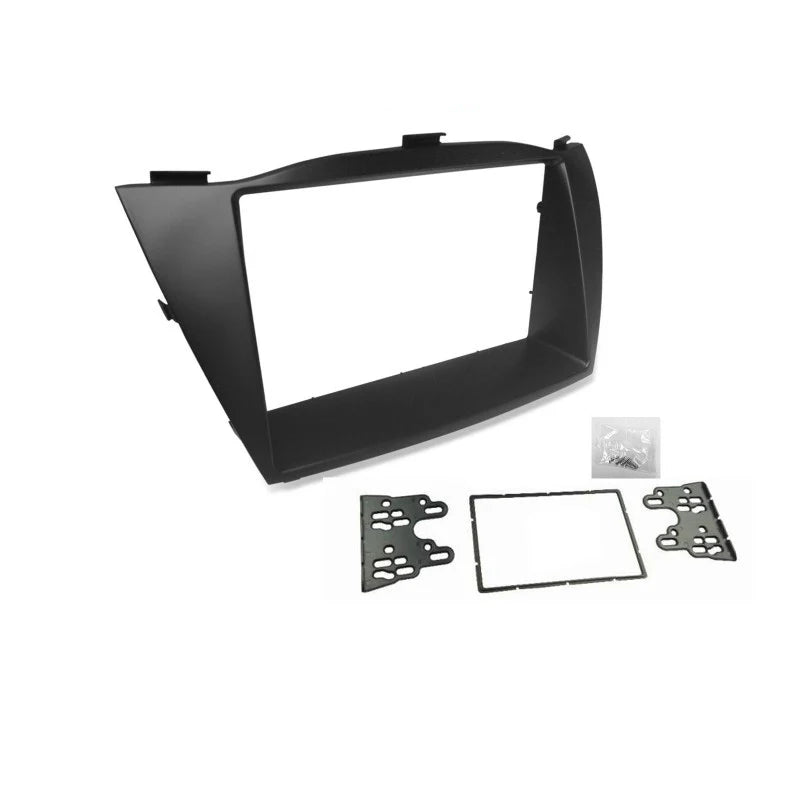

• Complete kit includes: fascia panel, decorative trim ring, mounting brackets, installation screws
• Compatible with standard double DIN head units (ISO 7736 compliant)
• Suitable for both automatic and manual transmission vehicles
• Direct replacement for factory dash panel with OEM design contours

Features & Benefits

Complete Installation Solution – Everything needed for a professional head unit upgrade is included in one package, eliminating the need to source additional brackets or hardware separately. Ideal for workshop installations or capable DIY mechanics upgrading their IX-35's entertainment system.

Precision-Engineered Fitment – Designed specifically for Hyundai IX-35 dash contours, ensuring tight panel gaps and factory-quality appearance. The OEM design sizing matches original dashboard aesthetics without requiring extensive modification in standard installations.

Dual Sizing Options – Trim ring provides flexibility for head unit dimensions. Remove the trim ring to accommodate larger 178mm units, or retain it for standard 173mm head units, ensuring compatibility with most aftermarket brands including Pioneer, Kenwood, Sony, and Alpine.

Durable ABS Construction – UV-stabilised black plastic withstands Australian heat and sun exposure without fading or warping. The material resists cracking even under dashboard temperatures common to vehicles parked in full sun during Australian summer conditions.

Universal Transmission Compatibility – Fits both automatic and manual transmission IX-35 models without requiring separate variants. Minor modifications may be required depending on specific vehicle configuration and aftermarket head unit size.

Technical Specs

• Product Code: F7HY9
• Fascia Type: Double DIN (ISO 7736 standard)
• Material: ABS plastic with UV stabilisation
• Colour: Black (matte finish)
• Internal Aperture (with trim ring): 173mm W × 98mm H
• Internal Aperture (without trim ring): 178mm W × 102mm H
• Mounting System: Bracket retention (factory compatible)
• Package Contents: 1× fascia panel, 1× trim ring, 1× mounting brackets, 1× screw set
• Installation Complexity: Moderate (basic hand tools required)
• Modification Required: Minor trim possible depending on vehicle model and head unit size
• Transmission Compatibility: Automatic and manual variants

Compatible With / Goes Well With

Confirmed Vehicle Compatibility:

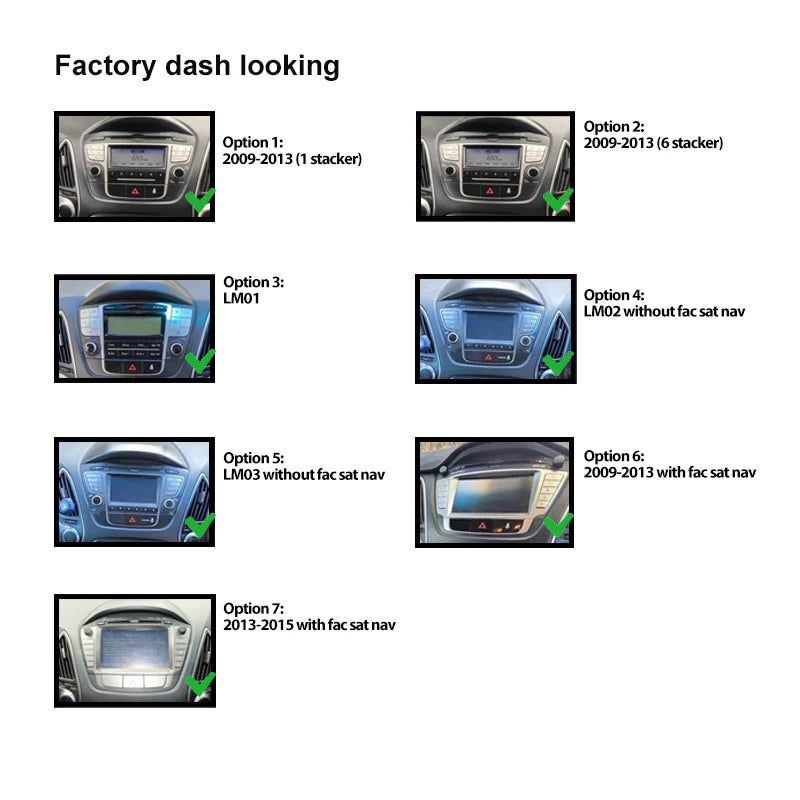

• Hyundai IX-35 2009-2015 (all trim levels)
• Compatible with both automatic and manual transmission models

Pairs Well With:

• Double DIN head units with Apple CarPlay/Android Auto (173-178mm width)
• Hyundai-specific wiring harnesses for head unit integration
• Steering wheel control retention harnesses for IX-35
• Reverse camera integration harnesses
• Antenna adaptor cables (if required for aftermarket head unit)

Note: This fascia is designed for double DIN head units only. Not compatible with single DIN or larger tablet-style units. Minor modification may be required depending on specific vehicle configuration and head unit dimensions. Verify your vehicle's dash configuration before ordering, particularly for vehicles with factory navigation or premium audio systems.

Weight

Not specified

Frequently Asked Questions

Does this fit both LM and LM2 series IX-35 models?

Yes, the F7HY9 is compatible with Hyundai IX-35 models from 2009 through 2015, covering both the early LM series and later variants. The dash panel design remained consistent throughout this production run.

Will this work with oversized 7-inch screens?

Yes, most modern 7-inch double DIN units fit using the 178mm internal aperture. Remove the trim ring for maximum clearance. Minor edge trimming may be needed depending on your specific head unit's bezel dimensions.

Is professional installation required?

The kit suits competent DIY installation with basic hand tools. Professional fitting is recommended if you're also installing wiring harnesses, steering wheel controls, or reverse camera integration for complete system functionality.

Does it include the wiring harness?

No, this is a fascia kit only. You'll need a separate Hyundai-specific ISO harness to connect your aftermarket head unit to the factory wiring loom and retain functionality.

Will this fit vehicles with factory navigation?

The fascia physically fits IX-35 models with factory navigation systems, but you'll need appropriate integration harnesses to retain navigation functionality or properly bypass the factory system when installing your aftermarket head unit.
