CAC F9HY29K1 9 Inch Fascia Kit Compatible with Hyundai iLoad iMax 2008-2010

Upgrade your Hyundai iLoad or iMax with a professional fascia kit that delivers seamless headunit integration and factory control retention.

Product Overview

The Car Audio Connect F9HY29K1 9" Fascia Kit provides a straightforward upgrade pathway for Hyundai iLoad and iMax commercial vehicle owners wanting to install a modern 9-inch touchscreen headunit. Engineered specifically for 2008-2010 EQ models, this installation kit delivers a factory-finished appearance while maintaining steering wheel audio controls. The kit includes a precision-molded fascia panel, steering wheel control interface harness, and factory radio antenna adapter—essential components for a clean, professional aftermarket headunit installation in commercial and family transport vehicles.

Compatible with Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, and most aftermarket universal trapezoid 9" Android stereos. Feature retention depends on the selected headunit model, providing flexibility for various audio system configurations and budgets.

Key Specifications

• Designed for Hyundai iLoad TQ 2008-2010 EQ and Hyundai iMax TQ 2008-2010 EQ models
• Accommodates universal trapezoid-style 9-inch aftermarket headunits only
• Plug-and-play wiring integration with factory harness

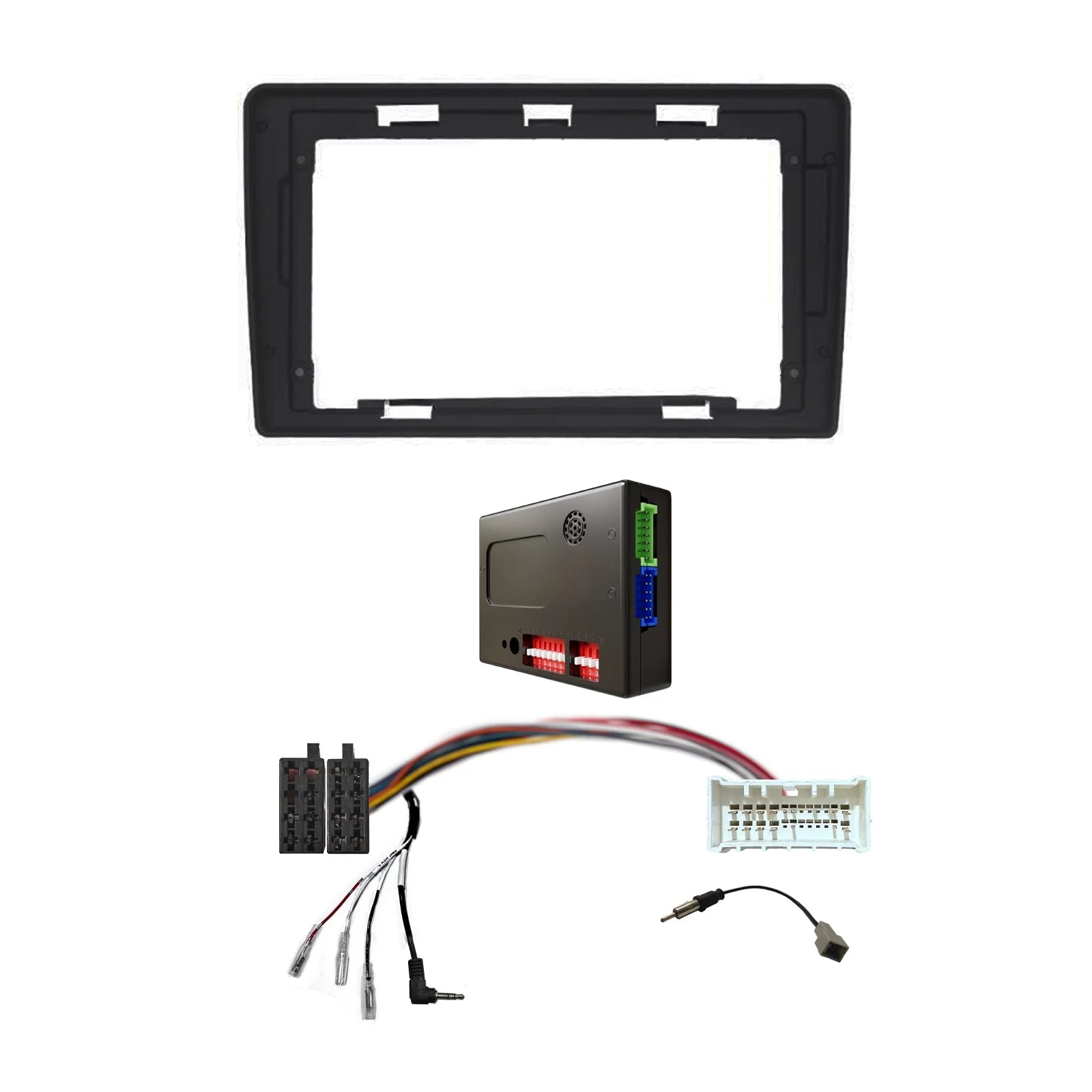

• Includes three essential components: fascia panel, SWC harness, antenna adapter
• Compatible headunits: Alpine AW409S, Alpine AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Canbus systems, and aftermarket Android units
• OEM-matched finish for seamless dashboard integration
• No cutting or splicing required for installation

Features & Benefits

Steering Wheel Control Retention – Preserves factory steering wheel audio controls, allowing drivers to adjust volume, change tracks, and manage calls without removing hands from the wheel during delivery runs, passenger transport, or highway cruising.

Factory Antenna Compatibility – The included antenna adapter ensures your existing Hyundai factory AM/FM antenna connects seamlessly to aftermarket headunits, maintaining radio reception quality across metro and regional Australian areas.

Plug-and-Play Installation – Pre-wired harness system connects directly to iLoad/iMax factory connectors without cutting factory wiring, preserving vehicle warranty integrity and enabling future reversal if needed—crucial for fleet and commercial vehicles.

Professional OEM Appearance – Precision-engineered fascia panel matches factory dashboard contours and texture, eliminating the aftermarket "add-on" look and maintaining professional cabin presentation for commercial applications.

Wide Headunit Compatibility – Works with premium brands including Alpine, Kenwood, Pioneer, and Nakamichi, plus aftermarket Android systems, giving you flexibility to choose navigation, entertainment, and connectivity features that suit your commercial or personal vehicle requirements.

Commercial Vehicle Ready – Ideal for tradies, delivery drivers, and family transport where modern navigation, Bluetooth connectivity, and smartphone integration improve daily operations and passenger experience.

Technical Specs

• Product Code: F9HY29K1
• Fascia Opening: 9 inches (universal trapezoid configuration)
• Vehicle Application: Hyundai iLoad TQ 2008-2010 EQ, Hyundai iMax TQ 2008-2010 EQ
• Included Components: Fascia panel, steering wheel control harness, radio antenna adapter
• Installation Method: Plug-and-play, no cutting required
• Material: ABS plastic with OEM-matched texture
• Colour: Black (factory-matched)
• Installation Time: Approximately 30-60 minutes for DIY installation

Compatible With / Goes Well With

Compatible Vehicles:

• Hyundai iLoad TQ Series (2008-2010) EQ variant
• Hyundai iMax TQ Series (2008-2010) EQ variant

Confirmed Compatible Headunits:

• Alpine AW409S
• Alpine AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Nakamichi Android Canbus systems
• Most aftermarket universal 9" trapezoid Android stereos

⚠️ Compatibility Note: This fascia is designed for universal trapezoid 9" headunits only. Non-trapezoid or non-standard 9" units may not fit correctly. Verify your vehicle is the 2008-2010 EQ variant before ordering by contacting our team for confirmation.

Works Well With:

• Aftermarket 9" Android headunits with Apple CarPlay/Android Auto
• Dash cameras for commercial vehicle protection
• Reverse cameras (requires separate camera and harness installation)
• Amplifier wiring kits for upgraded audio systems
• USB charging solutions for multiple device connectivity

Weight

Product weight: Not specified

Frequently Asked Questions

Does this fit both iLoad and iMax models?

Yes, the F9HY29K1 kit is compatible with both Hyundai iLoad and iMax TQ series vehicles manufactured between 2008-2010 with the EQ variant dashboard.

Will my factory steering wheel controls still work?

Yes, the included steering wheel control harness retains full functionality of your factory controls when paired with compatible headunits that support SWC integration.

Does this kit include reverse camera retention?

No, this kit includes fascia panel, steering wheel control harness, and antenna adapter only. Reverse camera integration requires a separate camera retention harness and compatible headunit.

Can I install this in my commercial iLoad van myself?

Yes, the plug-and-play design allows DIY installation in 30-60 minutes using basic hand tools. No cutting or splicing of factory wiring is required, making it suitable for fleet vehicles.

What if I'm unsure about my vehicle variant?

Check the product compatibility photos at caraudioconnect.com.au or contact the Car Audio Connect team directly to confirm your specific iLoad/iMax dashboard configuration before ordering.
